Характеристики
You are here:Home>>Mini Size Series>>NES Series
Product Description

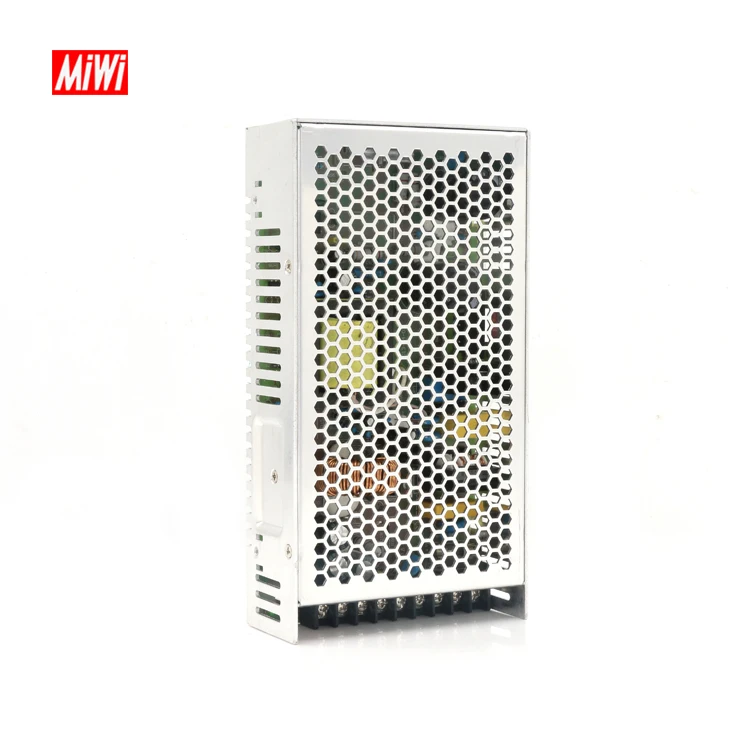

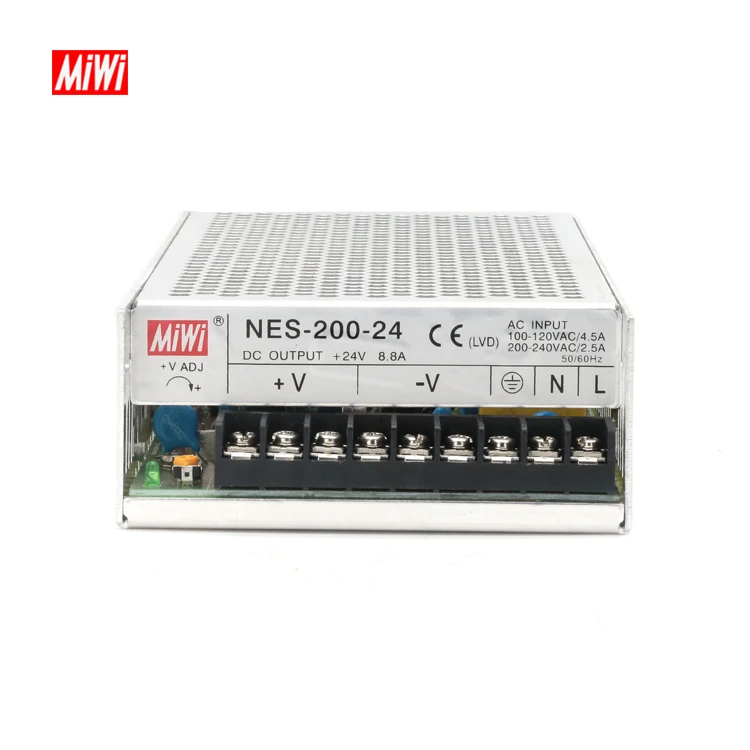

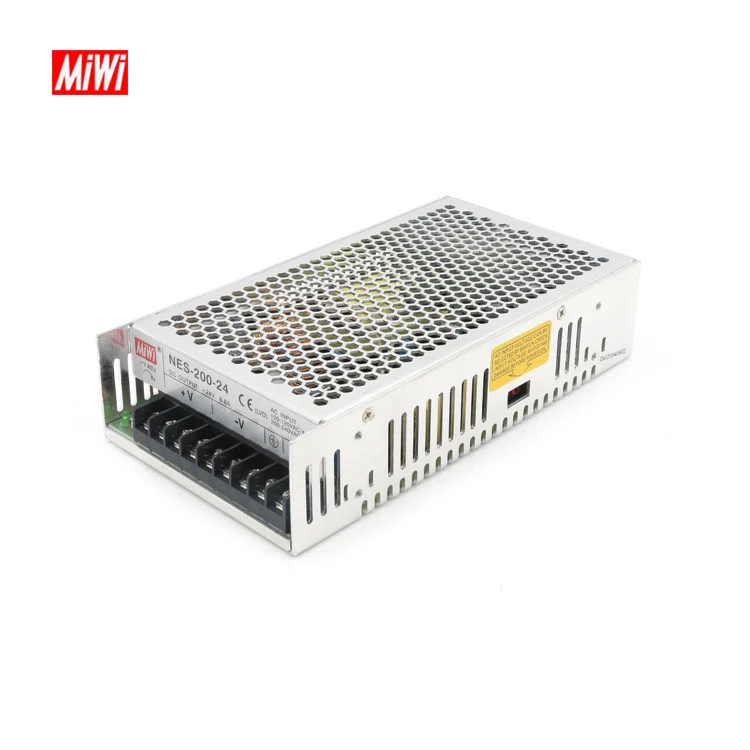

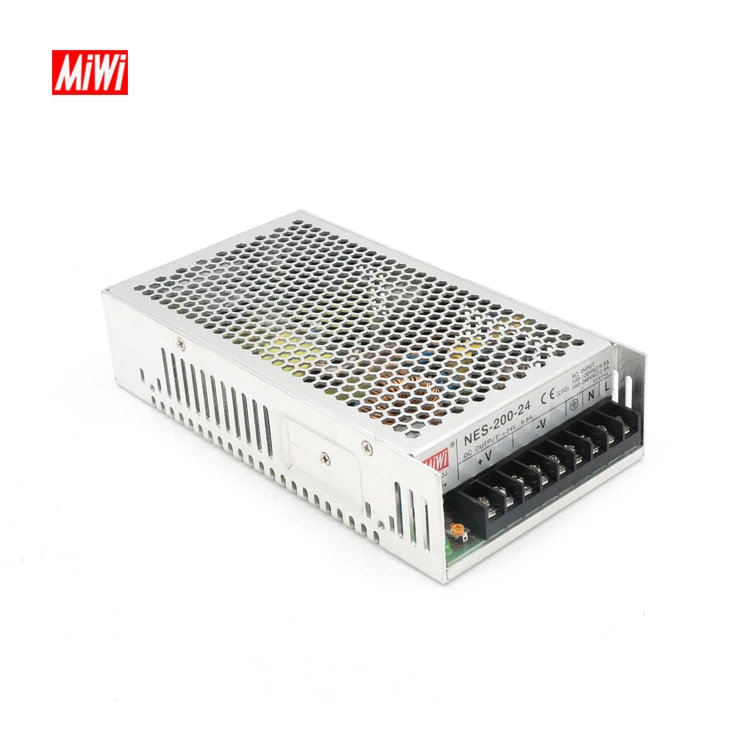

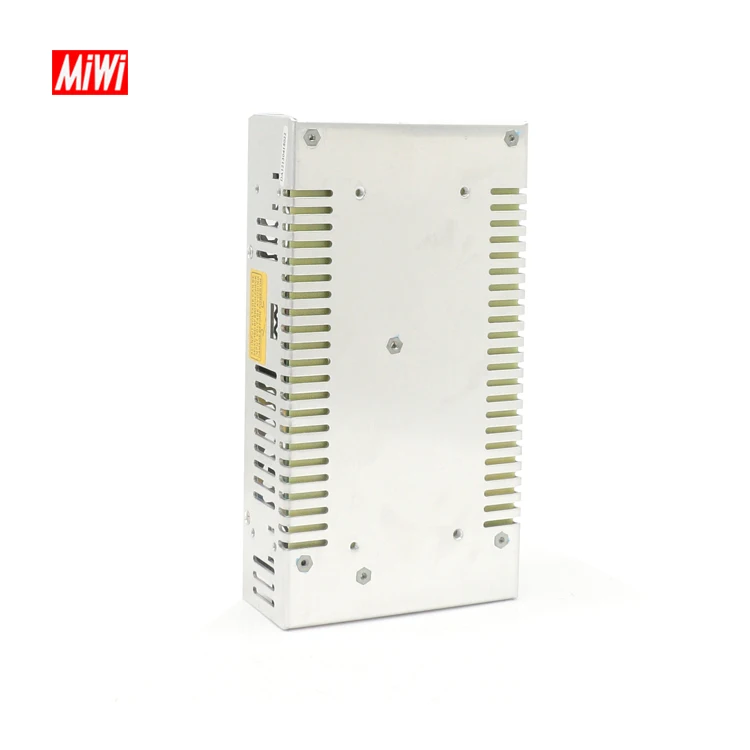

MMiWi NES-200-12 small size DC 12V LED Indicator Switching Power Supply 100w
- AC input range selectable by switch
- 100% full load burn-in test
- Protections: Short circuit / Overload / Over voltage / Over temperature
- LED indicator for power on
- Forced air cooling by build-in DC fan
- Fixed switching frequency at 90 KHz
- Withstand 300VAC surge input for 5 seconds.
- Low cost, high reliability, high efficiency and long life
- Bulit-in constant current limting circuit
- 2 years warranty
| MODEL | NES-200-3.3 | NES-200-5 | NES-200-7.5 | NES-200-12 | |
| OUTPUT | DC VOLTAGE | 3.3 V | 5V | 7.5V | 12V |
RATED CURRENT | 40A | 40A | 27A | 17A | |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 40A | 0 ~ 27A | 0 ~ 17A | |
| RATED POWER | 132W | 200W | 202.5W | 204W | |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
VOLTAGE ADJ. RANGE | 2.97 ~ 3.7V | 4.6 ~ 5.6V | 6 ~ 9V | 10 ~ 13.5V | |
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±2.0% | ±2.0% | ±1.0% | |
LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION Note.5 | ±1.5% | ±1.0% | ±1.0% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms, 20ms/115VAC at full load | ||||
HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE Note 7 | 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | ||||
EFFICIENCY (Typ.) | 75% | 79% | 82% | 85% | |
AC CURRENT (Typ.) | 4.5A/115VAC 2.5A/230VAC | ||||
INRUSH CURRENT (Typ.) | 40A/115VAC 55A/230VAC | ||||
LEAKAGE CURRENT | <3.5mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105~ 150% rated output power | |||
Protection type :Constant current limiting, recovers automatically after after fault condition is recover | |||||
| OVER VOLTAGE | 3.8 ~ 4.9V | 5.75 ~ 7.0V | 9.4 ~ 10.9V | 13.8 ~ 16.2V | |
| Protection type : Shut down O/P voltage, re-power on to recover | |||||
OVER TEMPERATURE | 95°C±5°C (3.3V) , 100°C±5°C(5V) , 90°C±5°C(7.5V) ,85°C±5°C (12-24V), 80°C±5°C (27-36V) 75°C±5°C (48V),(TSW1) Detect on case | ||||
Protection type : Shut down O/P voltage, recovers automatically after temperature is gose down | |||||
ENVI- RONMENT | WORKING TEMP. | -20 + 50℃(Refer to load derating curve"") | |||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing C34 | ||||
STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
TEMP. COEFFICIENT | ± 0.03%℃/ (0 ~ 50 ℃ ) | ||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
SAFETY & EMC Note 8 | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| OTHERS | MTBF | 271.9Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 215*115*50mm (L*W*H) | ||||
| NOTE | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.Please connect positive pole of input voltage to mark “L” of the terminal block and connect negative pole of input voltage with mark “N” of the terminal block. using DC voltage for input voltage. | ||||
| MODEL | NES-200- 15 | NES-200- 24 | NES-200- 27 | NES-200- 36 | NES-200- 48 | |
| OUTPUT | DC VOLTAGE | 15V | 24V | 27V | 36V | 48V |
| RATED CURRENT | 14A | 8.8A | 7.8A | 5.9A | 4.4A | |
| CURRENT RANGE | 0 ~ 14A | 0 ~ 8.8A | 0 ~ 7.8A | 0 ~ 5.9A | 0 ~ 4.4A | |
| RATED POWER | 210W | 211.2W | 210.6W | 212.4W | 211.2.W | |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | 240mVp-p | |
VOLTAGE ADJ. RANGE | 13.5~ 18.5V | 20~ 26.4V | 26 ~ 32V | 32~ 40V | 41 ~ 56V | |
VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION Note.5 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms, 20ms/115VAC at full load | |||||
HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE Note 7 | 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC | ||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||
EFFICIENCY (Typ.) | 85% | 87% | 88% | 89% | 89% | |
AC CURRENT (Typ.) | 4.5A/115VAC 2.5A/230VAC | |||||
INRUSH CURRENT (Typ.) | 40A/115VAC 55A/230VAC | |||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105~ 150% rated output power | ||||
| OVER VOLTAGE | 18 ~ 21V | 27.6~ 32.4V | 33.7 ~ 39.2V | 41.4~ 46.8V | 57.6~ 67.2V | |
95°C±5°C (3.3V) , 100°C±5°C(5V) , 90°C±5°C(7.5V) , 85°C±5°C (12-24V),80°C±5°C (27-36V) 75°C±5°C (48V), (TSW1) Detect on case | ||||||
| OVER TEMPERATURE | Protection type : Shut down O/P voltage, recovers automatically after temperature is gose down | |||||
| ENVI-RONMENT | WORKING TEMP. | -20 + 50℃(Refer to load derating curve"") | ||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing C34 | |||||
STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ± 0.03%℃/ (0 ~ 50 ℃ ) | |||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||||
