GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Fiberglass Reinforced Polymer Aviation Warning Spheres marking on High-Voltage
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 100.67 $* | 102.43 $* |
| Jul-16-2025 | 81.50 $* | 83.57 $* |
| Jun-16-2025 | 99.41 $* | 101.73 $* |
| May-16-2025 | 98.66 $* | 100.72 $* |
| Apr-16-2025 | 78.88 $* | 80.77 $* |
| Mar-16-2025 | 96.86 $* | 98.24 $* |
| Feb-16-2025 | 96.36 $* | 98.57 $* |
| Jan-16-2025 | 95.30 $* | 97.2 $* |
Характеристики
Product Description

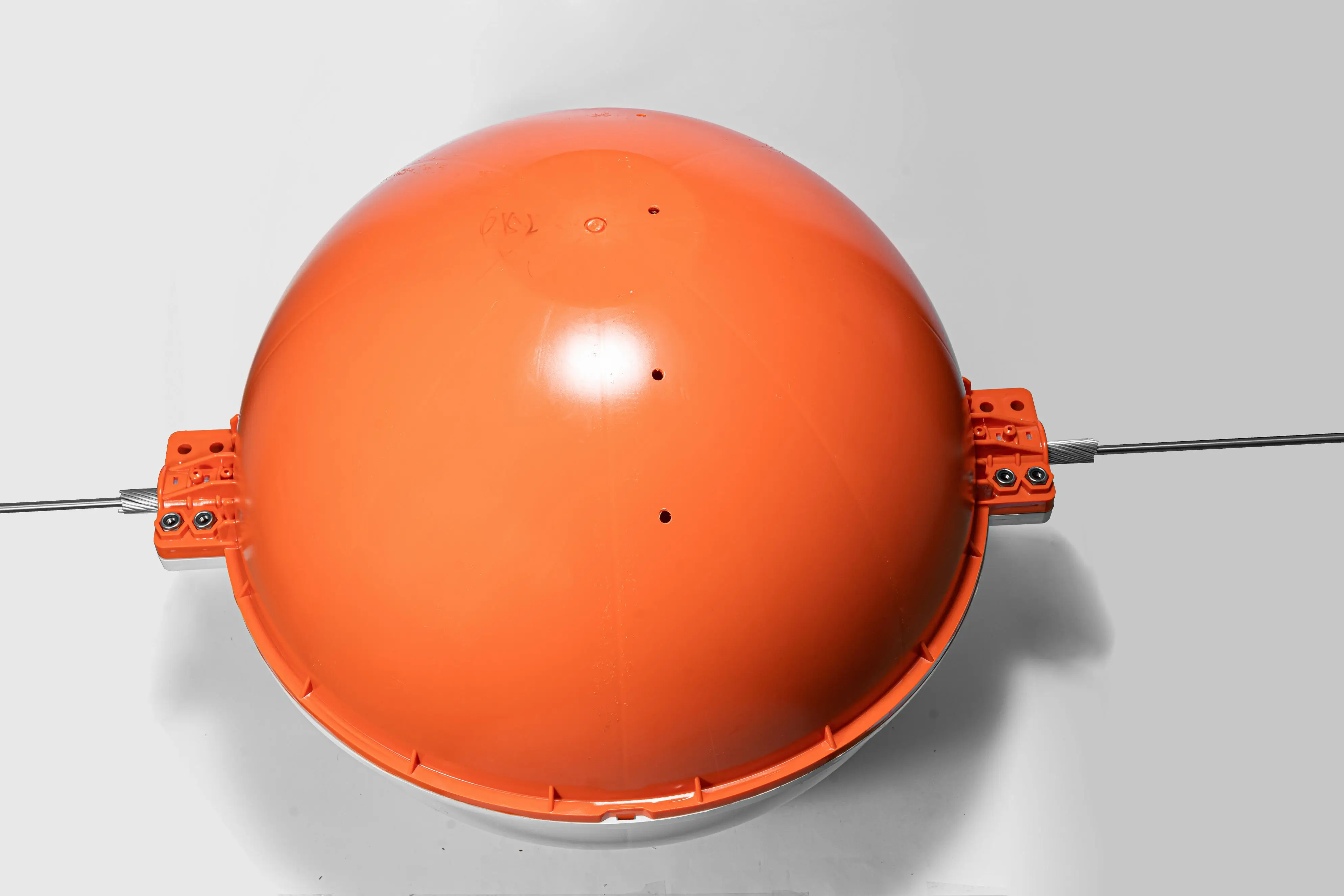

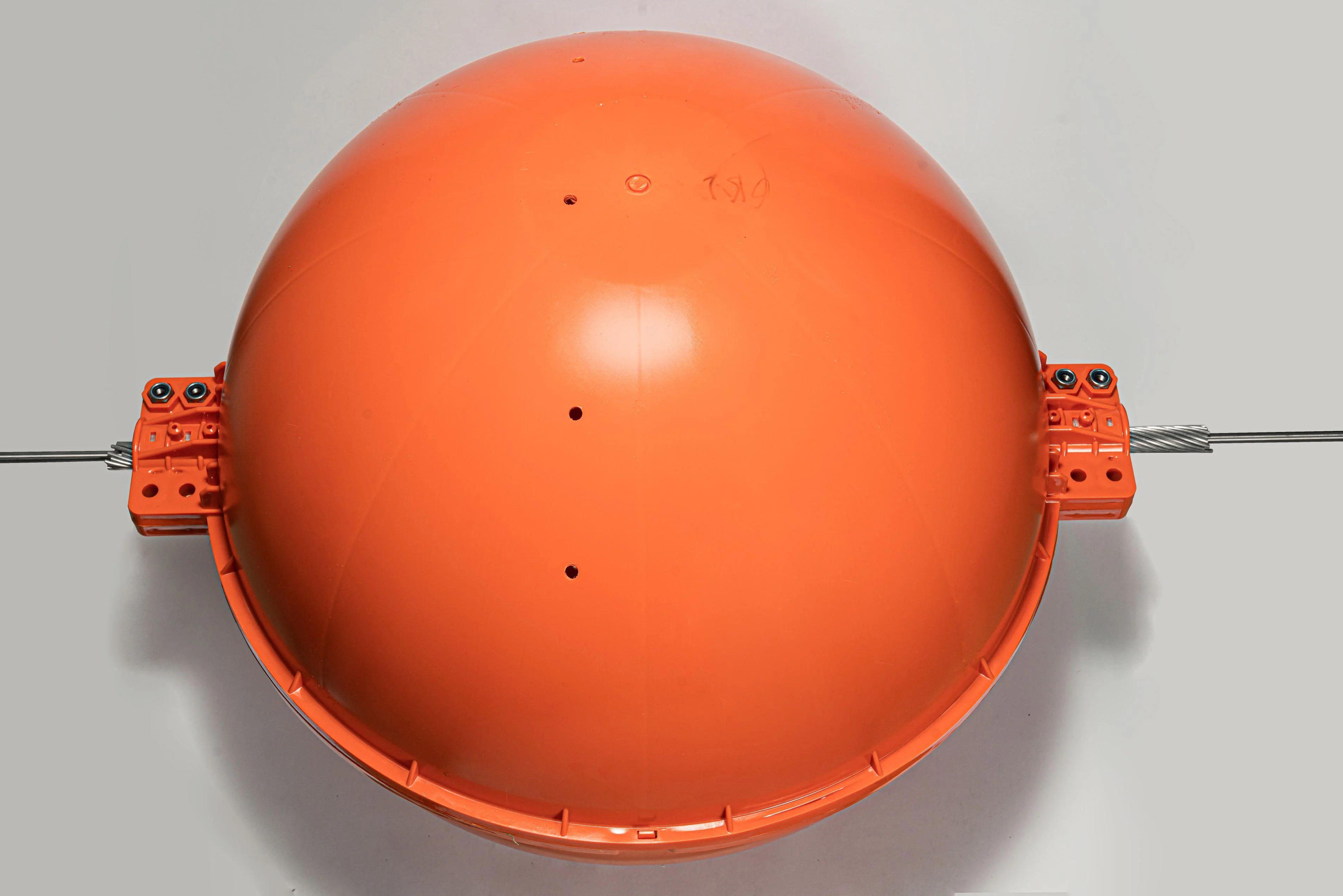

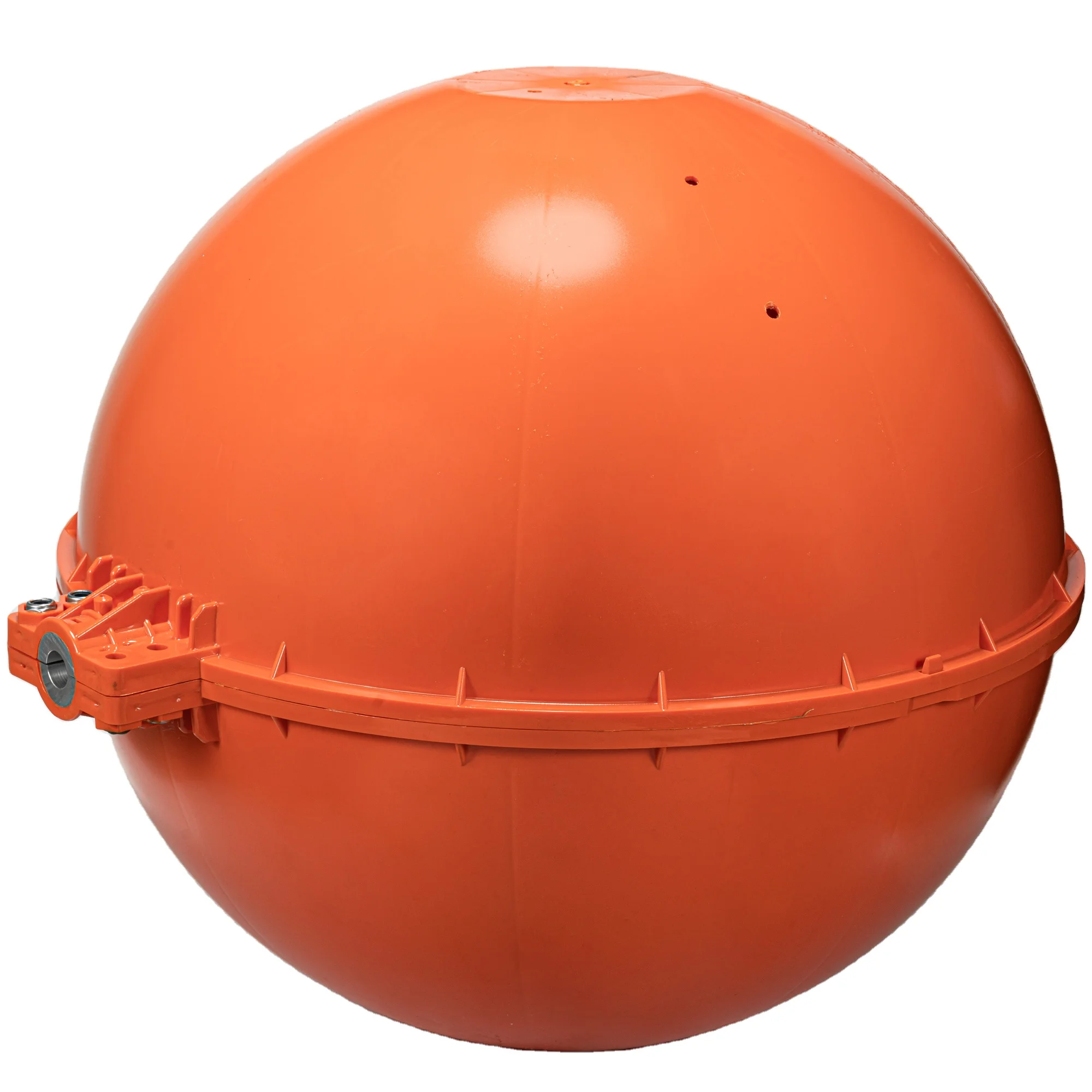

Fiberglass Reinforced Polymer
Designed to use for high-rise transmission lines, especially for EHV (500,000KV) transmission cables, river-crossing transmission lines to provide the warning marks.
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney,
ports, wind power plants, bridge and city high-rise buildings where require aviation warning. Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.
ports, wind power plants, bridge and city high-rise buildings where require aviation warning. Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.
For more details :
emma@chendongtech.com
what'sapp :0086-13342512879
what'sapp :0086-13342512879
Skype: chendongtech1
Product Presentation
Item | Parameter |
Model | CM-012ZAQ |
Operating Voltage | AC90-260V(other available) |
Reflect factor | 0.3-0.7 |
Material | glass fiber reinforced plastics |
Emitting color | Red/White |
Beam angle | 360° horizontal beam angle |
≥10° vertical beam spread | |

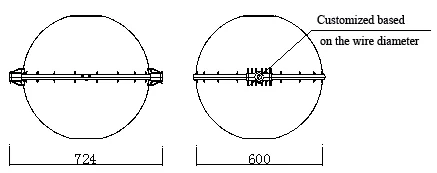

Overall size(mm) | 600mm*741.5mm*600mm |
Installation size(mm) | suitable cable size is 35-150mm |
Ingress protection | IP65 |
Operating temperature | -55℃~55℃ |
Net weight | 8KG |
Wind load | 80m/sec. |
Key Feature
1. Aviation obstruction ball(Aviation warning ball) installed in the wire rope with thunder protected ground wire of the overhead tower, each obstacle ball's distance can't exceed 30 meters, and equal Interval setting.
2. Aviation obstruction ball(Aviation warning ball) have red(orange) or white, should be interphase setting.
3. Involved multiterm lines, cables situation, the height of the balls should not be lower than the height of the highest marked overhead line.
Installation Project
