RayTools 6 оси робота лазера 1kw к 20kw Робототехника лазерными сварочными
- Категория: >>>
- Поставщик: Shanghai,Empower,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 41650.9 $* | 43733.1 $* |
| Aug-19-2025 | 41300.26 $* | 43365.54 $* |
| Jul-19-2025 | 34650.48 $* | 36383.88 $* |
| Jun-19-2025 | 40600.14 $* | 42630.77 $* |
| May-19-2025 | 35350.38 $* | 37118.67 $* |
| Apr-19-2025 | 39900.69 $* | 41895.6 $* |
| Mar-19-2025 | 39550.44 $* | 41528.39 $* |
| Feb-19-2025 | 39200.98 $* | 41160.1 $* |
| Jan-19-2025 | 38850.67 $* | 40793.65 $* |
Характеристики
Product Overview

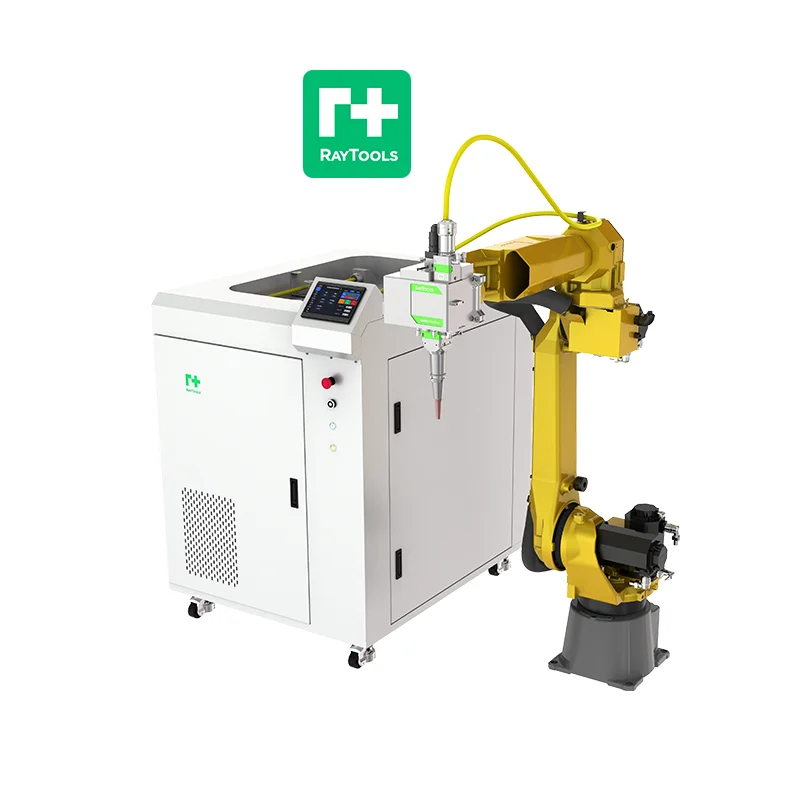

OLE-Robotics Laser Welding Kit
OLE-Robotics Laser Welding Kit is an automated robot laser system for welding which was launched by Raytools AG in 2021.
It is applicable to metal welding with flexible option in profile shapes and processing paths.
* World leading core components like IPG fiber laser, Fanuc robot and Raytools welding head.
* 6 Axis robot cutting with easy access to complicated 3D metal parts.
* Compact size to decline floor inhabitation.
* Flexible options of laser type (fiber/diode/blue laser) and power from 1KW to 20KW.
* Offline robot CAM software optional to simplify application to various 3D workpieces.
It is applicable to metal welding with flexible option in profile shapes and processing paths.
* World leading core components like IPG fiber laser, Fanuc robot and Raytools welding head.
* 6 Axis robot cutting with easy access to complicated 3D metal parts.
* Compact size to decline floor inhabitation.
* Flexible options of laser type (fiber/diode/blue laser) and power from 1KW to 20KW.
* Offline robot CAM software optional to simplify application to various 3D workpieces.

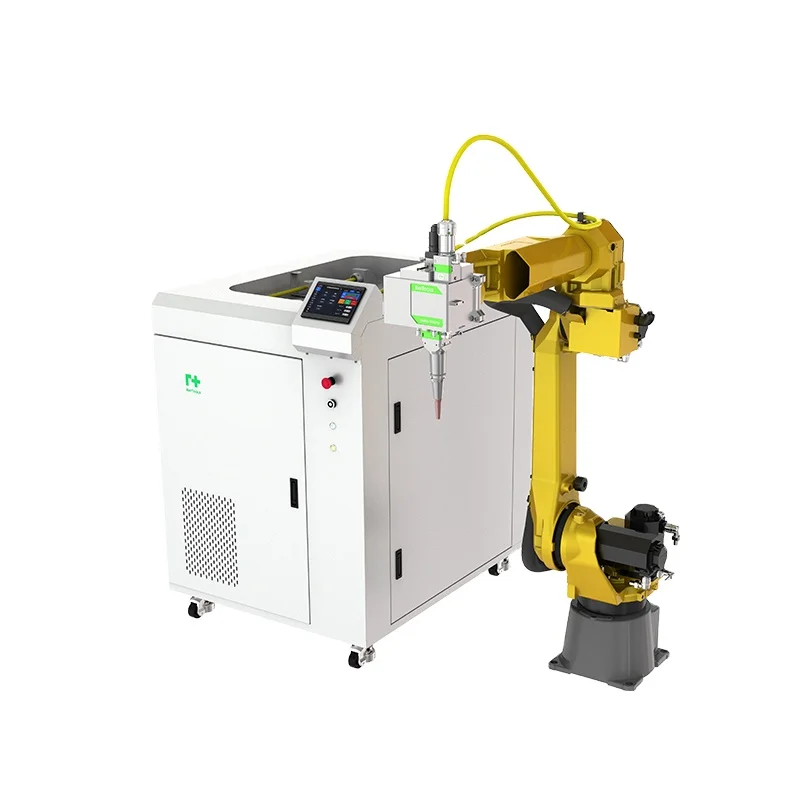

Details Images
Product Paramenters
Fiber/Diode/Blue Laser | IPG/Raycus (Others optional) | Repeatability | ± 0.05- ± 0.08mm |
Laser Power | 1KW-20KW | Wavelength | Fiber 1064nm/Diode 915nm/Blue 450nm |
Robot | Fanuc | Welding Head | Raytools |
Working Radius | 1811-1813mm (others optional) | Operating Temperature | 10-40℃ |
Payload | 20kg (others optional) | Power Supply | 220V/50Hz/60Hz/1 phase/; 380V/50Hz/60Hz/3-phase (Others optional) |
Axles | 6 | Cooling | Water cooling |
Recommend Products
Company Profile
About Raytools
RayTools designs and produces laser beam delivery systems, commonly called beam tools or processing heads.
Founded in 2005, RayTools is headquartered at its design center in Switzerland. Its processing heads are used for macro- and micro-processing applications, which includes cutting, welding, cladding and heat treatment etc.
RayTools processing heads have built-in intelligence, incorporating real-time sensing, feedback control loop, and adjustment capabilities.
RayTools has grown to be one of the largest beam tool suppliers in the world. It sells more units, to more customers, than any other company in its category.
Founded in 2005, RayTools is headquartered at its design center in Switzerland. Its processing heads are used for macro- and micro-processing applications, which includes cutting, welding, cladding and heat treatment etc.
RayTools processing heads have built-in intelligence, incorporating real-time sensing, feedback control loop, and adjustment capabilities.
RayTools has grown to be one of the largest beam tool suppliers in the world. It sells more units, to more customers, than any other company in its category.
