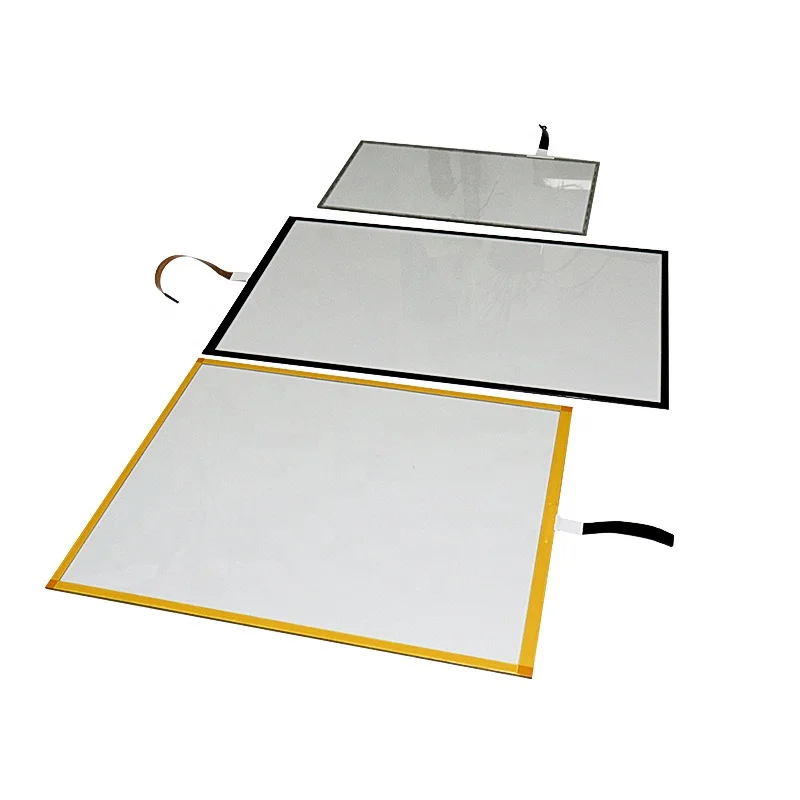

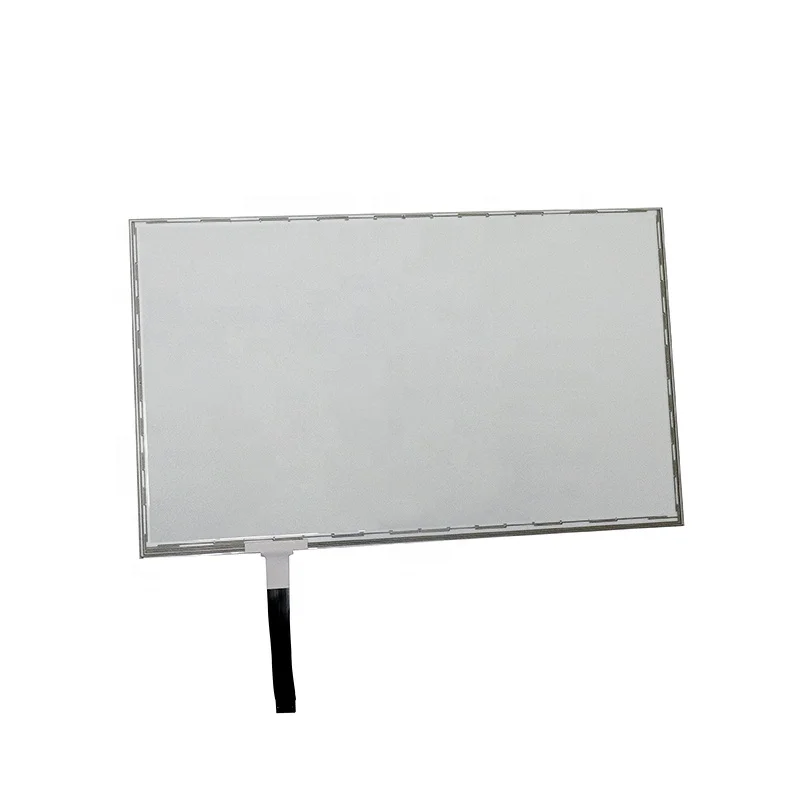

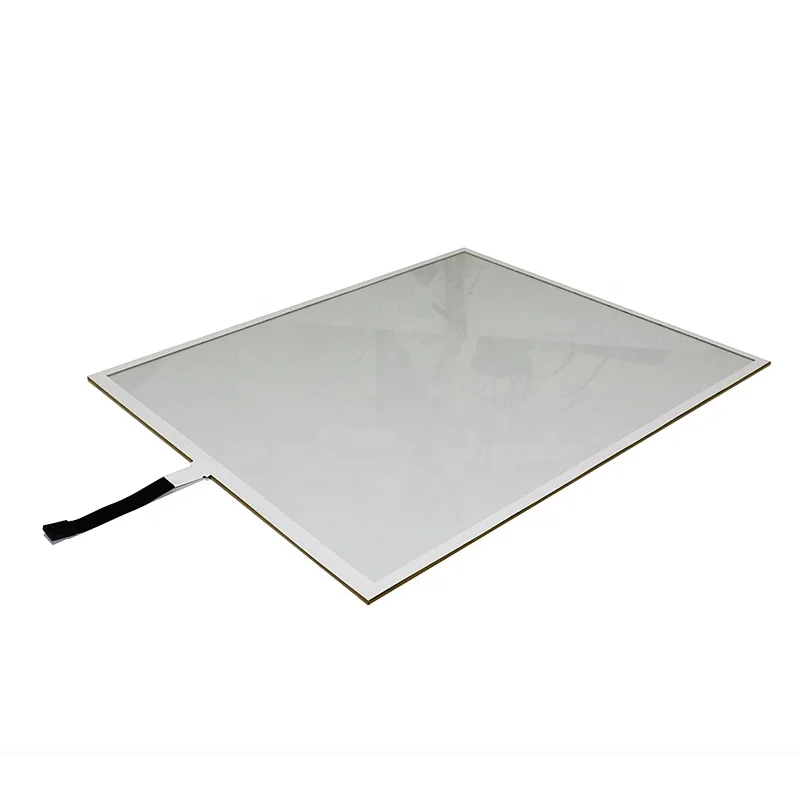

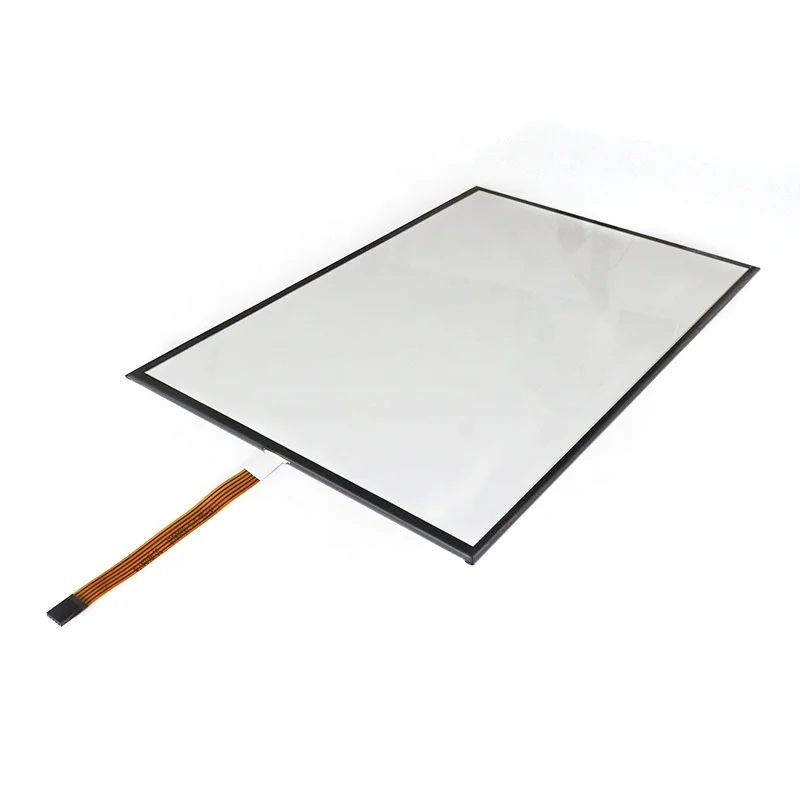

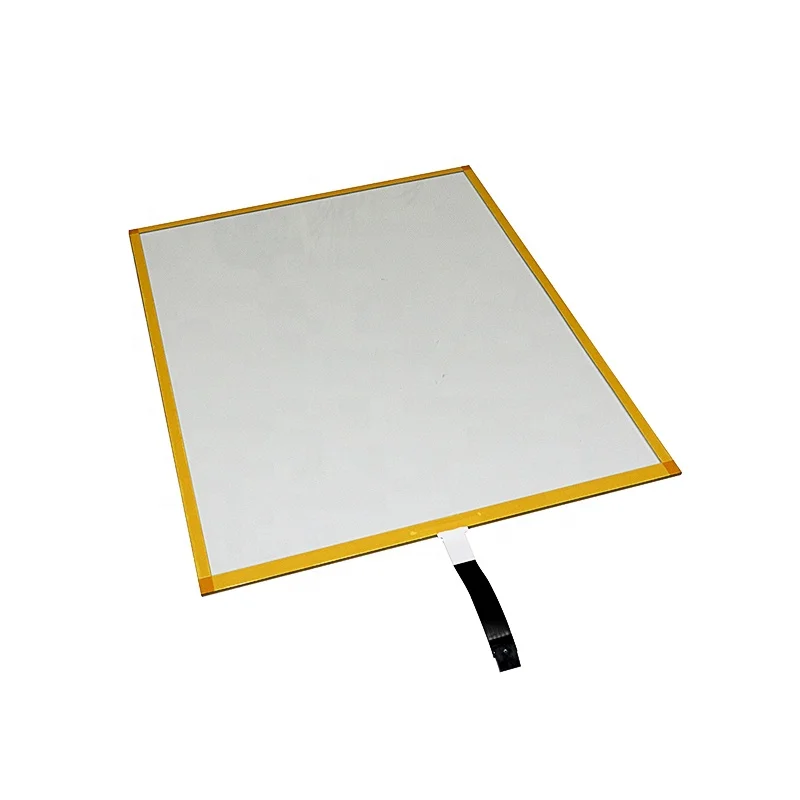

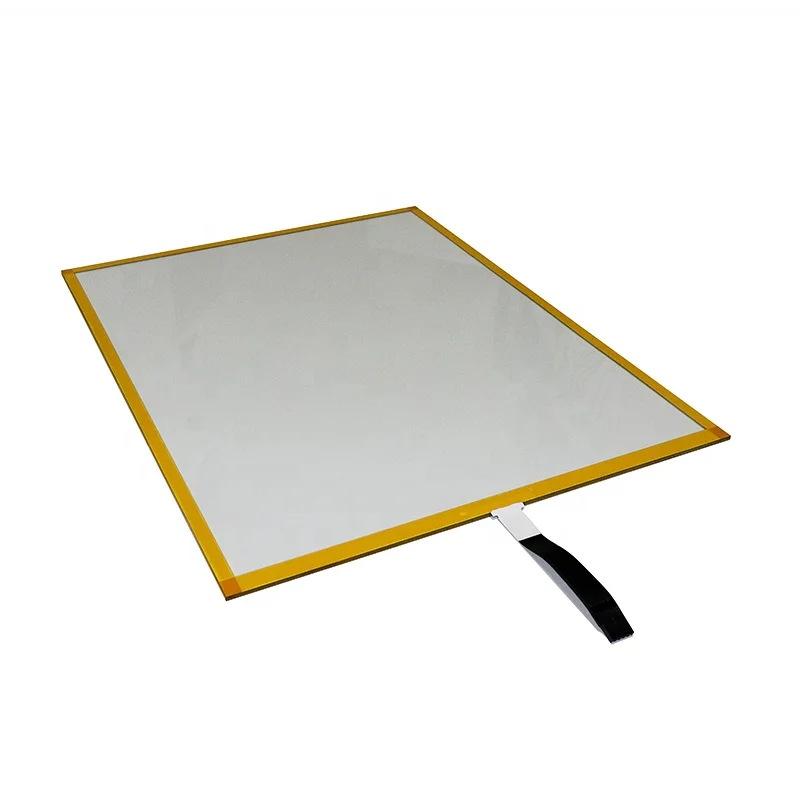

Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для
Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для

Hanksen поверхности емкостный сенсорный экран работает с 3M microtouch панель exii-7720sc контроллер для


Поделиться:


Цена:52,00 $ - 55,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 62.73 $* 65.38 $*
Aug-20-2025 61.36 $* 64.10 $*
Jul-20-2025 51.23 $* 54.27 $*
Jun-20-2025 60.67 $* 63.51 $*
May-20-2025 53.7 $* 56.83 $*
Apr-20-2025 59.41 $* 62.69 $*
Mar-20-2025 59.18 $* 62.52 $*
Feb-20-2025 58.60 $* 61.7 $*
Jan-20-2025 58.45 $* 61.25 $*

Характеристики



Product Description


Hanksen surface capacitive touch screen works with 3M microtouch touch screen panel exii-7720sc controller for replacement
Features & Functions:
1. Super slim border design allows better integration for new generation flat panel displays
2. Outstanding accuracy, optics and durability that exceeds current market standards
3. Unprecedented optical transmission, low reflection, and minimized color distortion
4. Surface scratch hardness > 7H, durability over 200 million touches life, high light transmission rate > 92%
5. 3 years free warranty





Hanksen surface capacitive touch panel offers outstanding accuracy, optics and durability that exceeds current market standards.The super slim border design allows better integration for new generation flat panel displays. The panel is of the best optical quality in the industry. With unprecedented optical transmission, low reflection,and minimized color distortion, the panel sets a new standard and brings eye opening experience to users. The standard surface antiglare treatment makes the panel suitable for most outdoor and indoor applications. The panel is made of all new materials and processes that make it more durable and reliable. This provides extra resistance to vandalism and hazardous environments.




Hanksen surface capacitive touch panel consists of multilayer coatings on a glass panel. The layered structure is shown in above figure . Transparent conductive coatings are coated on both sides of the glass panel. Specially designed electrodes are laid around the panel’s edge on top of the front-side conductive coating to evenly distribute a low voltage across the front-side conductive coating, creating a uniform electric field. The backside conductive coating is used for electromagnetic interference (EMI) shielding. A hard coat layer is laid on top of the front-side conductive coating to provide protection to the front-side conductive coating. The layered structure is optimized to provide extraordinary optical quality and durability.


Hanksen surface capacitive touch panel

Sizes: from 6”-24”,customized size is welcome
Controller USB/RS-232

EETI or 3M controller is compatible




Touch Controller
The controller measures the values of the current flow from the four corners and calculates the X, and Y coordinates of the touch location. The raw coordination data is further analyzed and compensated to give the optimized linearity accuracy. The controller utilizes its multi-point linearity compensation function to compensate non-uniformity of the panel. Each panel is calibrated in factory. Its compensation data is stored in EEPROM of the controller in pair with the panel and is used for linearity compensation. The compensated coordinates is then transmitted to the host computer through RS232 or USB interfaces.Our surface capacitive touch screen compatible EETI controller like ESCAP7700 and 3M like EXII-7720 etc

Capacitve Touch Screens & Integrated Touch Monitors are used for Public Access Kiosk, ATM applications, star gaming slot machines,armarium/medical facility,precision Instrument/equipment and machinery,ATM/POS machine and industrial touch monitor etc.

With Superior specs. such as: surface scratch hardness > 7H, durability over 200 million touches life, high light transmission rate > 92%, narrow border for easy integration, compact size touch controller board designed to fit inside all LCD displays.


Specifications
Product type
Surface capacitive touch screen
Operation mode
Capacitive touch pen or hand touch
Connection line
FPC


 Environmental characteristics
Operating temperature
-30℃to 70℃
 Storage temperature
 -40℃to 80℃
 Operating humidity
 20%RH-90%RH
 Storage humidity
 10%RH-90%RH


 Electronic properties
 Loop resistance
 100~1000Ω
 Linear
 X≤1.5%, Y≤1.5%
 Reaction timeOperating humidity
≤5ms
 Insulation resistance
  ≥20MΩ/25V(DC)
 Withstand voltage
 No damage at DC50V/60sec.
 Optical properties
 Transmittance
 ≥92% per ASTM D1003(measured by BYK-Gardner Haze Meter at 550nm)
 Atomization degree
 Anti-glare Finish: <1%
 Reliability
 Constant temperature and humidity
 [60°C/90%RH, 120 hours, can be tested after returning to normal temperature for 24 hours]
 high temperature
 [80°C /120 hours, can be tested after returning to normal temperature for 24 hours]
 Low temperature
 [-40°C /120 hours, can be tested after returning to normal temperature for 24 hours]
 Hot and cold cycle
 [-30°C ~70°C cycle once every 30 minutes, a total of 20 cycles, can be tested after returning to normal temperature for 24 hours.]
 Salt spray test
 Salt solution PH: 6.5~7.2, spray volume: 1~2ml/80cm2/H, time 72H, temperature 40℃.
 Durability
 Touch test
 200 million times
 Scribe test
 100,000 times


Application Scenario




Our surface capacitive touch screen with Ultra-high precision and Ultra-long lifetime is widely used in star gaming slot machines,armarium/medical facility,precision Instrument/equipment and machinery,ATM/POS machine and industrial touch monitor etc.

3-years free warranty and stable quality is highly recognized by our clients all over the world.


Packing


Well protected by PE foam,inner box and Carton






Delivery


Hanksen surface capacitive touch screen can works well with original 3M controller,it is a good choice for 3M touch screen replacement.
Custom made is welcome !!!
Production time: 30-45 days
