Application

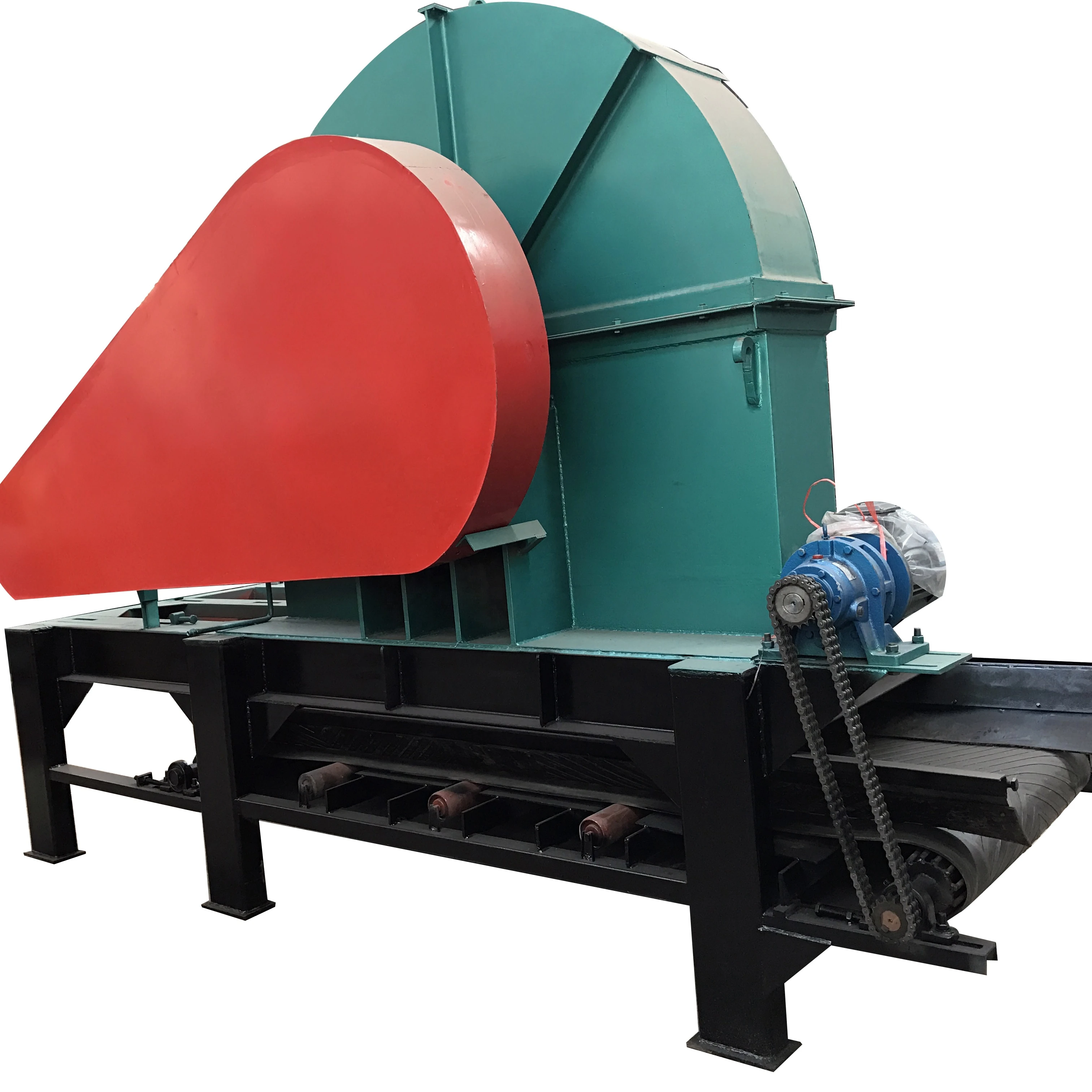

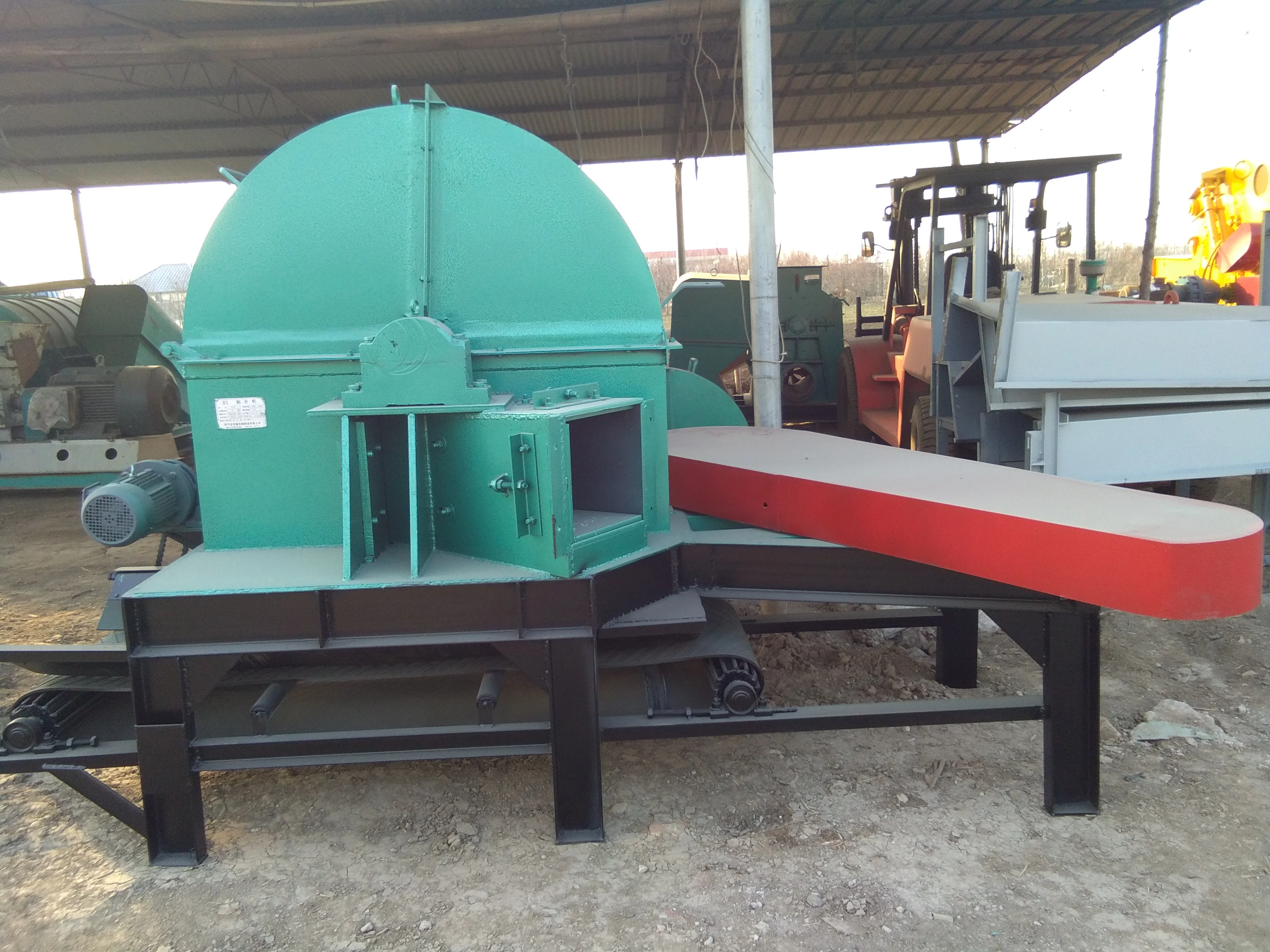

Disc wood chipper

This machine can chip wood logs,cutting residues into wood chips for preparing raw material for density board plant and paper-making.

Video

Features

1.reasonable structure

2.wide usage ,high output

3.qualified chips , safe and reliable

4.easy operation easy maintenance

specification

model	HX1710	HX1212	HX1300	HX1216	HX1800

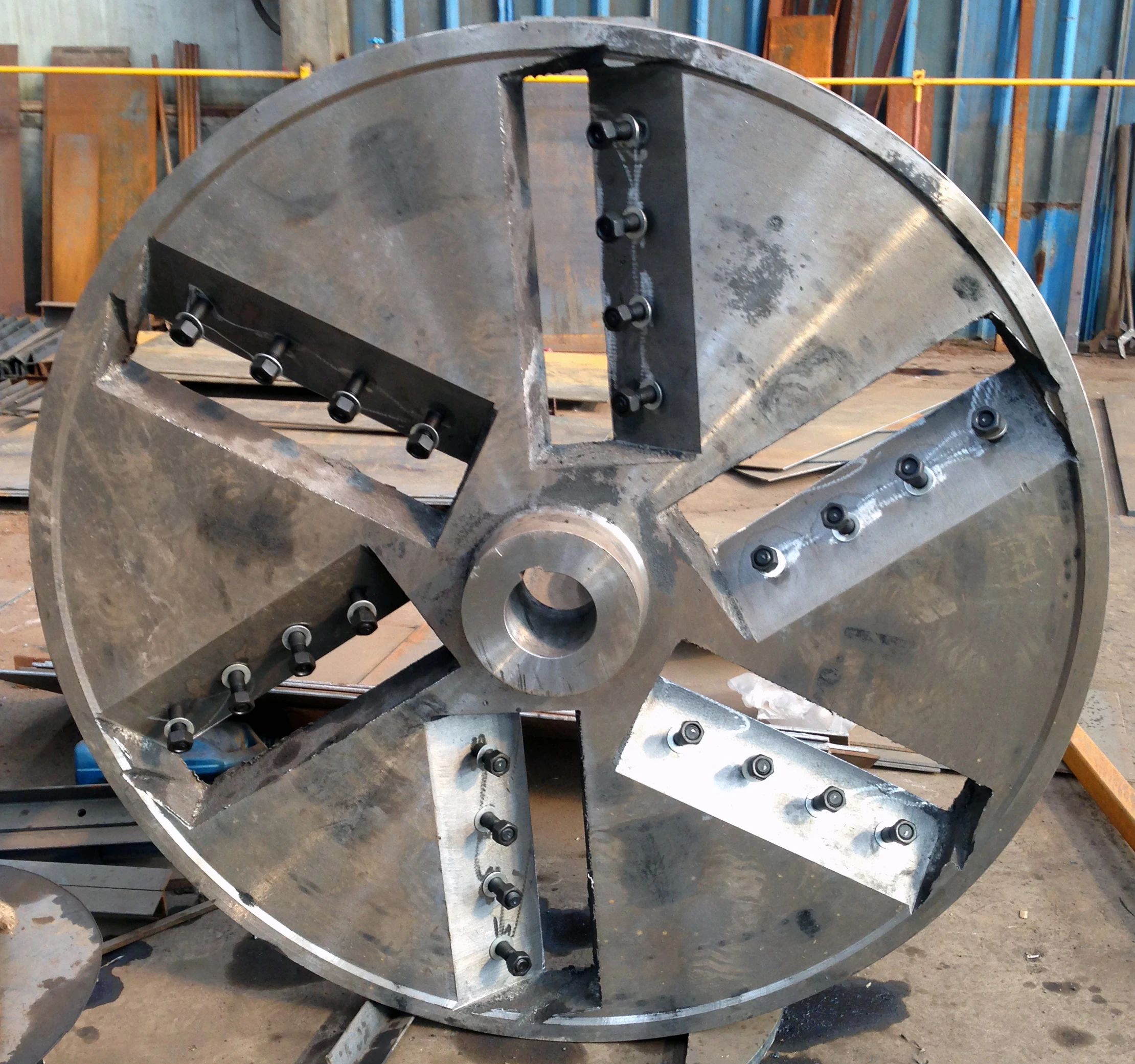

disc rotor diameter(mm)	1150	1300	1300	1600	1800

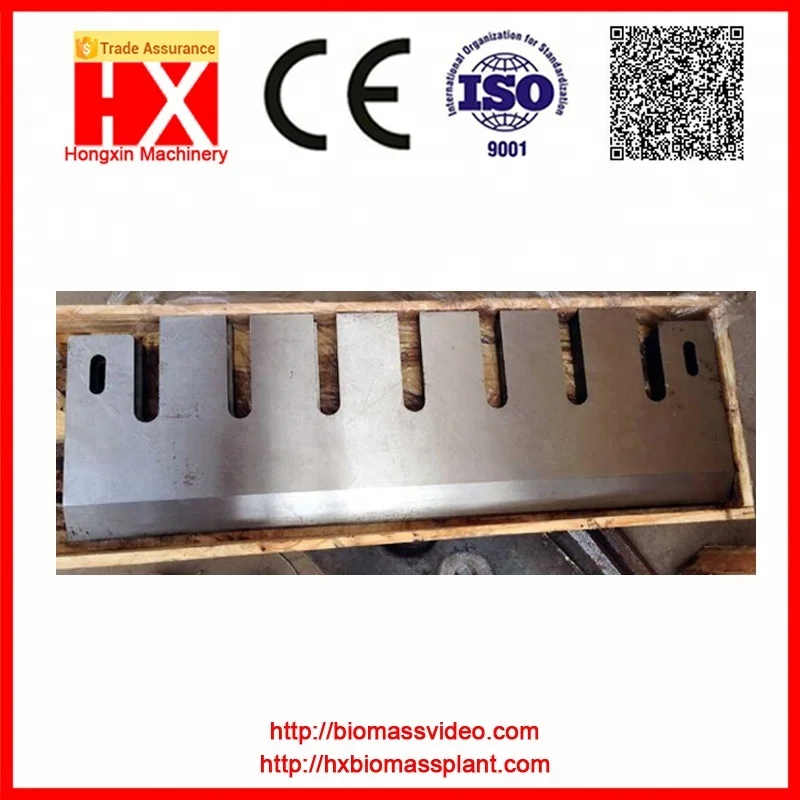

blade quantity(piece)	6	6	6	6	6
input size(mm)	270*270	320*320	350*350	420*420	500*500
rotor rotation speed(rpm)	635	635	640	620	420
chip size (mm)	20-35	20-35	20-35	20-35	20-35
production capacity(tph)	5-8	10-12	12-15	15-25	20-40
main motor power(kw)	55	90	90	160	160
feed+discharge motor(kw)	3+3	3+3	3+3	3+3	5.5+5.5
feed conveyor length(m)	4	4	4	6	6
discharge conveyor length(mm)	10	10	10	10	10
weight(t)	2.18	2.9	4.25	5.58	6.5
