Product Description

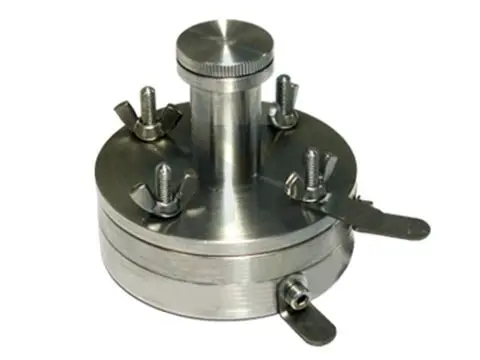

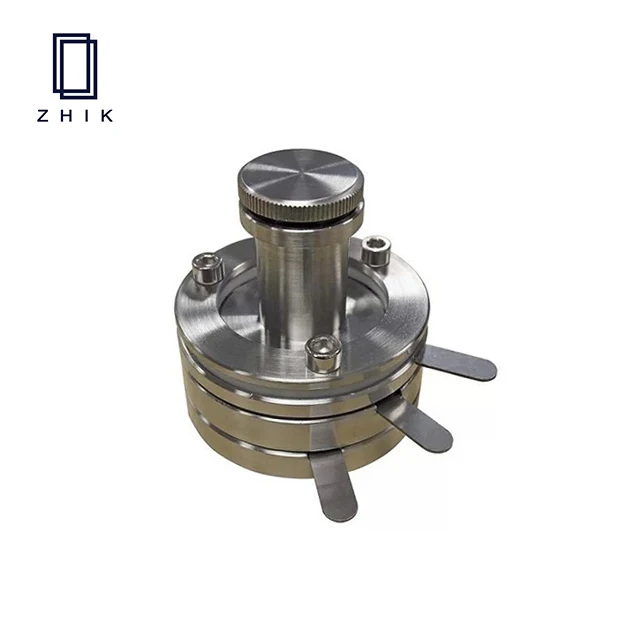

Detachable three-pole battery measuring device

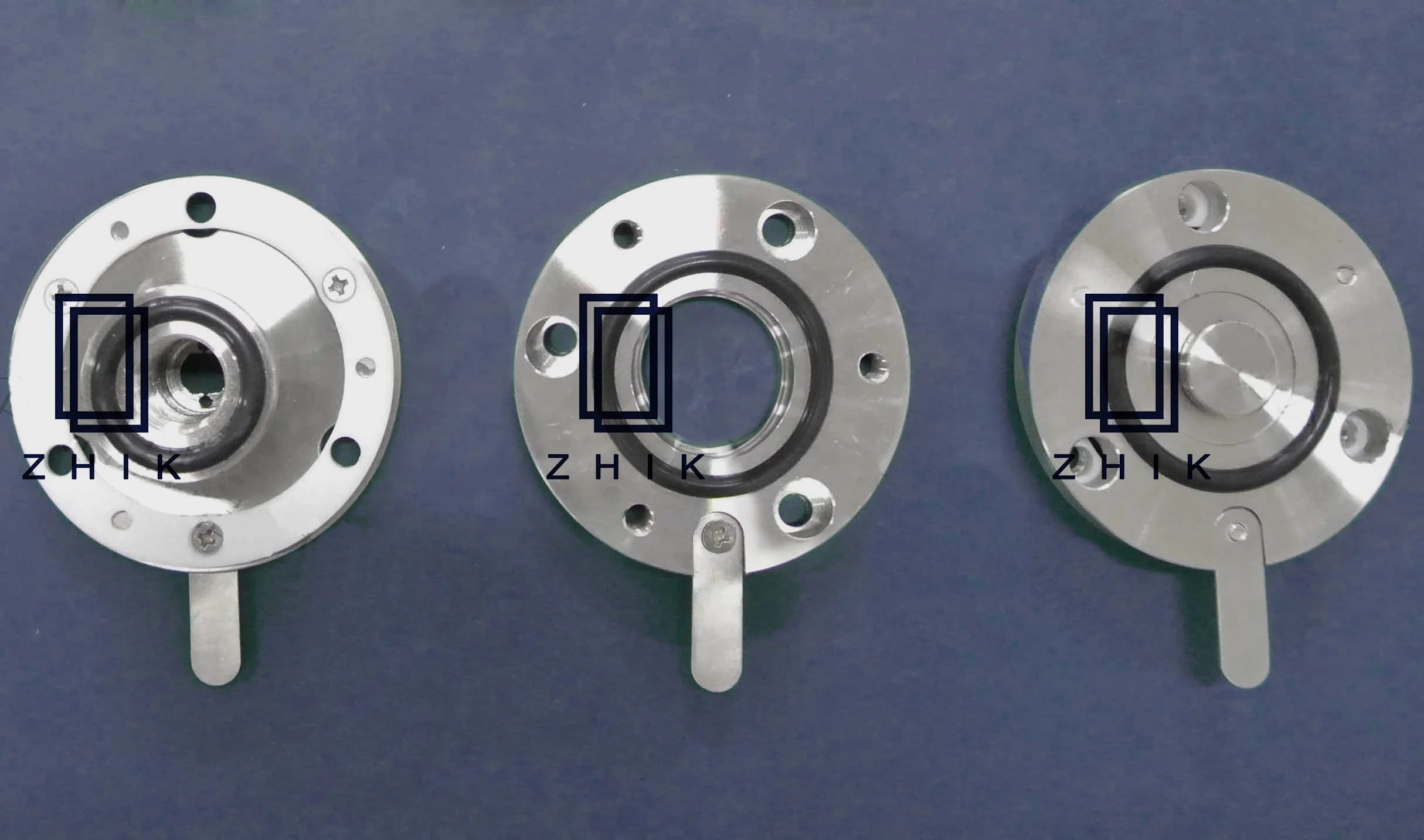

Detachable three-pole battery measuring device, specifically for the exploration and development of battery materials. The internal assembly of this device is similar to the assembly of button batteries, which can easily perform electrical performance tests such as charge and discharge after the battery is assembled, without the need to really press the button battery case to make a button battery. This device can be divided into three parts. The upper and lower parts are for the cathode and anode electrode pieces, and the middle part is for the reference electrode, which is used to detect the voltage change of the anode and cathode.
Details Images

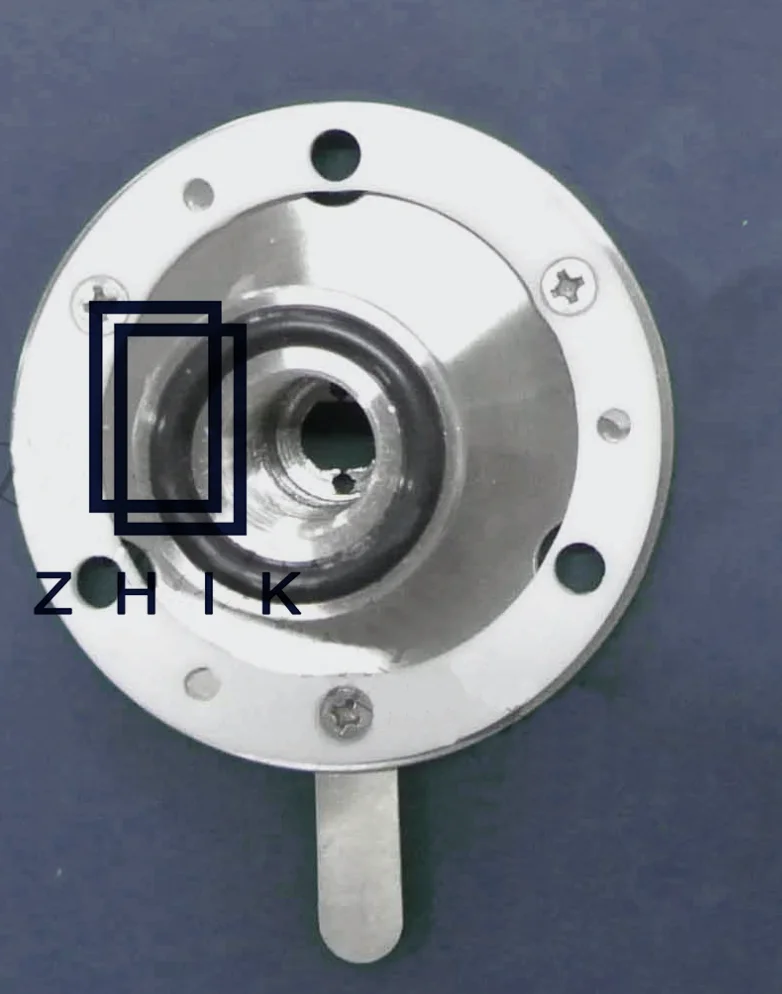

O-ring dense circle seal, corrosion-resistant PTFE insulation pad can withstand up to 250ºC
Easy to install before testing, easy to disassemble after testing, to simulate the assembly structure of button battery, convenient and fast to assemble and test various electrodes
Can adjust the spring tension to adapt to electrodes of various thicknesses.
Suitable for: electrode Φ15mm, diaphragm Φ24mm
technical parameter
Structure | Full stainless steel SS304 |
Features | * 24 mm O.D. insert which can accept 15 mm diameter electrodes. * Sealed by electrolyte corrosive-proof O-rings. * Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. * The adjustable spring tension on top to accept various electrode thicknesses. * Easy to separate after testing. * Small enough to be put into and taken out from a glove box. |
Max. Working Temperature | 200 ºC |
Warranty | * One year limited manufacturer warranty with lifetime support * Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty |
