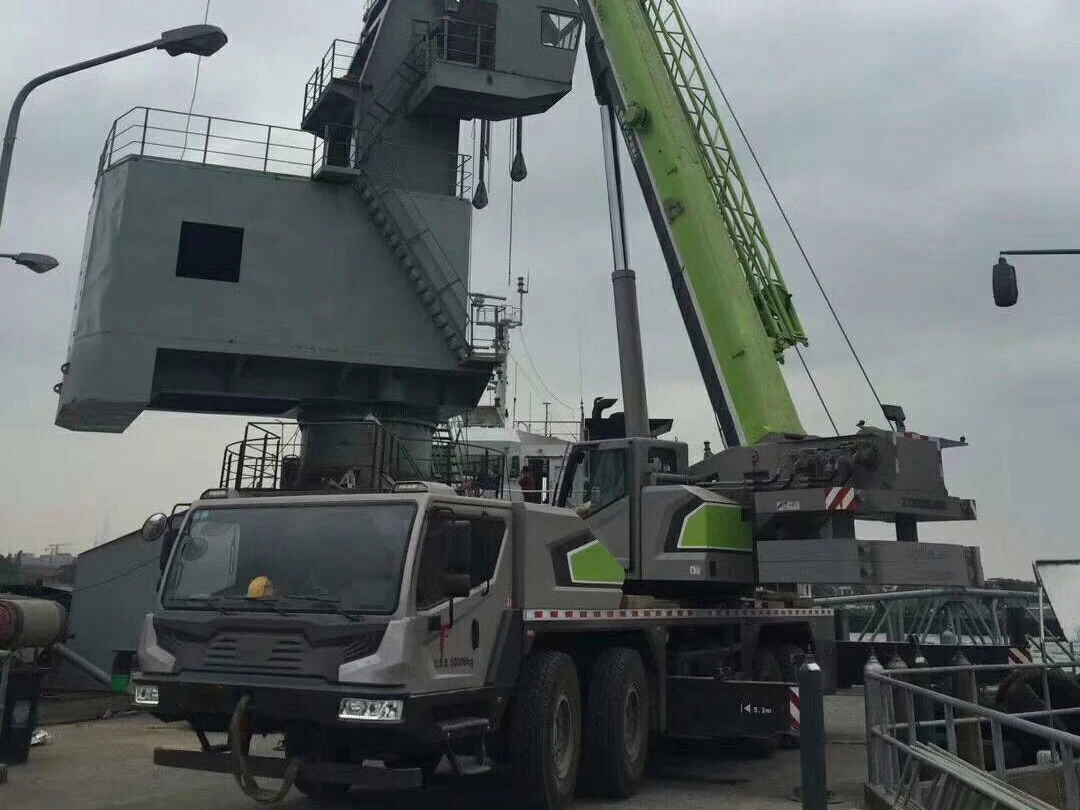

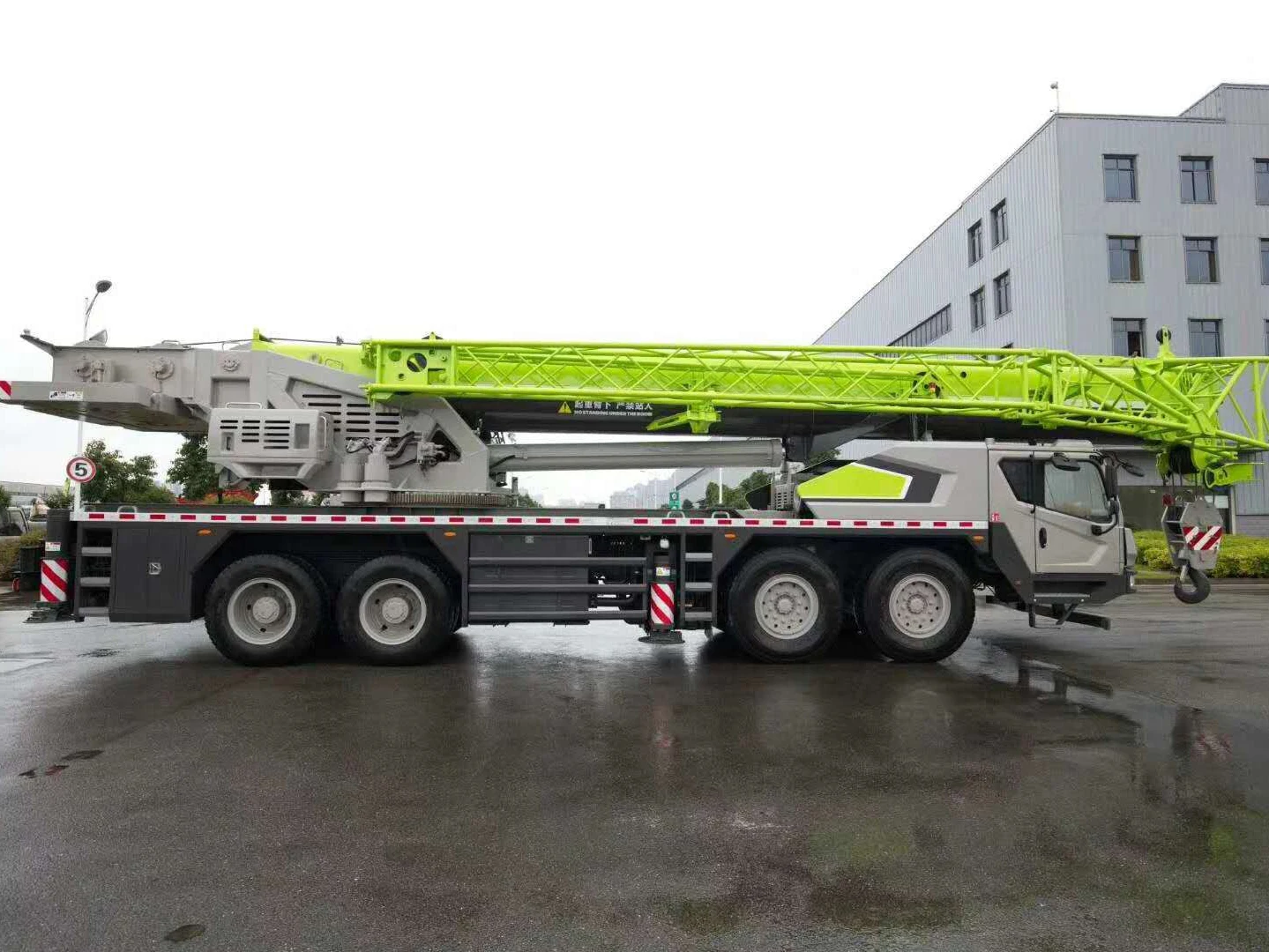

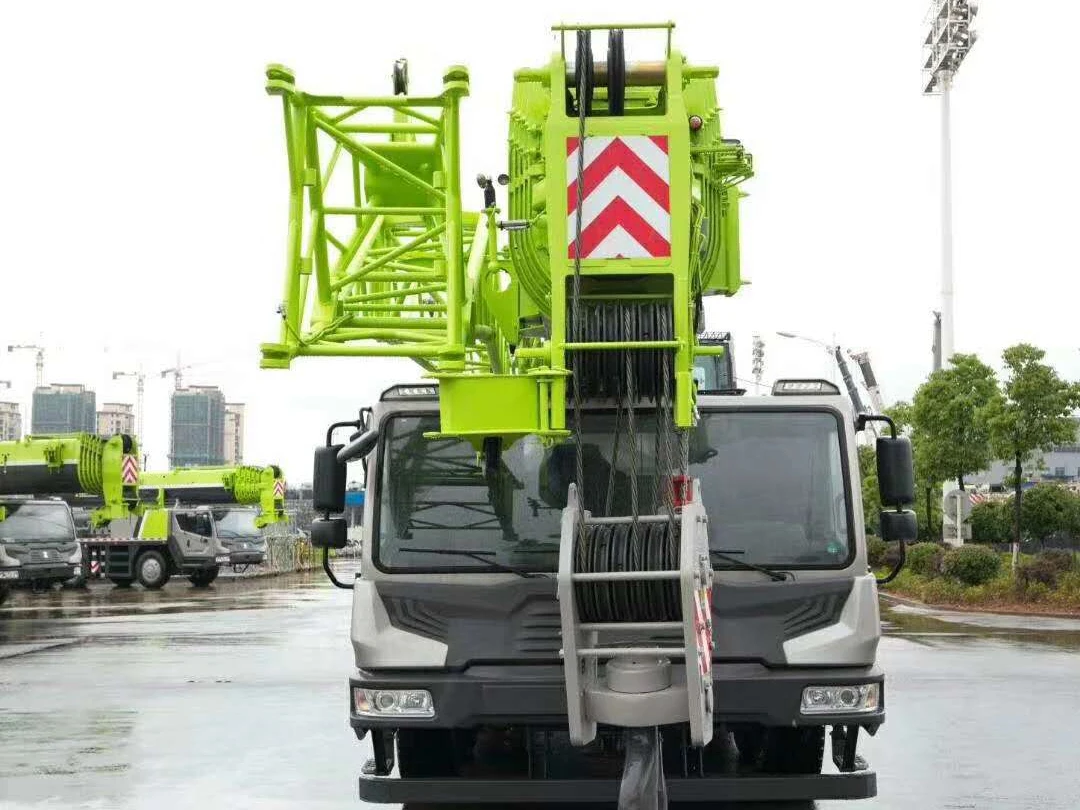

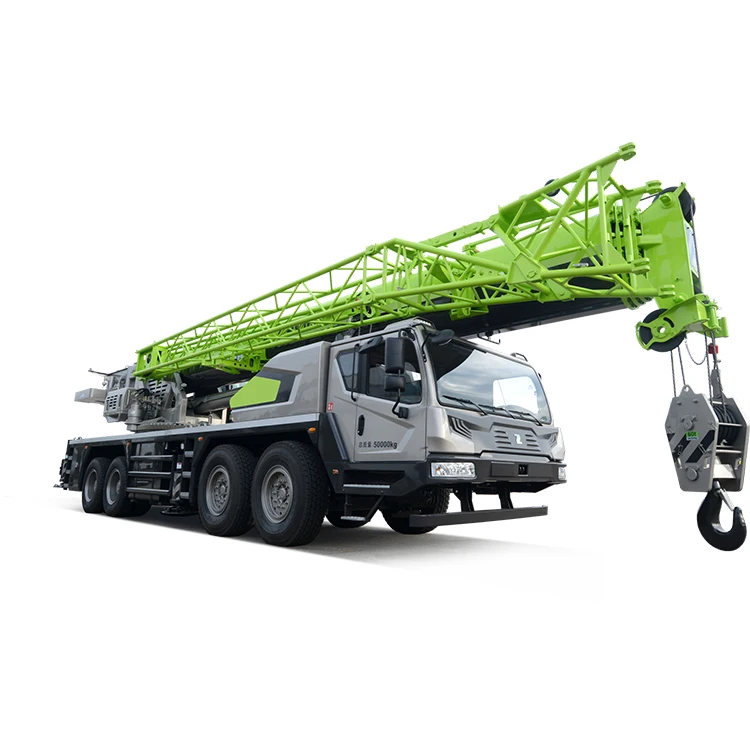

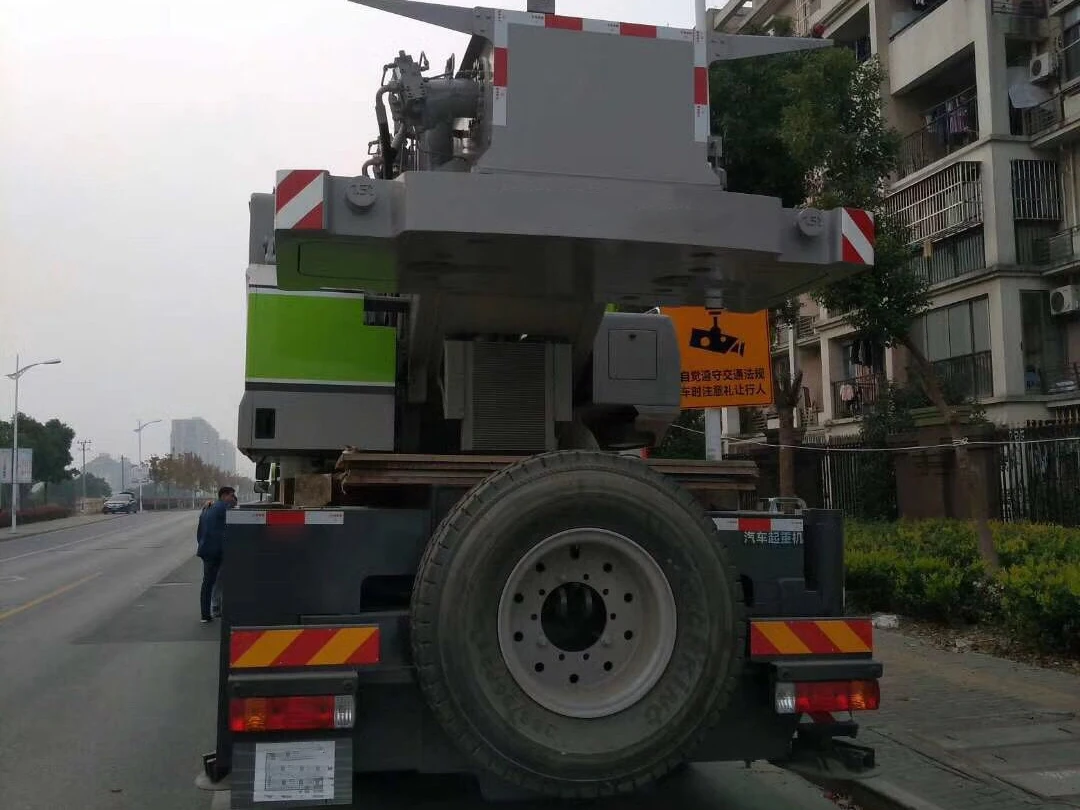

China 80 Ton Right-hand Drive Truck Crane ZTC800R532



•


  New generation 4.0 series platform 80T with 5 section main boom(12.1m-47m).





•


  Max. lifting moment reaches to 2646kN.m, max. lifting height with jib up to 63.8m.





•


  Standard tiltable operator's cab.





•


  Total 8T counterweight.





•


  High ROI.




Item		Unit	Value
Working performance	Max. rated lifting capacity	kg	80000
	Max. load moment of basic boom	kN.m	2646
	Max. load moment of main boom(fully extended)	kN.m	1288
	Max. lifting height of main boom	m	47.7
	Max. lifting height of jib	m	63.8
Working  speeds	Max. hoist rope speed(Main winch)	m/min	125
	Max. hoist rope speed(Auxiliary winch)	m/min	110
	Boom demrricking up time	s	55
	Boom telescoping out time	s	120
	Slewing speed	r/min	1.7
Driving    parameters	Max. driving  speed	km/h	85
	Max. gradeability	%	46
	Min. Turning diameter	m	≤24
	Min.  ground clearance	mm	305
	Oil consumption per hundred kilometers	L	45
Mass	Deadweight in driving condition	kg	46000
	Complete vehicle kerb mass	kg	45805
	Front axle load	kg	20000
	Rear axle load	kg	26000
Dimensions	Overall  dimensions(L*W*H)	mm	14500*2800*3850
	Longitudinal  distance between outriggers	m	6.05
	Transversal distance between outriggers	m	Fully extended:7.8
	Tail slewing radius	mm	4200
	Boom length	m	12.1 - 47.0
	Boom angle	°	-82
	Jib length	m	9.5, 16.0
	Offset	°	0/15/30
