ISO Стандартный промежуточный объемный угольный цементный порошок 20-футовый

ISO Стандартный промежуточный объемный угольный цементный порошок 20-футовый

Категория: Tank Containers >>>
Поставщик: Henan,Jushixin,Transportation,Equipment,Co.,Ltd.

Цена:10 200,00 $ - 10 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	12138.25 $*	12745.97 $*
Aug-17-2025	12036.30 $*	12638.53 $*
Jul-17-2025	10098.56 $*	10603.43 $*
Jun-17-2025	11832.34 $*	12424.70 $*
May-17-2025	10302.40 $*	10817.16 $*
Apr-17-2025	11628.31 $*	12209.4 $*
Mar-17-2025	11526.82 $*	12102.51 $*
Feb-17-2025	11424.75 $*	11995.92 $*
Jan-17-2025	11322.11 $*	11888.88 $*

Характеристики

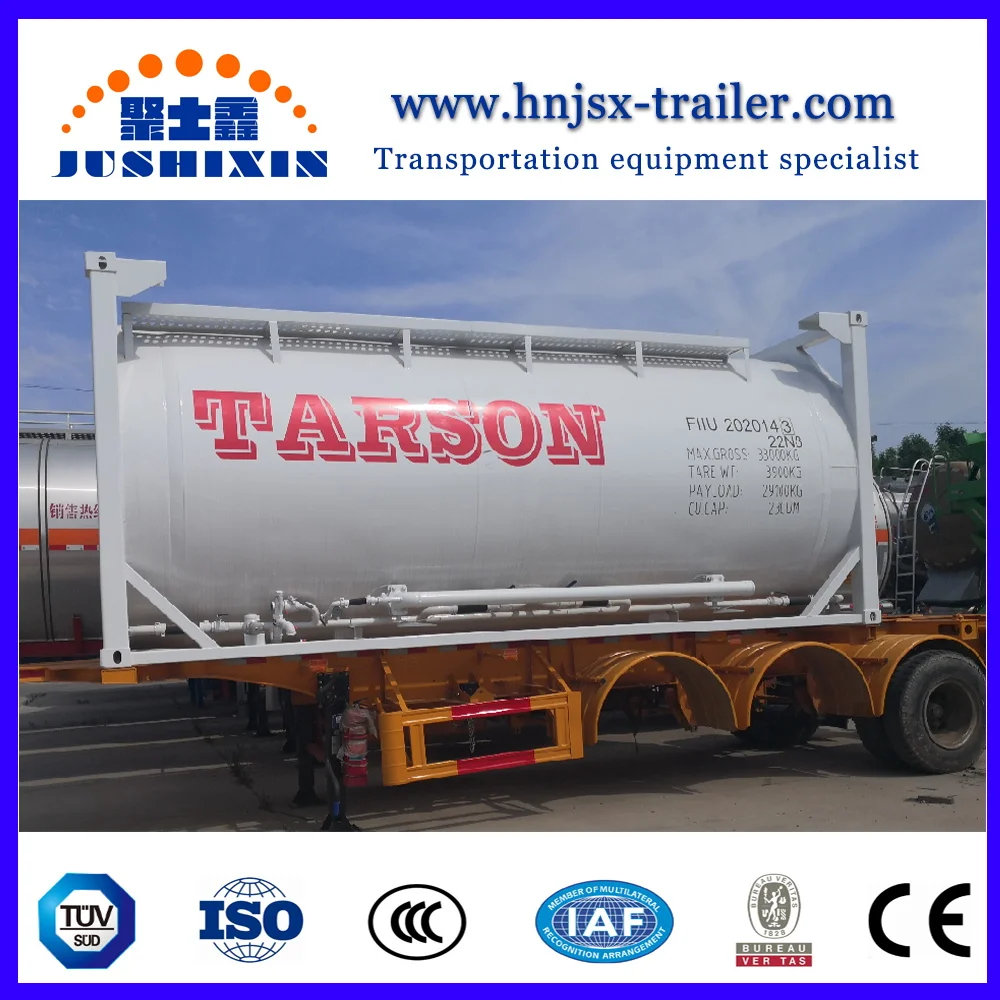

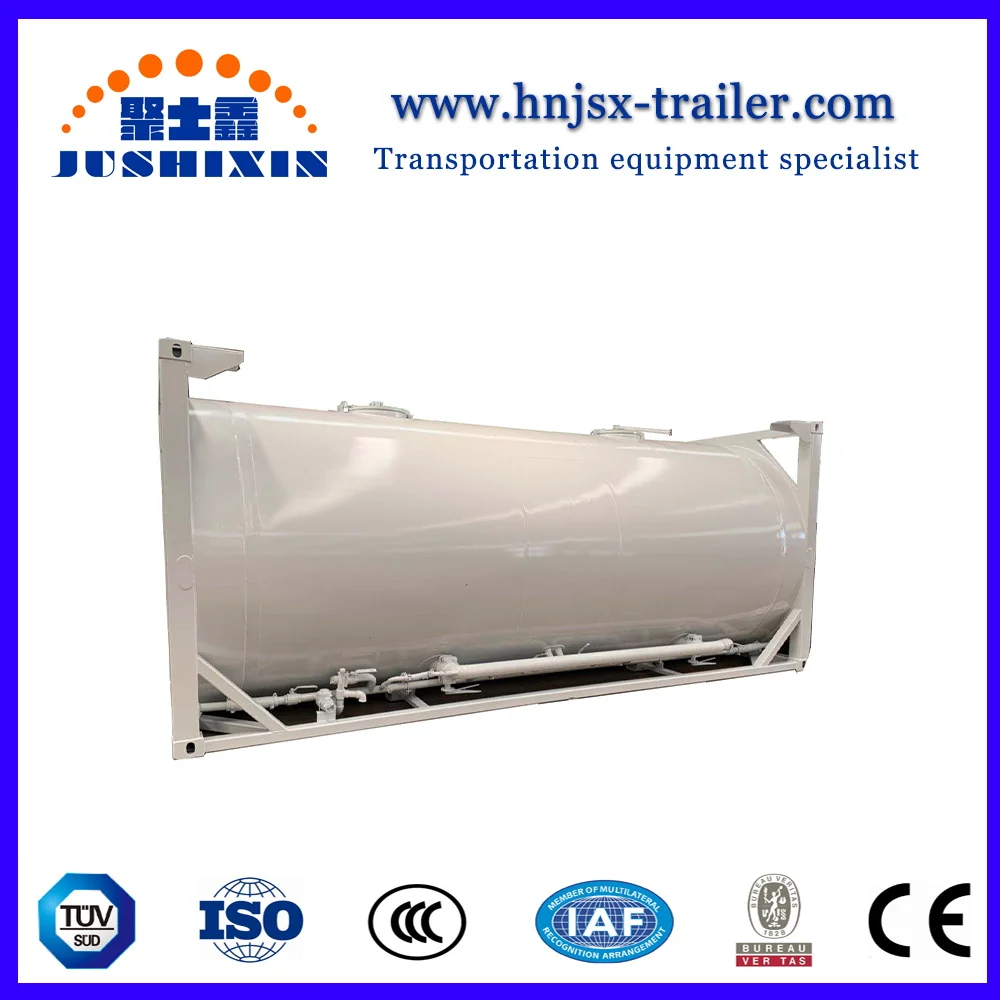

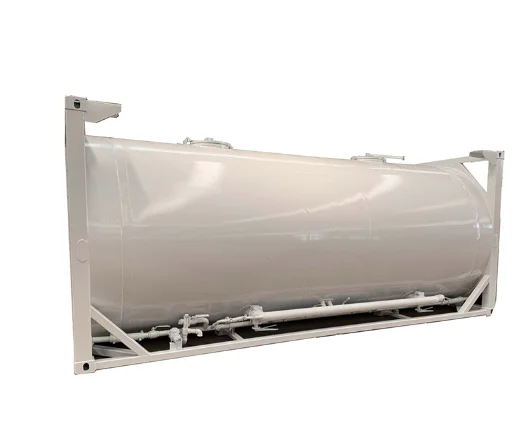

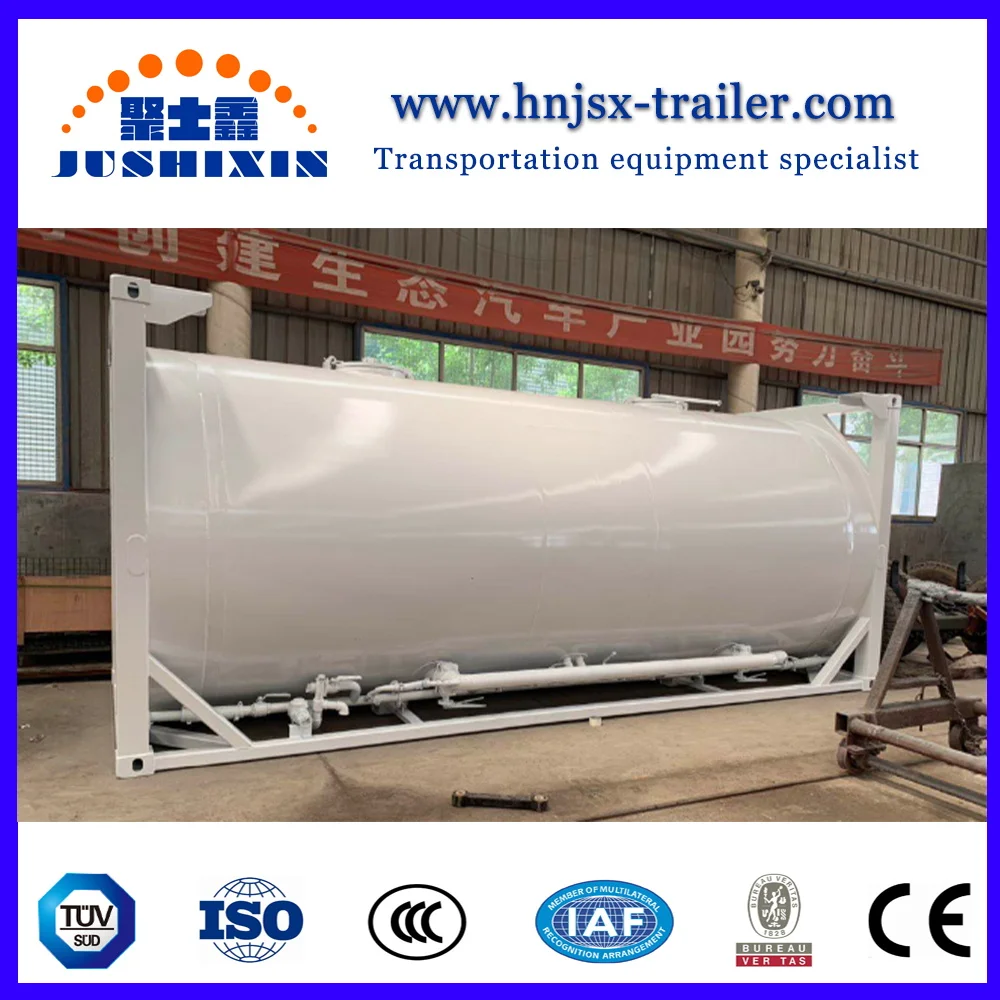

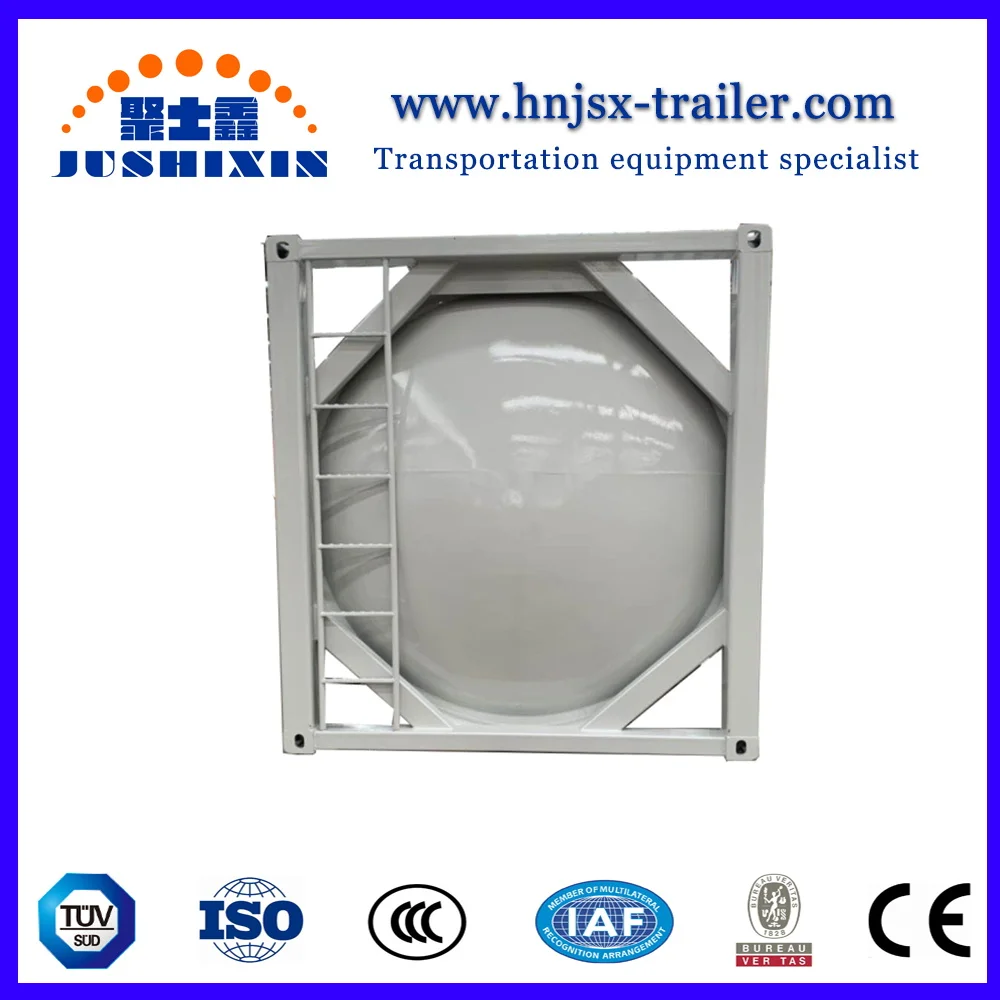

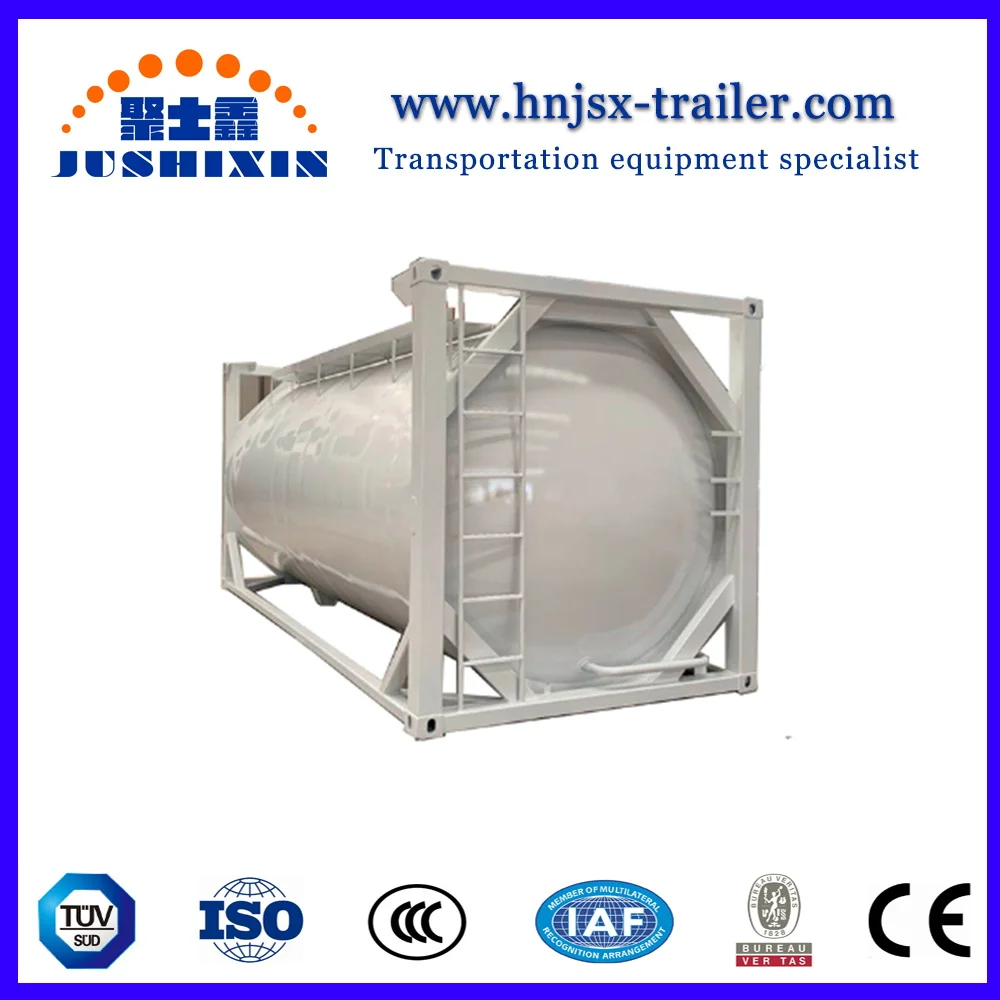

ISO standard intermediate bulk coal cement powder 20ft bulk container tank

Product Description

Parameters/Specification:

20 FEET CEMENT TANK CONTAINER

Product	20feet bulk cement container tank
Design standard	GBT 1413-2008 series 1 container classification , size and mass gross
Tank body : made of steel Q345R, 4mm thickness ; dish end: steel Q 345R, 4mm thickness;
Gross weight		33,000Kg	payload		29100 Kg		Curb weight	3900Kg
Medium		Bulk cement
Overall dimension		LWH 6058x2438x2591mm
Design pressure		0.2MPa		Air supply		≥ 8
Test pressure		0.3MPa		Allowable stacking weight 1.8g		192,000 kg
Design temperature		-19 to +80 ℃		Manhole DIA		500mm
Air source pressure		0.25-0.3 MPa		Air-inlet DIA mm		2 " male adaptor
Outlet DIA mm		4" male adaptor		Average discharge speed		Cement: 2 t/min
Remnant Ratio		Lower than 100kg
Tank barrel
Volume	23,000L		Inner DIA		6000*2420
Density	1250kg/m³		Compartment		2 pcs
Manhole	2 pcs		Quick-open type
1) Tank shell and Dish end: Q 345R ; 2) Top side rail, end rails, internals, walkway : Q 235; 3) Corner posts, end arc support rings: Q 345B; 4) Corner fittings: SCW 49; 5) Pipe: 20-GB 8163 6) Valves: cast steel 7) Ventilation membrane: Synthetic fabric 8) Screws and bolts: Q 235 9) Tank construction : factory standard

Production Flow

Company Information

International Market

Jushixin is a export-oriented company, most of our products are designed for worldwide use. Till now, we have exported more than 650 semi trailers and trucks to more 25 countries around the world, including Mexico, Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia, Turkey, Iran, Pakistan, Myanmar, Uzbekistan, Russia, Ukraine, Philippines, Indonesia, Malaysia, Bangladesh, etc. What’s more, we have established long-term semitrailer supply contracts with more than 10 famous transportation enterprises in the world.

Certifications
