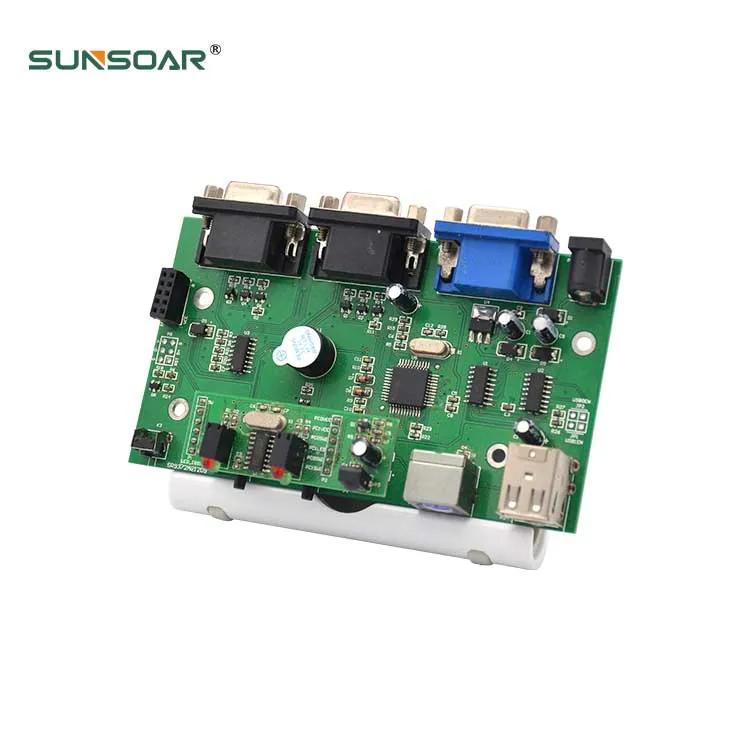

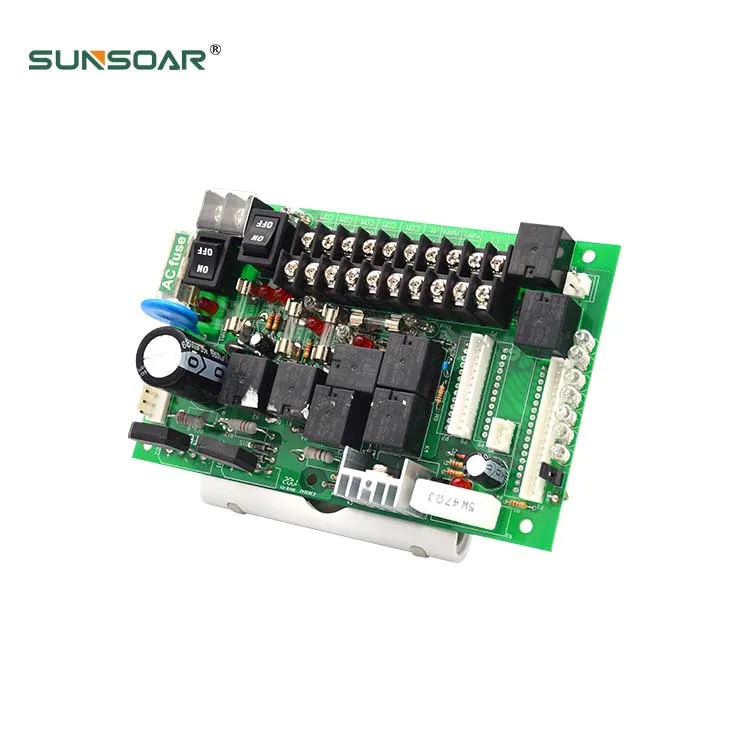

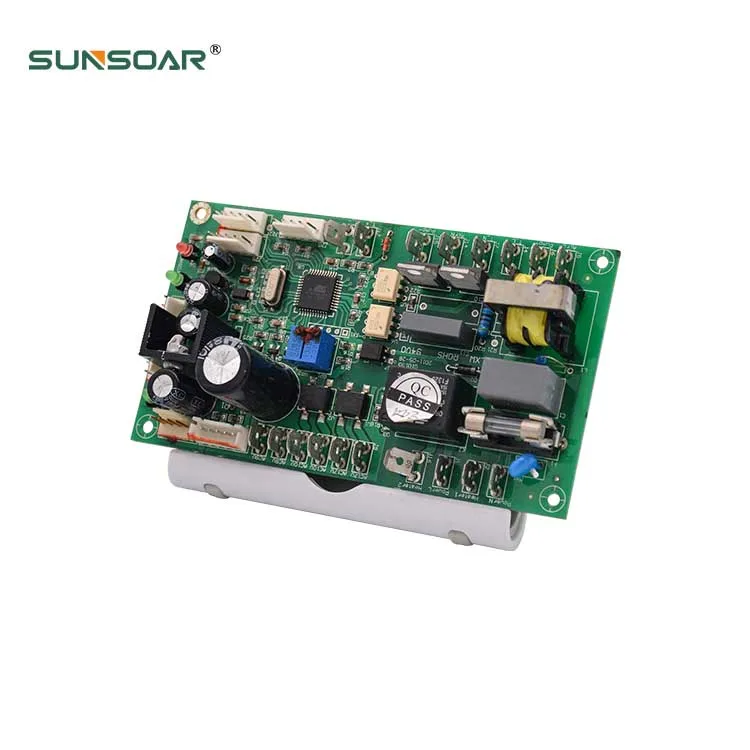

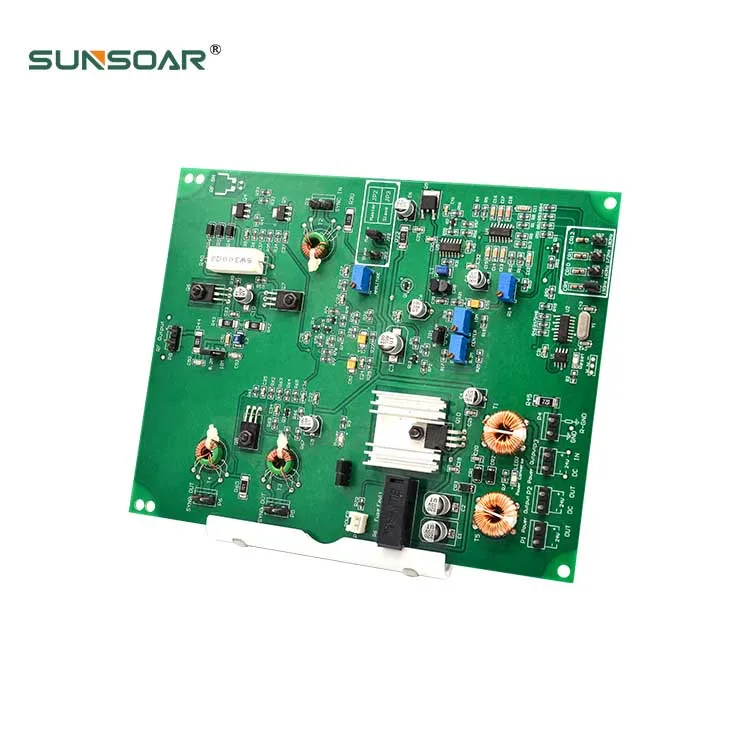

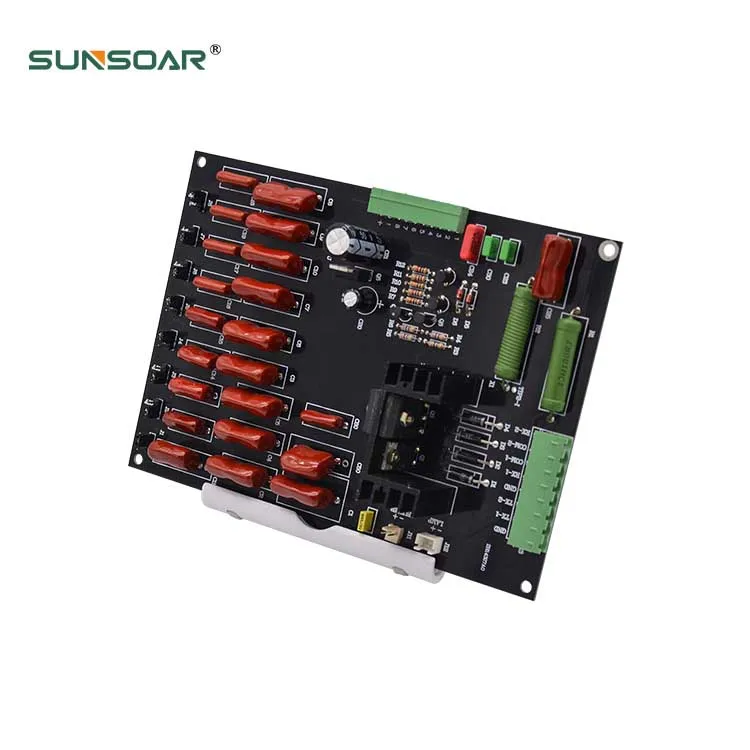

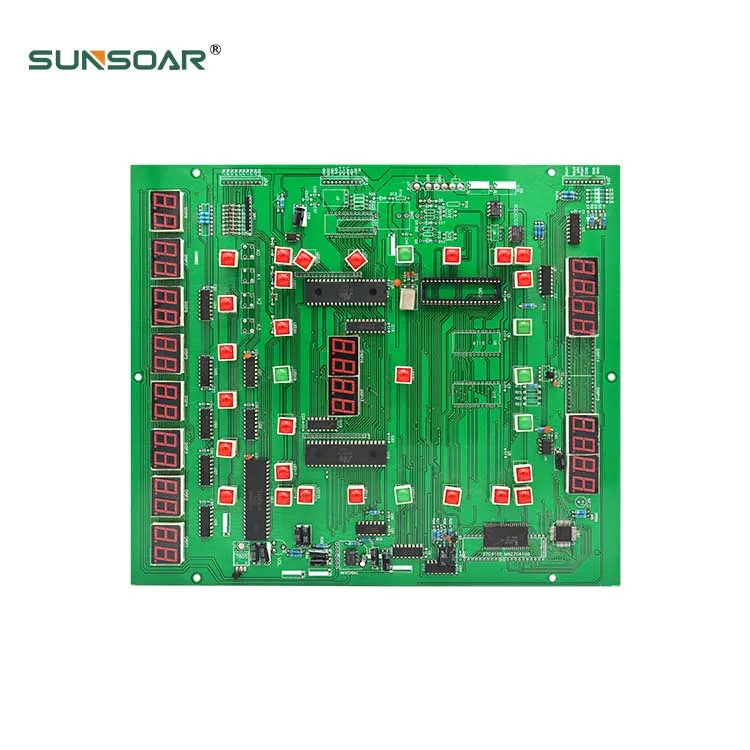

guerbet OEM Manufacturer Electronic Circuit Board PCB Assembly

Цена:289,81 ₽*

Количество:

PCB&PCBA

elektronische Leiterplatte Smart Electronics PCB-Board EAD mobile phone pcb holders pcba circuit boards

PCB Production Capability
Quotation Time	1-2 layer in 24 hours, 4 layer in 48 hours, 6 layer in 72 hours
Files	Gerber, Protel, Powerpcb, Autocad, Orcad, etc
Material	FR-4, Hi-Tg FR-4, Lead free Materials
		CEM-3, CEM-1, Aluminium
		High frequency Material (Rogers, Teflon, Taconic)
Layer No.	1 - 20 Layers
Board thickness	0.0075"(0.2mm)-0.125"(3.2mm)
Board Thickness Tolerance	±10%
Copper thickness	0.5OZ - 4OZ
Impedance Control	±10%
Warpage	0.075%-1.5%
Peelable	0.012"(0.3mm)-0.02’(0.5mm)
Min Trace Width (a)	0.005"(0.125mm)
Min Space Width (b)	0.005"(0.125mm)
Min Annular Ring	0.005"(0.125mm)
SMD Pitch (a)	0.012"(0.3mm)
Regesiter tolerance	0.05mm
Min Solder Mask Dam (a)	0.005"(0.125mm
Soldermask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm) P
Solder Mask Thickness	Solder Mask Thickness
Hole size	0.01"(0.25mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
