110 В высокая прозрачная переключаемая смарт-пленка для окон автомобиля
US $90.00-$100.00
Умная электрическая оконная пленка pdlc/умная Тонировочная pdlc умная
- Категория: Decorative Films >>>
- Поставщик: Shanghai,Qiansheng,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 48.53 $* | 50.15 $* |
| Aug-19-2025 | 47.78 $* | 49.0 $* |
| Jul-19-2025 | 40.52 $* | 42.64 $* |
| Jun-19-2025 | 46.84 $* | 48.72 $* |
| May-19-2025 | 40.88 $* | 42.55 $* |
| Apr-19-2025 | 46.69 $* | 48.53 $* |
| Mar-19-2025 | 45.18 $* | 47.69 $* |
| Feb-19-2025 | 45.66 $* | 47.8 $* |
| Jan-19-2025 | 44.1 $* | 46.20 $* |
Характеристики
Smart Film Product Catalogue
1. Product Description
Smart switchable film is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. With continual improvement in moisture resistance, the new (3rd) generation of the film can be directly installed on existing windows with special glue or self-adhesive. It combines many functions, such as light adjustment, UV and infrared blocking, advertising and security.
2.Product Function
1) Privacy Protection : The biggest function of Our pdlc film is privacy protection,which can control the glass between transparent and opaque.It can protect your privacy by our smart film
2) Projection Screem: Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
2) Projection Screem: Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
3) Safety Protection: Our pdlc film thickness is about 0.36mm. When installed on your glass window,It can adhensive your window
closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection: Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95%
infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect
indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection: Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95%
infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect
indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
3. Product Parameter
4.Product Structure
NON-SELF ADHESIVE PDLC SMART FILM
Non self-adhesive PDLC smart film (laminated in smart glass) consists of protective film PET, ITO film and PDLC, the key material
of smart glass.
of smart glass.
SELF ADHESIVE PDLC SMART FILM
Self-adhesive PDLC smart film consists of protective film PET, adhesive layer, ITO film and PDLC.Stick the film on glass directly
and connect the power supply,free to switch transparent and opaque.
and connect the power supply,free to switch transparent and opaque.
SMART GLASS
Smart glass is a new special electrical glass consisting of high-quality double-layer tempered glass(thickness can be selected)and
non self-adhesive PDLC smart film glued laminated, which achieves the double requirements of day lighting and privacy.
non self-adhesive PDLC smart film glued laminated, which achieves the double requirements of day lighting and privacy.
5.Product Wiring Instruction
1. Use a 2 pin 220V plug from the socket, and then connect its N and L cables to transformer terminal-Power outlet(Input AC 220V),
and usa screw to fix it.
2. Use to connect the transformer terminal (output AC 60V) to smart film electric wire and use screw to fix it.
3. Use remote control to power on the smart film (normally just leave it aside)
6.Control mode
Manual switch, voice control, remote control, remote control, can be combined according to customer needs.
and usa screw to fix it.
2. Use to connect the transformer terminal (output AC 60V) to smart film electric wire and use screw to fix it.
3. Use remote control to power on the smart film (normally just leave it aside)
6.Control mode
Manual switch, voice control, remote control, remote control, can be combined according to customer needs.
7.Product Application

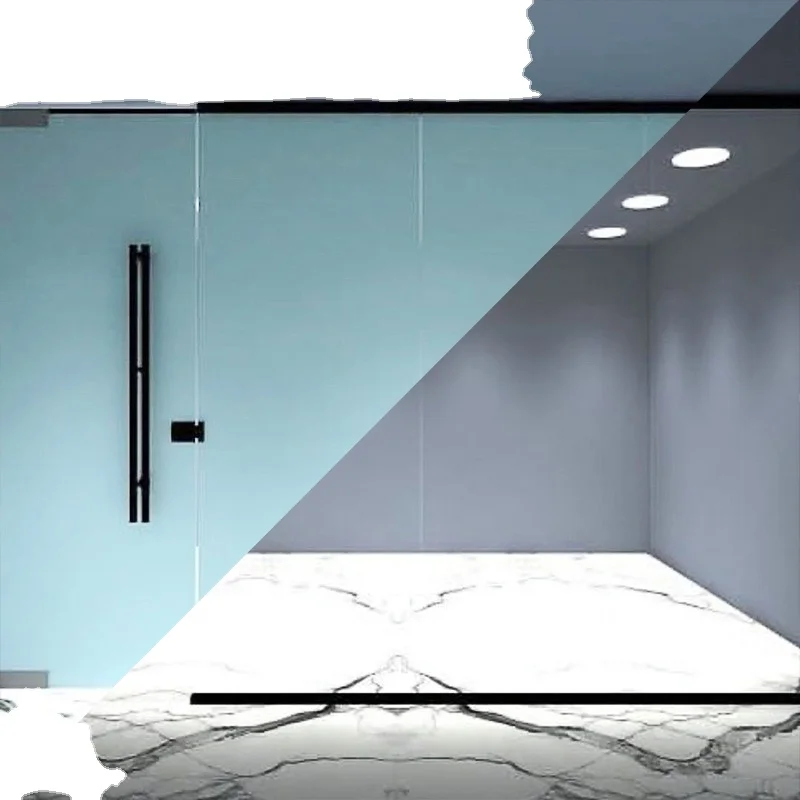

1)Invisible Curtain
Smart film can be used as invisible curtain, it will be in transparent status when power is on; it will be in opaque status while the power is off. Therefore it can replace the traditional blinds and cloth curtain which eventually creates a more comfortable and energy-saving environment .
Smart film can be used as invisible curtain, it will be in transparent status when power is on; it will be in opaque status while the power is off. Therefore it can replace the traditional blinds and cloth curtain which eventually creates a more comfortable and energy-saving environment .
2)Projection Screen
Smart film can be used as a switchable projection screen on a store window for advertising. Smart film is good for rear projection
function, when you projected from indoor, people outside of the shop will see showroom etc.
Smart film can be used as a switchable projection screen on a store window for advertising. Smart film is good for rear projection
function, when you projected from indoor, people outside of the shop will see showroom etc.
3) Touch screen technology.
It is a perfect combination between touch screen and smart pdlc film, which offers new possibility for smart film application. It
can be used in the office/meeting room/school etc , You can project your PC on the pdlc film and operate it by hands,
Application Display :
It is a perfect combination between touch screen and smart pdlc film, which offers new possibility for smart film application. It
can be used in the office/meeting room/school etc , You can project your PC on the pdlc film and operate it by hands,
Application Display :

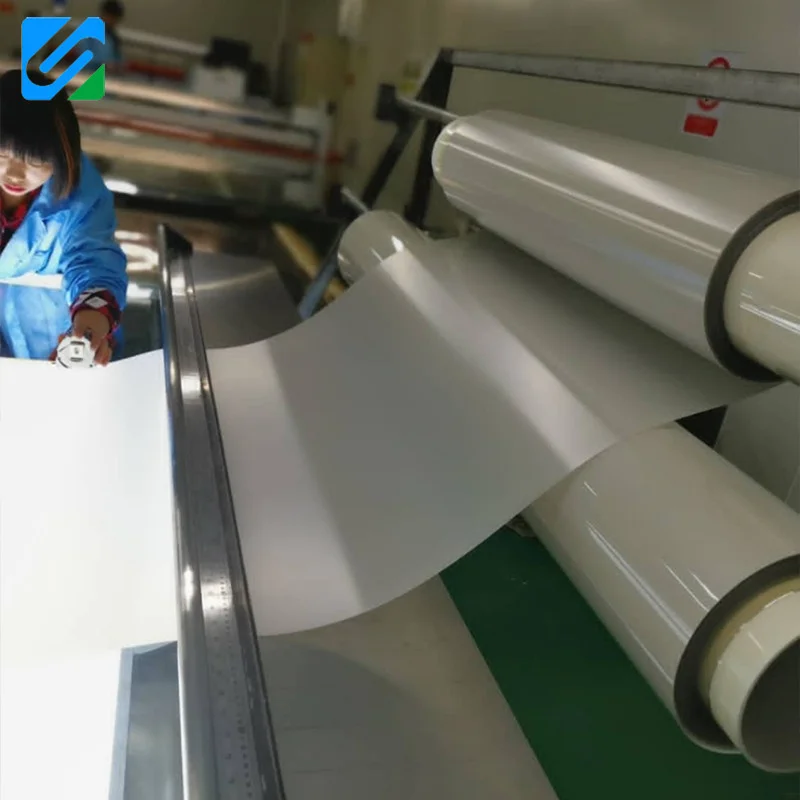

8.Product Workshop
9.About us
Shanghai Qiansheng Industrial Co., Ltd. was established in 2013, focusing on the design, R&D, manufacturing and sales of PDCL smart molds. We have more than 10,000 self-developed designs and molds for you to choose from. With an annual output of 2 million square meters of PDCL smart molds, it can easily meet your bulk orders. Our company has advanced technical force, rich production experience and a dynamic work team. Film products are mostly produced with imported high-quality film, release paper and glue, and have a production base in China, so that the products always have high-quality and competitive price ratios. To ensure quality, we have more than 3 QC members to conduct strict inspections at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). The products sell well in domestic and foreign markets and are well received by customers. To benefit from our strong OEM/ODM capabilities and considerate service, please contact us immediately. We will sincerely create and share success with all customers. We sincerely welcome people with insight at home and abroad can join us to see opportunities to create a prosperous business career.
FAQ
1. Question: Does your company provide installation services overseas?
Answer: No, we are a material distributor, providingcomplete DIY kits and technical support. As long as the contractor is careful,doing NOTKINK or cutting materials or pulling wiresthere should be Benoy issues. Obviously, a clean working environment is helpful.
2. Question: Does this require electrician installation?
Answer: No, we can provide a complete closed system, ready to install aplug, it can do it yourself. If you want to hire an
electronic to achieve your goals, it is your own decision.
3. Question: Is the PDLC film energy-saving?
Answer: Yes, it is considered a green product and consumes about 5 watts per squaremeter.
4. Question: Can it block ultraviolet rays?
Answer: Yes. It can block more than 98% of harmful ultraviolet rays, no matter inenergy state or non-energy state.
5. Question: Can we install this product ourselves?
Answer: Yes, we provide complete kits and exercises to do your own.
6. Question: Why did I choose your company?
Answer: Good raw materials, we use the best materials to produce glass, so please feelfree to buy our glass. Advanced production
technology. The factory always uses the most advanced equipment to produce the bestproducts for our
7. Question: How long will it take for production and delivery
Answer: It depends on the size of the material, the total number oforders and geographic delivery. For fast sample orders, we can deliver within 3-7 working days after payment is confirmed. If itis mass production, it will only last about 7-10working days.
2. Question: Does this require electrician installation?
Answer: No, we can provide a complete closed system, ready to install aplug, it can do it yourself. If you want to hire an
electronic to achieve your goals, it is your own decision.
3. Question: Is the PDLC film energy-saving?
Answer: Yes, it is considered a green product and consumes about 5 watts per squaremeter.
4. Question: Can it block ultraviolet rays?
Answer: Yes. It can block more than 98% of harmful ultraviolet rays, no matter inenergy state or non-energy state.
5. Question: Can we install this product ourselves?
Answer: Yes, we provide complete kits and exercises to do your own.
6. Question: Why did I choose your company?
Answer: Good raw materials, we use the best materials to produce glass, so please feelfree to buy our glass. Advanced production
technology. The factory always uses the most advanced equipment to produce the bestproducts for our
7. Question: How long will it take for production and delivery
Answer: It depends on the size of the material, the total number oforders and geographic delivery. For fast sample orders, we can deliver within 3-7 working days after payment is confirmed. If itis mass production, it will only last about 7-10working days.
