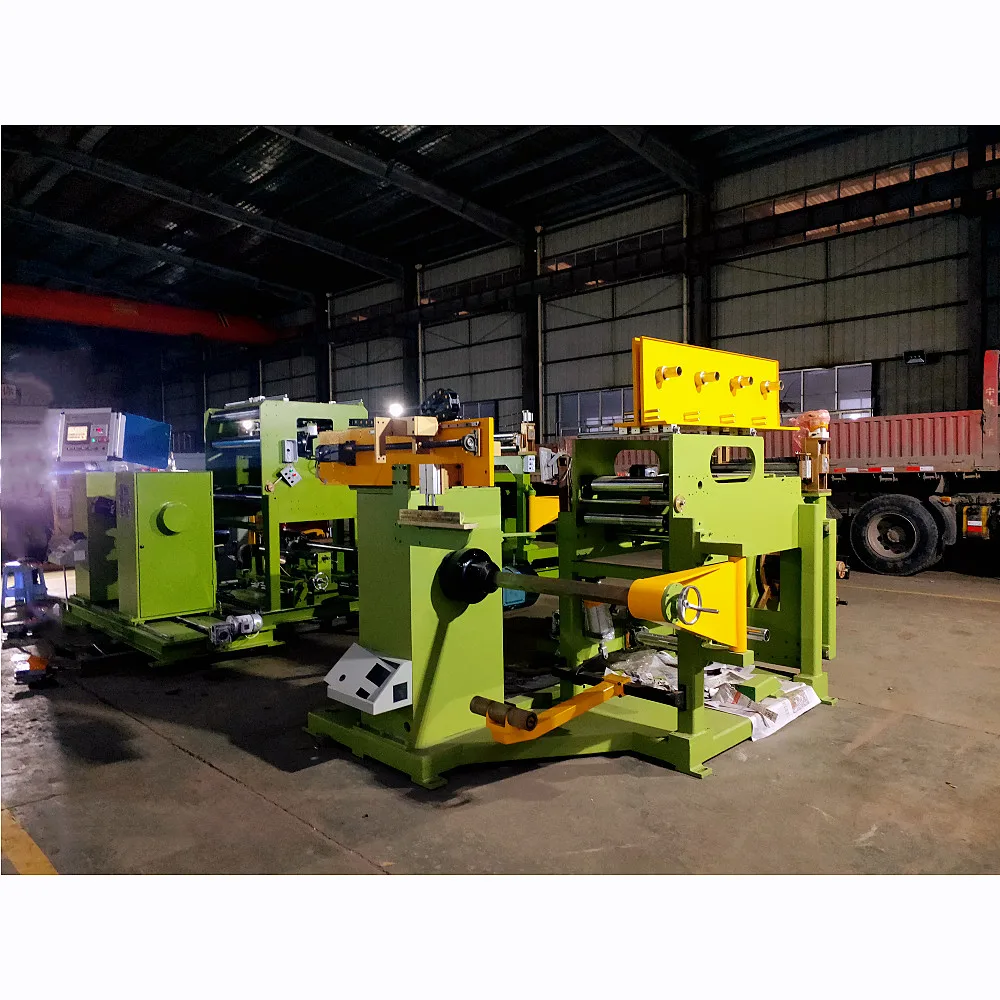

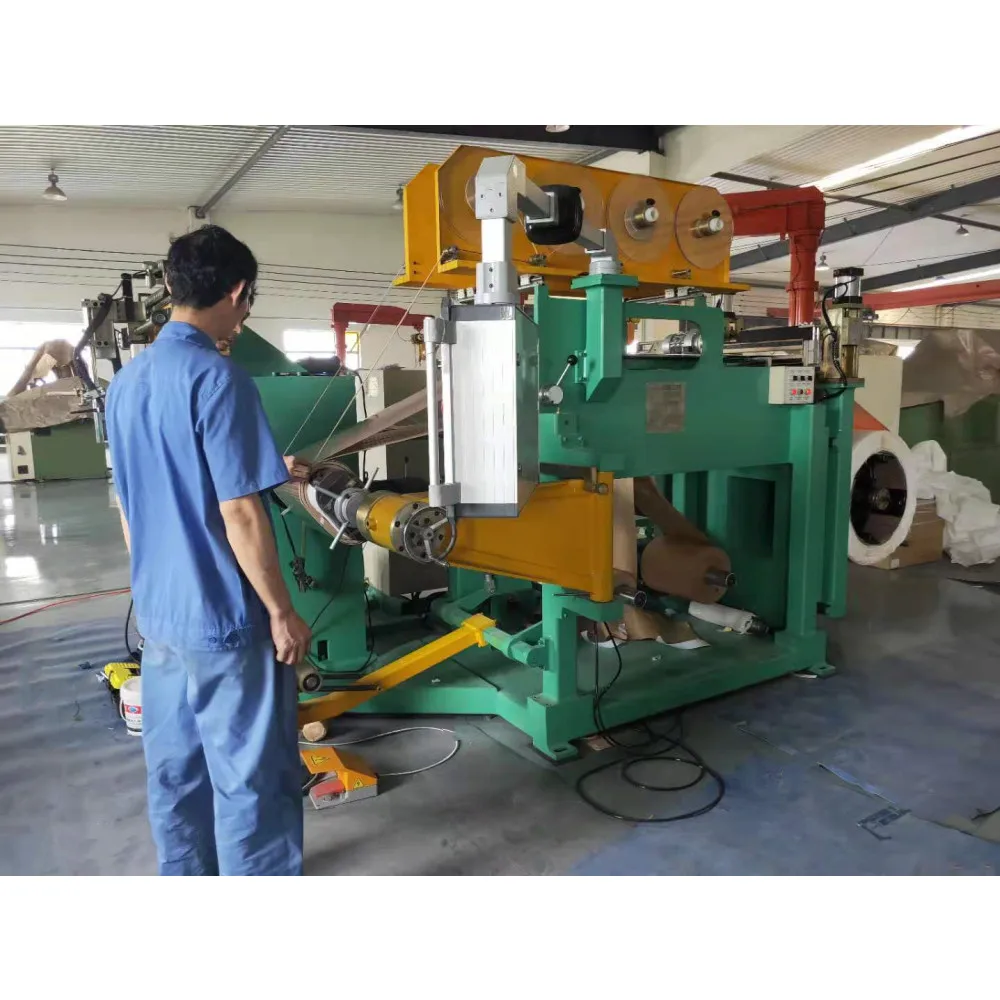

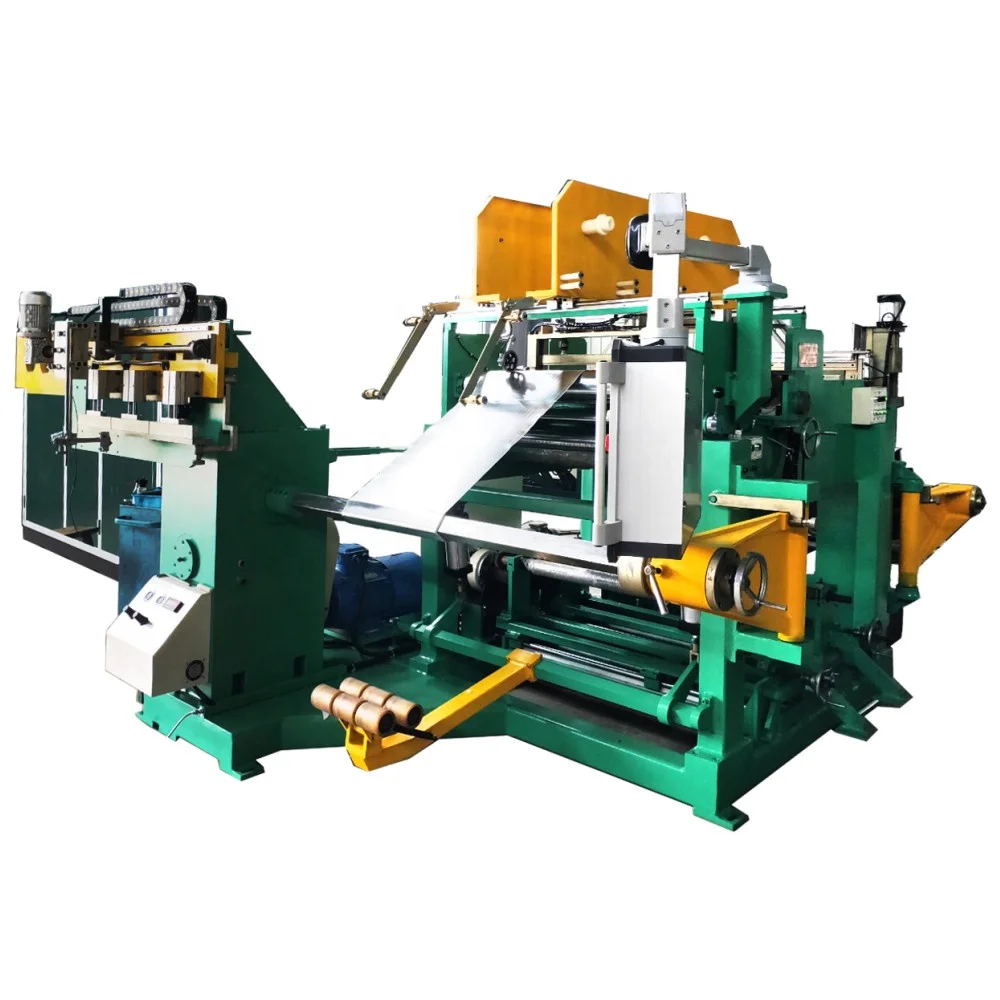

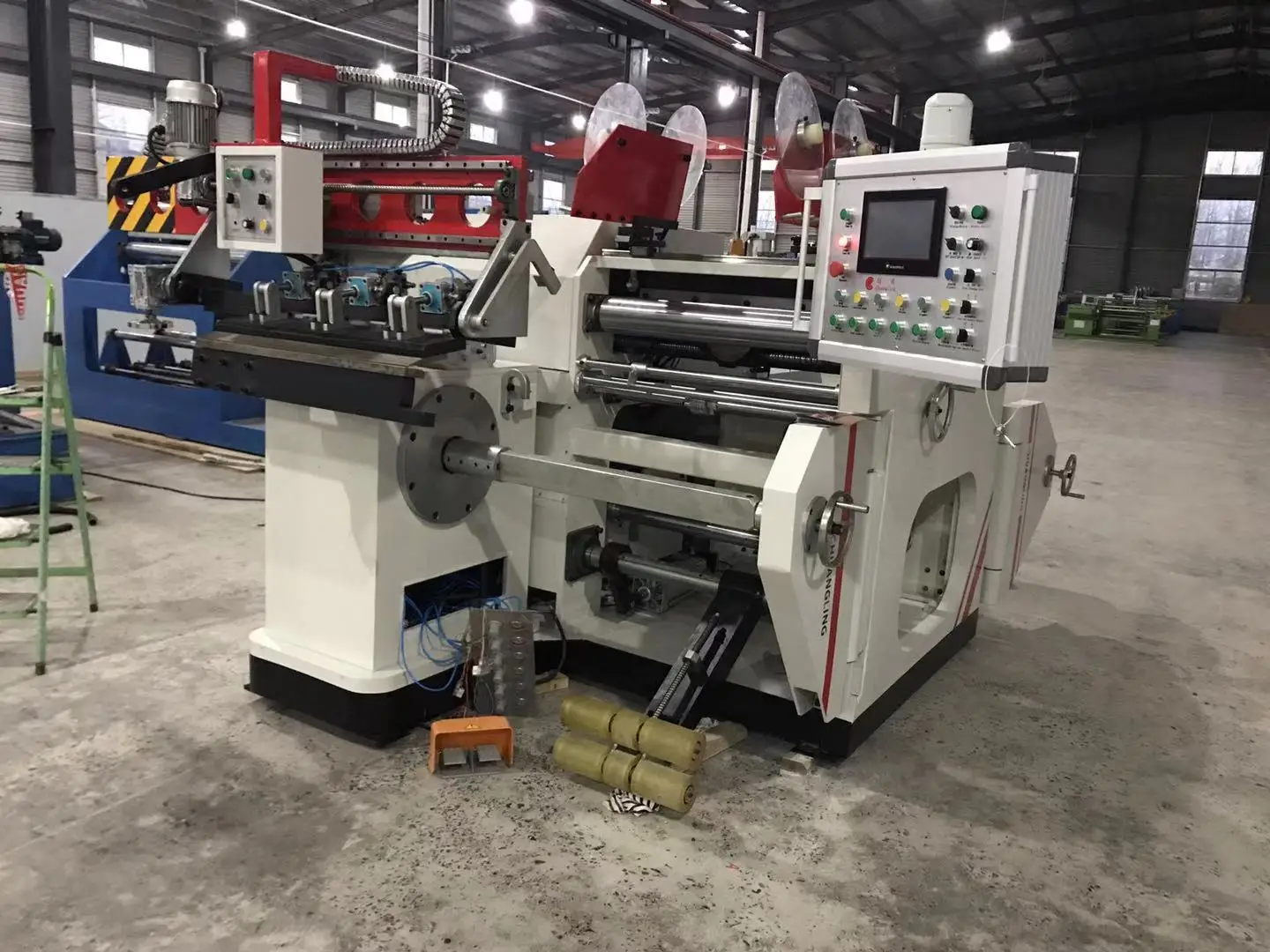

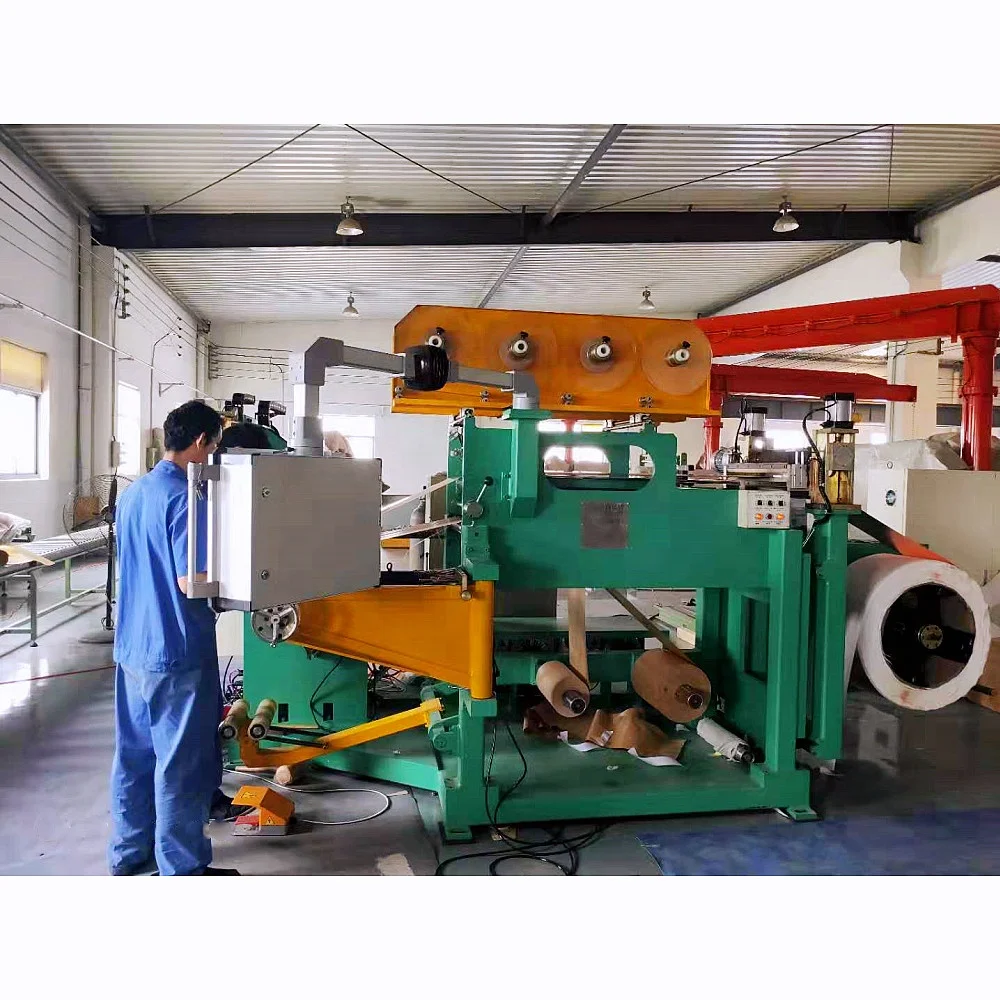

BRJ-800-1 Automatic LV Foil Winding Machine For Dry Type Transformer Coil
- Категория: Foil Winding Machine >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 69020.15 $* | 72471.47 $* |
| Aug-17-2025 | 68440.67 $* | 71862.15 $* |
| Jul-17-2025 | 57420.16 $* | 60291.55 $* |
| Jun-17-2025 | 67280.20 $* | 70644.74 $* |
| May-17-2025 | 58580.70 $* | 61509.49 $* |
| Apr-17-2025 | 66120.65 $* | 69426.81 $* |
| Mar-17-2025 | 65540.53 $* | 68817.23 $* |
| Feb-17-2025 | 64960.42 $* | 68208.11 $* |
| Jan-17-2025 | 64380.4 $* | 67599.26 $* |
Характеристики
Specification
Typical standard specifications of BRJ-800-1are shown below, these can be easily modified as requested. | ||||||||||||||||
No. | Items | Data | ||||||||||||||
1 | Model | BRJ-1600-1 | BRJ-1400-1 | BRJ-1200-1 | BRJ-1000-1 | BRJ-800-1 | BRJ-600-1 | BRJ-400-1 | ||||||||
2 | Coil Width | 150～1600 | 150～1400 | 150～1200 | 150～1000 | 150～800 | 150～600 | 150～400 | ||||||||
3 | coil form | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | round, rectangle, | ||||||||
4 | Coil material | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | ||||||||
5 | Foil material thickness(mm) | Cu:0.3～2; Al:0.5~2.2; | Cu:0.3～2; Al:0.5~2.2 | Cu:0.3～2; Al:0.5~2.2; | Cu:0.3～2; Al:0.5~2.2; | Cu:0.3～2; Al:0.5~2.2; | Cu:0.3～2; Al:0.5~2.2; | Cu:0.3～2; Al:0.5~2.2; | ||||||||
6 | Decoiler loading tube length | 1650 | 1450 | 1250 | 1050 | 850 | 650 | 650 | ||||||||
7 | Decoiler loading (Max) | 3500kg | 3500kg | 3000kg | 3000kg | 2500kg | 2000kg | 2000kg | ||||||||
8 | Working Tension | 12000N | 10000N | 9000N | 8000N | 7000N | 6000N | 6000N | ||||||||
9 | Working pressure | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | 0～0.6Mpa | ||||||||
10 | way of rectifying | automatic | automatic | automatic | automatic | automatic | automatic | automatic | ||||||||
11 | winding speed (stepless speed regulation) | 0～24 r／min | 0～24 r／min | 0～24 r／min | 0～24 r／min | 0～24 r／min | 0～24 r／min | 0～24 r／min | ||||||||
12 | work torque (Max) | 12000N | 10000N | 9000N | 8000N | 7000N | 6000N | 6000N | ||||||||
13 | wind power | 18.5 KW | 15 KW | 15KW | 11 KW | 11 KW | 11 KW | 11 KW | ||||||||
14 | welding way | TIG | TIG | TIG | TIG | TIG | TIG | TIG | ||||||||
15 | way of rectifying | photoelectric system | photoelectric system | photoelectric system | photoelectric system | photoelectric system | photoelectric system | photoelectric system | ||||||||
16 | correction precision | ±0.5 mm | ±0.5 mm | ±0.5 mm | ±0.5 mm | ±0.5 mm | ±0.5 mm | ±0.5 mm | ||||||||
Product Description
1.Application:
BRJ-1200-1 Semi-automatic coil foil winding machine for winding transformer Low Voltage Coil.
2.Main Features：
1）Tension system can avoid the loss , adjust air pressure size, guarantee the stability of the whole process of winding tension.
2）adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3）Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4）Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5）Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part：
1.Uncoiling and rectifying device: (1 sets)
2. Charging and wool pressing device;(1 sets)
3. Cleaning device; (1 sets
4. Deviation correction sensor device;(1 sets)
5.Scissors device; 5. (1 sets)
6. (insulation layer and winding device: (1 sets
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set (ac/dc argon arc welding machine/cooling water tank)
9. Winding device;(1 sets
10. Winding and pressing device;(1 sets
11. Layer insulation unwinding device; (2 sets)
2.Main Features：
1）Tension system can avoid the loss , adjust air pressure size, guarantee the stability of the whole process of winding tension.
2）adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.
3）Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and
display, intuitive and accurate.
4）Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.
5）Because using compressed air to generate tension, the whole machine hydraulic system, the whole machine without
vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.
3. Equipment main part：
1.Uncoiling and rectifying device: (1 sets)
2. Charging and wool pressing device;(1 sets)
3. Cleaning device; (1 sets
4. Deviation correction sensor device;(1 sets)
5.Scissors device; 5. (1 sets)
6. (insulation layer and winding device: (1 sets
7. End insulation unwinding device; (3 sets left and 3 sets right)
8. Welding device; (1 set (ac/dc argon arc welding machine/cooling water tank)
9. Winding device;(1 sets
10. Winding and pressing device;(1 sets
11. Layer insulation unwinding device; (2 sets)
Production Process
Company Profile
Jiangxi Hongjun Environmental Protection Technology Co., Ltd., is a professional manufacture specialized in producing all kinds of transformer manufacturing equipment ,like foil winding machine,coil winding machine, Silicon steel sheet shears，Vacuum equipment and Facility&Tooling etc.Jiangxi Hongjun was founded in 2017 with a registered capital of 10 million yuan, is located next to Wugong Mountain scenic spot in Luxi County, Jiangxi Province. Beautiful environment and convenient transportation .we always been striving for become a leading integrated service provider of intelligent manufacturing equipment in China.We have rich export experience to global market ,At present, our equipment has been sold at home and abroad, and get high praise from our client.Quality is our company life and foundation. We assure each set of our machine has passed quality test when it is delivery. Sincerity is our company values, we assure every machine of ours can meet with client reasonable requirement. Choosing our company as your partner is our developing power! Never stopping and continuous improving ourselves, supplying the best quality equipment with reasonable price for each client. Sincerely to cooperate with you !!!\t
Certificate
1.All machine can be customized as per your requirement ,we have rich experience for design and development.
2.We can provide one-stop solution at competitive price and outstanding service.
3.After sales service assurance,service for machine using all life.
2.We can provide one-stop solution at competitive price and outstanding service.
3.After sales service assurance,service for machine using all life.
4.Quality guarantee,we strictly control the quality from the raw material to the finished product,and we will test the machine before delivery.
5.We are one of the most reliable supplier in transformer industry in China.
Packing & Delivery
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment.
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment.
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
