Контроллер высоты пламенной горелки HFA2 THC для портативных пламенных резаков режущих станков с
- Категория: CNC Controller >>>
- Поставщик: Meisar,(Changzhou),Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 167.20 $* | 175.29 $* |
| Aug-19-2025 | 165.39 $* | 173.9 $* |
| Jul-19-2025 | 139.20 $* | 146.22 $* |
| Jun-19-2025 | 162.89 $* | 170.52 $* |
| May-19-2025 | 141.97 $* | 148.67 $* |
| Apr-19-2025 | 160.54 $* | 168.72 $* |
| Mar-19-2025 | 158.79 $* | 166.31 $* |
| Feb-19-2025 | 157.16 $* | 165.34 $* |
| Jan-19-2025 | 155.93 $* | 163.15 $* |
Характеристики
Product Description

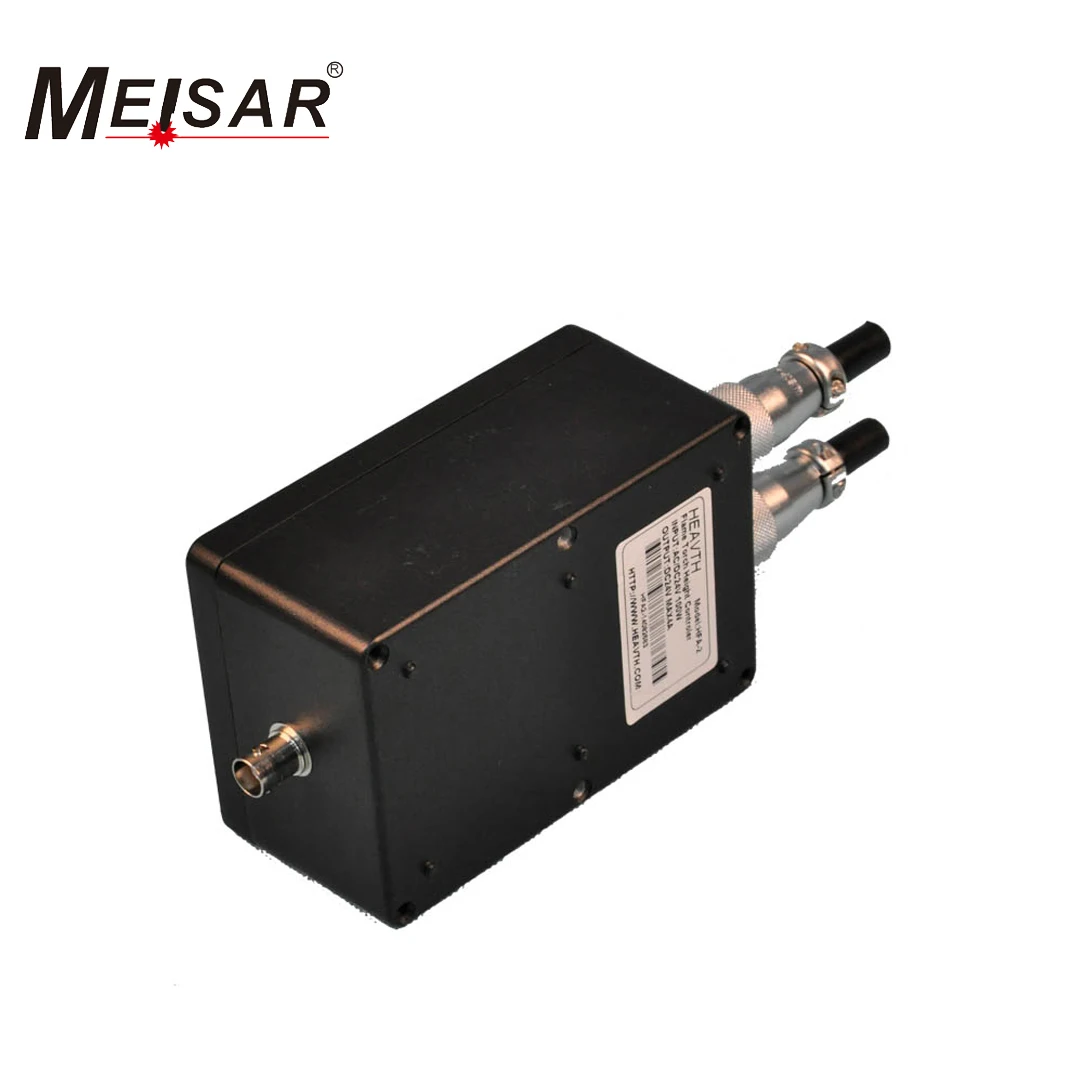

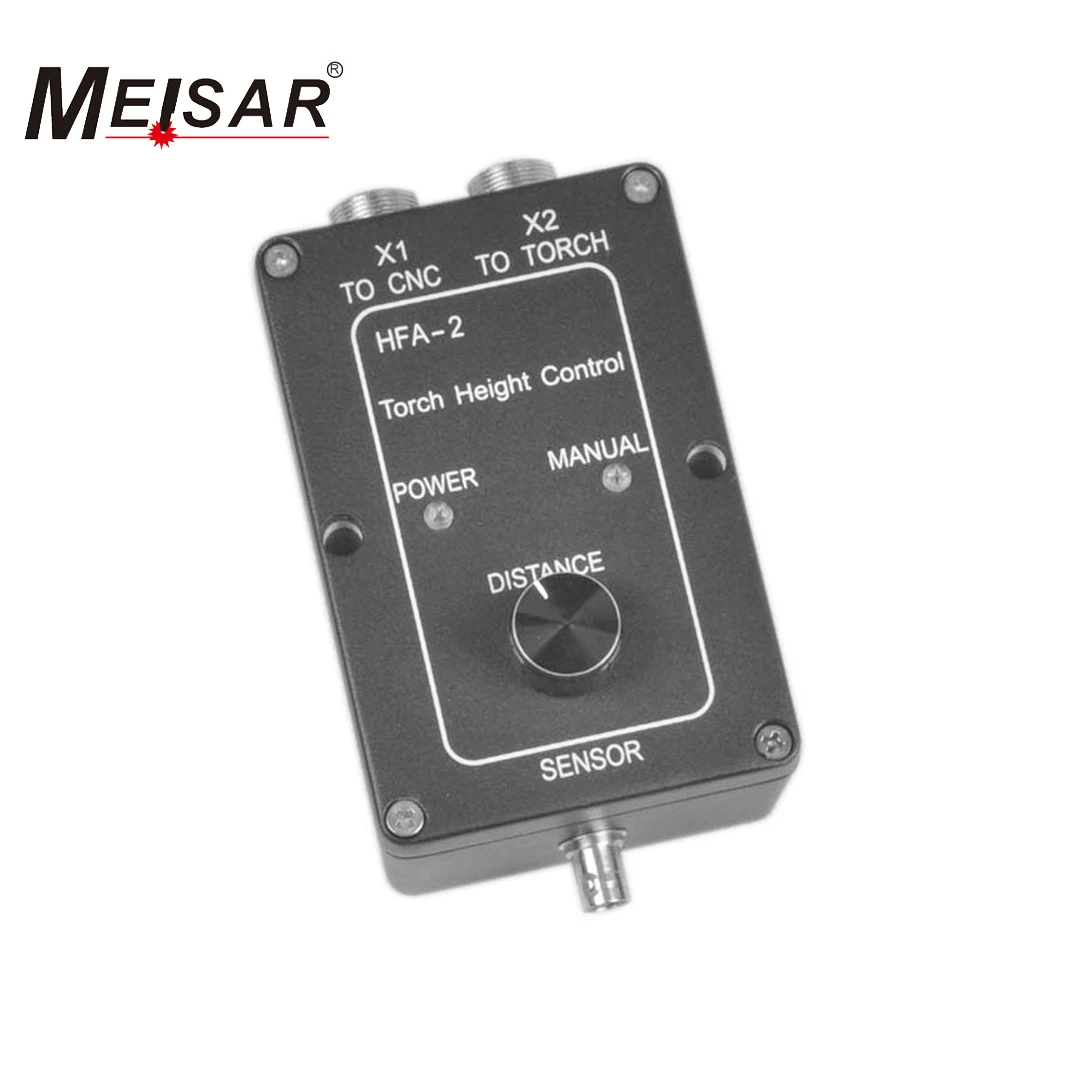

HFA2 is a closed controlling system. It contains 4 parts: Detecting the position signal, transform the signal treated, logic
control and motor drive. This system is applied to CNC flaming cutting. equipment whose cutting torch height needs to be
adjusted automatically.
control and motor drive. This system is applied to CNC flaming cutting. equipment whose cutting torch height needs to be
adjusted automatically.

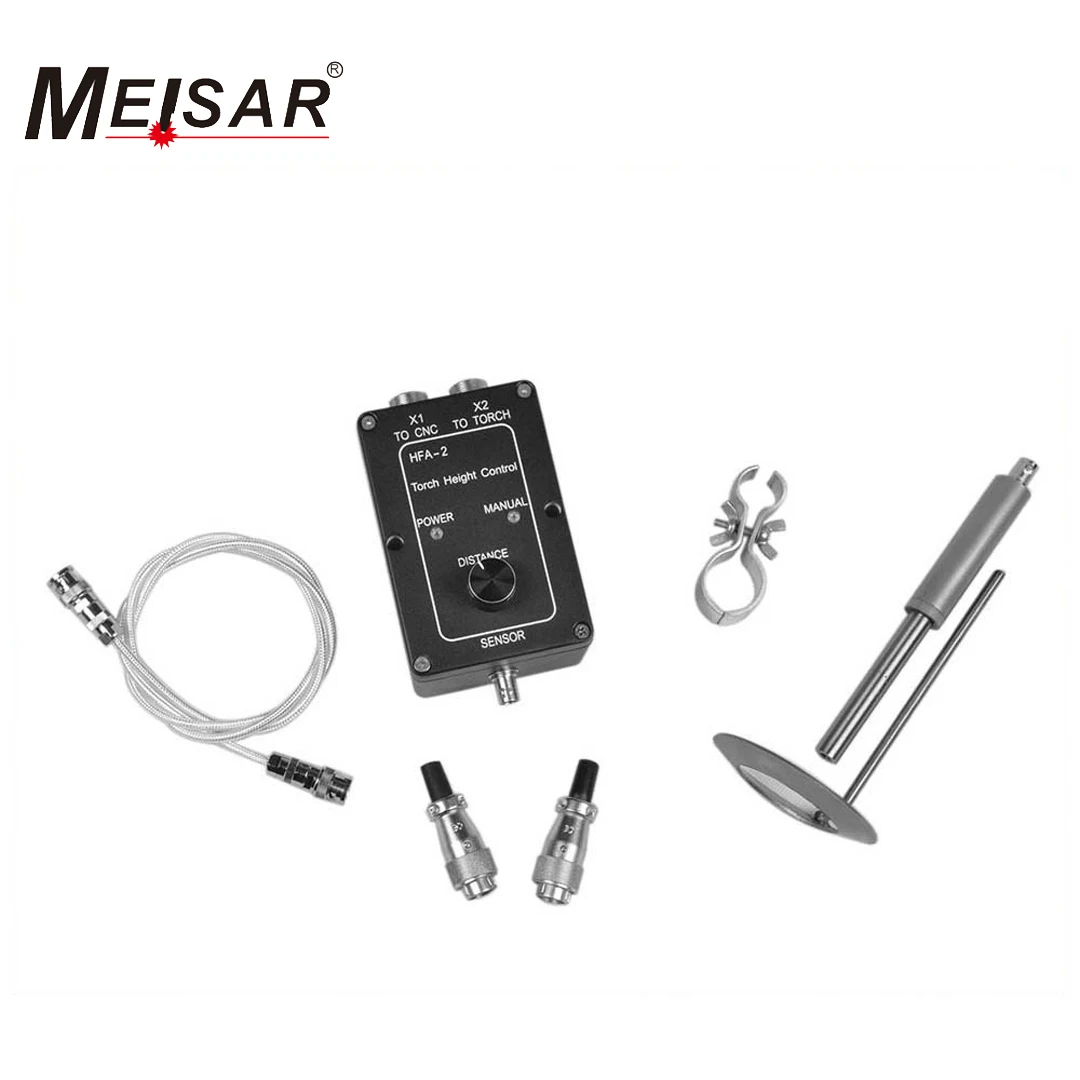

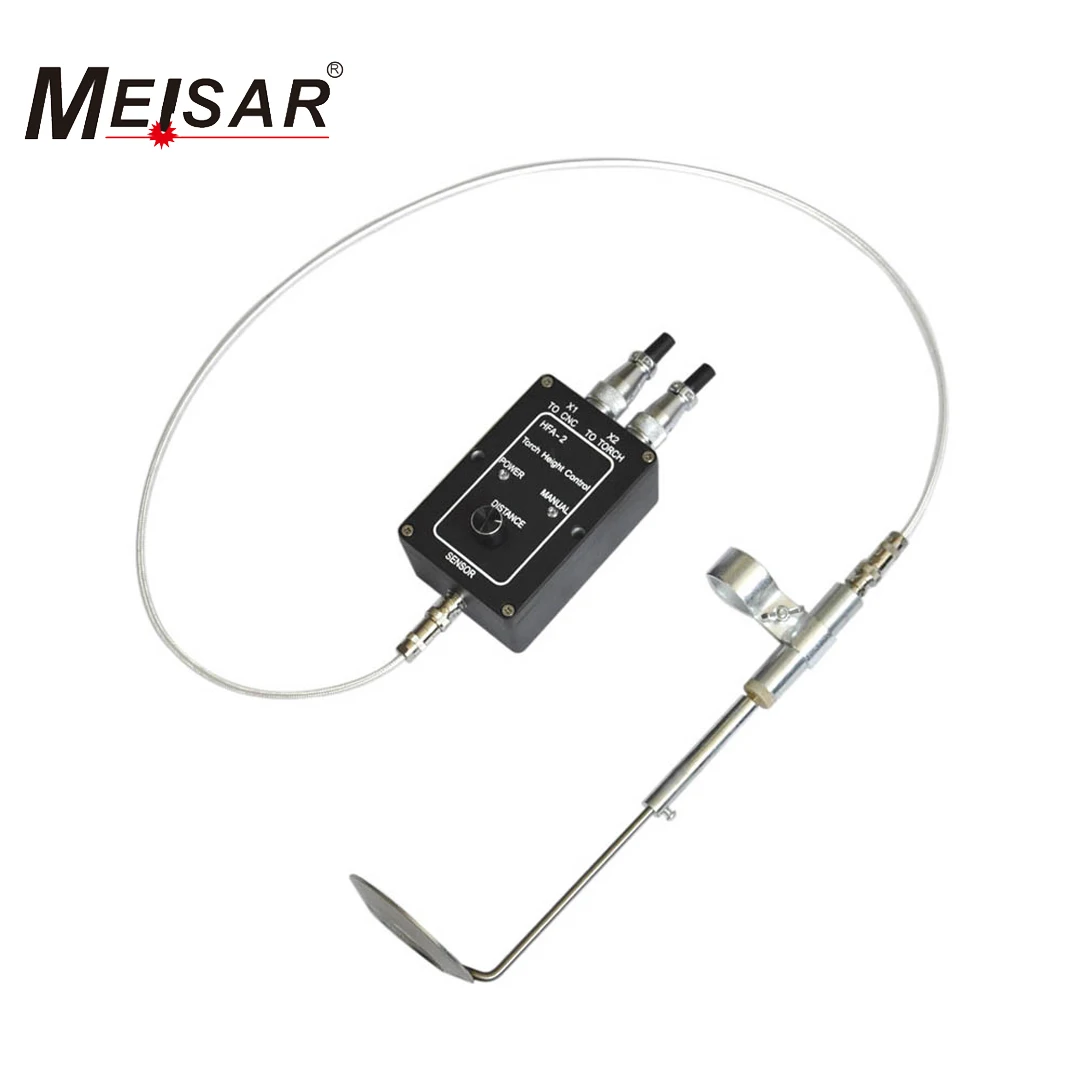

The height signal detecting device makes use of the capacitance sensor. It is isolative between sensor ring and NC machine. The sensor ring is underneath the cutting tip. The detecting device is connected to the metal detector via coaxial-cable. It can get the inductive signal of the height between cutting tip and material(such as steel). The sensor
can send out corresponding signal to logic control circuit after dealing with the information by inner circuit in control box.
can send out corresponding signal to logic control circuit after dealing with the information by inner circuit in control box.
Specification
Input Voltage: | DC/AC24V±10%，50/60 Hz, 150 W |
Lifter Motor: | 24 VDC MOTOR |
Output current： | 1A-4A |
Sense Distance： | 5mm—30mm to workpiece, adjustable |
Accuracy: | ±0.2mm |
Size/Weight: | 120mm X 80mm X 55mm, 1.5kg |
MAX Power Output: | 100W |
HF Cable: | 1000mm |
Sensor Type: | Ring |
Sensor Ring: | Outer diameter 80 mm，Inner diameter 40 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1：Does the machine can be customized according to my requirements?A1：Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q2：Can you arrange the shipment for me ?
A2：We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Q3：What's your payment terms?
A3：We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
Q2：Can you arrange the shipment for me ?
A2：We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Q3：What's your payment terms?
A3：We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
