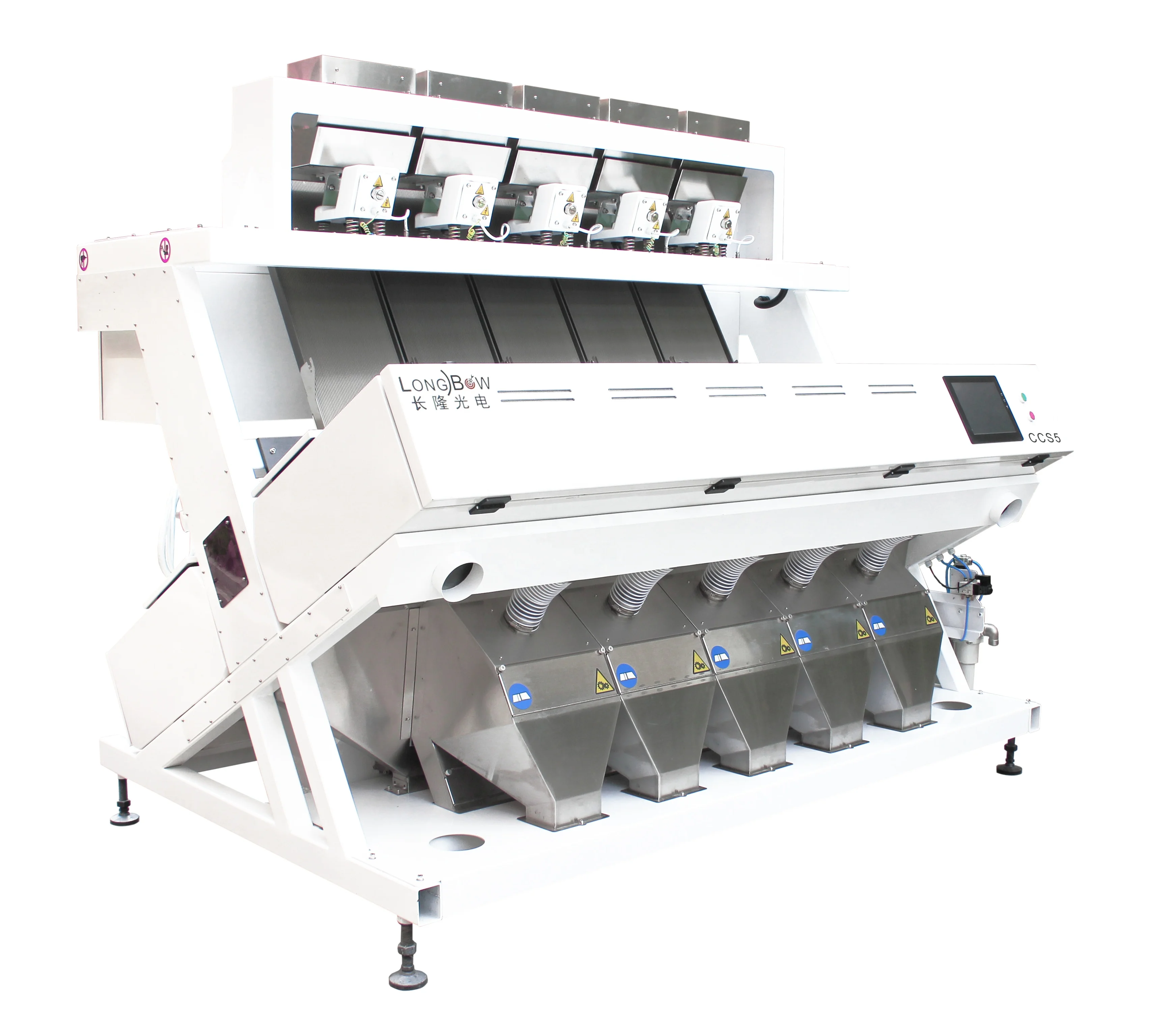

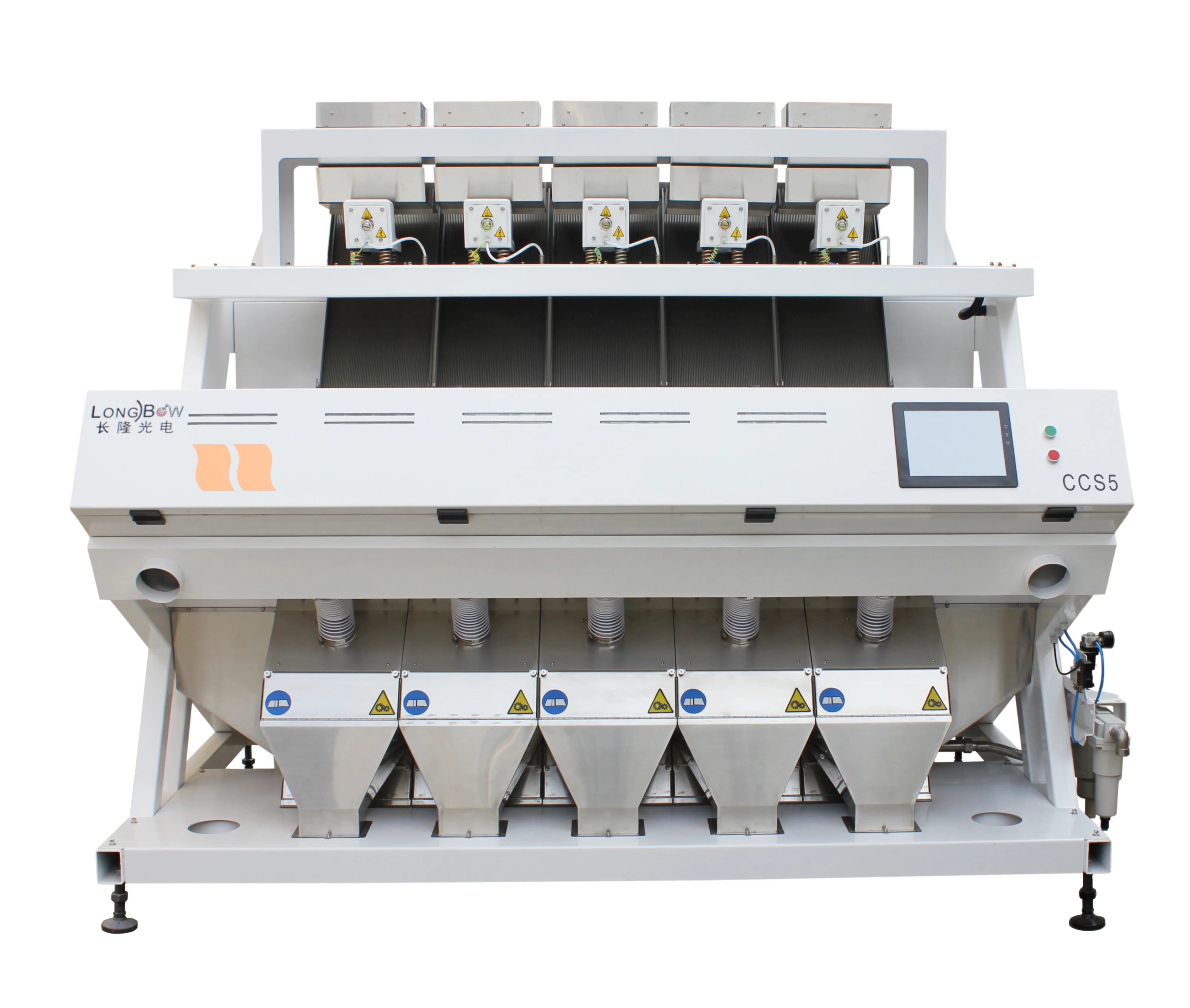

CCS5 Longbow новый стиль сортировщик Красной фасоли/320 каналов ccd сортировочная машина для
- Категория: Rice Mill >>>
- Поставщик: Hefei,Longbow,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 17850.79 $* | 18743.72 $* |
| Aug-17-2025 | 17700.86 $* | 18585.36 $* |
| Jul-17-2025 | 14850.40 $* | 15593.7 $* |
| Jun-17-2025 | 17400.32 $* | 18270.1 $* |
| May-17-2025 | 15150.88 $* | 15908.14 $* |
| Apr-17-2025 | 17100.38 $* | 17955.16 $* |
| Mar-17-2025 | 16950.88 $* | 17798.12 $* |
| Feb-17-2025 | 16800.89 $* | 17640.7 $* |
| Jan-17-2025 | 16650.96 $* | 17483.5 $* |
Характеристики
Company Description
Hefei Longbow Optoel ectronic Technology Co.,L td(Longbow) is a professional supplier specialized in the R&D, production of combined optoelectronic and mechanical product especially the optical sorting machines..
Presently Longbow developed high quality sorting technology and equipment for applications on rice, millet, wheat,maize,cereal, plastics, minerals, tea etc.
Presently Longbow developed high quality sorting technology and equipment for applications on rice, millet, wheat,maize,cereal, plastics, minerals, tea etc.
Configurations | CCD + talored chutes + LED+ Auto-calibration+ Memory System +Secondary function | ||||
Sorting Materials | Polished round grain rice, Coarse rice, Thaliand rice. | ||||
Air system | Compressor + Tank + Dryer + Filter | ||||
Conveying system | Elevator+Aggregate Bin+Outlet Hopper | ||||
Extras | Platform,Air fan,Air Lock,Cyclone | ||||
AI Intelligent Service
1) 2048 CCD sensor. High definition industrial lens.
2) Human-computer interaction.Image Capture. Holographic Imaging.One-key automation. Automatic System Check.
3)Sorting master .High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Sorting accuracy infinitely close to 99.99%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
Detailed Images
Channels material: Anodized Aluminum alloy Chutes
number: 5
Channels/ejector No: 320
Ejector brand options: CMC(China)
Ejectors frequency: 500-1500HZ
Ejector life: 5-10 billion
Ejector nozzel: Aluminum alloy
Camera: Phoenix, Sony
Pixel of camera: 5400
Lens: Sony, Phoenix
Light source: LED, 3-5 years life span
More details
Model | Channels | Throughput(t/h) | Dimension(L*W*H)(mm) | Weight(kg) | Power(kw) | Voltage(v) | Optimized Carryover |
CR1 | 64 | 0.8-1.8 | 932*1515*1625 | 260 | 0.9 | 220/50HZ | >30:1 |
CR2 | 128 | 1-3 | 1477*1644*2013 | 700 | 1.2 | ||
CR3 | 192 | 2-5 | 1795*1644*2013 | 1000 | 2 | ||
CR4 | 256 | 3-6 | 2168*1644*2013 | 1200 | 2.5 | ||
CR5 | 320 | 4-7 | 2488*1644*2013 | 1350 | 3 | ||
CR6 | 384 | 5-8 | 2830*1644*2013 | 1500 | 3.5 | ||
CR7 | 448 | 6-10 | 3132*1644*2013 | 1650 | 4 | ||
CR8 | 512 | 7-12 | 3452*1644*2013 | 1750 | 4.5 | ||
CR10 | 640 | 7-20 | 4092*1644*2013 | 1950 | 5 |
Packing & Delivery
Packaging | ||
Size | 250(L) * 164.4 (W) * 201.3 (D) | |
Weight | 1.35 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H)..If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Application
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
CR7 color sorter machine
Sorting accuracy: 99.9%
CR4 color sorter machine
Sorting accuracy: 99.9%
MINI 2 Multi-function color sorter
Sorting accuracy: 99.9%
