Manufacturer Hot Sale 100m3 biogas digester bag for biogas digester plant
The biogas is Environmentally friendly energy，which can be used for cooking, lighting, power generation, Boiler, for the plastic greenhouses and barns warming and insulation, provide fertilizer for the vegetable greenhouse gas carbon dioxide, it can also be used to fresh fruit.
Material for biogas production
a.Animal and people manure b.Food waste c.Straw powder d.Palm oil / palm nut Attention: Please do not put chemical material in the biogas digester.
Red mud soft biogas plant, the tank body is provided with an air outlet hole, inlet, outlet, with the pipe assembly forming connection, inlet and outlet can be made of 200mm-300mm, caliber, not easy to plug, the inlet and outlet are integrally welded (non bolt connection), light weight and good seal. Generally speaking there are buried, half buried, placing three forms. According to user needs.
The characteristics of red mud biogas plant
★Lightning protective, anti-seismic, anti-aging, pressure and abrasion resistant, puncture resistant, corrosion resistant, impermeable
★Convenient to carry and install, foldable and light
★Easy and quick to install
★Generate much marsh gas without stirring for excellent sealing performance
★Extensive sources of fermented raw material
★Safe to use
★Sanitary and environment-friendly
★Easy to operate and maintain
Specification
Type
Specification
Material thickness
Material
4m3 biogas plant
2X2X1m
1.0-1.2mm
Red mud PVC+MESH
6m3 biogas plant
3X2X1m
1.0-1.2mm
Red mud PVC+MESH
8m3 biogas plant
3X2X1.33m
1.0-1.2mm
Red mud PVC+MESH
10m3 biogas plant
4X2X1.33m
1.0-1.2mm
Red mud PVC+MESH
20m3 biogas plant
6X2.5X1.33m
1.0-1.2mm
Red mud PVC+MESH
50m3 biogas plant
6X3.3X2.5m
1.2mm
Red mud PVC+MESH
100m3 biogas plant
10*5*2m
1.2mm
Red mud PVC+MESH
...
More size we can accept customized ,please inform us your requirements .
Biogas /Gas storage bag as below :
Capacity
Diameter *length
Material Thickness
5m3 Biogas storage bag
.5m *3m
0.9 mm RED MUD PVC
6m3 Biogas storage bag
1.6m*3m
0.9 mm RED MUD PVC
8m3 Biogas storage bag
2m*3m
0.9 mm RED MUD PVC
10m3 Biogas storage bag
2m*3.5m
0.9 mm RED MUD PVC
0m3 Biogas storage bag
3m*3m
1.0 mm RED MUD PVC
30m3 Biogas storage bag
3m*4.5m
1.0 /1.2mm RED MUD PVC
40m3 Biogas storage bag
3m*6m
1.2 mm RED MUD PVC
50m3 Biogas storage bag
3m *7m
1.2 mm RED MUD PVC
150m3 Biogas storage bag
4m*12m
1.2 mm RED MUD PVC
200m3 biogas storage bag
6m*7m
1.2 mm RED MUD PVC
All size we can accept customized

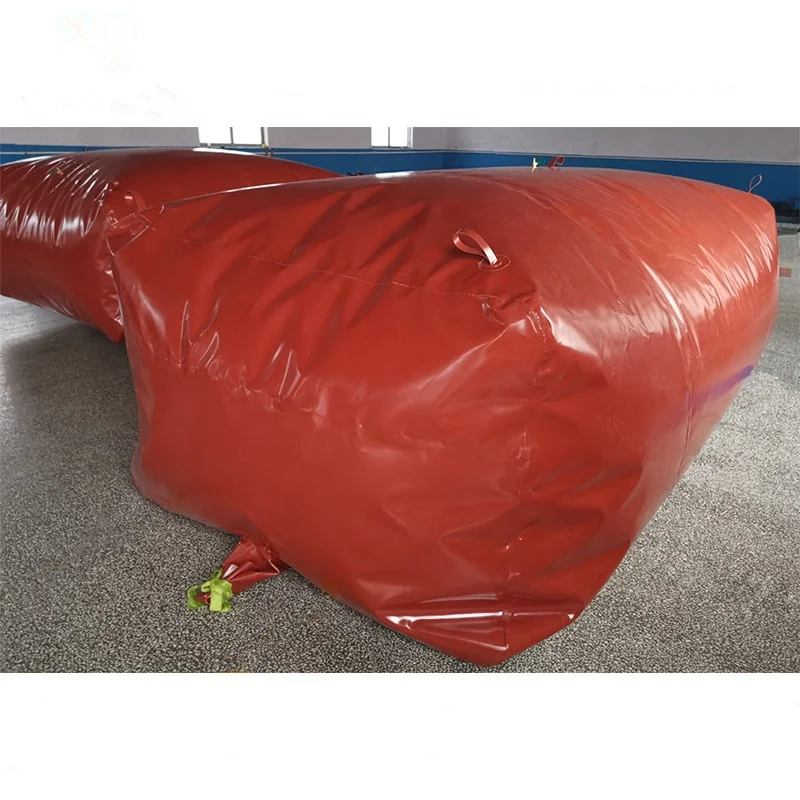

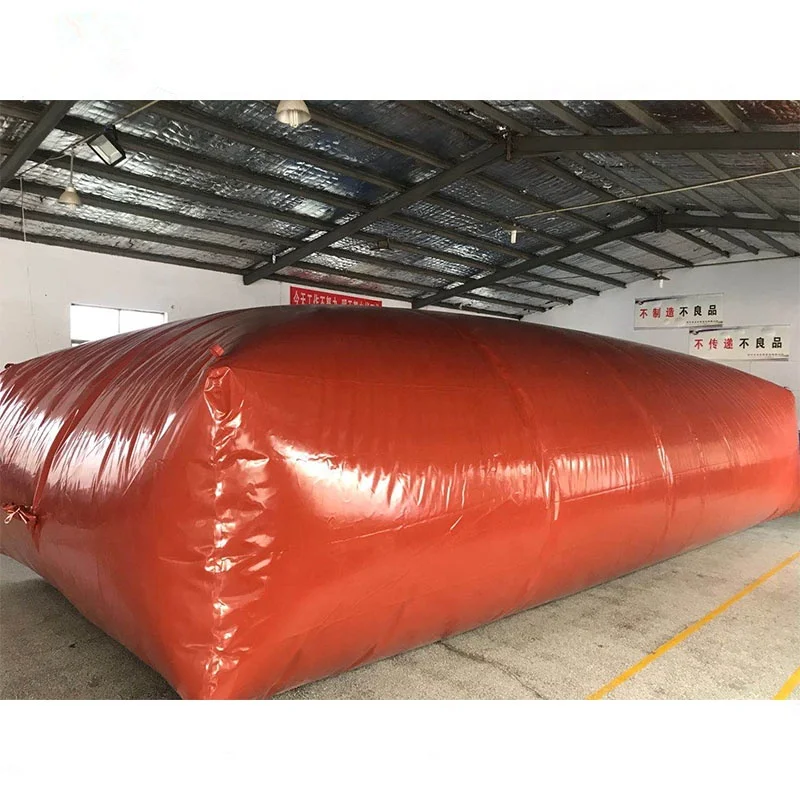

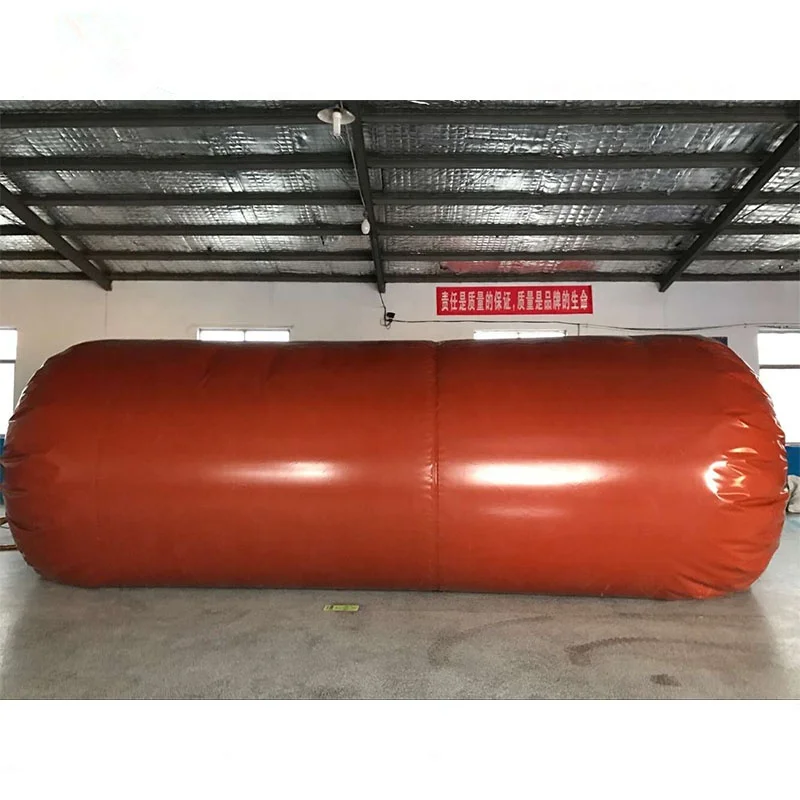

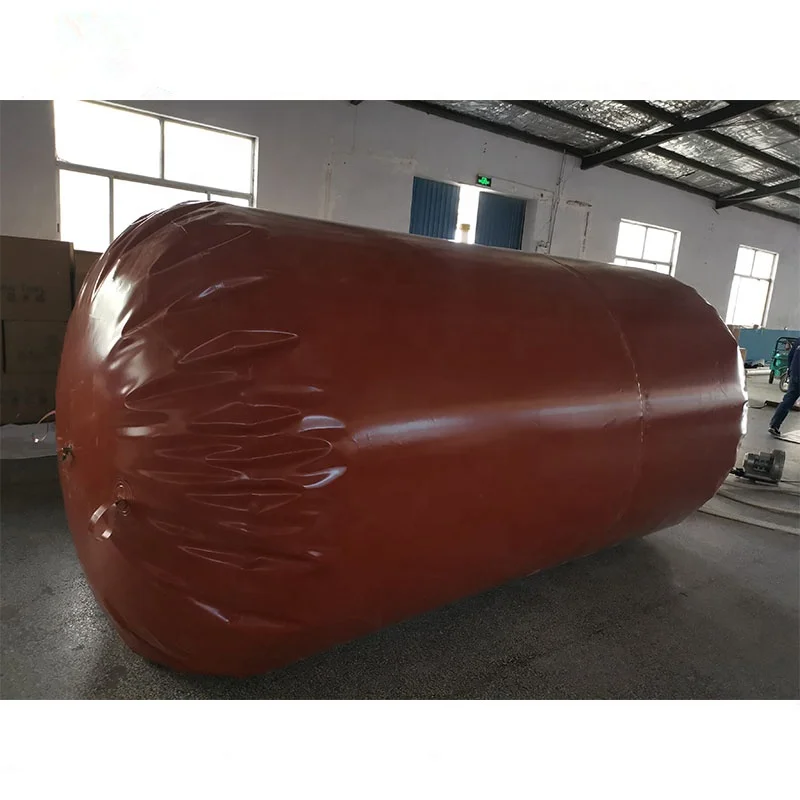

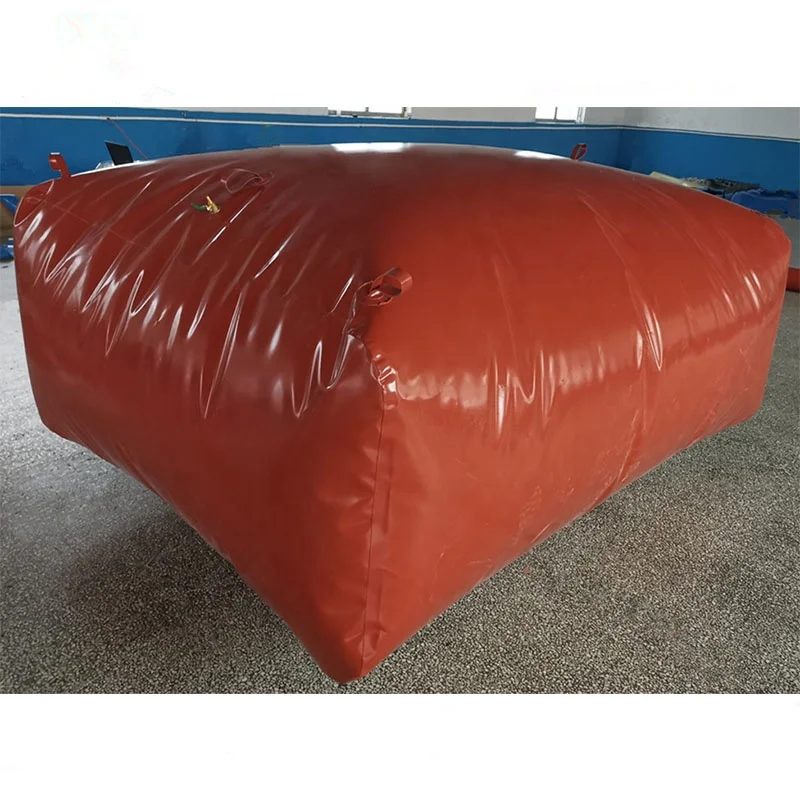

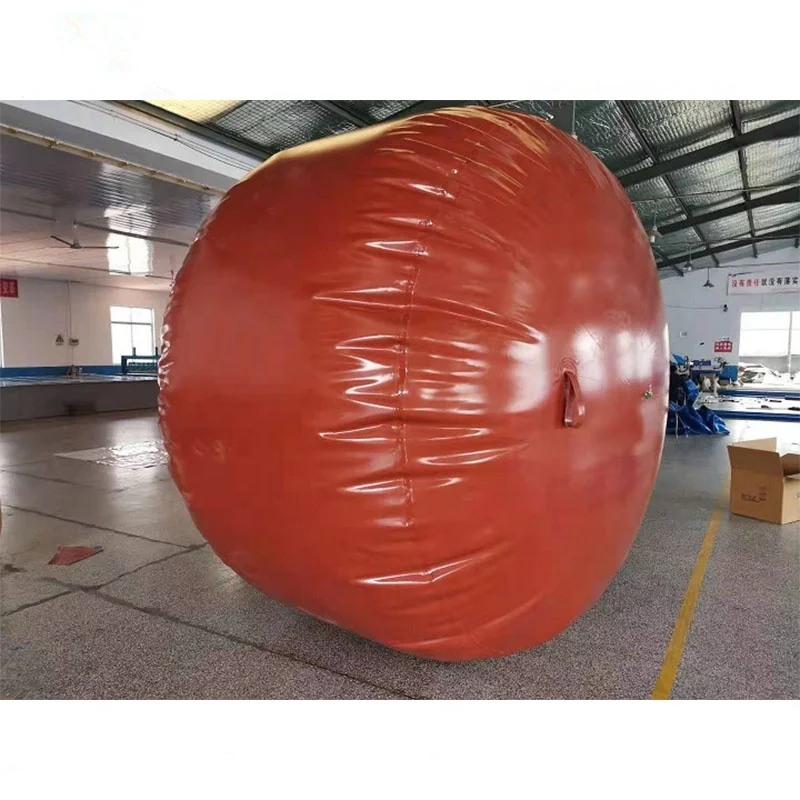

Details Images
Packing & Delivery
Packing: 1. Carton box 2. Wooden box3.Delivery: by express,by air,and by sea according to the quantity.
Recommend Products
FAQ
1.How does the biogas production?
Organic matter (such as human, animal dung, crop residues, grass, leaves and plant organic waste, etc.) under anaerobic conditions, a flammable gas through the interaction generated by a variety of microorganisms, we call this the flammable gas as biogas.
2.What the main components of biogas?
Biogas is mainly methane, a flammable gas mixed. General biogas containing 55-70% methane, 25-40% carbon dioxide, and small amounts of hydrogen sulfide, nitrogen, hydrogen, carbon monoxide, oxygen.
3.Basic condition should be for biogas fermentation?
Enough biogas raw materials;
A certain amount of anaerobic activated sludge;
Appropriate temperature;
Suitable pH (PH value and alkalinity)
Fermentation of raw materials is essential to have a microbial growth nutrients;
Suitable stirring;
Prevent toxic substance to inhibit biogas fermentation process.
4.What raw materials can put into biogas digester?
Many country biogas raw materials mainly use human, animal dung, crop residues, grass, leaves and the like.
5.How to calculate the size of biogas plant according to my poultry or manure?
6.How many bio gas will be produce from a biogas plant?
7.How to equip a biogas generator for a biogas plant?
8.How to add manure and maintain biogas plant？
Why the using biogas need to be desulfurizer and dewater and Biogas Pump?
9.Why the biogas fertilizer is more superior than ordinary fertilizer?
And more questions ...
If you are are interested the biogas ,please feel free to contact with us ,we can share the biogas technology with you .
