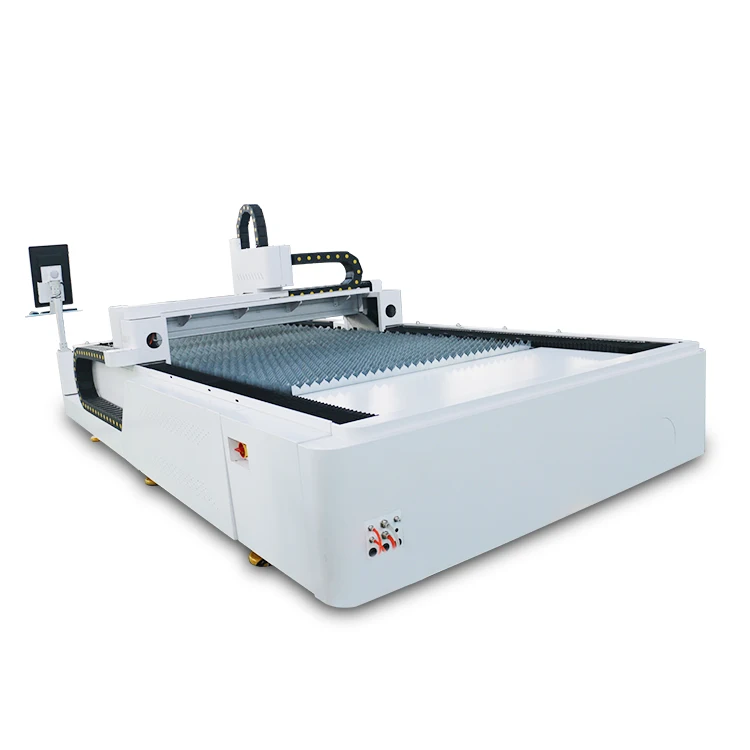

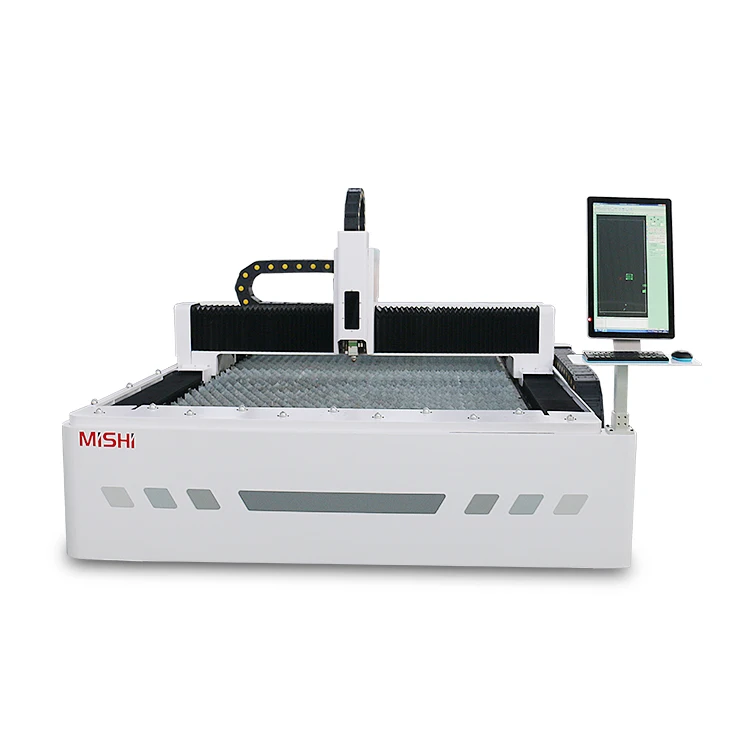

Высокотехнологичная Лазерная Маркировочная зеркальная машина лазерный портативный гравер из
- Категория: Laser Engraving Machines >>>
- Поставщик: Jinan,Mingshi,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 23562.30 $* | 24740.63 $* |
| Aug-19-2025 | 23364.32 $* | 24532.39 $* |
| Jul-19-2025 | 19602.51 $* | 20582.31 $* |
| Jun-19-2025 | 22968.84 $* | 24116.39 $* |
| May-19-2025 | 19998.7 $* | 20998.55 $* |
| Apr-19-2025 | 22572.29 $* | 23701.62 $* |
| Mar-19-2025 | 22374.95 $* | 23493.34 $* |
| Feb-19-2025 | 22176.52 $* | 23285.96 $* |
| Jan-19-2025 | 21978.98 $* | 23077.97 $* |
Характеристики
Model | F3015 |
Laser type | Fiber laser |
Laser working medium | Optical fiber |
Laser wave length | 1060-1080nm |
Output rating | 1000w |
X-axis travel | 1500mm |
Y-axis travel | 3000mm |
Maximal acceleration | 1.5G |
Plate effective cutting range | 1500*3000mm |
positioning accuracy | 0.03mm/m |
Repeat the positioning accuracy | ±0.02mm/m |
Maximum empty speed | 100m/min |
Power supply rating parameters | 3 phase current 380V 50Hz |
Equipment electrical power | 11.25kw |
1000W Laser source | MAX |
Laser head | RAYTOOLS |
Table structure | Time treatment pipe welding / plate welding bed body |
X\\Y gear rack | High-precision grinding |
Servo motor | Japan Fuji |
Reducer | Japan SHIMPO |
Water chiller | Hanli |
Laser cutter system | Cypcut control system |
Cypcut Control System
CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. lt simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to work piece.
RAYTOOLS Laser Head
It has a wide range of interface settings that allow it to interface with a wide range of fiber lasers.Optimized optical design, combined with digital height sensor can make cutting more efficient. Dual water-cooled design allows the laser head to work continuously and consistently at high power over long periods of time. Professional laser optical system and imported lenses, stable and reliable.
MAX laser source
High efficiency of electro-optic conversion, Efficient sheet cutting, Output fiber length can be customized , free operation, wide modulation frequency range. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.
Working Table
High stable knife worktable, reduce touch between material and worktable.Serrate plat form and trim strip are very suitable for cutting metal sheets, this reduce the spatter of spark during laser cutting.
Control Panel
The control panel is simple and convenient. All-in-one control panel can rotate 180 to 270 degrees, save space, rotate freely, and realize the integration of human and machine. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped workpieces.
Structure bed
Tenon-and-mortise type plate welding Fully connected, make full use of the structural force, and fixed at the same time. Through finite element to the same time. Through finite element to reach the force and supporting structure, it can accept a wide range of solder joint analysis and welding and undergo aging treatment, which greatly reduces the health of the bed and ensures the long-term stable operation of the equipment.
Application industries: metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery , Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.
Applicable materials: professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel plates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.\t\t\t
Applicable materials: professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel plates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.\t\t\t
Jinan Mingshi Machinery Equipment Co., Ltd established in 2010 is a professional CNC enterprise integrating R&D, design, sales and production. We have C E certification. Main productions include: CNC Router, Laser cutting machine,etc. Also we can according custom requirement to the OEM service.
Our vision: Integrate advanced technology and create value for customers. We provide world-class machinery and equipment to customers around the world.
Our vision: Integrate advanced technology and create value for customers. We provide world-class machinery and equipment to customers around the world.
1. After you receive the machine, you can directly put it into use.
2. If you have any questions, we can provide you with 24-hour online service.
3. We will provide two years for machine warranty period and a year warranty period for core components.
2. If you have any questions, we can provide you with 24-hour online service.
3. We will provide two years for machine warranty period and a year warranty period for core components.
Q: What spare parts come along with the machine ?
A: We will provide the necessary parts for the first use of the machine. And for spare parts are determined by the machine of choice.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust,static electricity, humidity, and chips to cause parts failure.
Q: What about after-sales service? How long is the warranty period?
A: We offer 24 hours online video call to solve your problems. We have a standby team ready to assist you at any given time.
Machine maintenance requirement will be provided to you upon purchase. On all machinery we offer 2 years warranty and a year warranty for core components.
Q: How many days does the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air or by train. Our trade terms is mostly centred on FOB, but we offer EXW, CIF,depending on which is more convenient for you.
A: We will provide the necessary parts for the first use of the machine. And for spare parts are determined by the machine of choice.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust,static electricity, humidity, and chips to cause parts failure.
Q: What about after-sales service? How long is the warranty period?
A: We offer 24 hours online video call to solve your problems. We have a standby team ready to assist you at any given time.
Machine maintenance requirement will be provided to you upon purchase. On all machinery we offer 2 years warranty and a year warranty for core components.
Q: How many days does the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air or by train. Our trade terms is mostly centred on FOB, but we offer EXW, CIF,depending on which is more convenient for you.
