Самая дешевая цена маленькая портативная Алмазная проволочная пила 22 кВт режущая машина для строительства армированной резки
- Категория: Stone Machines >>>
- Поставщик: Jiangxi,Jiande,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 186902.96 $* | 190640.2 $* |
| Jul-16-2025 | 151582.91 $* | 154614.95 $* |
| Jun-16-2025 | 183959.20 $* | 187638.32 $* |
| May-16-2025 | 182487.70 $* | 186137.80 $* |
| Apr-16-2025 | 145695.76 $* | 148609.9 $* |
| Mar-16-2025 | 179544.11 $* | 183135.59 $* |
| Feb-16-2025 | 178072.94 $* | 181633.11 $* |
| Jan-16-2025 | 176600.0 $* | 180132.90 $* |
Характеристики
Product Feature:

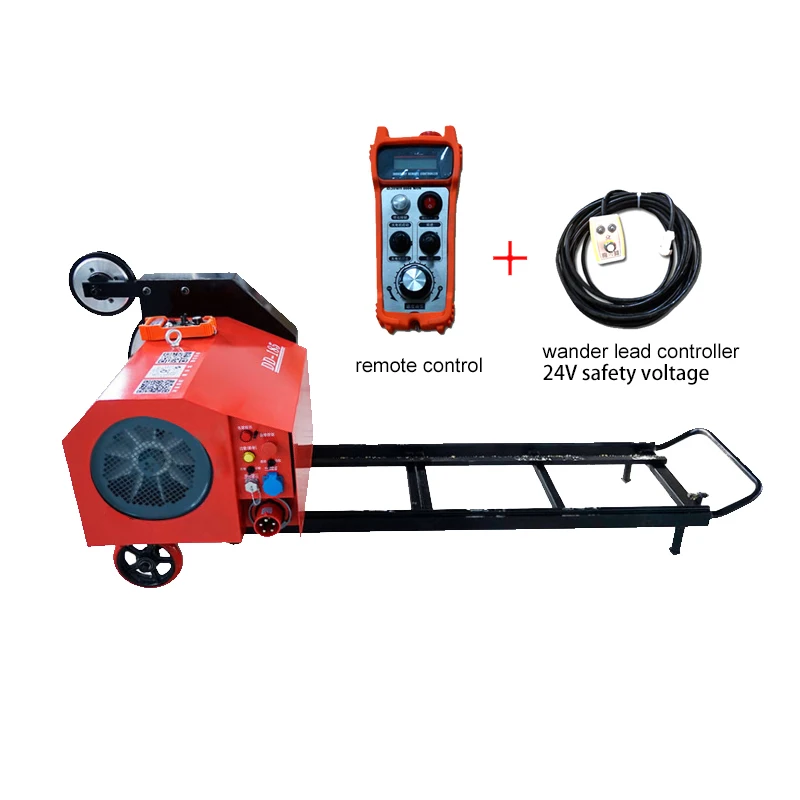

1.Remote control
2.Easy operation
3.Convenient to use and maintain
4.Stable cutting performance
5.High cutting efficiency/High speed/Lower cost.
2.Easy operation
3.Convenient to use and maintain
4.Stable cutting performance
5.High cutting efficiency/High speed/Lower cost.
Specification
![]()
![]()
Technical Parameters | ||||
Model | JD-22KW | JD-18.5KW | ||
Motor power | 22KW | 18.5KW | ||
OD of Driving Pulley | 500mm | 500mm | ||
Length of wire | 20-50 | 20-40 | ||
Walking speed | 0-40m/s | 0-40m/s | ||
Walking motor power | 0.2kw | 0.2kw | ||
Rail length | 1300mm | 1300mm | ||
Rail width | 450mm | 450mm | ||
RPM | 0-980r/min | 0-980r/min | ||
Voltage | AC380±10% 50Hz 3phase | AC380±10% 50Hz 3phase | ||
Working environment temperature | (-15ºC- +40ºC) | (-15ºC- +40ºC) | ||
Total weight | 220kg | 200kg | ||
Size | 2400*900*1000mm | 2400*900*1000mm | ||

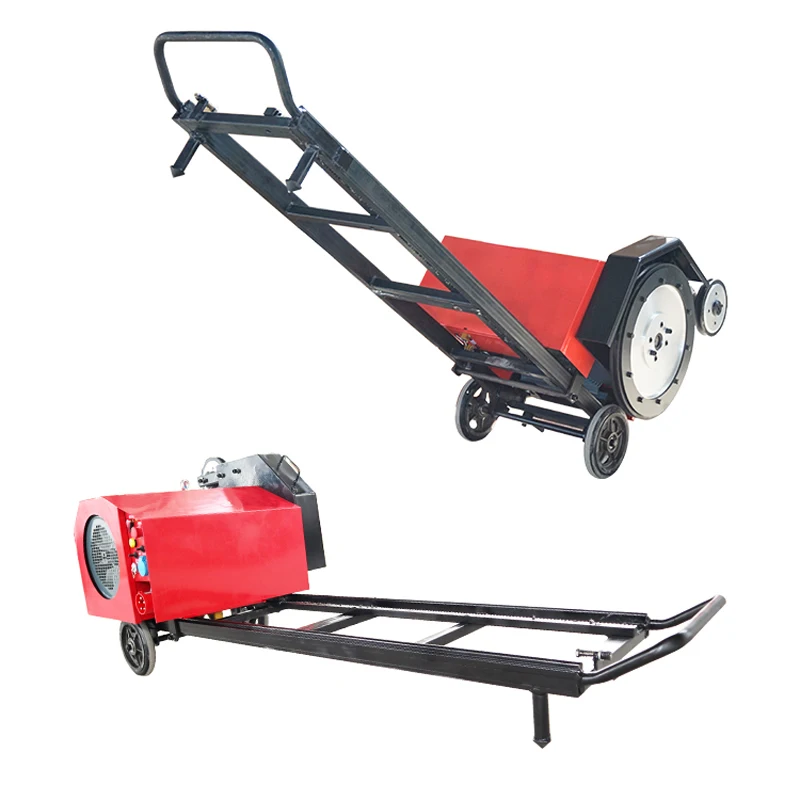

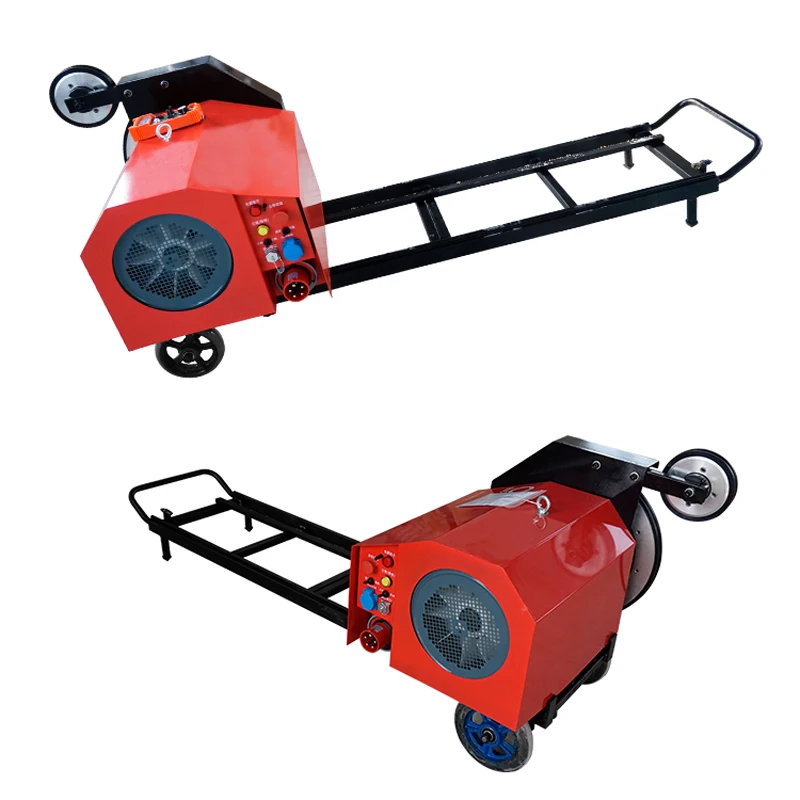

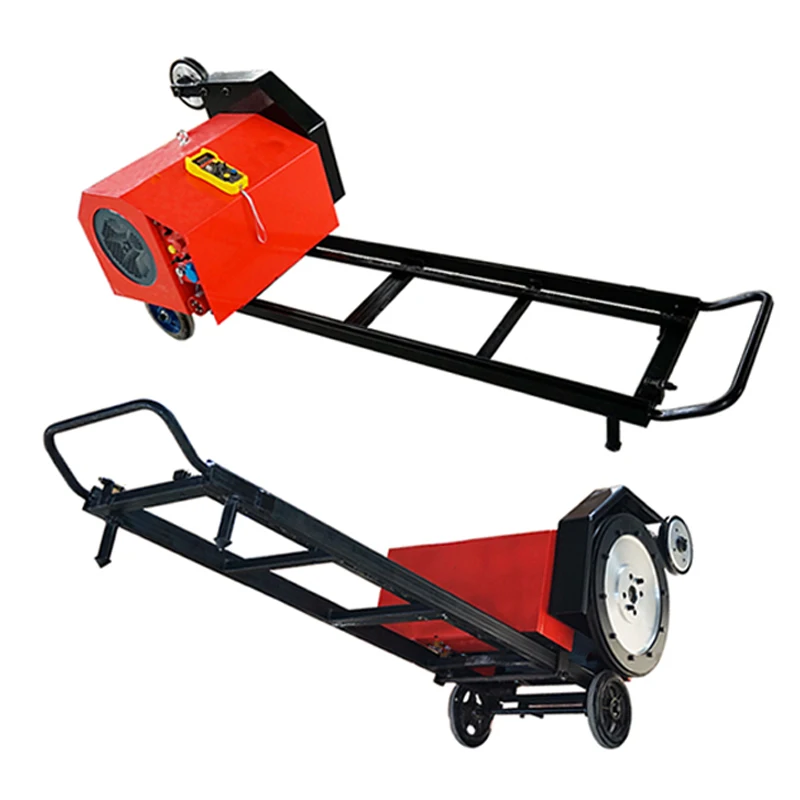

Details Images
![]()
![]()
![]()
After-Sales Service
Warranty description:
1. Main motor and Sub-motor: 6 months warranty (except for human reasons, such as missing items, overload, under pressure, water intake, etc.)
2. Electric box: The inverter is guaranteed for 6 months (except for human reasons. such as the power supply is
wrong, the voltage is not within the rated range, etc. The electrical box is not waterproof, resulting in damage to the original device)
wrong, the voltage is not within the rated range, etc. The electrical box is not waterproof, resulting in damage to the original device)
3. Other vulnerable electrical components warranty 3 months.
Diamond Wire Saw For Reinforce Concrete Cutting:
We recommend 11.5mm Rubber and Spring wire.
The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.
WE ARE ASSURING THAT THE CUTTING LIFE WILL BE OVER THAN 2.5~3.0SQM/METER.![]()
The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.
WE ARE ASSURING THAT THE CUTTING LIFE WILL BE OVER THAN 2.5~3.0SQM/METER.
Construction Team and Cutting Cases
![]()
Company Profile
![]()
Brand core value:
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.Corporate mission:
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.Corporate mission:
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
WITH CAHARD, CUTTING IS NOT DIFFICULT ANY MORE.
1.If it is found that the cutting speed of the CAHARD wire saw is slower than that of similar products, and the cutting life is
less than that of similar products, it can be returned.
2.If it is found that the drilling speed of the CAHARD drill bit is slower than that of similar products, and the number of
drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the CAHARD saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the CAHARD diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
1.If it is found that the cutting speed of the CAHARD wire saw is slower than that of similar products, and the cutting life is
less than that of similar products, it can be returned.
2.If it is found that the drilling speed of the CAHARD drill bit is slower than that of similar products, and the number of
drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the CAHARD saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the CAHARD diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
Exhibition
![]()
Glories of Company ( famous brand and letter of patent )
![]()
FAQ
Question1: There are many unqualified products in the market, how can you make sure your quality control?
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. Are you a factory or trading company?
Answer: We are factory.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question4.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
Question5: I want to be your agent, what is the conditions?
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by
negotiation
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. Are you a factory or trading company?
Answer: We are factory.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question4.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
Question5: I want to be your agent, what is the conditions?
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by
negotiation
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
