Popular all over the world finger jointer line



This machine can be used for cutting teeth for the production of fine wood, furniture, etc.

This product is suitable for the reprocessing of waste engineering wood. It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company.



Wood finger joint machine is mainly used for making finger shape of wood, smear the glue on the
tenon,and then put into the finger jointingt machine to make the wood connect tight, then use the wood cutter machine to cut the wanted length.

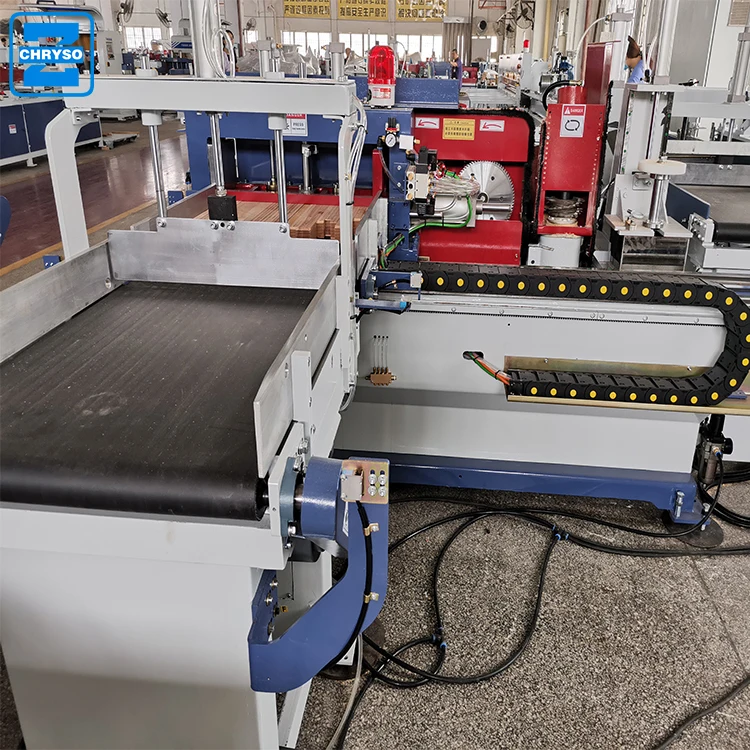

Finger Joint Shaper : used for slotting wooden teeth (with glue)







Popular all over the world finger jointer line

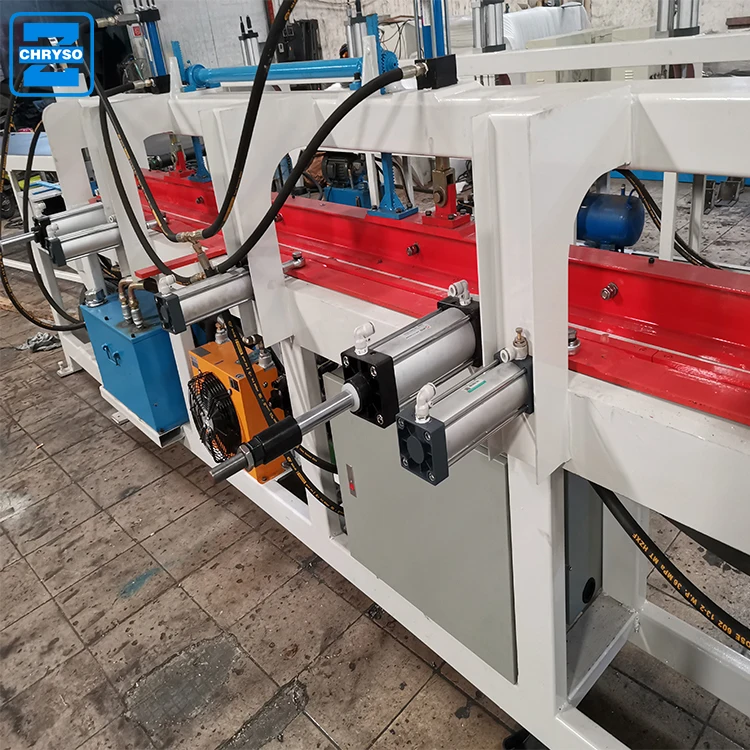

Finger Joint Press:Use hydraulic device to make the wood connection tight and for lengthening timber lengthways







Finger Joint Line (Including Finger Jointer, Finger Joint Press, Wood Cutting Machine)

The future of the Popular all over the world finger jointer line:

1.Stable performance, high precision, long service life

2.The connection length can be adjusted as required

3.The spindle is precisely machined, assembled accurately, runs smoothly, and has good accuracy

4.Multiple sets of pressing wheels are used in the receiving of materials to ensure stable feeding and precise connection.

5.Reuse of waste wood to reduce business costs.

6.Fully automatic operation, saving a lot of labor

7.The finger-joined plate has a long service life and is not easy to deform, which greatly improves the quality of the finished product.

8.It has a wide range of applications and can be applied to a series of wood products such as door panels, door frames, and desks.

9.The finger joint assembly machine part adopts a long + short design, through this structure, a very short workpiece can be assembled and the cost is reduced.





The application of the finger joint:



The finger joint machine is mainly used for splicing comb tenons of medium and short woods, such as the production of blockboard, transportation zygote, pillars, furniture, etc. It is to improve the utilization rate of wood, so as to longitudinally glue and join to make long-size specifications. Ideal processing equipment.



The technical parameter of the finger joint machine





Model	CRS-150A	CRS-150B
Feed length	150-850mm	150-850mm
Shaping Thickness	20-150mm	20-150mm
Width for workbench processing	550mm	550mm
Pressing thickness	30-100mm	30-100mm
Pressing width	30-150mm	30-150mm
Spindle diameter	40mm	40mm
Spindle speed	6750rpm	6750rpm
Saw blade spindle power	1.5kw*2	4kw*2
Saw blade spindle power	1.5kw*2	/
Spindle motor power	15kw*2	11kw*2
Belt conveyor power	0.75kw*5	/
Total motor power	42.75kw	30kw





The specification of Finger Joint Press:



Model	CRS-80
Max. assembled length	2500mm
Max. working width	80mm
Max. working thickness	30mm
Min working length	100mm
Min working width	30mm
Min working thickness	10mm
Blade speed	2800r/min
Saw blade diameter	200mm
Saw motor power	2.2kw
Oil pump motor power	4kw
Working air pressure	0.5-0.8Mpa
Max thrust for oil pressure	3500kg
Max output	25m/min
Overall dimensions	4265*830*1470mm



Popular all over the world finger jointer line



 Planing saw machine:





Popular all over the world finger jointer line

The package of Finger Joint Machine:





Popular all over the world finger jointer line



Popular all over the world finger jointer line

Professional service of Finger Joint Machine line:
