Высококачественная катушка зажигания 12 В для Honda XL185 XL XR 70 75 80 100 125 175 185 200 250

 Specifications:

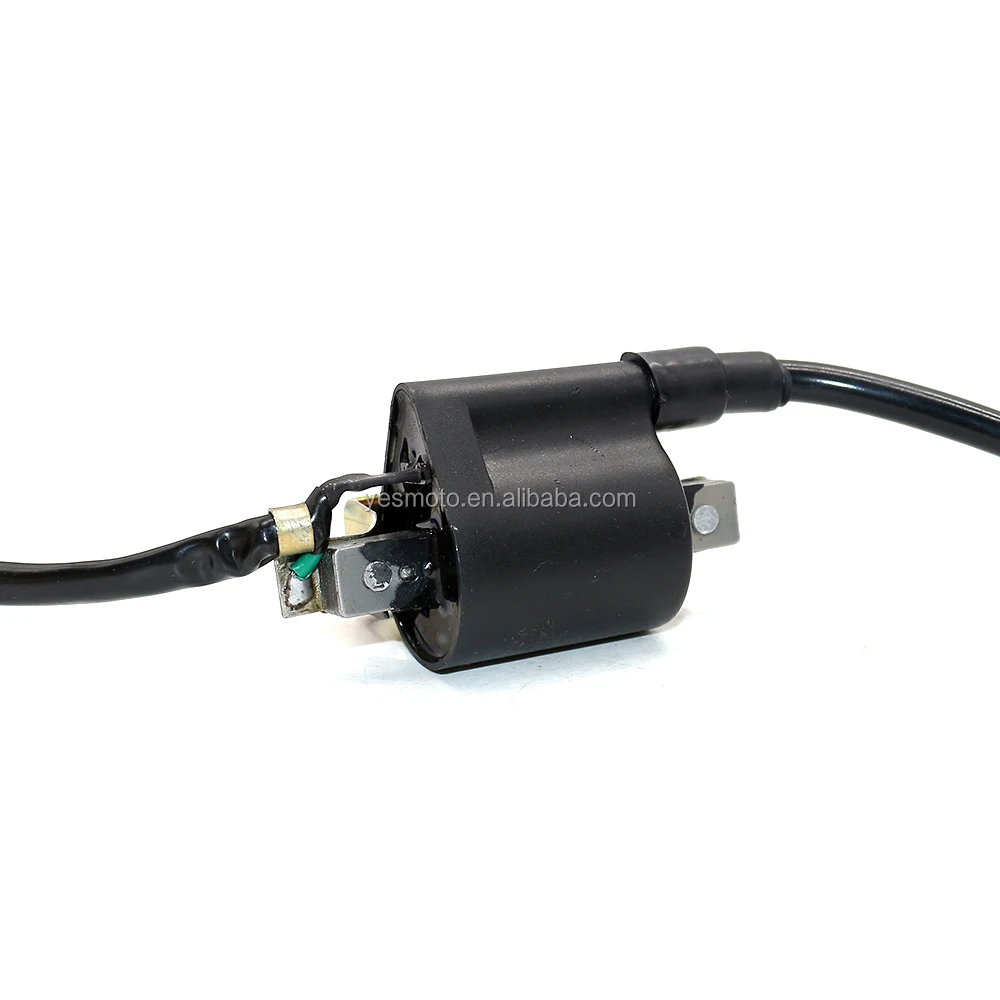

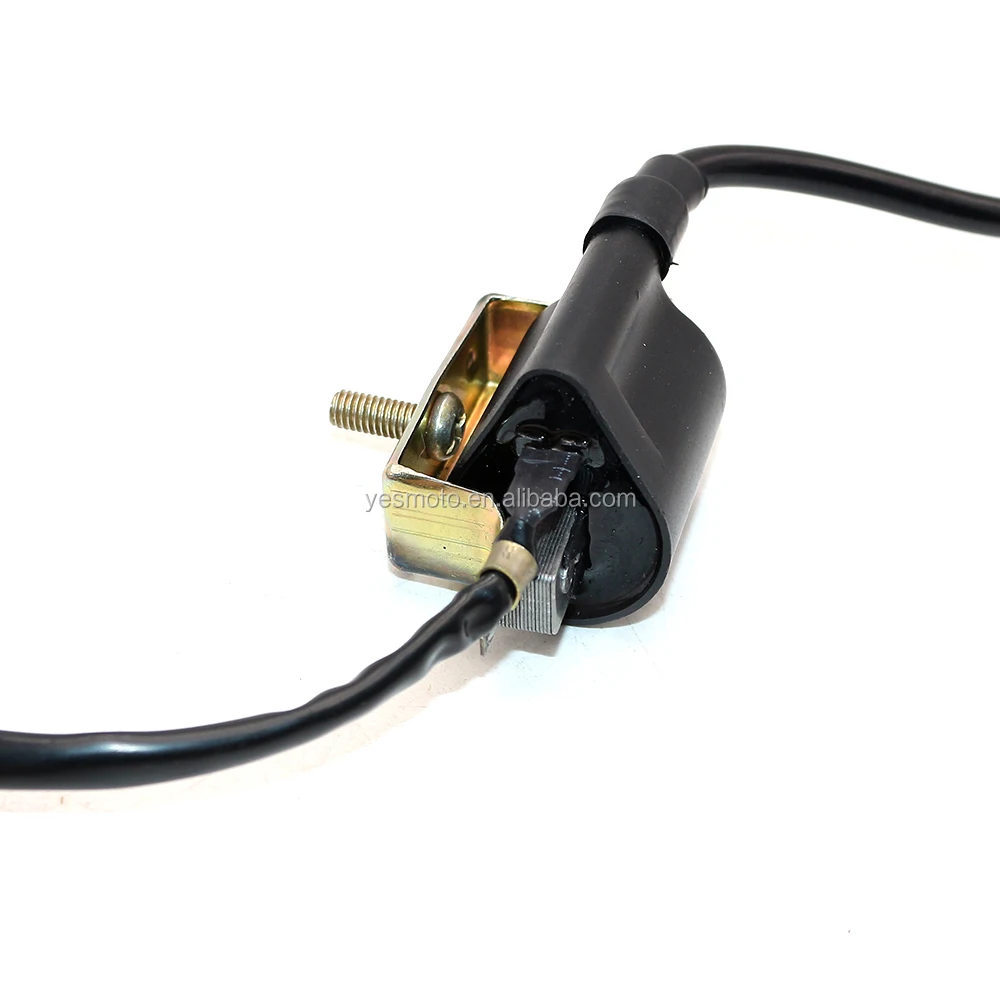

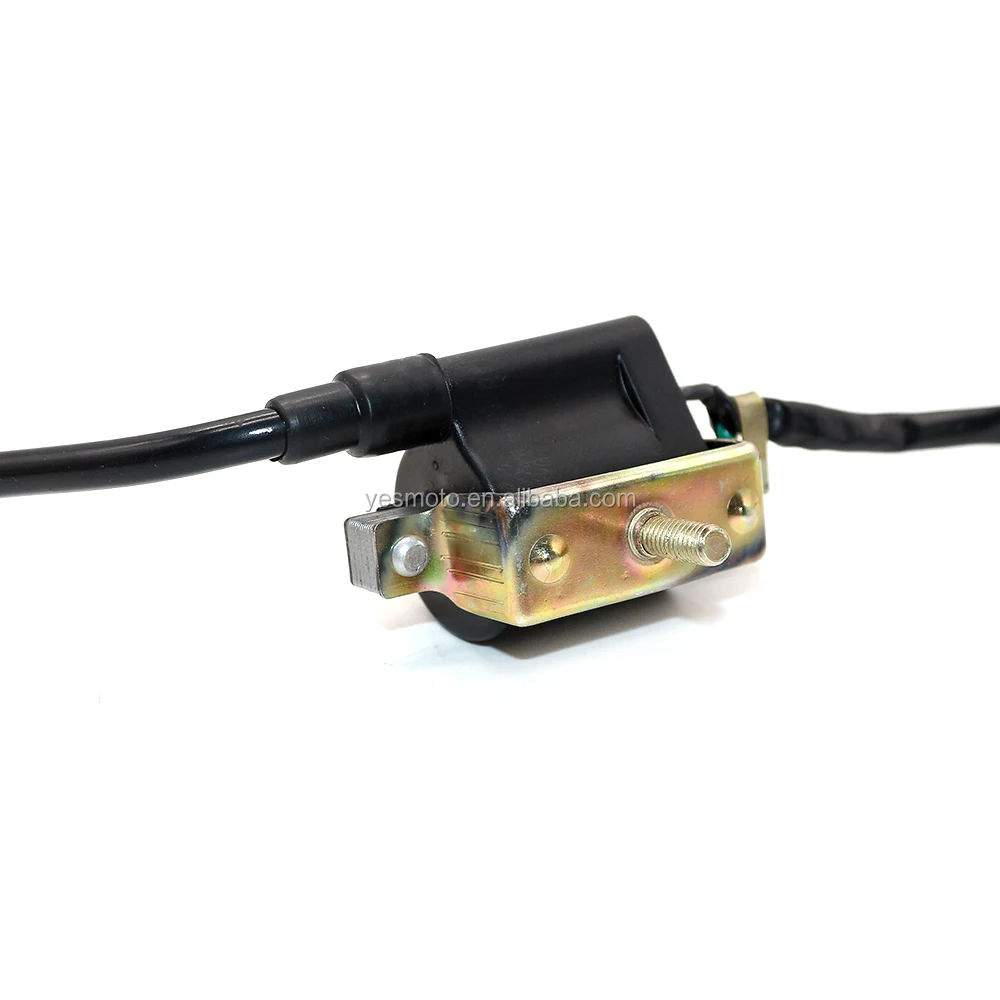

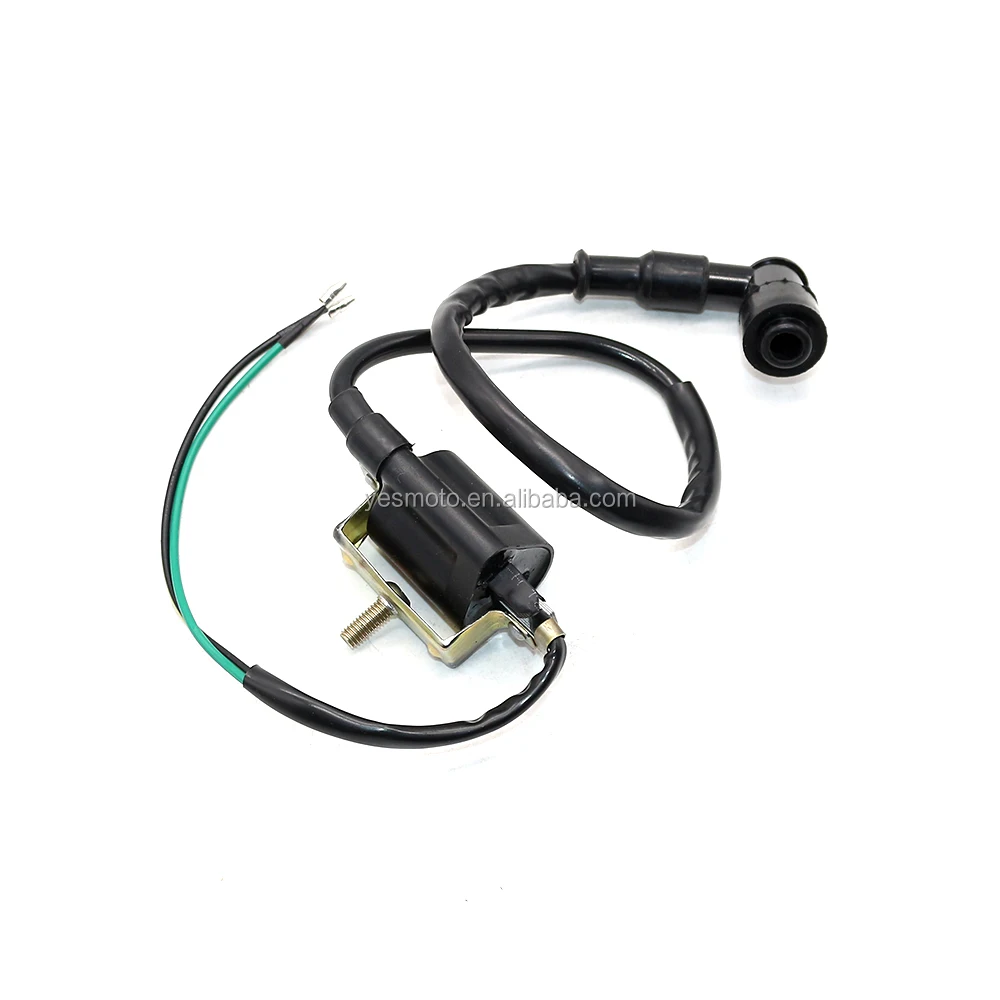

IGNITION COIL with 2 wire connection for 4 Stroke

BRAND NEW Aftermarket 12 volt / SINGLE Output Ignition Coil

A 12 volt coil can be used in a 6 volt setup. In some cases you may want to use an external resistor to lower the ohms. But test your own setup before doing so.

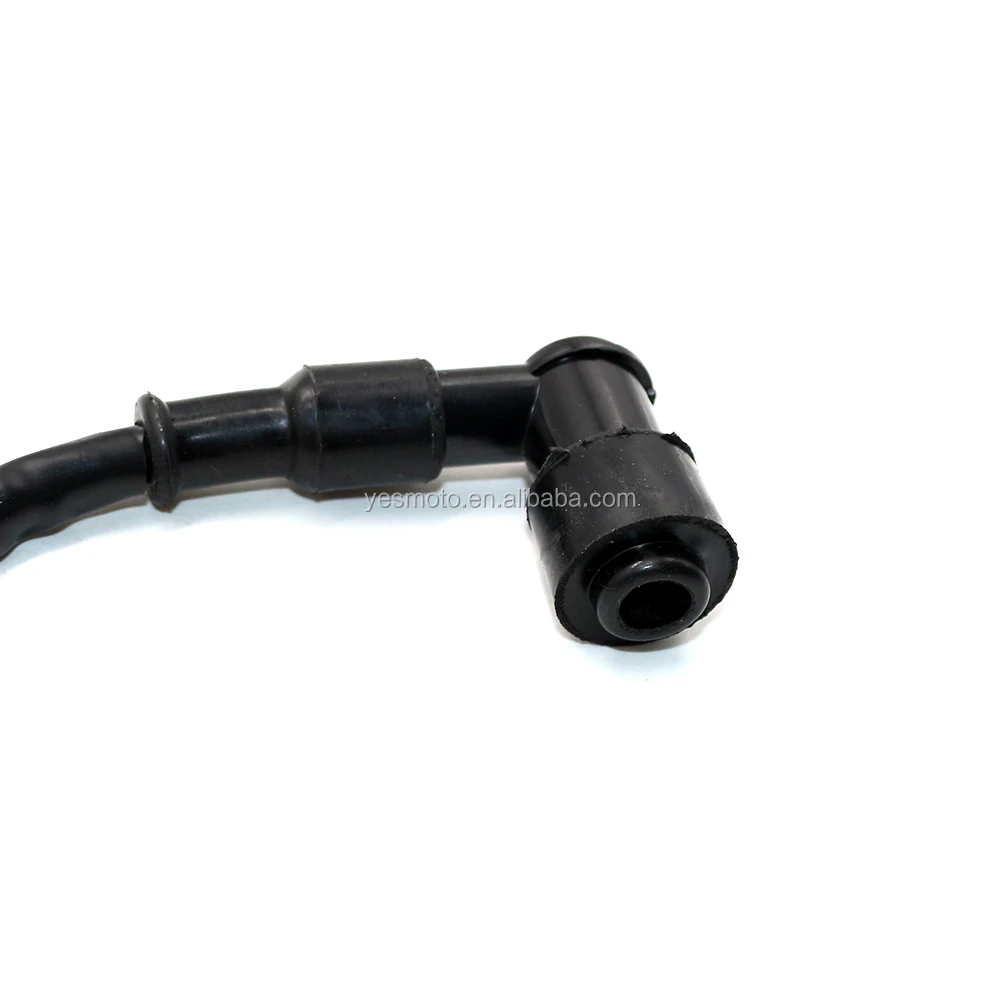

Note: Comes with a Free 45 Degree Cap. If you have the longer cap you may have to re-use your existing cap. It just unscrews from the wire.

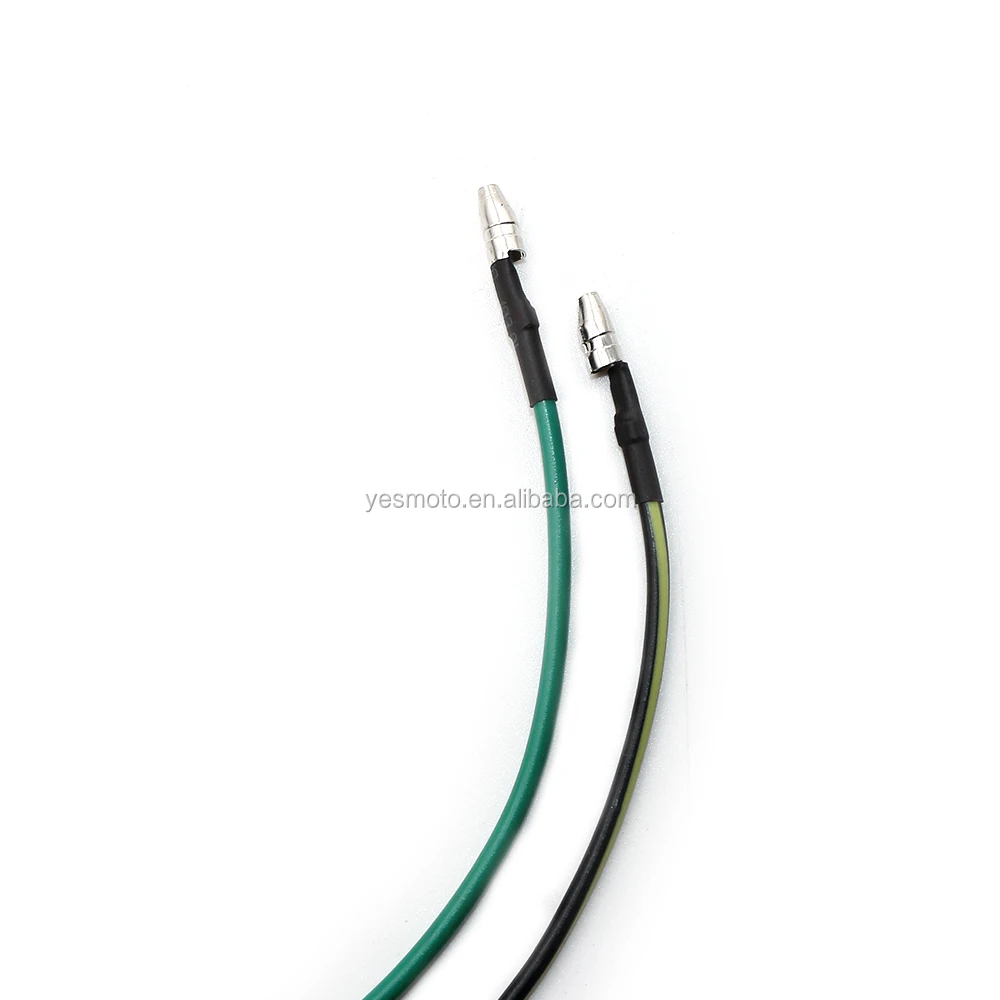

Note: You may have to make modifications to the mounting point, mounting position or wiring connections (If you currently have 2 wires going to your coil, you would only connect the 12 volt wire. The unit is Self Grounding)! You may have to re-use your old bracket and you WILL have to re-use your existing condenser. But at the cost of a new OEM coil, it's worth the effort to spend some time on the mount and connections to make this work. Please understand this BEFORE making a purchase!

It Will Fit for Honda Models (may need wiring or mounting modifications):

CB125, CB 125, CB-125, CB125S, CB125-S, 1973 - 1978

CL125, CL 125, CL-125, CL125S, CL125-S, 1973 - 1974

CT70, CT 70, CT-70, CT70H, CT70-H, Trail 70, 1970 - 1982

CT125, CT 125, CT-125, Trail 125, 1977

FT500, FT 500, FT-500, Ascot, 1982 - 1983

MR50, MR 50, MR-50, Elsinore 50, 1974 - 1975

MR175, MR 175, MR-175, 1975 - 1977

MT125, MT 125, MT-125, Elsinore 125, 1974 - 1975

MT250, MT 250, MT-250, Elsinore 250, 1974 - 1976

QA50, QA 50, QA-50, 1971 - 1975

ST90, ST 90, ST-90, 1973 - 1975

TL125, TL 125, TL-125, Trials 125, 1973 - 1976

XL70, XL 70, XL-70, 1975- 1976

XL80, XL 80, XL-80, 1980

XL100, XL 100, XL-100, 1977 - 1978

XL125, XL 125, XL-125, 1974 - 1978

XL125S, XL125-S, 1979 - 1982

XL175, XL 175, XL-175, 1976 - 1978

XL185, XL 185, XL-185, XL185S, XL185-S, 1979 - 1983

XL250, XL 250, XL-250, 1972 - 1975

XL350, XL 350, XL-350, 1974 - 1975

XR75, XR 75, XR-75, 1973 - 1978

XR80, XR 80, XR-80, 1979 - 1980

XR185, XR 185, XR-185, 1979

XR200, XR 200, XR-200, 1980 - 1983

Possible Replacement for these OEM #'s: 30400-045-035, 30500-120-005, 30500-120-003, 30500-165-033, 30500-165-013, 30500-165-023, 30530-126-921, 30500-098-671, 30530-330-405, 30400-107-007, 30400-107-154, 30400-137-670, 30500-115-013, 30400-129-670, 30500-128-013, 30500-950-405, 30500-355-003, 30530-355-003, 30500-131-003, 30500-153-003, 30500-437-010

It will not fit for Honda XL70 1974

Package Include:

1*Ignition Coil
