Характеристики

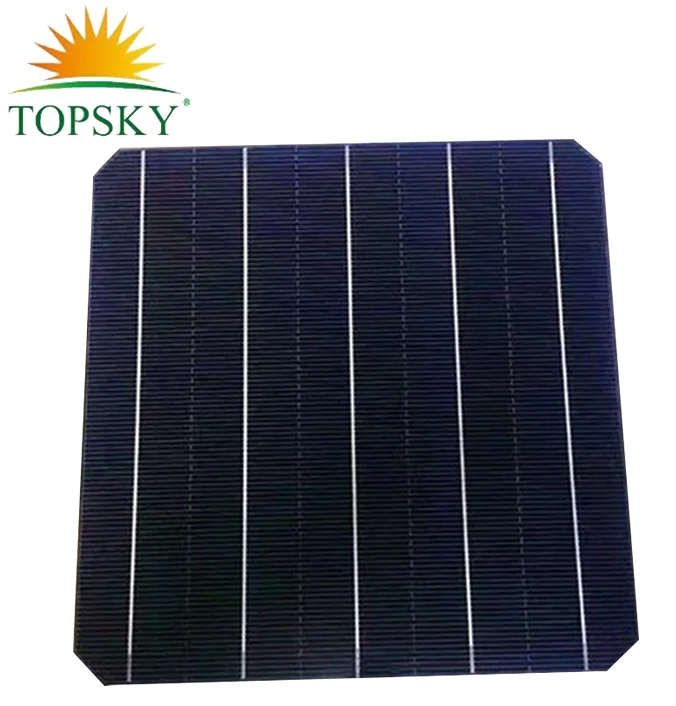

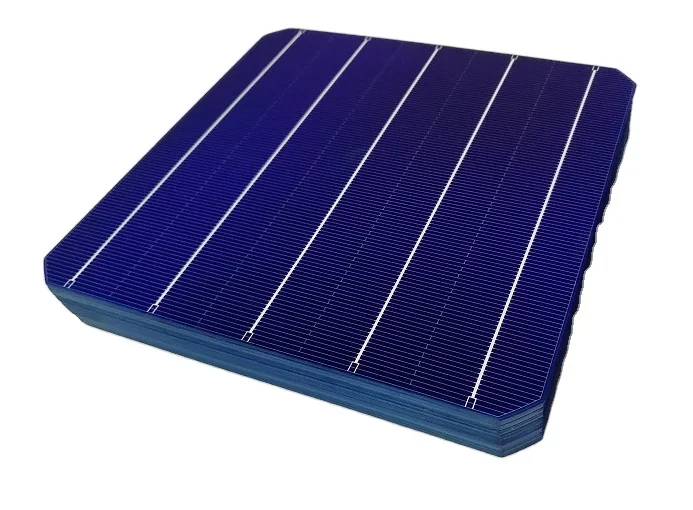

TP Energy 156.75*156.75mm Solar Cells bifacial 5bb Mono 21% 22% 22.1% Pv Cells In Good Price
Product Description
Features
* Average cell efficiency (front side) > 21.3%
* Nominal Power equivalent power 330W
* 5% ~ 20% power gain from rear side at suitable installation
* Ideal for flat rooftops, vertical installations, BIPV, carport, floating PV, snow or desert environments
* Average cell efficiency (front side) > 21.3%
* Nominal Power equivalent power 330W
* 5% ~ 20% power gain from rear side at suitable installation
* Ideal for flat rooftops, vertical installations, BIPV, carport, floating PV, snow or desert environments
Performance and Quality
* Proper handling from incoming inspection through
production, outgoing inspection and packaging
* 100% checked for reverse current and visual appearance
* Calibrated against Fraunhofer ISE
* RoHS compliance
100% PID Resistance
* Proper handling from incoming inspection through
production, outgoing inspection and packaging
* 100% checked for reverse current and visual appearance
* Calibrated against Fraunhofer ISE
* RoHS compliance
100% PID Resistance
Dimension | 156.75mmx156.75mm±0.25mm | ||||||
Thickness | 160（±30）µm | ||||||

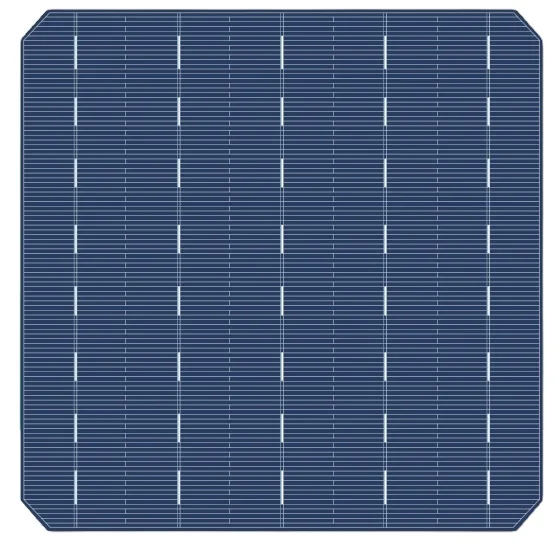

Front(-) | Silicon nitride anti-reflection coating 0.8mm silver busbar | ||||||
Back(+) | Aluminum local back surface field 2.4mm (silver) discontinuous soldering pads | ||||||
Specification
Efficiency Range(%) | Pated power(W) | Maximum Power Current(A) | Short Circuit Current(A) | Maximum Power Voltage(V) | Open Circuit Voltage(V) |
20.9-21.0 | 5.106 | 9.186 | 9.724 | 0.556 | 0.665 |
21.0-21.1 | 5.131 | 9.200 | 9.734 | 0.558 | 0.666 |
21.1-21.2 | 5.155 | 9.214 | 9.745 | 0.560 | 0.666 |
21.2-21.3 | 5.180 | 9.228 | 9.756 | 0.561 | 0.667 |
21.3-21.4 | 5.204 | 9.242 | 9.767 | 0.563 | 0.668 |
21.4-21.5 | 5.228 | 9.256 | 9.778 | 0.565 | 0.669 |
21.5-21.6 | 5.253 | 9.269 | 9.788 | 0.567 | 0.669 |
21.6-21.7 | 5.277 | 9.283 | 9.799 | 0.569 | 0.670 |
21.7-21.8 | 5.302 | 9.296 | 9.810 | 0.570 | 0.671 |
21.8-21.9 | 5.326 | 9.310 | 9.821 | 0.572 | 0.671 |
21.9-22.0 | 5.351 | 9.323 | 9.832 | 0.574 | 0.672 |
22.0-22.1 | 5.375 | 9.337 | 9.842 | 0.576 | 0.673 |
Quality Control
Certifications
Product packaging
>>>>> Solar cell Packaging
Standard Package:
100PCS /120PC Per BOX
12BOXES/CARTON (1200/1400PCS)
24CARTONS/PALLET(28800~33600PCS)
Weight:1.5KG/BOX ; 16.5KG/CARTON
Size of carton:45×30×30CM
Size of pallet:110×120×140CM
Standard Package:
100PCS /120PC Per BOX
12BOXES/CARTON (1200/1400PCS)
24CARTONS/PALLET(28800~33600PCS)
Weight:1.5KG/BOX ; 16.5KG/CARTON
Size of carton:45×30×30CM
Size of pallet:110×120×140CM
