Модульный осушитель 50 Гц воздушный компрессор
- Категория: Freeze Drying Equipment >>>
- Поставщик: Zhongshan,Lingyu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3749.7 $* | 3936.89 $* |
| Aug-18-2025 | 3717.65 $* | 3903.46 $* |
| Jul-18-2025 | 3119.23 $* | 3275.18 $* |
| Jun-18-2025 | 3654.8 $* | 3837.65 $* |
| May-18-2025 | 3182.94 $* | 3341.19 $* |
| Apr-18-2025 | 3591.25 $* | 3771.1 $* |
| Mar-18-2025 | 3560.16 $* | 3738.78 $* |
| Feb-18-2025 | 3528.81 $* | 3704.48 $* |
| Jan-18-2025 | 3497.75 $* | 3672.72 $* |
Характеристики
Modular desiccant 50hz air compressor dryer
Product Description
Product name | Air compressor dryer |
Applicative gases | Compressed air / non-corrosive air |
Inlet air flow | Std.17.5Nm3 / min |1050 Nm3 / Hr |
Inlet air pressure | Std.7 bar | Min. 6 bar| Max.10 bar |
Inlet air temperature | Min.2℃ Max.40℃ |
Working environment temperature | Min.2℃ Max.45℃ |
Outlet air dew point | ≤-40℃ Or Lower Ensure100% |
Specification

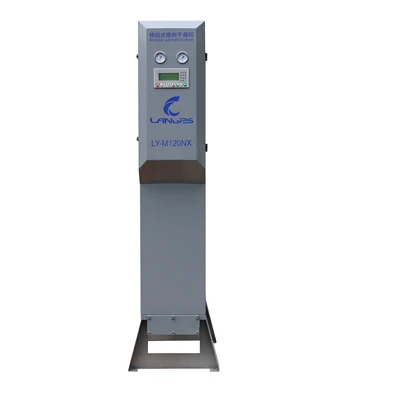

100% Real Photos

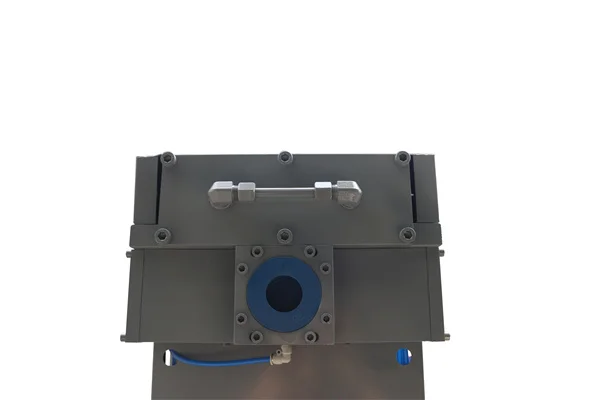

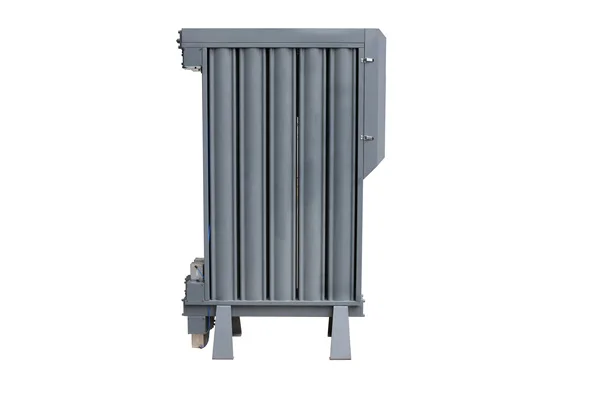

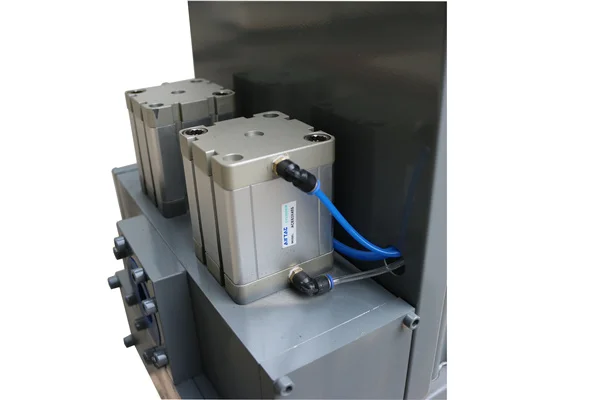

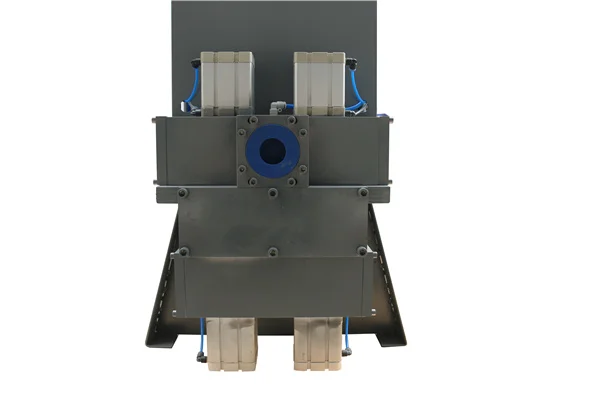

The Inside Details
Working Principle
Air compressor dryer is a high value-added product newly developed by Lingyu company. Compared with the traditional dryer, this series of products can help you save not only space but also the costs. 13X molecular sieve and straight through adsorption chamber make the adsorbent more efficient. At the same time, the whole machine is mainly made of high-quality aluminum alloy, which avoids secondary pollution to the compressed air. The adsorption module of the modular adsorption dryer is composed of a number of high-strength 6063-T5 aluminum alloy cylinders, each of which is divided into two groups A and B, and the groups are filled with adsorbent. When group A is adsorbed, group B is regenerated by means of decompression regeneration. When group B is working, group a is regenerated by means of decompression regeneration, and two groups A and B work alternately.
Application Fields
The Parameters of Other Models
Company Profile
Zhongshan Lingyu Machinery Co., Ltd. (hereinafter referred to as Lingyu), founded in 2009, is a modern new national high-tech enterprise integrating R & D, manufacturing, sales and service. Compressed air purification equipment as the core product, the company has formed five series of products and systematic solutions for different industries, scales and applications, such as petroleum, chemical industry, electric power, food, health care, biopharmaceutical, manufacturing and processing, textile industry, and is the most influential complete set of compressed air purification solution service provider in China.
With an excellent management team and a senior technical R & D team composed of refrigeration technology experts, Lingyu have tacit cooperation in product design, R & D and promotion, deeply understand the meaning of " Supported by technology, driven by value ", "Quality and service" run through every detail of the company's operation and management, and won the trust and support of customers widely. The growing process of Zhongshan Lingyu is the process of serving customers and growing up with customers. We try our best to do everything well and meet every challenge with confidence.
