Product Description

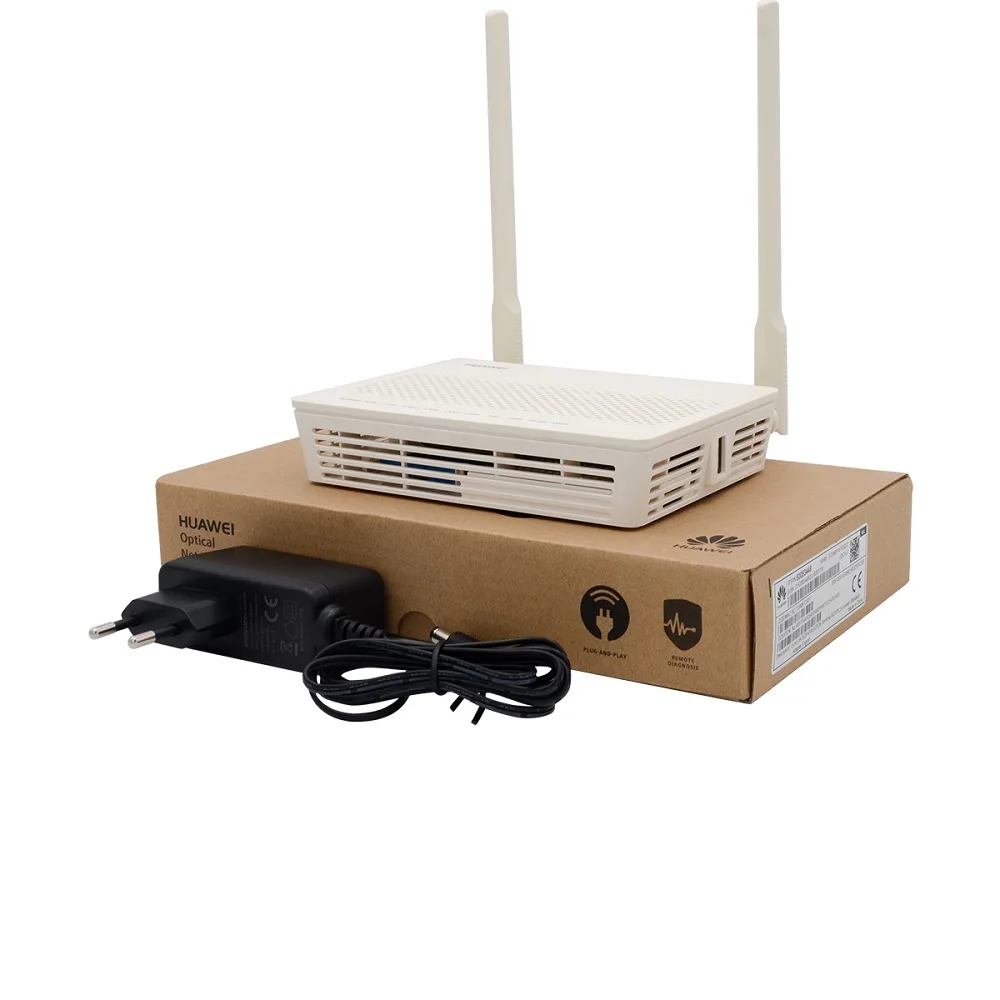

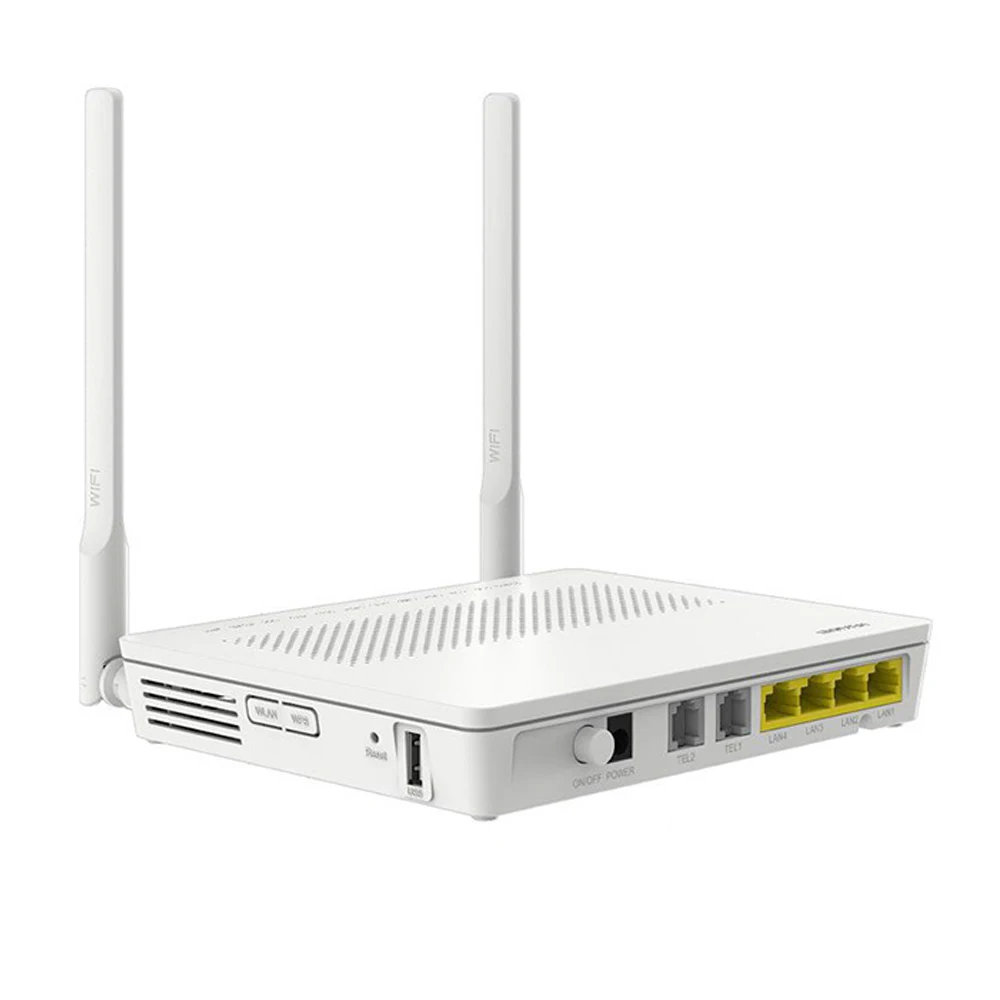

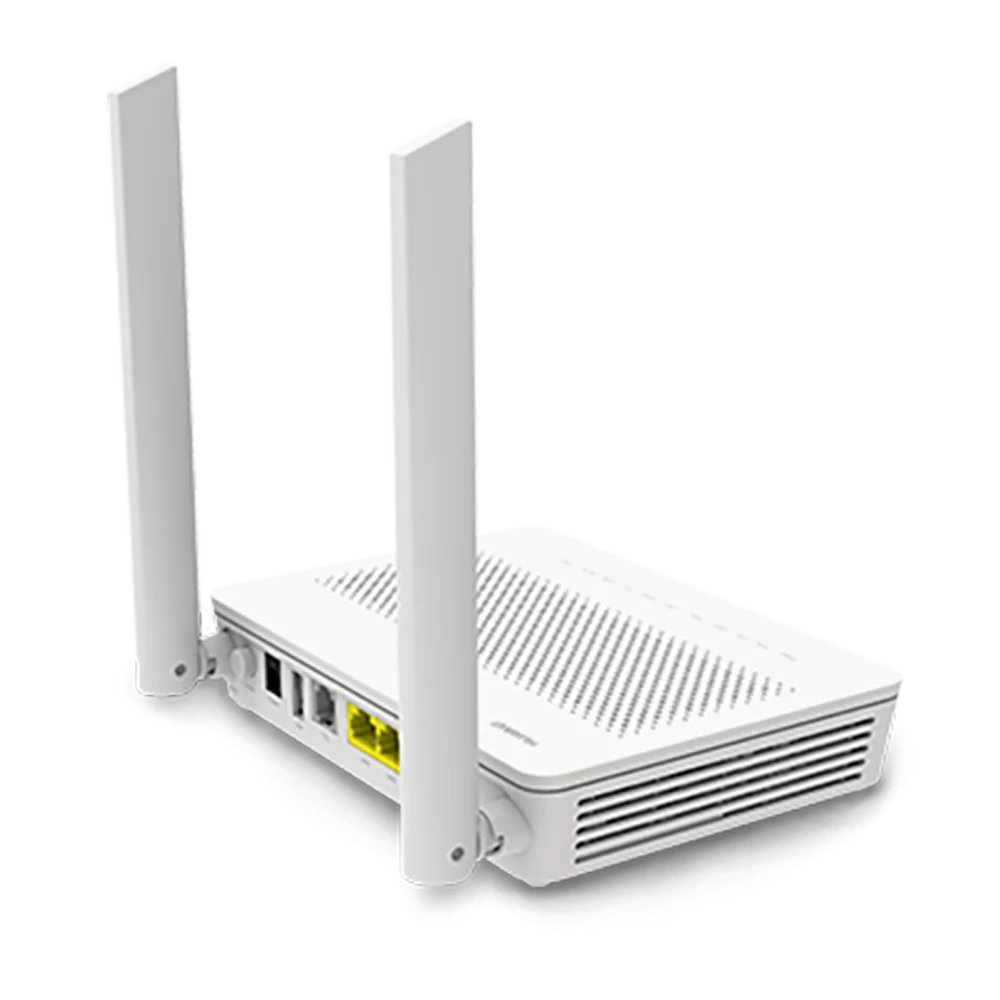

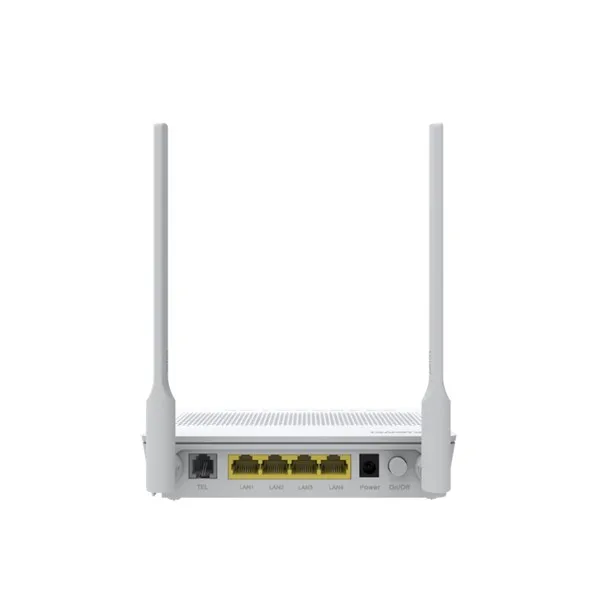

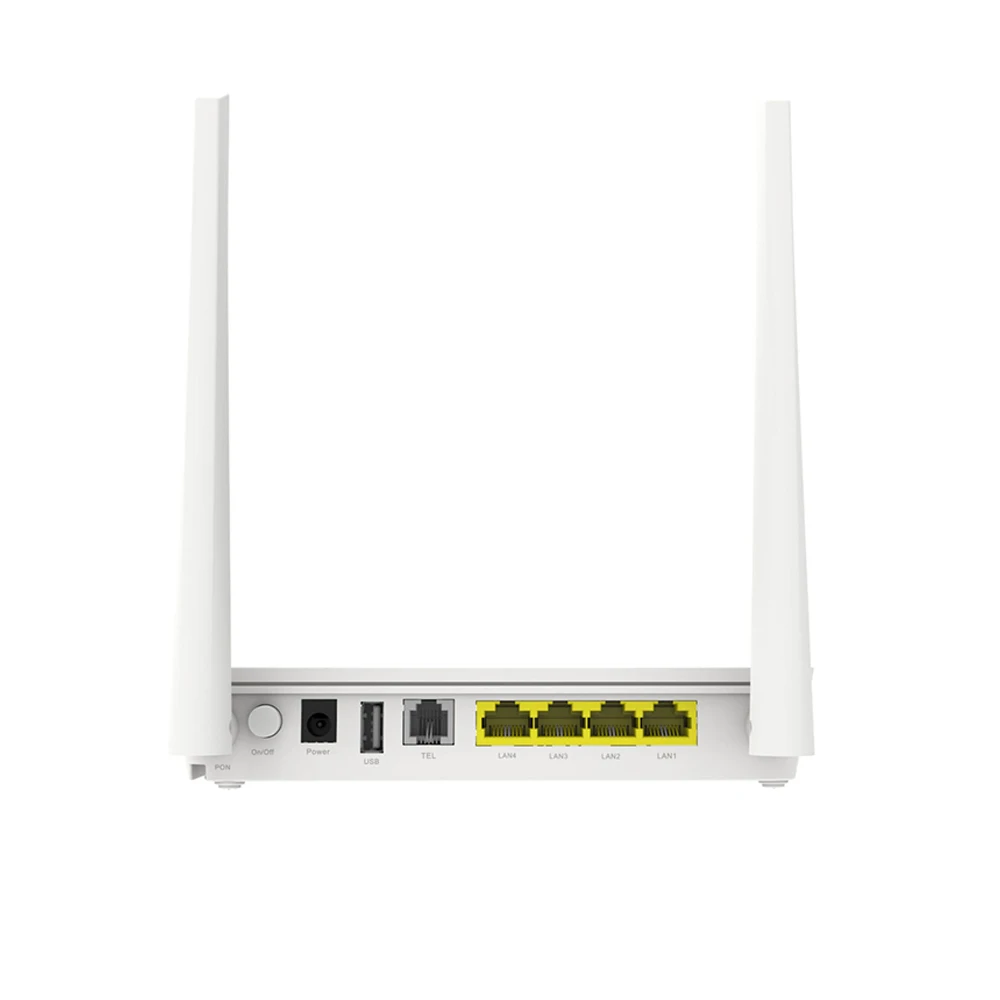

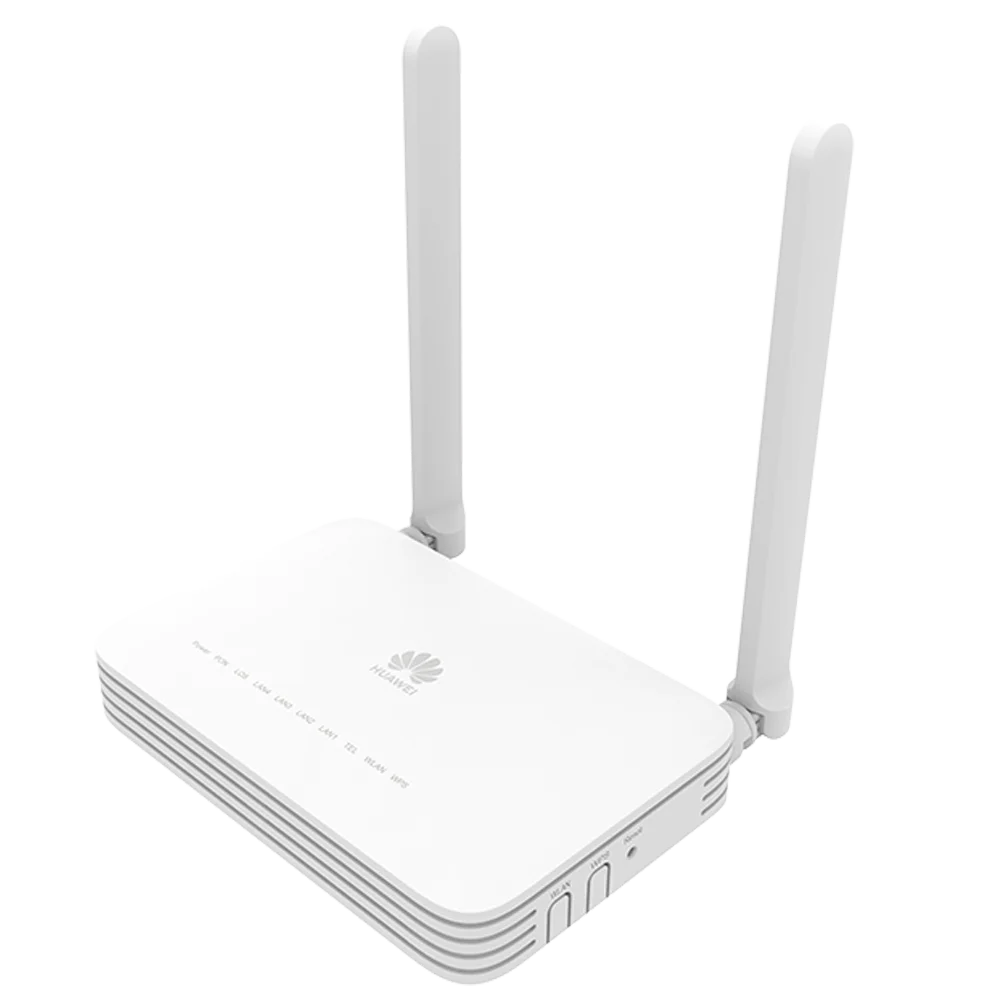

Fiber Optical Xpon Wifi Onu Gpon EG8141A5
The EchoLife EG8141A5 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra broadband access for users, and provides 1GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
From here,you can find the EchoLife EG8141A5 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.
Product characteristics
1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
Details Images
Specification
Model | Configuration | Dimension/pcs | |||||||||
LAN | Telephone | Wifi | PPPOE | Firmware | |||||||
EG8141A5 | 1GE+3FE | 1pots | yes | yes | English | 250*185*35mm/0.44kgs | |||||
Remarks | External Antenna | ||||||||||
Item | Parameter |
PON Interface | 1*GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps |
User Ethernet Interface | 4*FE/GE auto adaptive Ethernet interfaces, RJ45 connectors,1*WIFI |
Power Interface | 12V DC Power supply An external 12V 1A AC/DC power supplyadapter |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -28dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber |
Data Transmission Parameter | PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 4*100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
Network Management | Status monitor, Configuration management, Alarm management, Log management |
Package
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
