Характеристики
Products Description

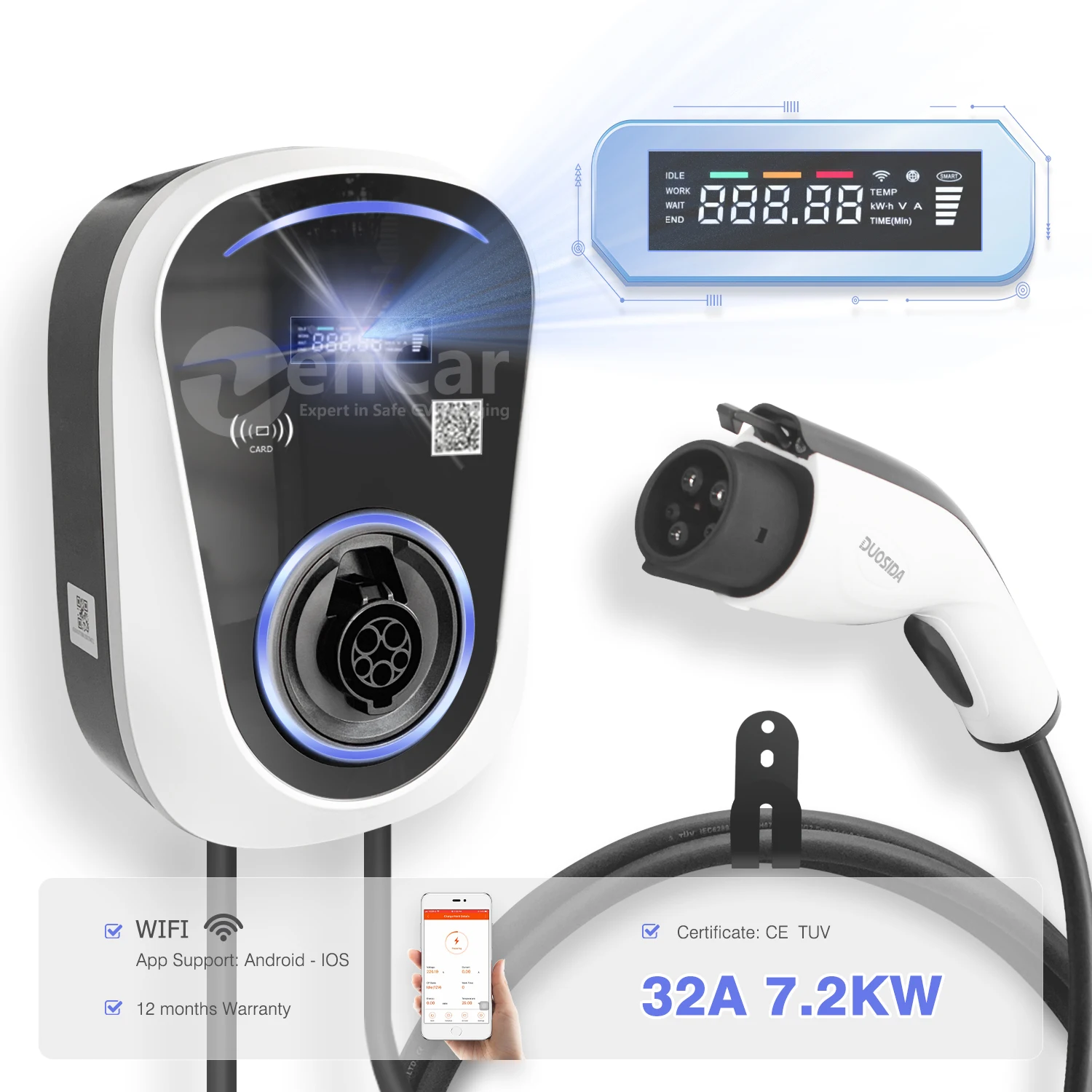

ZENCAR Wallbox 32A 7.2KW Home EV Wall-Mounted Charging Stations for Electric Car Vehicles TUV CE
1. Techical Specifications
*Installation method: upright post / wall-mounted
*Maximum power: 7.2KW
*Outdoor protection: IP65 ( Outside )
*Satety specifications:Conforms to the latest IEC 61851 and SAE J1772 standards ( TUV and the latest GB/T 18487 and GB/T20234 standards )
*Operating Temperature:-30℃ to +50℃
2. EV car charging station output
*7.2KW: 220V AC@32A
3. EV car charging station basic skills
*Start method: plug and charge, RFID card, WIFI
*Remind function:charge indication, fault indication
*Self-test function: fault self-positioning
*Human-computer interaction: OLED display
4. EV car charging station Security
*Leakage detection and protection.
*Double lighting protection ( Professional SPD + Lightning Protection Circuit ).

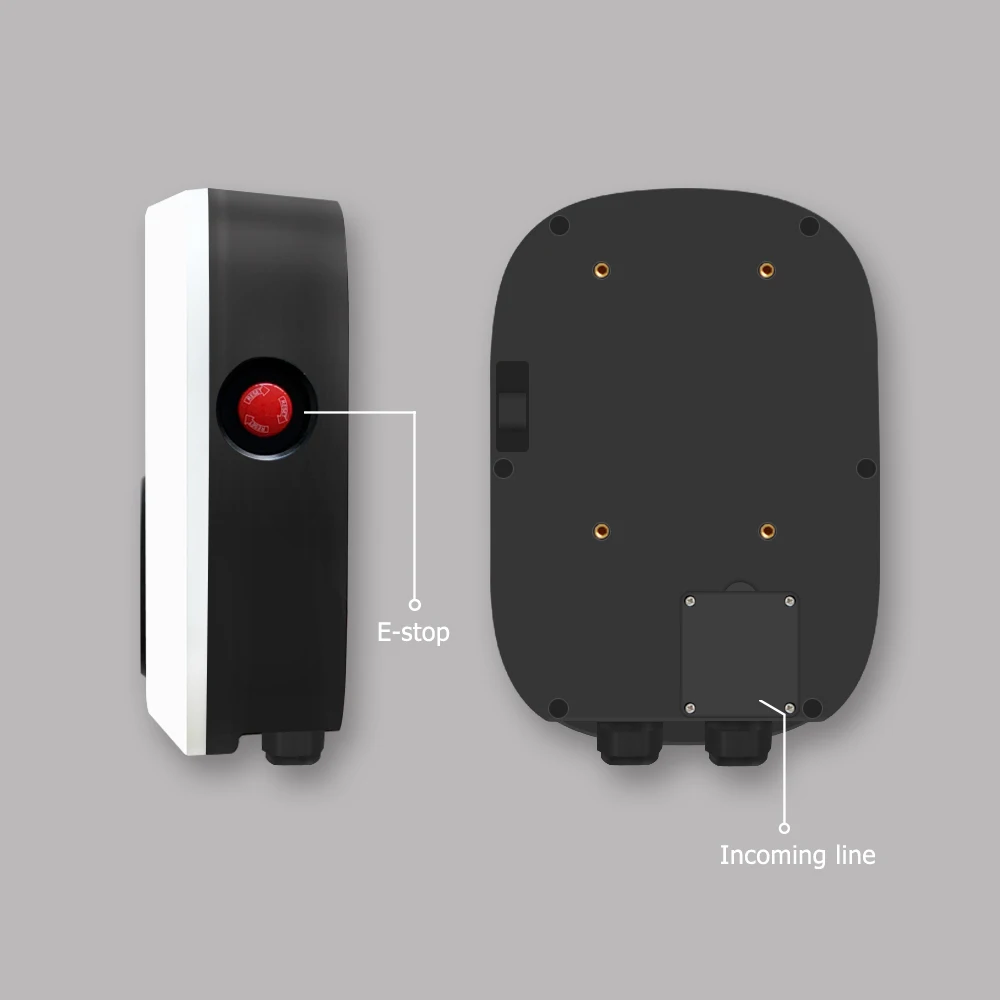

*Mergency stop button protection
*Over-currenct, over-voltage, under-voltage, over-temperature protection.
*Power failure data records.
*Surge protection meets latest IEC 61851 & GB/T 18487 standards.
*Electromagnetic compatibility complies with the latest IEC 61851 & GB/T 18487 standards.
5. EV car charging station OLED Screen shows ( Smart WIFI )
*Voltage
*Installation method: upright post / wall-mounted
*Maximum power: 7.2KW
*Outdoor protection: IP65 ( Outside )
*Satety specifications:Conforms to the latest IEC 61851 and SAE J1772 standards ( TUV and the latest GB/T 18487 and GB/T20234 standards )
*Operating Temperature:-30℃ to +50℃
2. EV car charging station output
*7.2KW: 220V AC@32A
3. EV car charging station basic skills
*Start method: plug and charge, RFID card, WIFI
*Remind function:charge indication, fault indication
*Self-test function: fault self-positioning
*Human-computer interaction: OLED display
4. EV car charging station Security
*Leakage detection and protection.
*Double lighting protection ( Professional SPD + Lightning Protection Circuit ).
*Mergency stop button protection
*Over-currenct, over-voltage, under-voltage, over-temperature protection.
*Power failure data records.
*Surge protection meets latest IEC 61851 & GB/T 18487 standards.
*Electromagnetic compatibility complies with the latest IEC 61851 & GB/T 18487 standards.
5. EV car charging station OLED Screen shows ( Smart WIFI )
*Voltage
*Current
*Temperature
*Temperature
*Time
*KWH
*WIFI
Product Parameters
Standards | EN 61851-1 |
Rated Voltage | 220V |
Operating Voltage | 220V |
Current | 32A |
Cable | 1 phase, 7.2KW SAE J17772 5M Cable |
Working frequency | 50Hz / 60Hz |
Display | OLED Dispaly |
Warranty | 12 month |
EMI | CISPR22/EN 55022 CLASS B |
IP Grade | IP54 ( storage ) |
Operating Temperature | -30℃~+50℃ |
EMS | EN 61000-4-5 ±2KV/±4KV perf. Criteria B |
European requirement | Yes, Type A current protection: AC 30mA |

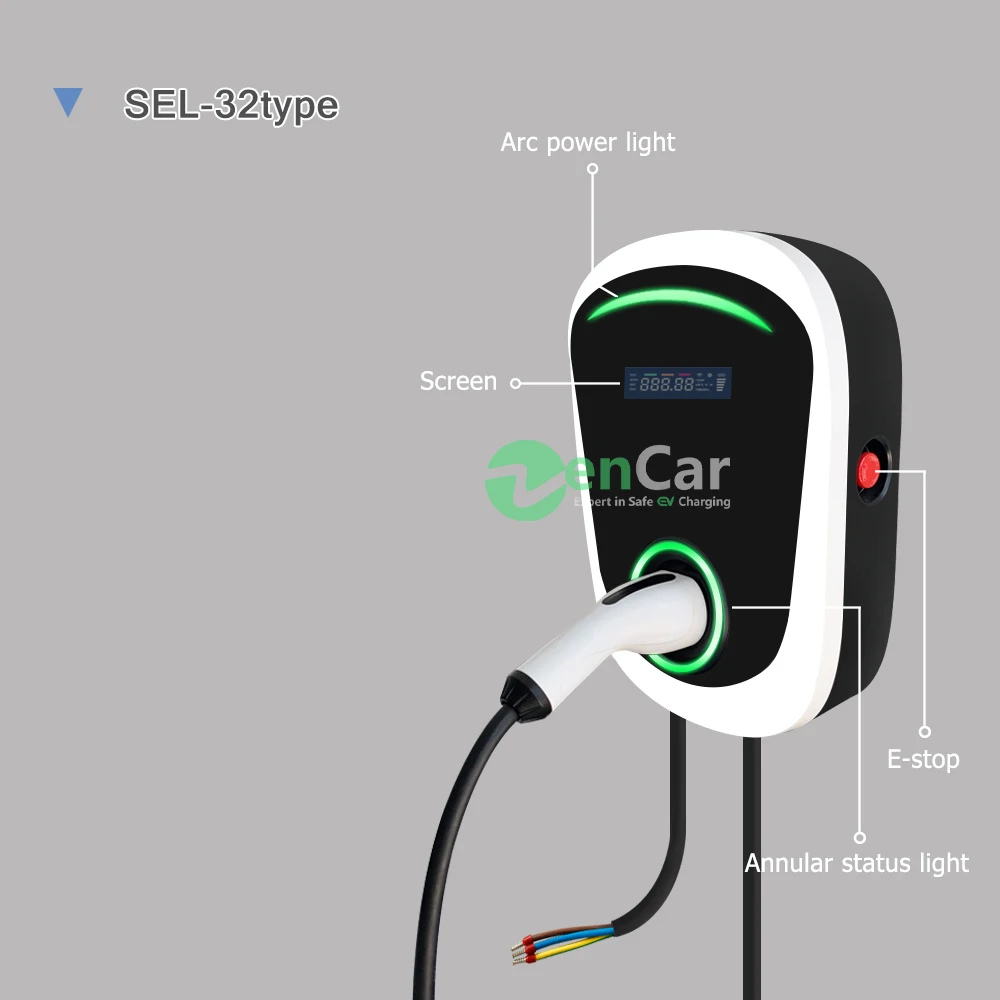

Product Show
Feature:
1. IP Grade: IP65(outside)2. Opeating temperature: -30℃~+50℃
3. Easy use

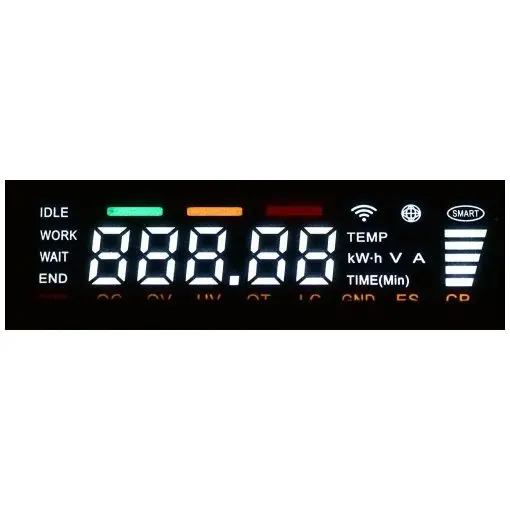

The OLED Display showing the following parameters:
1. Current
2. Voltage
3. Time
4. KWH
5.Temperature
6. WIFI
Feature:
1. IP Grade: IP65(outside)2. Opeating temperature: -30℃~+50℃
3. Easy use
The OLED Display showing the following parameters:
1. Current
2. Voltage
3. Time
4. KWH
5. WIFI
6. Temperature
App Showing
1. Start and stop charging
2. Reserve the time
3. Adjust the current from 6A to 32A
3. Adjust the current from 6A to 32A

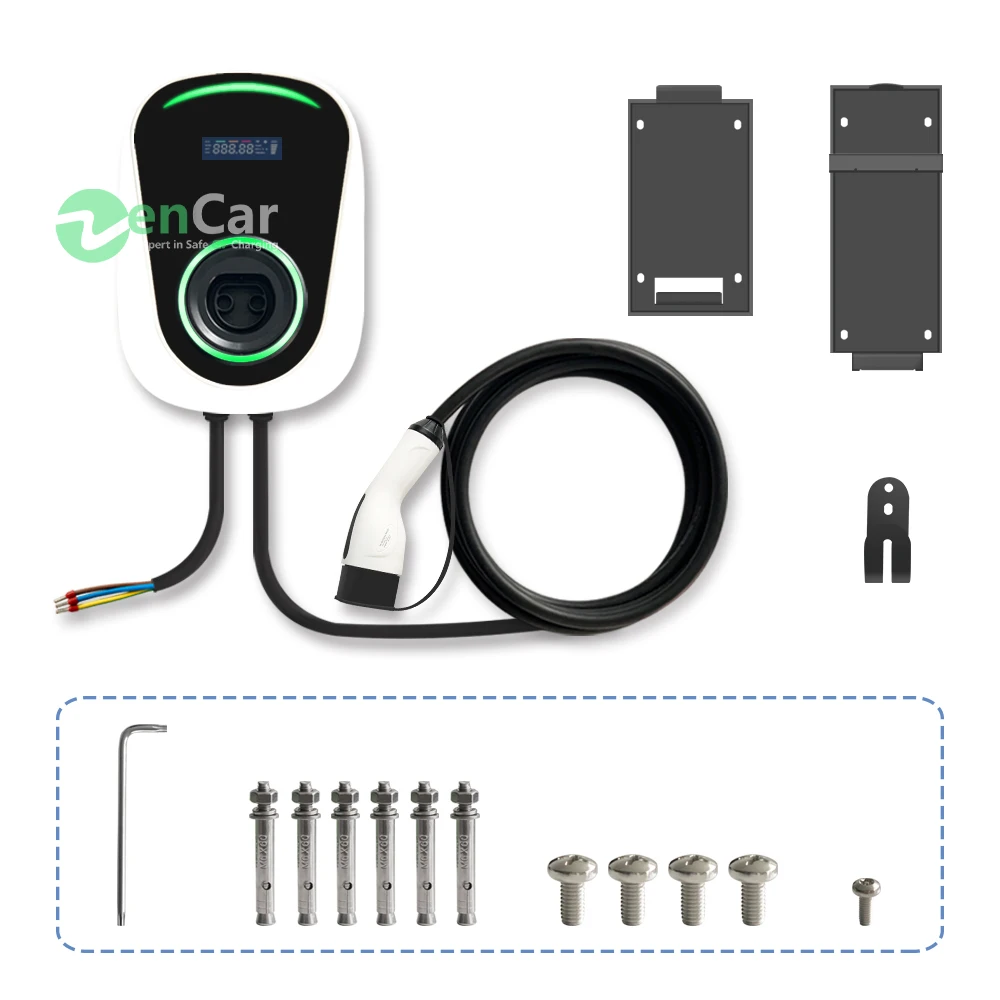

Product Packing
