Одноступенчатая машина для производства ПЭТ-бутылок многофункциональная пластиковых бутылок

Одноступенчатая машина для производства ПЭТ-бутылок многофункциональная пластиковых бутылок

Категория: Plastic Blowing Machines >>>
Поставщик: Zhangjiagang,Crown,Machinery,Co.,ltd

Цена:35 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	41650.26 $*	43733.1 $*
Aug-19-2025	41300.90 $*	43365.58 $*
Jul-19-2025	34650.61 $*	36383.38 $*
Jun-19-2025	40600.5 $*	42630.98 $*
May-19-2025	35350.66 $*	37118.74 $*
Apr-19-2025	39900.68 $*	41895.9 $*
Mar-19-2025	39550.70 $*	41528.99 $*
Feb-19-2025	39200.13 $*	41160.42 $*
Jan-19-2025	38850.33 $*	40793.42 $*

Характеристики

Automatice bottle blowing machine

Product Description

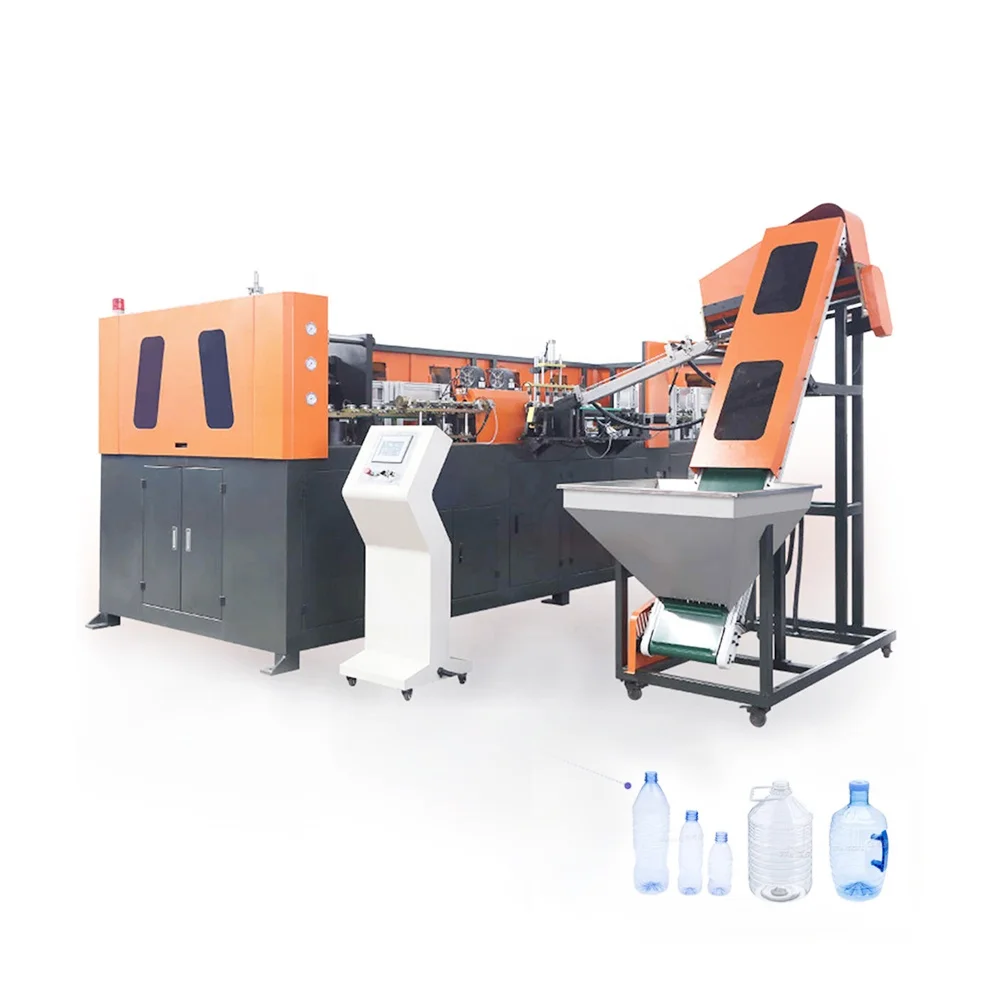

PSZ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Feature:
A. Advanced PLC control system, stable and excellent performance.
B. Conveyor belt automatically feeds preforms.
C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously inthe infrared pre-heater.

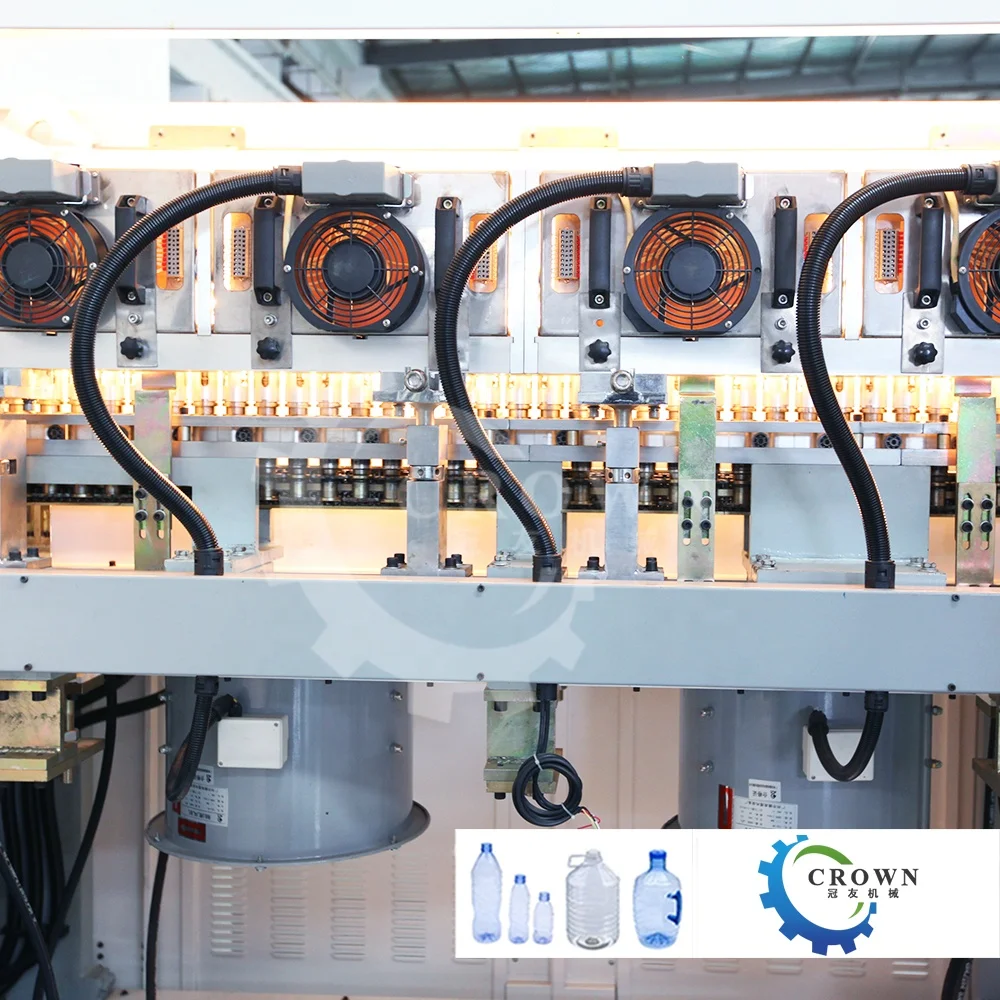

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.
E. Safety locks are provided during each mechanical action to protect operator's safety.
F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.
G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.
H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, unique valve position design makes blowing process easier to control.
K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.
L. Avoid bottle contamination.
M. Protection of low temperature cooling system.
N. Easy to install and start.
O. Low scrap rate.

The Blowing Machine Main Features:

1. PLC control stable production. Touch screem for operation the machine, easy for operation.
2. One worker is enough, easy for operation, without special trainning.
3. Low cost, the least investment, energy saving.

4. Thers is almost no maintain cost.

COMPONENT	ITEM	DATA
Container condition	Cav.No	4	6	8	10
		Max Volume	750ml
		Max container diameter	∮50-∮70mm
		Neck Diameter Range	∮12-∮40mm	∮30-∮40mm	∮30-∮40mm	∮30-∮40mm
		Max perform height	＜150mm	＜140mm	＜140mm	＜140mm
		Output(B/H)	3800-4000	5500-6000	7300-8000	12000-14000
Electrical system	Voltage	220/380V
	Total Power	50KW	65KW	75KW	70KW
Weight	Total	4.5T	5.5T	7T	7T
