Характеристики





Product Paramenters

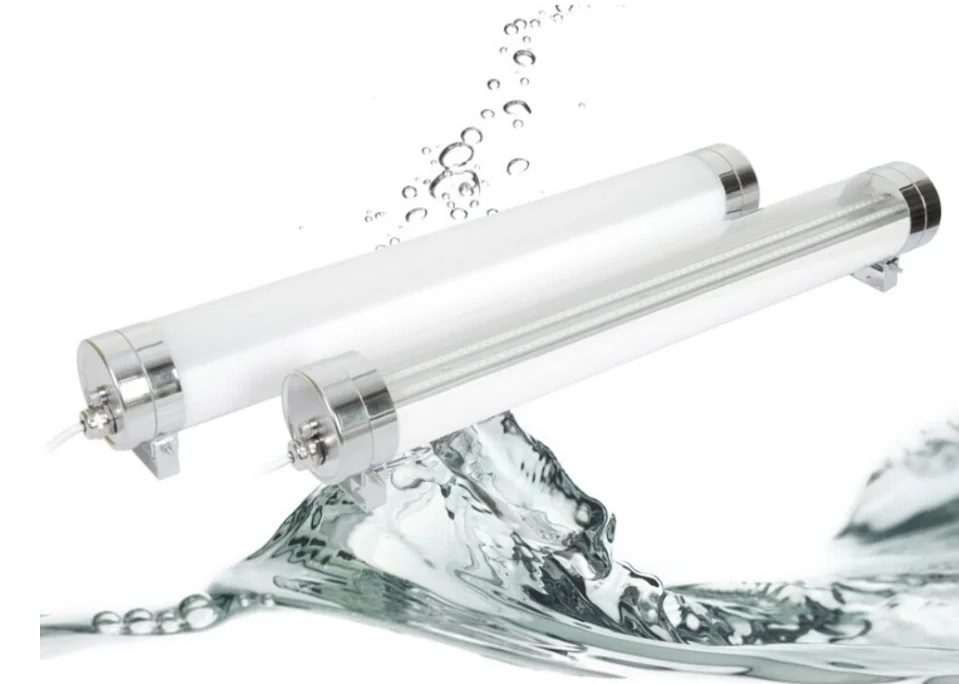

LED Lighting IP69K LED Triproof Light for Warehouse Factories Supermarkets Indoor

About IP69K LED tubular triproof light：
--Capable of withstanding the hot steam wash test as defined in EN 60529 and DIN 40050-9.
--This provides protection against water pressures of 100 bar (1450 psi) and temperature of 80oC.
--The pressure is applied directly to the sensor at progressive angles of 30 degrees (0, 30, 60 and 90 degrees) for 30 seconds at each angle for a total of 120 seconds (2 minutes) to prevent water ingress.



Technical Parameters--Diameter ￠80mm Series
Model
OL-PL20W-K60-80
OL-PL30W-K90-80
OL-PL40W-K120-80
OL-PL60W-K150-80
Power
20W
30W
40W
60W


Luminous flux
2600-3200lm /Clear
3900-4600lm /Clear
5200-6000lm /Clear
7600-9000lm /Clear
2200-2800lm
/Opal
3300-4000LM
/Opal
4400-5300lm
/Opal
6600-7800lm
/Opal
Dimension
L605×￠80mm
L905×￠80mm
L1205×￠80mm
L1505×￠80mm
Input Voltage
AC220-240V/AC100-277V
Power factor ( P.F. )
>0.95
Luminous Efficiency
110lm-130LM/W (Opal) 130lm-150lm/W (Clear)
LED source
Edison SMD 2835, CRI>80Ra,CRI>95Ra for Option
Lamp body color
Clear(Transparent)/Opal (Frosted,Milky)
Material End Cap
Stainless steel 304L/316L
Index of protection
IP67/IK10/IP69K
Beam angle
120°
Housing material
PC/PMMA Housing
Working temperature
-20~50℃
Lifetime
50000hrs
Warranty time
3 years,5 years for option


Technical Parameters--Diameter ￠70mm Series
Model
OL-PL20W-K60-70
OL-PL30W-K90-70
OL-PL40W-K120-70
OL-PL60W-K150-70
Power
20W
30W
40W
60W


Luminous flux
2600-3200lm /Clear
3900-4600lm /Clear
5200-6000lm /Clear
7600-9000lm /Clear
2200-2800lm
/Opal
3300-4000LM
/Opal
4400-5300lm
/Opal
6600-7800lm
/Opal
Dimension
L605×￠80mm
L905×￠80mm
L1205×￠80mm
L1505×￠80mm
Input Voltage
AC220-240V/AC100-277V
Power factor ( P.F. )
>0.95
Luminous Efficiency
110lm-130LM/W (Opal) 130lm-150lm/W (Clear)
LED source
Edison SMD 2835, CRI>80Ra,CRI>95Ra for Option
Lamp body color
Clear(Transparent)/Opal (Frosted,Milky)
Material End Cap
Stainless steel 304L/316L
Index of protection
IP67/IK10/IP69K
Beam angle
120°
Housing material
PC/PMMA Housing
Working temperature
-20~50℃
Lifetime
50000hrs
Warranty time
3 years,5 years for option


Technical Parameters--Diameter ￠45mm Series
Model
OL-PL20W-K60-45
OL-PL30W-K90-45
OL-PL40W-K120-45
OL-PL60W-K150-45
Power
15W
20W
30W
40W


Luminous flux
2600-3200lm /Clear
3900-4600lm /Clear
5200-6000lm /Clear
7600-9000lm /Clear
2200-2800lm
/Opal
3300-4000LM
/Opal
4400-5300lm
/Opal
6600-7800lm
/Opal
Dimension
L625×￠80mm
L925×￠80mm
L1225×￠80mm
L1525×￠80mm
Input Voltage
AC220-240V/AC100-277V
Power factor ( P.F. )
>0.95
Luminous Efficiency
110lm-130LM/W (Opal) 130lm-150lm/W (Clear)
LED source
Edison SMD 2835, CRI>80Ra,CRI>95Ra for Option
Lamp body color
Clear(Transparent)/Opal (Frosted,Milky)
Material End Cap
Stainless steel 304L/316L
Index of protection
IP67/IK10/IP69K
Beam angle
120°
Housing material
PC/PMMA Housing
Working temperature
-20~50℃
Lifetime
50000hrs
Warranty time
3 years,5 years for option


Details Images

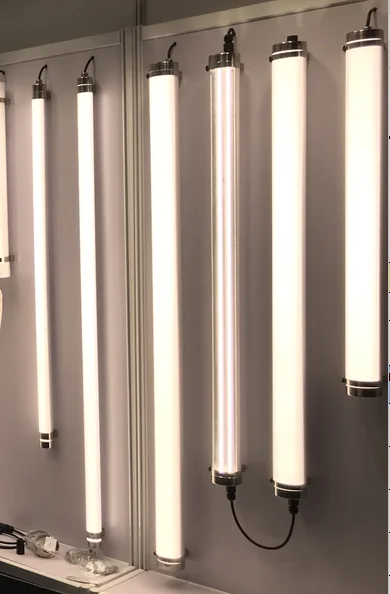

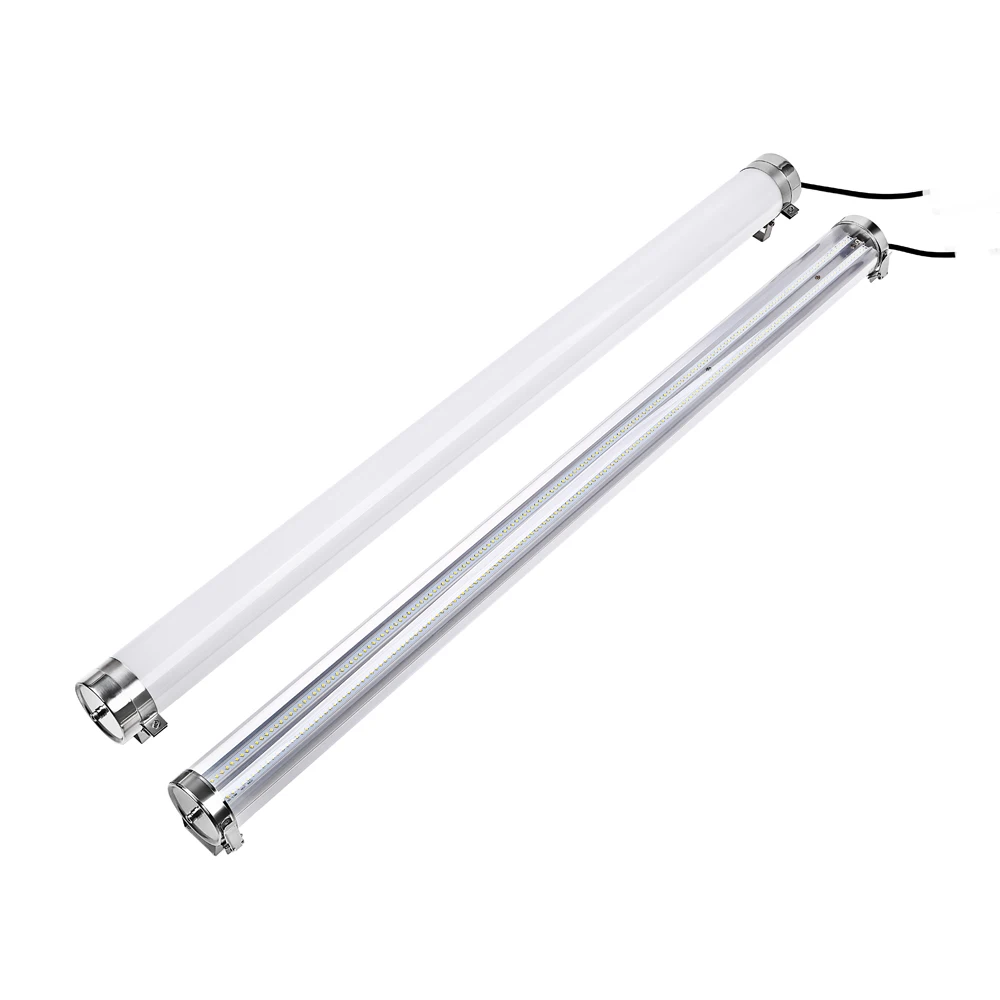

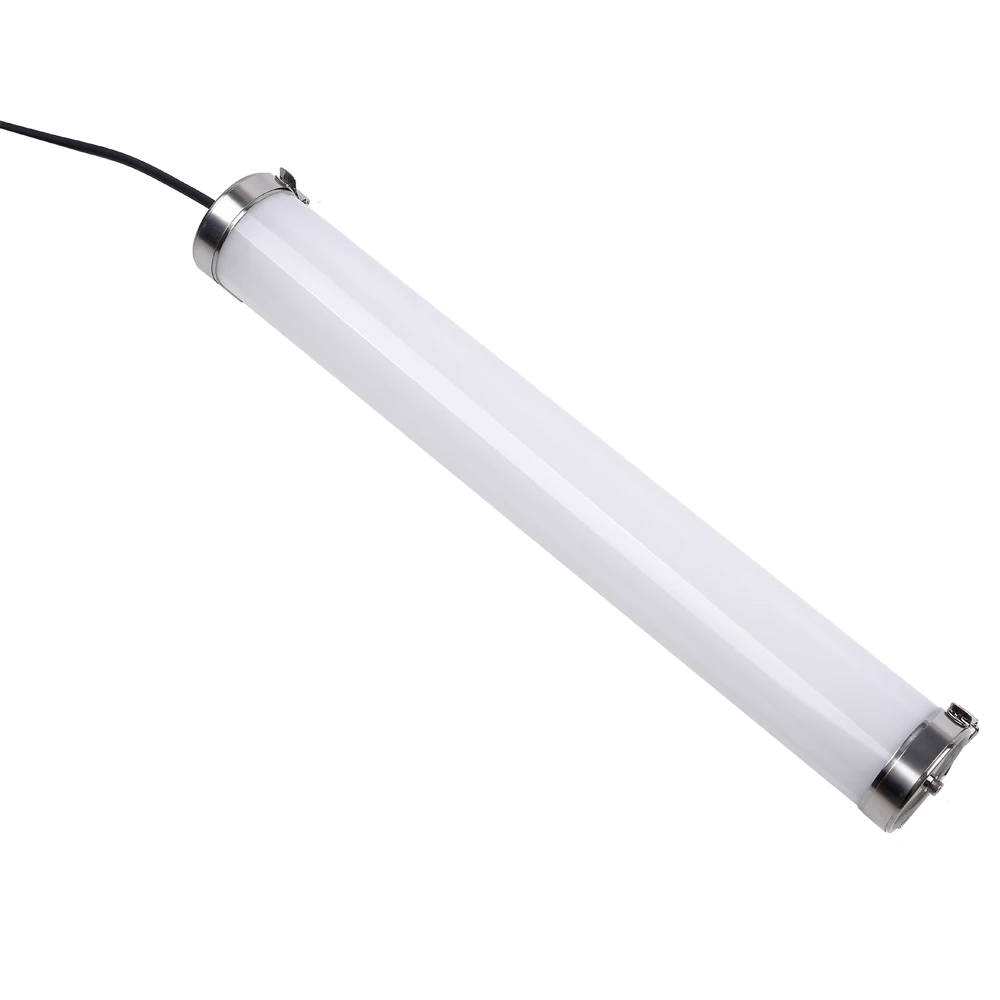

LED Tubular Light
Diameter:45mm/70mm/80mm
Lenth:600mm/900mm/1200mm/1500mm





Feature
--PC/PMMA Housing
--IK10 (PC Housing) & IK06 (PMMA Housing)
--IP69K, IP67
--304L & 316L Stainless steel End Cap
--Gas-proof , Impact resistance
--Anti-ammonia, Anti-mosquito
--Dust-proof, Water-proof
--110lm-130LM/W(Opal)
--130lm-150lm/W(Clear)

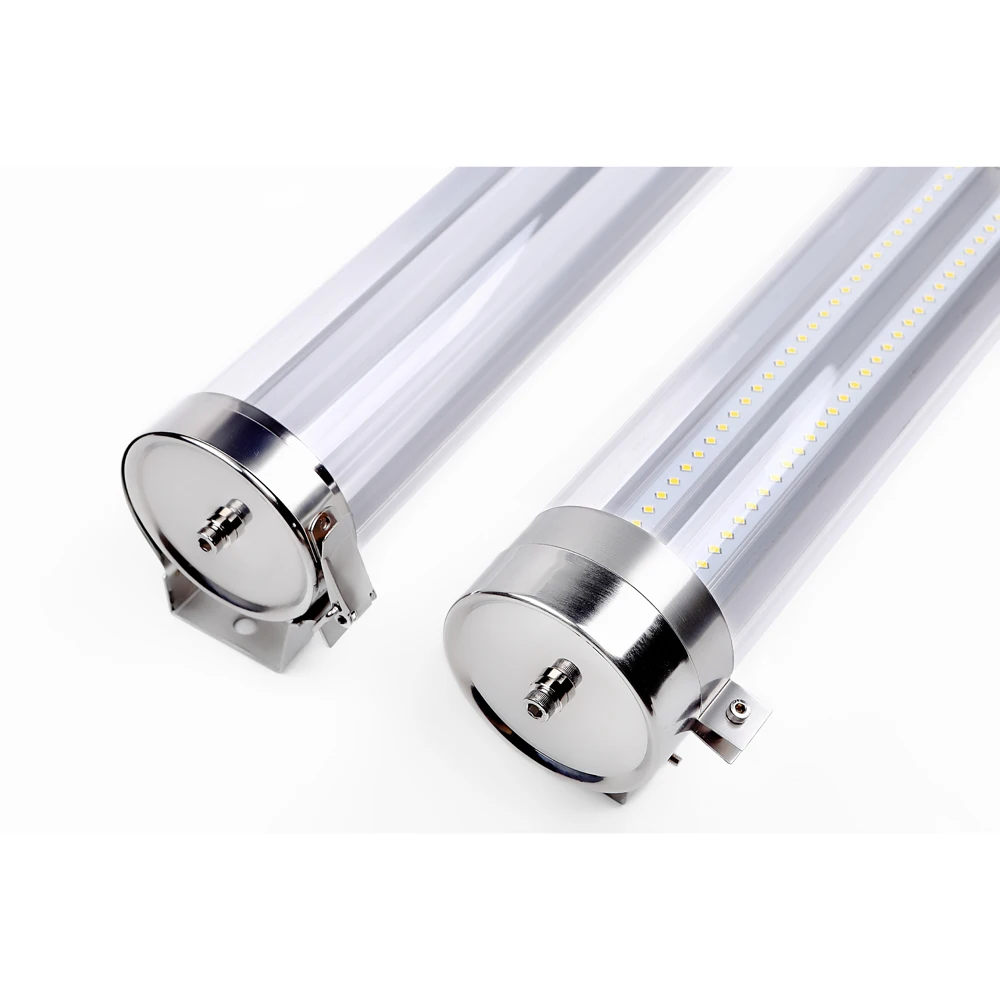

Stainless Steel end cap
Transparant /Clear housing
Stainless Steel end cap
Frosted /Opal/Milky housing


Non-dimmable Driver:Tridonic /Lifud/BOKE
Flicker or Flicker free
Dimmable Driver:1-10V / DALI


Emergency (for option)
●Input voltage: AC220-240V
●Emergency time: 30/60/90/120/180 min
●Emergency power: 5W/10W



Dimensions








Linkable&Installation Show


Standard input 1 side




Linkable input 2 side





A: Flexibility in connectionss


B: Parallel connection
C: Parallel connection


Surface mounting Installation Steps




Suspension Installation Steps




Application


-Can use in Farms,Factory,Distillery,Parking Lot ,Metro Station, Airport and some other -indoor or outdoor places.
-Using in environment contains fumes, gas or solvents.
-Using in dusty and wet industrial environment and hard conditions.






Packing&Shipping

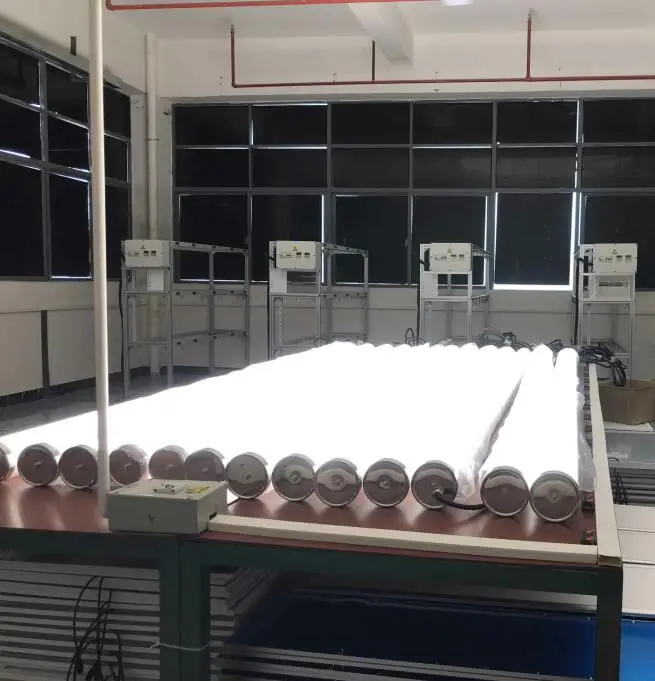

Company Profile



LED Lighting Solution Provider (10 years+)
- -Professional LED lighting manufacturer
-- Available OEM/ODM and trial orders
--5000㎡ workshop & normative quality control system
-- 100,000pcs/month capacity.
--Main Products: IP67 LED Tubular Light, LED Panel Light, LED Modular Panel Light, LED Linear High Bay Light, LED Strip Light, UFO High Bay Light. LED Tri-Proof Light. LED Linear Light
