Машина для производства трансформатора с двойным серводвигателем Зажимная машина намотки


Поделиться:


Цена:55 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 65450.57 $* 68723.41 $*
Aug-17-2025 64900.20 $* 68145.83 $*
Jul-17-2025 54450.15 $* 57173.1 $*
Jun-17-2025 63800.79 $* 66990.67 $*
May-17-2025 55550.59 $* 58328.8 $*
Apr-17-2025 62700.2 $* 65835.30 $*
Mar-17-2025 62150.51 $* 65258.67 $*
Feb-17-2025 61600.76 $* 64680.88 $*
Jan-17-2025 61050.69 $* 64103.10 $*

Характеристики



Product Details




Product Paramenters


Typical standard specifications of are shown below, these can be easily modified as requested.
No.
Item
Data
1
Model
BRJ-300-2
BRJ-400-2
BRJ-600-2
BRJ-800-2
BRJ-1000-2
2
Coil width(mm)
300
400
600
800
1000
3
Coil form
Round/Rectangular
Round/Rectangular
Round/Rectangular
Round/Rectangular
Round/Rectangular
4
coil material
Cu/Al
Cu/Al
Cu/Al
Cu/Al
Cu/Al
5
foil thickness
Cu:0.5~1.8 Al:0.5~2.0
Cu:0.5~1.8 Al:0.5~2.0
Cu:0.5~1.8 Al:0.5~2.0
Cu:0.5~1.8 Al:0.5~2.0
Cu:0.5~1.8 Al:0.5~2.0
6
winding power
4KW*2
4KW*2
5KW*2
7.5KW*2
11 KW*2
7
winding speed
0~30RPM
0~30RPM
0~30RPM
0~30RPM
0~30RPM
8
working pressure
0~0.6Mpa
0~0.6Mpa
0~0.6Mpa
0~0.6Mpa
0~0.6Mpa
9
working tension.
3000N
3000N
6000N
8000N
10000N
10
Pressure of work
0~0.7 Mpa
0~0.7 Mpa
0~0.7 Mpa
0~0.7 Mpa
0~0.7 Mpa
11
Rack
1T
1T
2T
2.5T
3T
12
Rectify mode
Automatic
Automatic
Automatic
Automatic
Automatic
13
welding way
Ac/DC 315
Ac/DC 315
Ac/DC 315
Ac/DC 315
Ac/DC 315


General description about the machine
1.Introduction
Use of machines

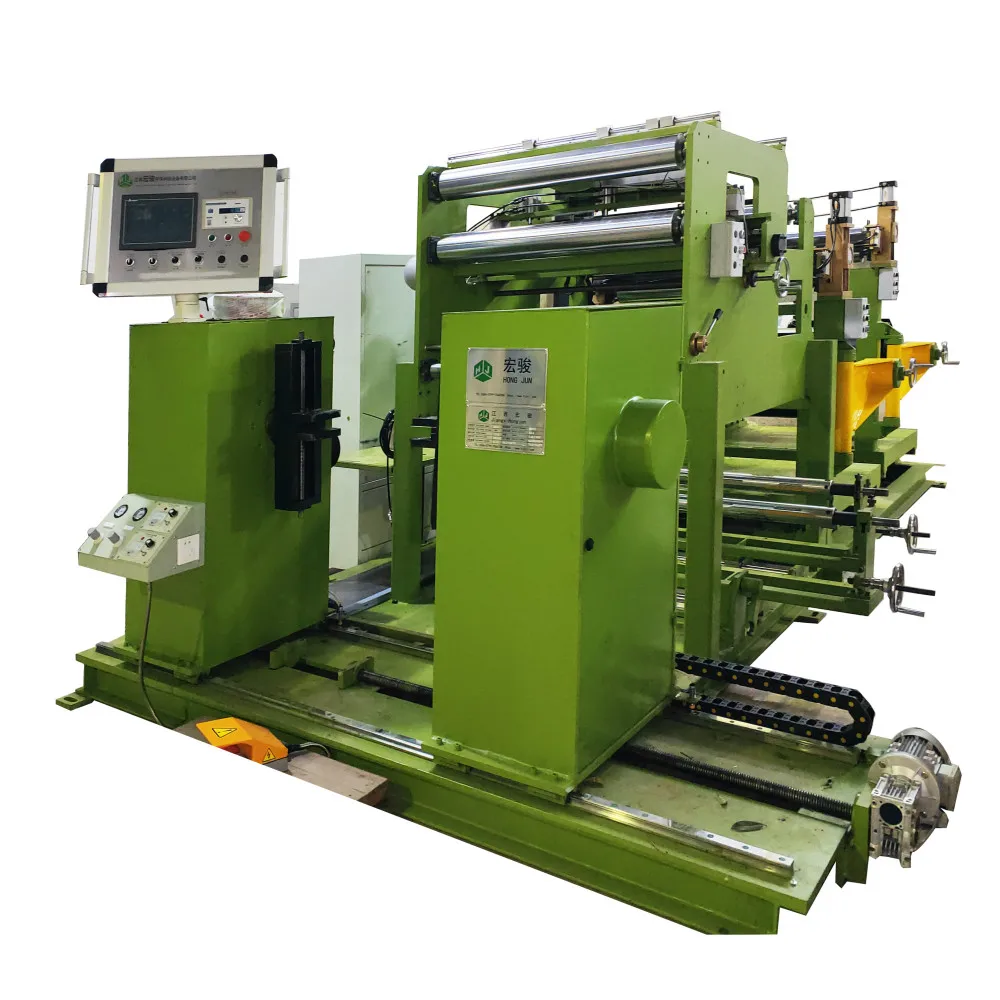

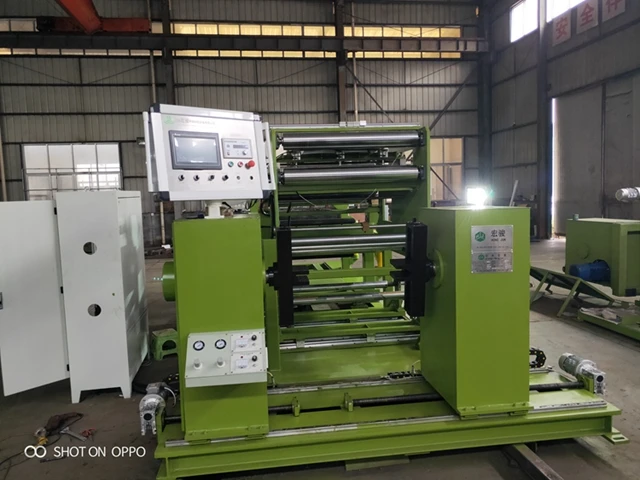

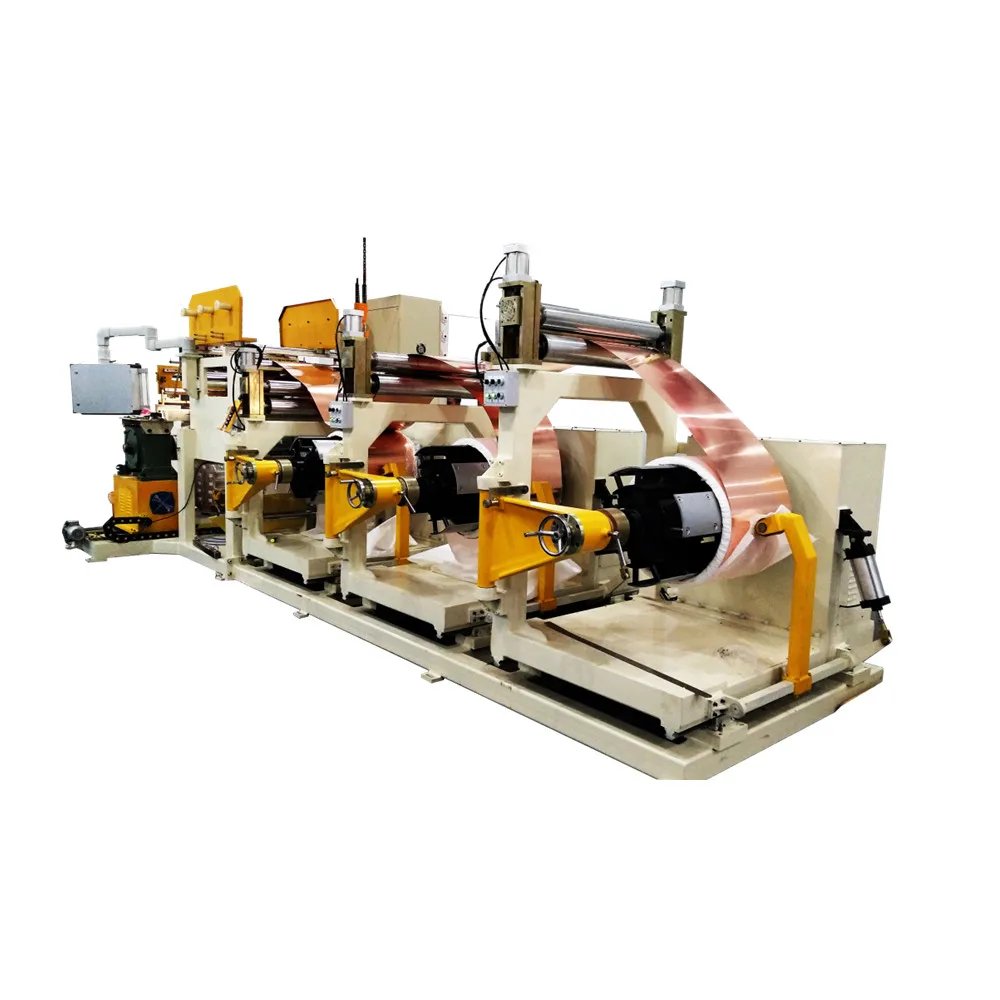

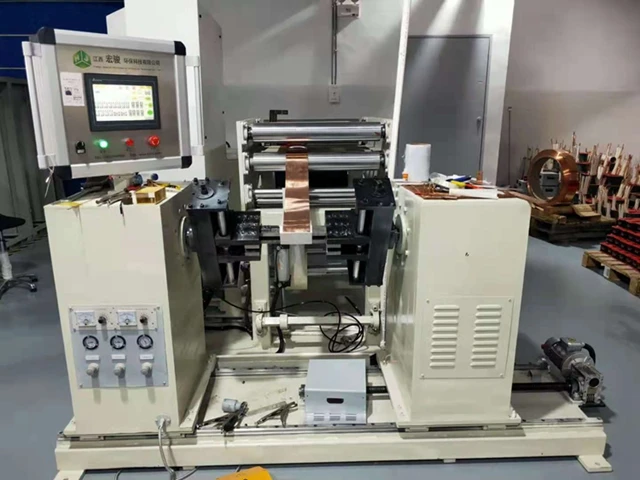

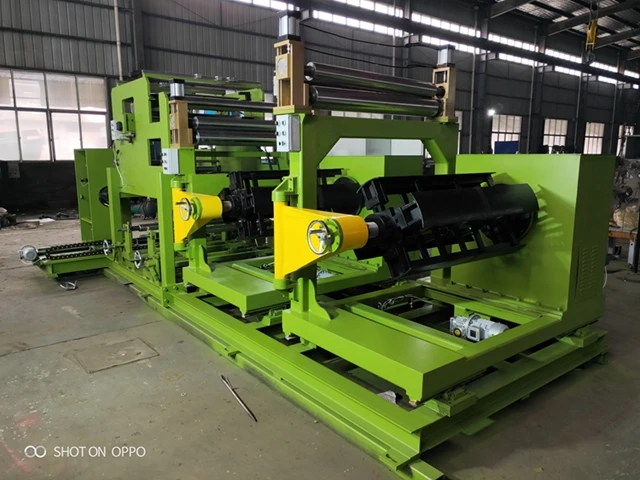

Brj-300-2/400-2/600-2/800-2 /1000-2 double servo double clamping foil winding machine is a special equipment for winding reactor coils.
The machine is a push-button type, with simple structure, easy operation and high reliability, which is the best equipment for winding reactor coils.

2. features:
1 )Tension system, compare with the traditional passive tension can guarantee the stability of the whole process of winding tension.

2) adjusting system adopts photoelectric sensor, through the motor dynamic action, the system of high precision, fast response,can ensure the winding coil end face and tidy.

3 )Foil belt tension, insulating layer and the parameters of the coil and winding tension state, such as digital setting and display, intuitive and accurate.

4) Open book brake motor (linkage), can foil belt tension feedback to winding machine or grid control, brake create tension.The tension is stable and reliable.

5)using compressed air to generate tension, the whole machine hydraulic system, the whole machine without vulnerability consumable, less point of failure, reduce maintenance cost, less mechanical adjustment point, improve production efficiency, low noise, no pollution of hydraulic mechanical friction, environmental protection.


Production Process






Company Information




Recommend Products




Our Advantages


Best after-sale service :

1.All machine can be customized as per your requirement ,we have rich experience for design and development.

2.We can provide one-stop solution at competitive price and outstanding service.

3.After sales service assurance,service for machine using all life.

4.Quality guarantee,we strictly control the quality from the raw material to the finished product,and we will test the machine before delivery.

5.We are one of the most reliable supplier in transformer industry in China.



Packaging Shipping




FAQ


1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before shipment.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 50 working days after received your down payment.
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW;
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
