TIANJIE - UL62 Сертифицированный SPT-3 10/12/14/16/18AWG обувь на плоской подошве; Цвет черный SPT кабель для шнур
- Категория: >>>
- Поставщик: Zhejiang,Tianjie,Industrial,Corp.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.36 $* | 0.75 $* |
| Aug-15-2025 | 0.10 $* | 0.98 $* |
| Jul-15-2025 | 0.5 $* | 0.48 $* |
| Jun-15-2025 | 0.75 $* | 0.64 $* |
| May-15-2025 | 0.96 $* | 0.59 $* |
| Apr-15-2025 | 0.94 $* | 0.38 $* |
| Mar-15-2025 | 0.64 $* | 0.6 $* |
| Feb-15-2025 | 0.88 $* | 0.49 $* |
| Jan-15-2025 | 0.8 $* | 0.83 $* |
Характеристики
SPT Lamp Cord
What is the usage of SPT Lamp Cord?
Meant for household appliances and other light-duty applications. SPT Lamp Cord can also be called a lamp cord, lamp cable, or an SPT cable because the two-conductor construction is easily recognizable as the cord used in lamp wiring. However, the SPT cable can also be used in clocks, radios, fans, refrigerators, and room cooling units among other things.
Products Description
PERFORMANCE
1) Rated voltage: 300/600V;
2) Insulation Resistance: 200MΩ·km
3) Ambient Temperature: -20℃~75℃
4) Installation Temperature: -5℃~60℃
\t\t\t\t\t\t\t\t\tSPT CABLE \t\t\t\t\t\t\t

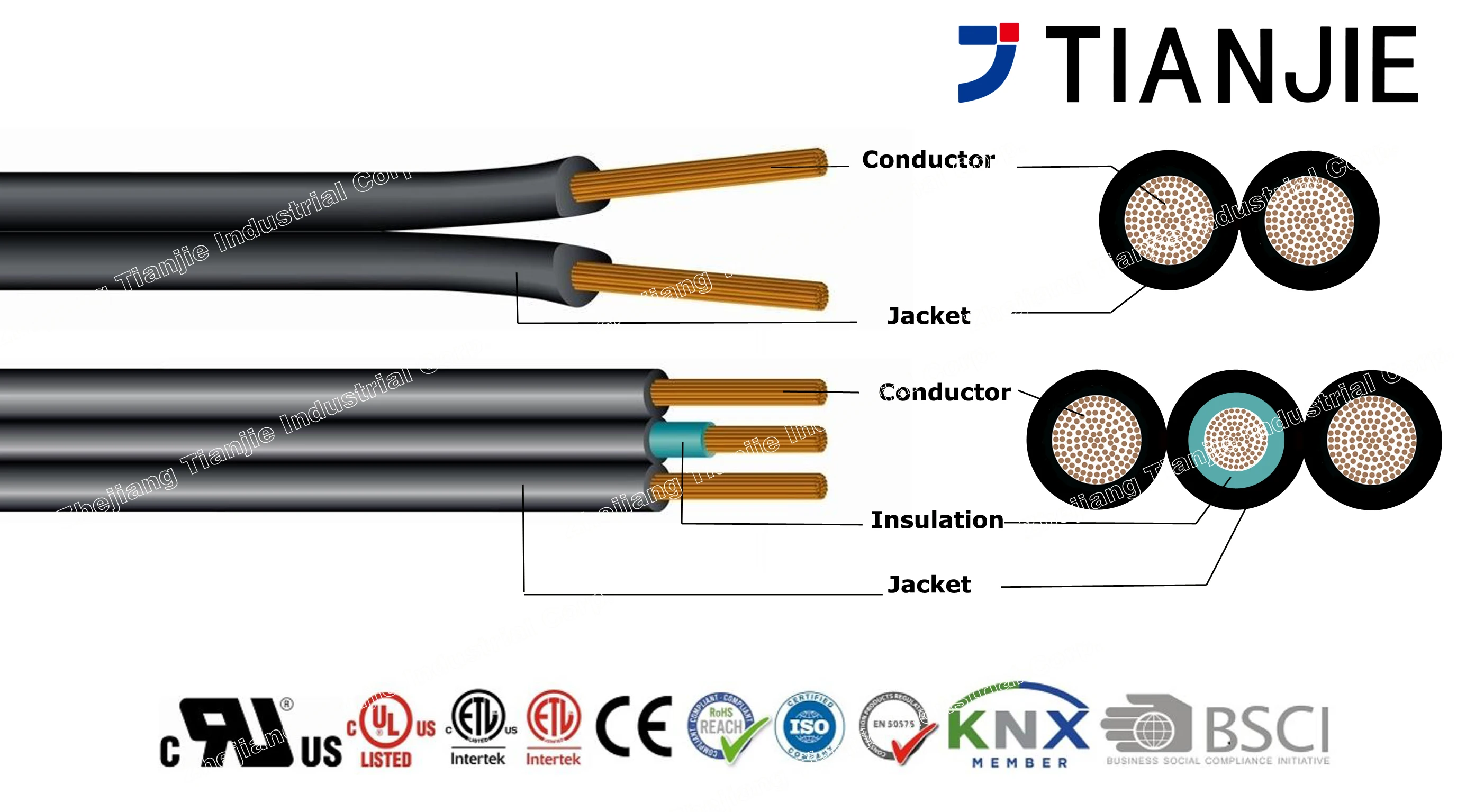

SPT-1/-2 Lamp Cord is designed for household appliances including clocks, radios, lamps, and fans.
It has a 300-volt maximum voltage rating and features two conducting copper wires.
Its two stranded copper conductors are insulated in PVC.
SPT-1 Lamp Cord has thinner insulation than SPT-2 Lamp Cord.
SPT-1 Lamp Cord products are the thinnest and lowest amperage of the three types of UL SPT cords.
SPT-3 Lamp Cord is often used in small duty household appliance applications such as lamps, lighting or chargers, and they are constructed in accordance with UL standards.
SPT-1 | |||||||||||||
Size Range mm2 (AWG) | 0.519 (20) | 0.824 (18) | |||||||||||
Norminal Insulation Thickness mm | 0.76 | 0.76 | |||||||||||
Number of Cores | 2 or 3 | ||||||||||||
SPT-2 | |||||||||||||
Size Range mm2 (AWG) | 0.824 (18) | 1.04 (17) | 1.31 (16) | 2.08 (14) | |||||||||
Norminal Insulation Thickness mm | 1.14 | 1.14 | 1.14 | 1.14 | |||||||||
Number of Cores | 2 or 3 | ||||||||||||
SPT-3 | |||||||||||||
Size Range mm2 (AWG) | 0.824 (18) | 1.04 (17) | 1.31 (16) | 1.65 (15) | 2.08 (14) | 3.31 (12) | 5.26 (10) | ||||||
Norminal Insulation Thickness mm | 1.52 | 1.52 | 1.52 | 1.52 | 2.03 | 2.41 | 2.79 | ||||||
Number of Cores | 2 or 3 | ||||||||||||
Type | AWG/No.of cores | NO./Normal Diameter of strand(mm) | Normal Thickness of Insulation(mm) | Over Diameter of Cable(mm) |
SPT-1 | 20 x 2C | 26/0.16 | 0.76 | 2.55 x 5.1 |
18 x 2C | 41/0.16 | 0.76 | 2.7 x 5.4 | |
18 x 3C | 41/0.16 | 0.76 | 2.7 x 8.0 | |
SPT-2 | 18 x 2C | 41/0.16 | 1.14 | 3.4 x 6.8 |
16 x 2C | 65/0.16 | 1.14 | 3.7 x 7.4 | |
18 x 3C | 41/0.16 | 1.14 | 3.5 x 8.6 | |
16 x 3C | 65/0.16 | 1.14 | 3.8 x 9.6 | |
SPT-3 | 18 x 2C | 41/0.16 | 1.52 | 4.4 x 8.7 |
16 x 2C | 65/0.16 | 1.52 | 4.8 x 9.5 | |
14 x 2C | 41/0.254 | 2.03 | 6.0 x 12.0 | |
12 x 2C | 65/0.254 | 2.41 | 7.4 x14.0 | |
10 x 2C | 105/0.254 | 2.79 | 9.1x18.2 | |
18 x 3C | 41/0.16 | 1.52 | 4.4 x 10.7 | |
16 x 3C | 65/0.16 | 1.52 | 4.8 x 11.8 | |
14 x 3C | 41/0.254 | 2.03 | 6.0 x 14.5 | |
12 x 3C | 65/0.254 | 2.41 | 7.4x16.5 | |
10 x 3C | 105/0.254 | 2.79 | 9.1 x 18.8 |
