Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Терморегулятор регулятор температуры дисплей термостат для
- Категория: Temperature Instruments >>>
- Поставщик: Toky,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 17.65 $* | 18.89 $* |
| Aug-20-2025 | 17.93 $* | 18.19 $* |
| Jul-20-2025 | 14.29 $* | 15.11 $* |
| Jun-20-2025 | 16.17 $* | 17.11 $* |
| May-20-2025 | 14.25 $* | 15.89 $* |
| Apr-20-2025 | 16.44 $* | 17.17 $* |
| Mar-20-2025 | 16.4 $* | 17.18 $* |
| Feb-20-2025 | 16.49 $* | 17.72 $* |
| Jan-20-2025 | 16.18 $* | 17.29 $* |
Характеристики

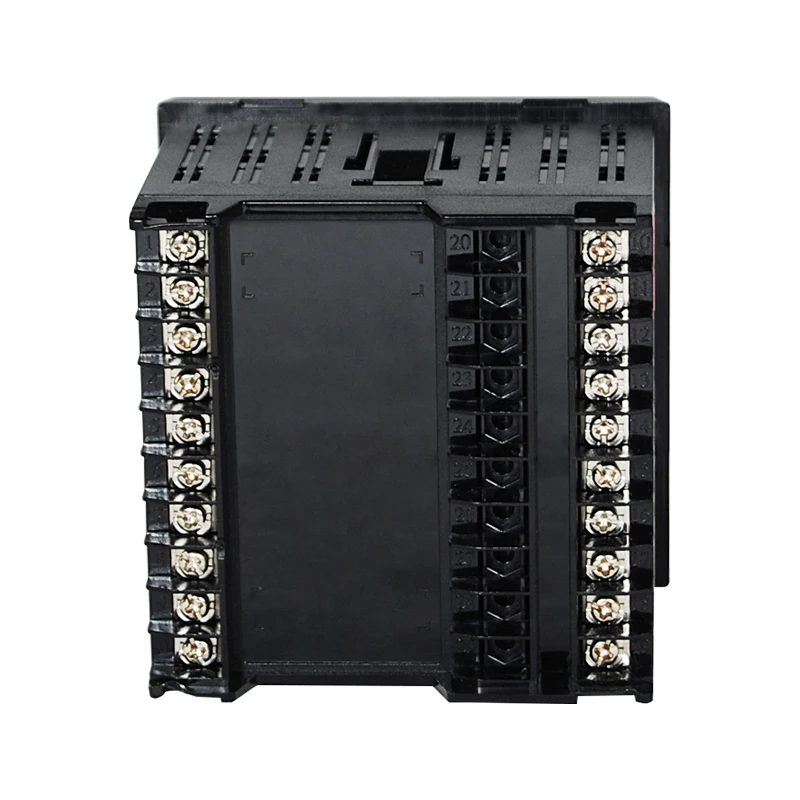

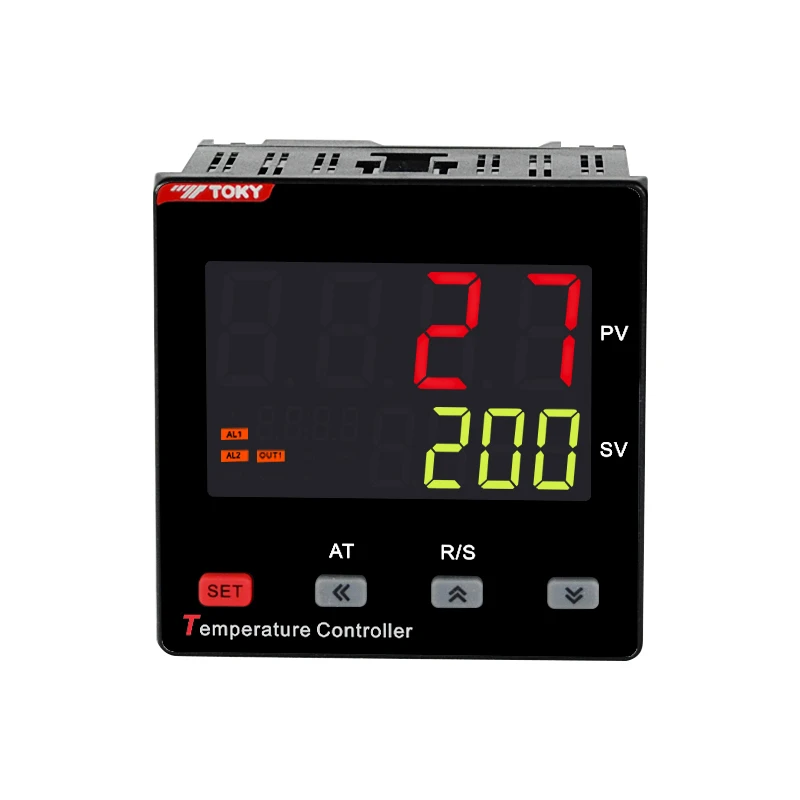

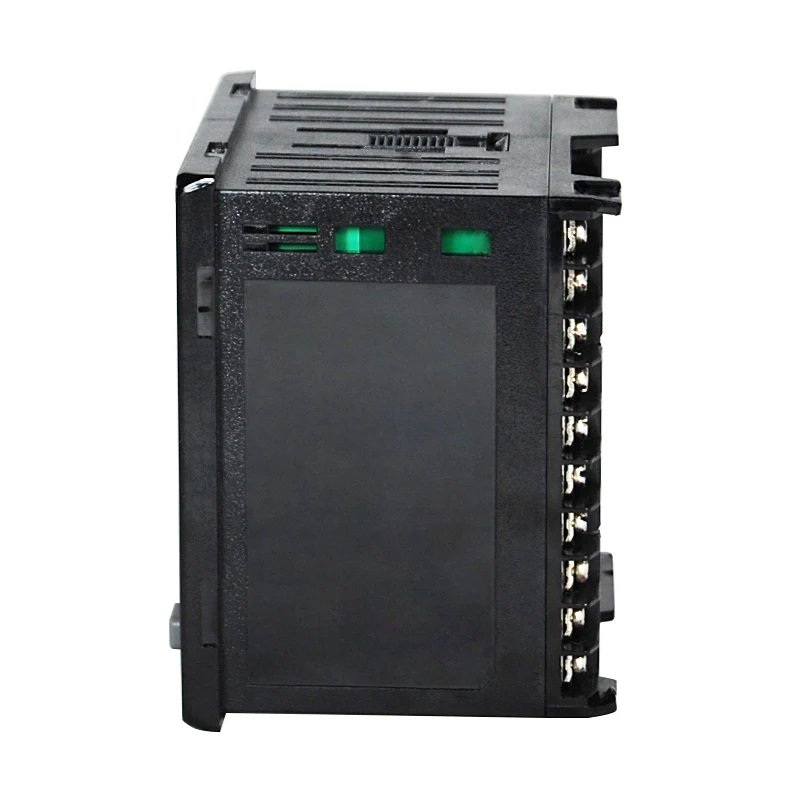

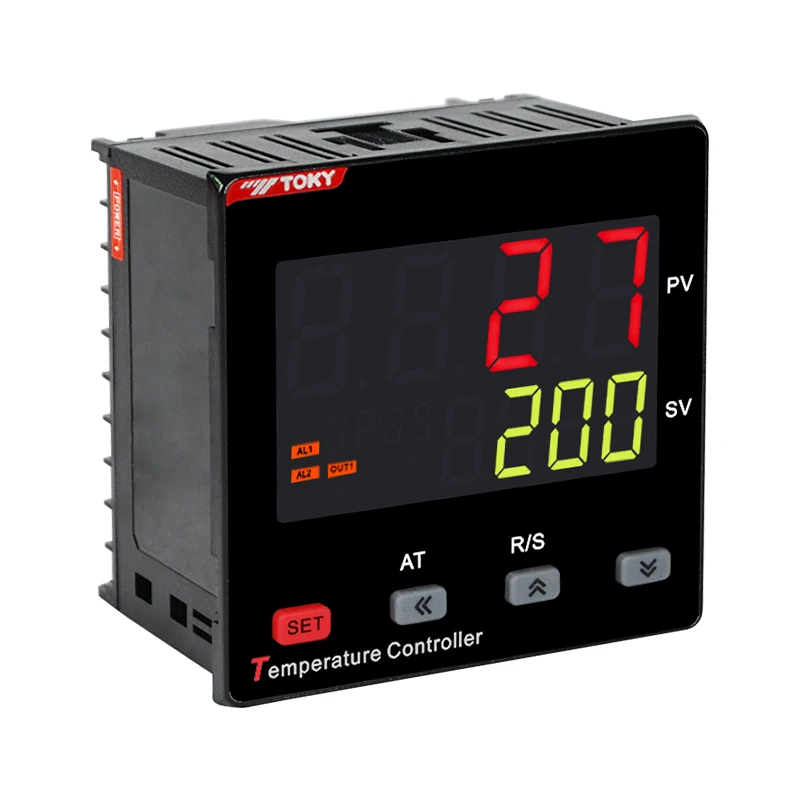

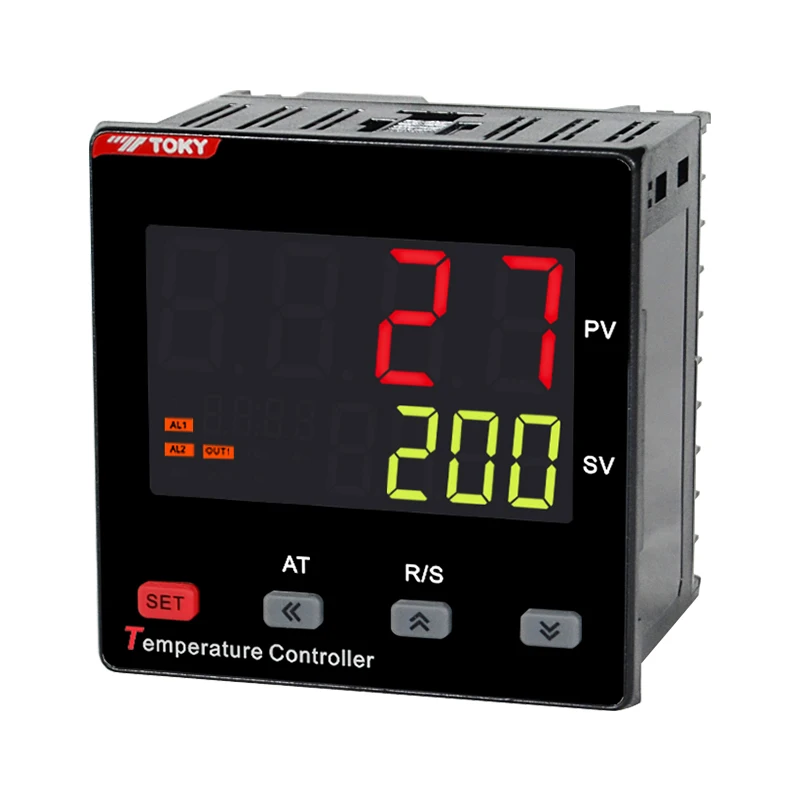

Thermoregulator Temperature Controller Temperature Display Thermostat For Electric Oven
Product Description
| Technical Specification | |
| Relay Capacity | AC 250V /5A , Life of rated load>100,000 times |
| Power Supply | AC/DC 100 ~ 240V (85-265V)or 24V AC/DC |
| Power Consumption | < 10VA |
| Working Environment | Indoor use only, temperature: -5~55℃ no condensation, humidity<85%RH, altitude<2000m |
| Storage Environment | -10 ~ 60℃, no condensation |
| SSR output | DC 24V pulse voltage, load<30mA |
| Current output | DC 4 ~ 20mA, load<500Ω |
| Communication port | RS485 port Modbus-RTU protocol |
| Insulation impedance | Input, output, power VS meter cover >20MΩ |
| ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.Criteria B |
| Surge immunity | IEC/EN61000-4-5 ±2KV perf.Criteria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ~ 70% perf.Criteria B |
| Isolation voltage | Signal input, output, power: 1500VAC 1min,<60V low voltage circuit: DC500V,1min |
| Total weight | About 300g |
| Cover material | The shell and panel frame PC/ABS (Flame Class UL94V-0) |
| Power failure memory | 10 years, times of writing: 1 million times |
"Click here" or "Send inquiry" to get the latest price and product details!
Company Information
Related Products
FAQ
FAQ
Q1.Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.
Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.
For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.
Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.
For OEM order, usually 1pc item in a brown inner box, then into standard export carton.
Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
Q7.Do you have any MOQ limit for the order?
Low MOQ, 1pc for sample checking is available.
Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.
Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
