Full Automatic Wood finger jointer shaper for finger joint clamp machine

Full Automatic Wood finger jointer shaper for finger joint clamp machine

Wood finger joint machine is mainly used for making finger shape of wood, smear the glue on the tenon,and then put into the finger jointingt machine to make the wood connect tight, then use the wood cutter machine to cut the wanted length.

Full Automatic Wood finger jointer shaper for finger joint clamp machine

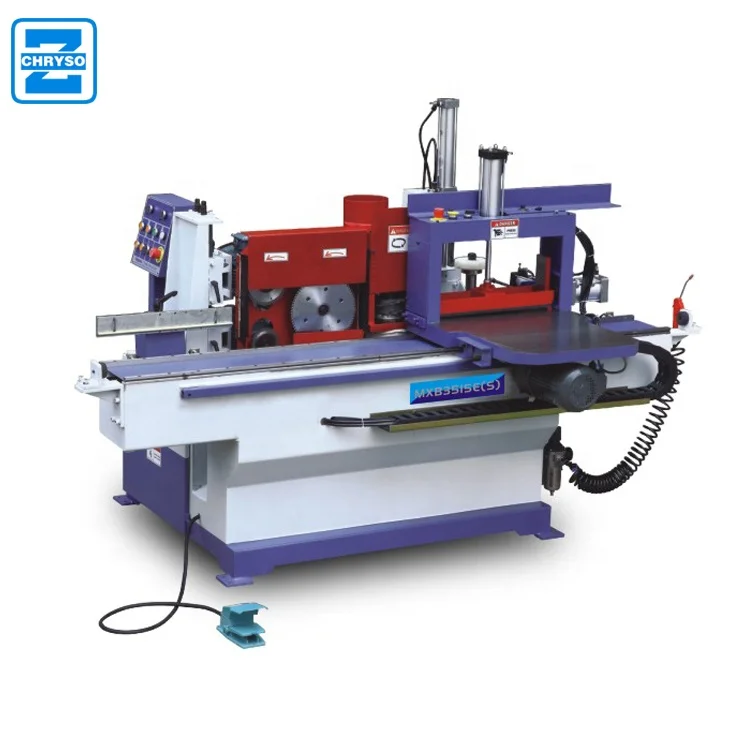

Finger Joint Shaper: used for slotting wooden teeth

 Finger Joint Shaper: used for slotting wooden teeth (with glue)

Full Automatic Wood finger jointer shaper for finger joint clamp machine

Finger Joint Press:Use hydraulic device to make the wood connection tight and for lengthening timber lengthways

Full Automatic Wood finger jointer shaper for finger joint clamp machine

Finger Joint Line (Including Finger Jointer, Finger Joint Press, Wood Cutting Machine)

The future of the Woodworking machinery finger joint shaper,finger joint press,finger joint line:
Full Automatic Wood finger jointer shaper for finger joint clamp machine
1.Stable performance, high precision, long service life
Full Automatic Wood finger jointer shaper for finger joint clamp machine
2.The connection length can be adjusted as required

Full Automatic Wood finger jointer shaper for finger joint clamp machine
3.The spindle is precisely machined, assembled accurately, runs smoothly, and has good accuracy
Full Automatic Wood finger jointer shaper for finger joint clamp machine

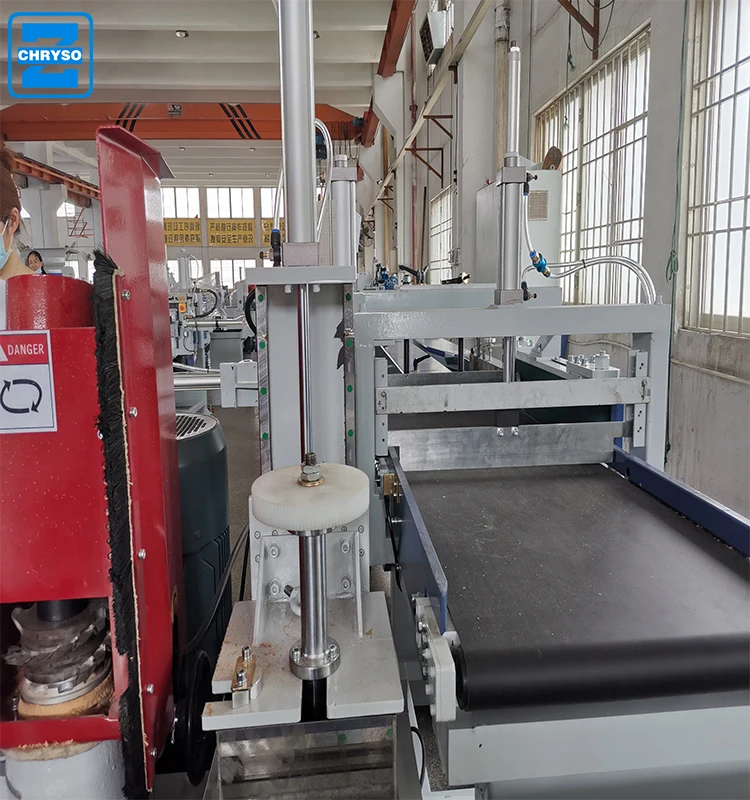

4.Multiple sets of pressing wheels are used in the receiving of materials to ensure stable feeding and precise connection.
Full Automatic Wood finger jointer shaper for finger joint clamp machine
5.Reuse of waste wood to reduce business costs.
Full Automatic Wood finger jointer shaper for finger joint clamp machine
6.Fully automatic operation, saving a lot of labor
Full Automatic Wood finger jointer shaper for finger joint clamp machine
7.The finger-joined plate has a long service life and is not easy to deform, which greatly improves the quality of the finished product.
Full Automatic Wood finger jointer shaper for finger joint clamp machine
8.It has a wide range of applications and can be applied to a series of wood products such as door panels, door frames, and desks.
Full Automatic Wood finger jointer shaper for finger joint clamp machine
9.The finger joint assembly machine part adopts a long + short design, through this structure, a very short workpiece can be assembled and the cost is reduced.

The application of the finger joint:
Full Automatic Wood finger jointer shaper for finger joint clamp machine
The finger joint machine is mainly used for splicing comb tenons of medium and short woods, such as the production of blockboard, transportation zygote, pillars, furniture, etc. It is to improve the utilization rate of wood, so as to longitudinally glue and join to make long-size specifications. Ideal processing equipment.

Technical Parameter for Finger Joint Machine

Model	CRS-150A	CRS-150B
Feed length	150-850mm	150-850mm
Shaping Thickness	20-150mm	20-150mm
Width for workbench processing	550mm	550mm
Pressing thickness	30-100mm	30-100mm
Pressing width	30-150mm	30-150mm
Spindle diameter	40mm	40mm
Spindle speed	6750rpm	6750rpm
Saw blade spindle power	1.5kw*2	4kw*2
Saw blade spindle power	1.5kw*2	/
Spindle motor power	15kw*2	11kw*2
Belt conveyor power	0.75kw*5	/
Total motor power	42.75kw	30kw



Full Automatic Wood finger jointer shaper for finger joint clamp machine

The specification of Finger Joint Press:

Model	CRS-80
Max. assembled length	2500mm
Max. working width	80mm
Max. working thickness	30mm
Min working length	100mm
Min working width	30mm
Min working thickness	10mm
Blade speed	2800r/min
Saw blade diameter	200mm
Saw motor power	2.2kw
Oil pump motor power	4kw
Working air pressure	0.5-0.8Mpa
Max thrust for oil pressure	3500kg
Max output	25m/min
Overall dimensions	4265*830*1470mm





Package of Finger Joint Machine:
