Влагостойкая огнестойкая плита из силиката
- Категория: Other Fireproofing Materials >>>
- Поставщик: Golden,Power,(Fujian),Building,Material,Science,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.81 $* | 0.71 $* |
| Aug-20-2025 | 0.4 $* | 0.44 $* |
| Jul-20-2025 | 0.27 $* | 0.23 $* |
| Jun-20-2025 | 0.10 $* | 0.55 $* |
| May-20-2025 | 0.21 $* | 0.74 $* |
| Apr-20-2025 | 0.86 $* | 0.83 $* |
| Mar-20-2025 | 0.67 $* | 0.78 $* |
| Feb-20-2025 | 0.72 $* | 0.22 $* |
| Jan-20-2025 | 0.4 $* | 0.22 $* |
Характеристики
The main advantages of the fireproof board:
1.Fireproof board is Class A1 fireproofing, neither toxic gas emission , nor black smoke in case of buming
2.Fireproof board is Standardized production of the product decorative fiber cement board , site assembly and easy installation
3. Fireproof board is No dust emission, no dust generation, non-oxidation, mold prevention, insect prevention and moth prevention
4. Fireproof board is Acid and alkali resistance , chemical resistance
5. Fireproof board is Wear resistance, easy cleaning, low maintenance cost
6. Fireproof board is Antibacterial surface
7. Fireproof board is Environmental friendly, no VOC gas when installation
8. Fireproof board is Large effect, elegant appearance, less gap and favorable to cleaning
9. Fireproof board is Low thermal conductivity and favorable to heat insulation and energy saving
10. Fireproof board is Surface diffuse reflection and not reflective
11. Fireproof board is Good durability and long service life
12. Fireproof board is Bright apperance and rich color gives us a feeling of cleanliness and warmth
1.Fireproof board is Class A1 fireproofing, neither toxic gas emission , nor black smoke in case of buming
2.Fireproof board is Standardized production of the product decorative fiber cement board , site assembly and easy installation
3. Fireproof board is No dust emission, no dust generation, non-oxidation, mold prevention, insect prevention and moth prevention
4. Fireproof board is Acid and alkali resistance , chemical resistance
5. Fireproof board is Wear resistance, easy cleaning, low maintenance cost
6. Fireproof board is Antibacterial surface
7. Fireproof board is Environmental friendly, no VOC gas when installation
8. Fireproof board is Large effect, elegant appearance, less gap and favorable to cleaning
9. Fireproof board is Low thermal conductivity and favorable to heat insulation and energy saving
10. Fireproof board is Surface diffuse reflection and not reflective
11. Fireproof board is Good durability and long service life
12. Fireproof board is Bright apperance and rich color gives us a feeling of cleanliness and warmth
Material performance | GDD special fireproof board |
Material composition | High temperature autoclaved fireproof reinforced silicate board 100% non-asbestos |
Combustion performance | Conforms to GB8624 non-combustible class A1 |
Flexural strength | Drying strength ≥5MPa, Single strength of block ≥ 70% of the flexural strength |
Dimensions | Length 2440* Width 1220* Thickness 9, 10, 12, 14, 24（mm） |
Density | Ceiling/partition≤1.0g/cm3 Ventilation pipe≤1.0-1.25g/cm3 |
Thermal Conductivity | Ceiling/partition≤0.25 W/(m.k) Ventilation pipe≤0.20 W/(m.k) |
Moisture content | ≤10% |
Rate of wet account | ≤0.25% |
Radioactive | Internal exposure index IRa≤1.0, internal exposure index Ir≤1.0 |
Thermal stability | Refer to T/CBMF 79-2020/T/CCPA 14-2020 |
Integrity | The test thickness should maintain the integrity of the specimen, and no phenomena such as falling edge, falling Angle, delamination, penetrating crack, rupture and so on |
Mass loss rate | ≤18% |
Length and width size shrinkage | ≤4.0% |
Thickness size shrinkage | ≤10.0% |
Buckling deformation | ≤1.0mm |
Crack | Cracks are allowed on the surface, but the maximum width of the cracks shall not exceed 1/10 of the thickness of the plate |
Fireproof Board Use For partition wall
JINQIANG GDD fireproof partition system are light weight, dry operation, fast speed, mildew and moisture proof, not afraid of moth. According to the different systems can meet the various fire limit requirements.
JINQIANG GDD fireproof partition system | ||||||
Wall thickness | 124 mm | 93mm | 91mm | |||
Fire resistance | ≥4 hours | ≥3 hours | ≥2hours | |||
Jinqiang GDD thickness | 12mm | 9mm | 8mm | |||
Density | ≤1g/cm3 | ≤1g/cm3 | ≤1g/cm3 | |||
Flexural strength | ≥6MPa, | ≥6MPa, | ≥6MPa, | |||
Thermal conductivity | ≤0.25W/(m.K) | |||||
Non-combustibility | Class A1 | |||||
Fireproof Board Use For partition wall
GDD fireproof duct made 100% non-asbestos autoclave silicate board - fireproof prevention board (fire water resistant, non-combustible Class A1 material), fireproof duct plate free chlorine ion content was 0%, 100% non-asbestos, formaldehyde content is 0%, absolutely does not return halide, frost, has high strength, not burning, not deformation, resistant to moisture, waterproof, convenient installation, long life and other advantages, It is a new generation of green energy-saving environmental protection products.
Density: ≤1.0-1.25g/cm3,
Thermal conductivity ≤0.2W/ (m·k)
Thermal conductivity ≤0.2W/ (m·k)

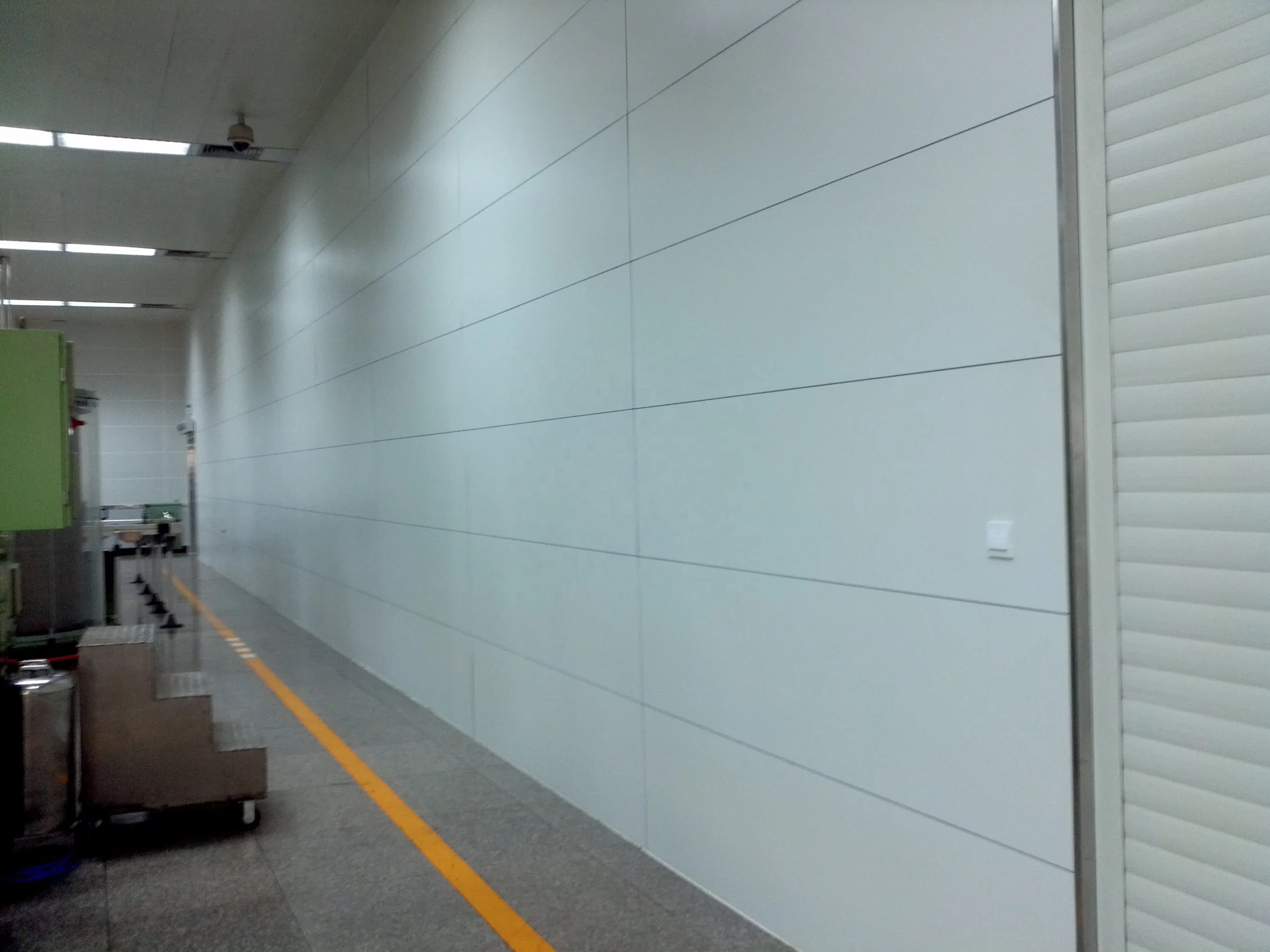

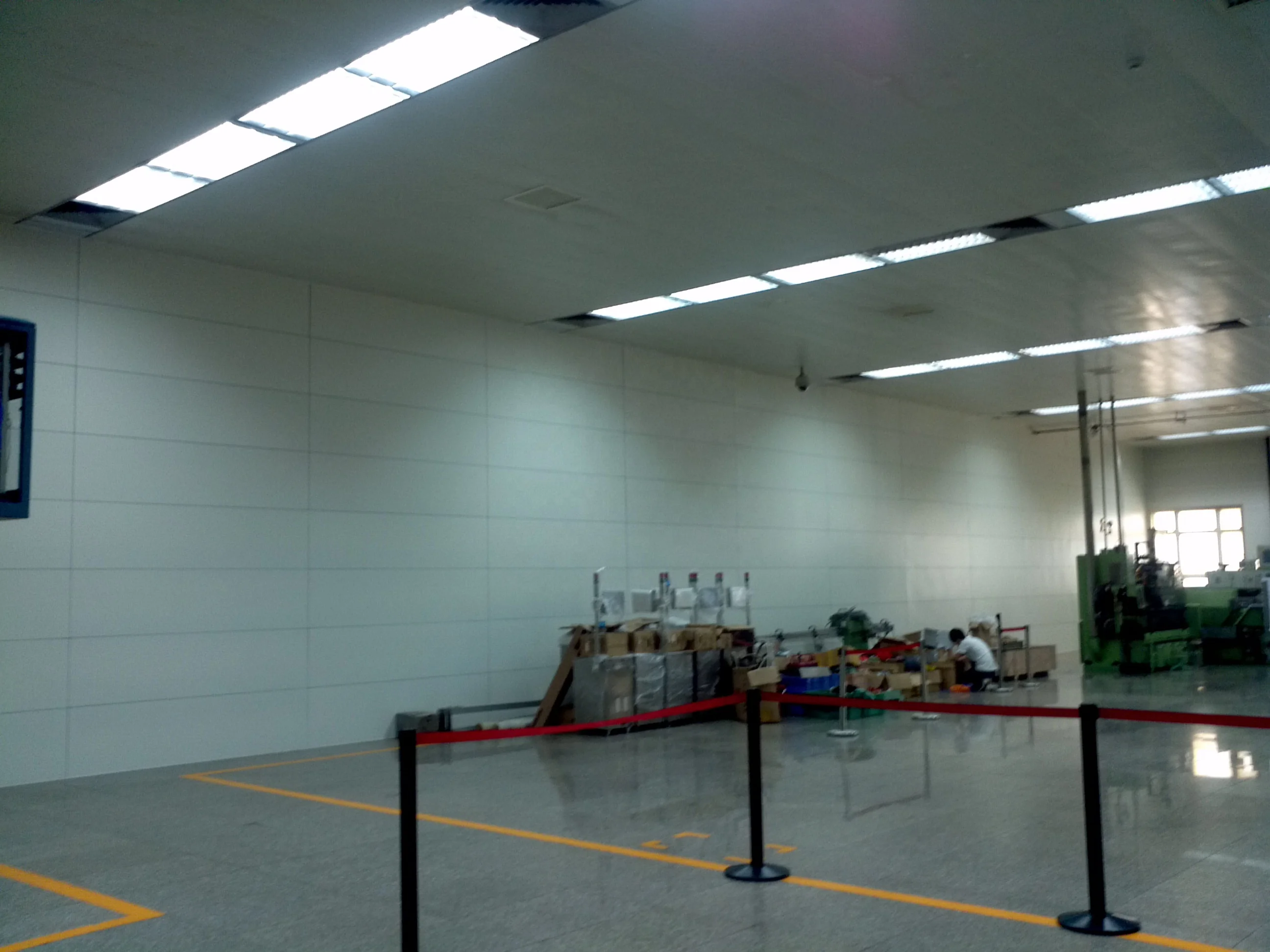

GDD fireproof board case show
Project Name: Beijing Daxing International Airport
Product used: Jinqiang GDD fire partition system
Project Name: Changle Station of Fuping Railway
Product used: Jinqiang GDD fireproof composite duct system
Product Dosage: 12000m2
Product used: Jinqiang GDD fireproof composite duct system
Product Dosage: 12000m2
Project Name: Yujiahui Facial Mask Factory Project
Product used: Jinqiang GDD fireproof composite duct
Product used: Jinqiang GDD fireproof composite duct
Project name: Zoomlion Engineering Machinery Museum
FAQ
1. Are you manufacturer or trade Company?
We are manufacturer founded in 2010 with trade team for international service.
Our total investment is 1.6 billion RMB, covering an area of nearly 1000mu.
2. Which is the loading port?
Fuzhou，Xiamen or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.
3. What's your Minimum order quantity(MOQ) of your product?
1x20"GP, small orders can be negotiated.
4. What terms of payment you usually use?
T/T 30% deposit and 70% should paid out before shipment. LC payment terms are negotiable if large order.
5. What is your lead time for your goods?
About 15-20 days
6. How do you guarantee the quality of your product?
We have strict QC inspection in each process. There are test reports for our products. All our products meet industry
standards.welcome client‘s QC.
7. Do you accept OEM?
Yes, we can print your logo or information on the products or packing.We accept ODM.
We are manufacturer founded in 2010 with trade team for international service.
Our total investment is 1.6 billion RMB, covering an area of nearly 1000mu.
2. Which is the loading port?
Fuzhou，Xiamen or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.
3. What's your Minimum order quantity(MOQ) of your product?
1x20"GP, small orders can be negotiated.
4. What terms of payment you usually use?
T/T 30% deposit and 70% should paid out before shipment. LC payment terms are negotiable if large order.
5. What is your lead time for your goods?
About 15-20 days
6. How do you guarantee the quality of your product?
We have strict QC inspection in each process. There are test reports for our products. All our products meet industry
standards.welcome client‘s QC.
7. Do you accept OEM?
Yes, we can print your logo or information on the products or packing.We accept ODM.
