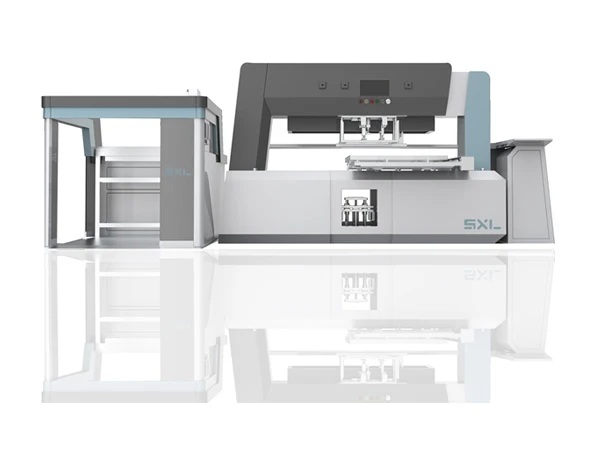

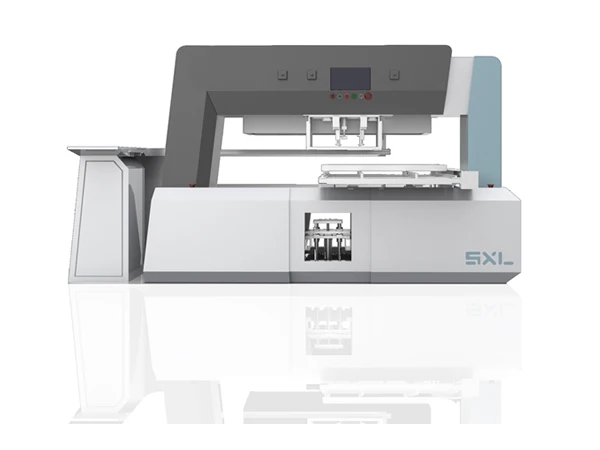

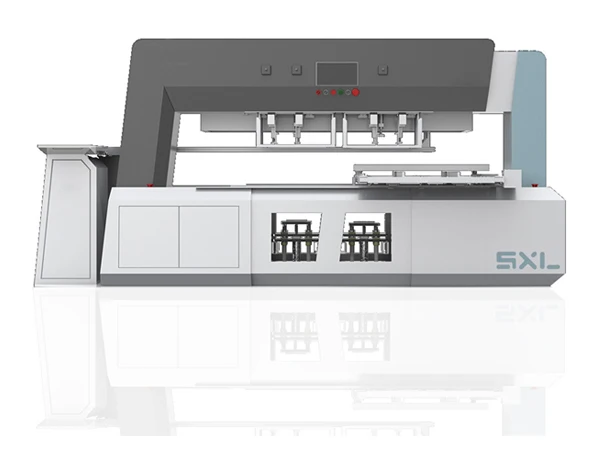

LF-1060SPD Double heads stripping machine with paper

Function and Characteristics

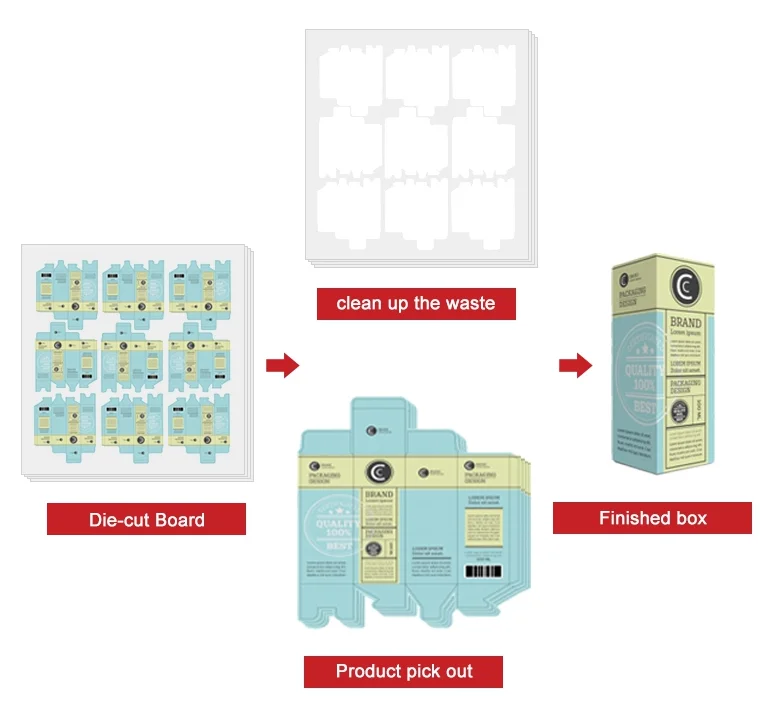

1. Avoid the quality problem by manual stripping; humanized design, clean and tidy

working environment, simple and easy operation;Benefits for customers, making

the intensity labor and bore stripping working to become automatic

2. It tie in high quality printing machine and high speed automatic die cutting machine;

No need stripping rule for die, the efficient of die cutting can be increase

10%-30%;

3. Product can not be bend and it is easy tidy up when stripping; increase efficiency

of folding and pasting machine, packing machine; so the efficiency of whole working

procedure can increase more;

4. Working speed 18-20times/min

5. The stripping speed faster, one time can strip the thickness of paper is 60-85mm

(the paper thickness, layout, nick different, the total thickness stripping is

little different), for example: 60mm thickness/one time, it is about 200sheet,

15 boxes one sheet,one minute =200sheet; the stripping quantity for one hour

is 60x200=12000/sheet

6. It can suitable for cigarette box, wine box, medicine box, cosmetic box, card,

and label etc.

7. Easy to change product and adjust it, it only need 10-20 minute; (can be adjusted

the speed according to worker experience)

8. Cross- tropsch paper sets off headers immobile; cross- tropsch products from paper

-driving, avoid friction damage to the product;

9. Automatic robot dispensing, controlled by the reversible gear motors, pneumatic

clamp the material, finished products to the conveyor belt, improve transport

efficiency, reduce labor costs, and improve productivity.

10. Using the pneumatic mechanical han

 Main technical Parameter
