Характеристики
INTRODUCTION
Continuous belt frying machine is designed for automaticworking.Suitable for different foods;High capacity and high
quality;Made of SUS304.Frying time and temperaure can be adjusted based on request suitable for different foods.
quality;Made of SUS304.Frying time and temperaure can be adjusted based on request suitable for different foods.
Model | Width of belt(mm) | Length(mm) | Heating Method | Power | Capacity |
XD-2500 | 300/400 | 2500 | Electricity/Gas | 36kw | 100kg/h |
XD-3500 | 400/600/800 | 3500 | Electricity/Gas | 48kw | 200kg/h |
XD-4500 | 600/800/1000 | 4500 | Electricity/Gas | 72kw | 300kg/h |
XD-5500 | 600/800/1000 | 5500 | Electricity/Gas | 120kw | 500kg/h |
XD-6500 | 600/800/1000 | 6500 | Electricity/Gas | 144kw | 800kg/h |
XD-8500 | 600/800/1000 | 7500 | Electricity/Gas | 180kw | 1000kg/h |
XD-11000 | 600/800/1000 | 8500 | Electricity/Gas | 240kw | 2000kg/h |

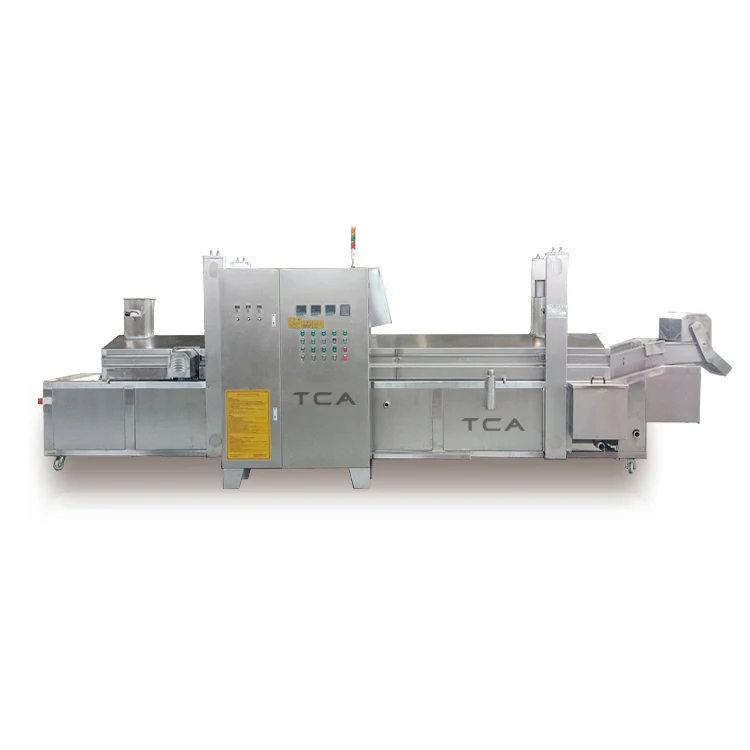

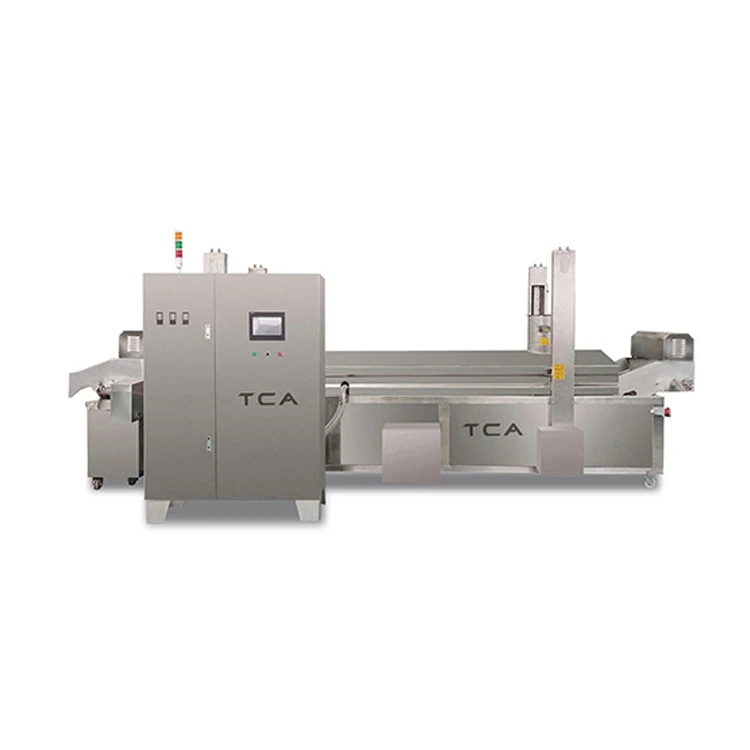

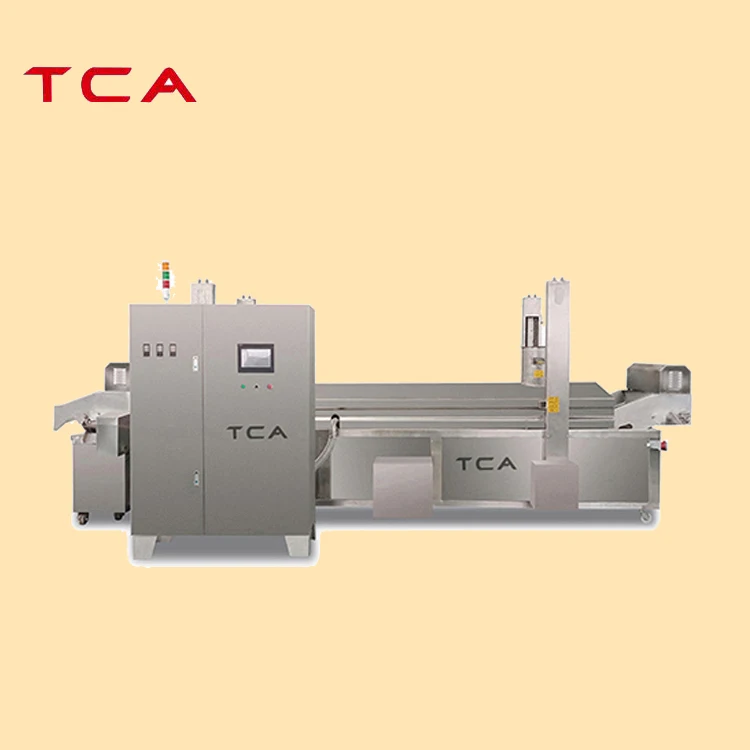

CONTINUOUS FRYER
Automatic continuously working;
●Pot body made of 4mm 304 stainless steel, baseboard is 5mm thickness.
●Pot body shell made of 1mm 304 stainless steel.
●Water leakage test to make sure the leakproofness after welding.
●Aluminum silicate insulation materials is filled between pot body and shell.
●Drain valve is installed on the bottom of fryer
●Oil vent installed on the in-feed of the fryer to prevent floating and remaining at the entry.
LIFT SYSTEM
●Use chains hoisting system.Can hoist the fume exhaust cover individually.
●Can hoist the cover, belt holder and heating tubestogether Convenient to clean the mesh belt and fume exhaust cover.
●Use the safety bumper to make sure the belt holder can not fall
down when it lifted.
down when it lifted.
●Automatically cut off heating tubes' power when hoisting the cover.
CONTROL BOX
●Belt speed is frequency controlled.
●Different belt based on request
●The mesh belt holder made of 3mm stainless steel.
●The exhaust cover and belt holder can be lifted individually, easy cleaning.
●The bearing and seat is made of stainless steel304.
●The gap of double belt is 30-80 mm(adjustable)
●Transmission use gear reducer with low noise.

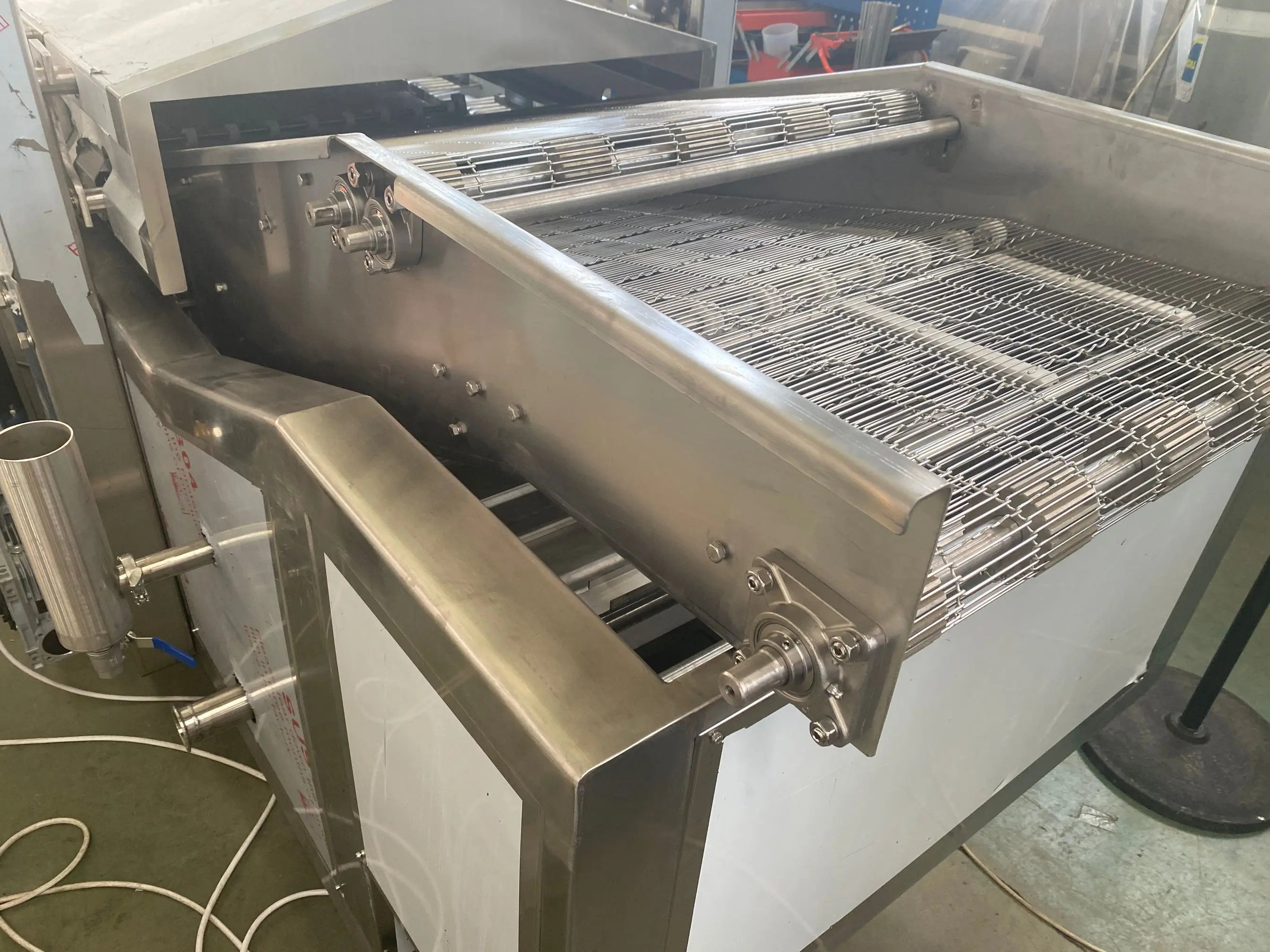

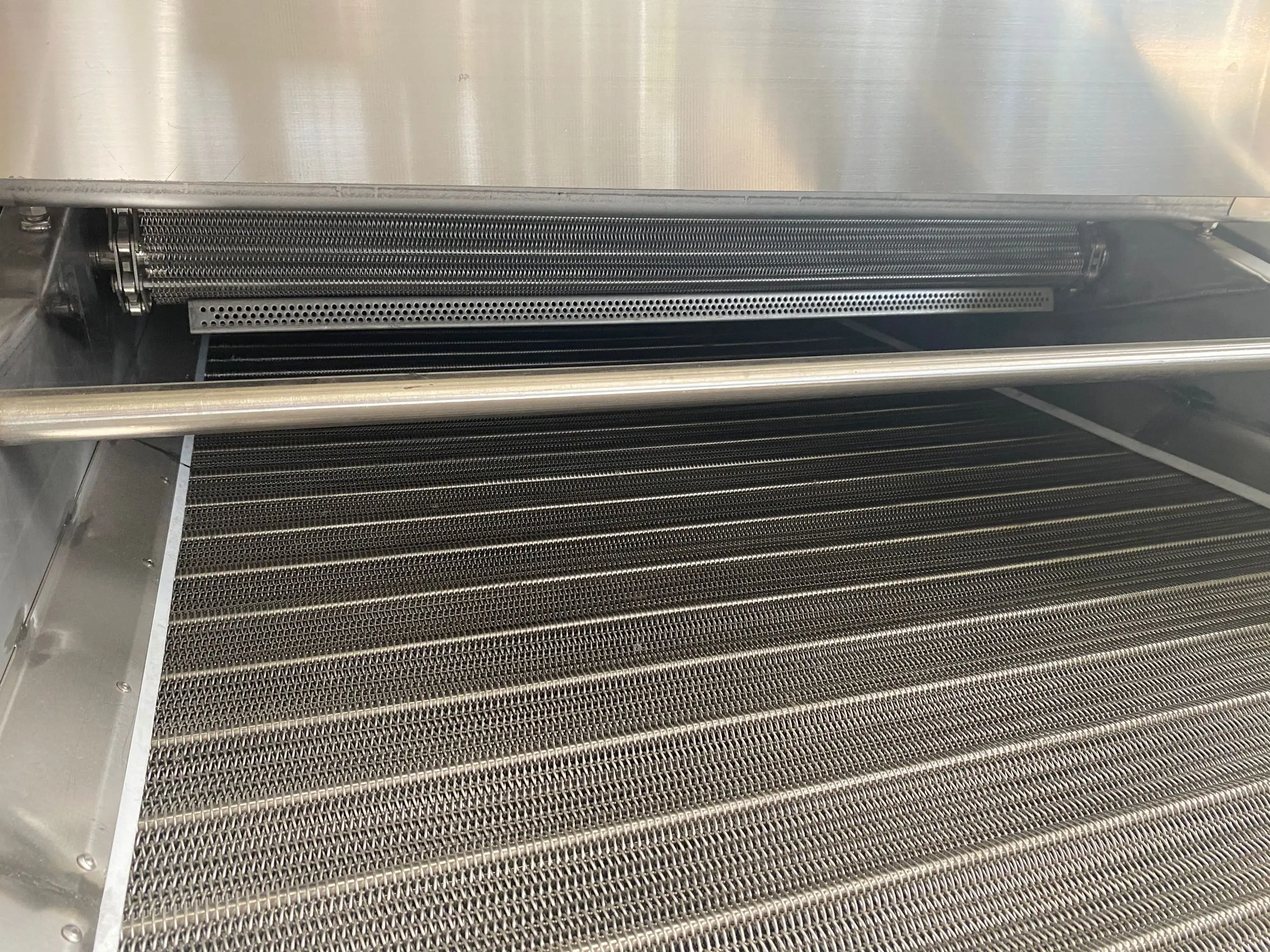

Mesh belt
●Belt speed is frequency controlled.
●Different belt based on request
●The mesh belt holder made of 3mm stainless steel.
●The exhaust cover and belt holder can be lifted individually, easy cleaning.
●The bearing and seat is made of stainless steel304.
●The gap of double belt is 30-80 mm(adjustable)
●Transmission use gear reducer with low noise.
Exhaust system
●Exhaust cover is made of 2 mm stainless steel 304.
●The cover and exhaust pipes have vapour extraction system.
●Two fume Exhaust pipes ,each is 6m long,made of 304 stainless steel.
●Axial flow fan installed on the end of each exhaust
●Control valve installed on
the bottom of exhaust seat.
the bottom of exhaust seat.
Oil tank
●Exhaust cover is made of 2 mm stainless steel 304.
●The cover and exhaust pipes have vapour extraction system.
●Two fume Exhaust pipes ,each is 6m long,made of 304 stainless steel.
●Axial flow fan installed on the end of each exhaust
●Control valve installed on
the bottom of exhaust seat.
the bottom of exhaust seat.
