Легкая установка, автоматические доводчики
US $2.90-$4.50
Закрыватель раздвижной двери unit DC3003 Китай закрыватель на
- Категория: Door Closers >>>
- Поставщик: China,Arts,And,Crafts,Nanjing,I/E,Corp.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 14.53 $* | 14.92 $* |
| Jul-20-2025 | 11.66 $* | 11.36 $* |
| Jun-20-2025 | 14.67 $* | 14.84 $* |
| May-20-2025 | 14.13 $* | 14.65 $* |
| Apr-20-2025 | 11.9 $* | 11.68 $* |
| Mar-20-2025 | 13.8 $* | 13.57 $* |
| Feb-20-2025 | 13.96 $* | 13.39 $* |
| Jan-20-2025 | 13.64 $* | 13.3 $* |
Характеристики
Application

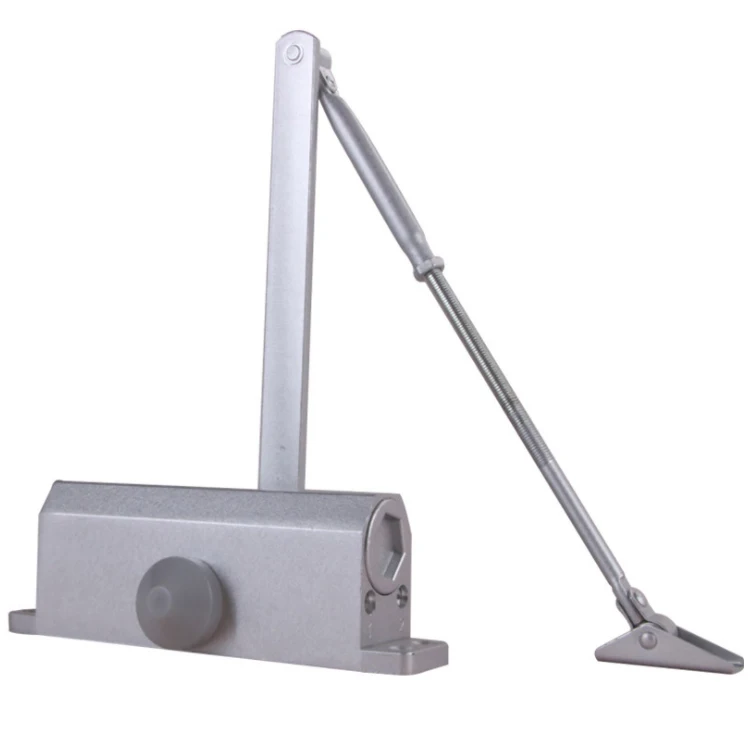

UNITY DC3003 automatic door closer is a mainstream overhead door closer suitable for standard to medium weight doors for both interior or exterior application. For the material, it is aluminum alloy pressure die-cast.
DC3003 Automatic Door Closer Item List | ||
Item No. | Description | |
DC3003 | Door Closer with Standard Arm | |
DC3003BC | DC3003 with BackCheck | |
DC3003ST | DC3003 with Slide-track Arm | |
DC3003BCST | DC3003 with Slide-track Arm and BackCheck | |
DC3003HO | DC3003 with Hold Open Arm | |
– FMT | Add FMT suffix for order with DCCV30 cover | |
Specifications and Features
–Slim Design
DC3003 automatic door closer has a compact size with minimized projection allowing installation to the door’s adjacent return wall
–Full Rack and Pinion Construction
Heat-treated rack and pinion immersed in high-grade oil for smooth action and minimum wear and tear
–Selectable Power Size by Mounting Position (EN2, 3, 4)
DC3003 automatic door closer has a compact size with minimized projection allowing installation to the door’s adjacent return wall
–Full Rack and Pinion Construction
Heat-treated rack and pinion immersed in high-grade oil for smooth action and minimum wear and tear
–Selectable Power Size by Mounting Position (EN2, 3, 4)
DC3003 | EN2 | EN3 | EN4 |
Маx. Door Width (mm) | 850 | 950 | 1050 |
Маx. Door Weight (kgs) | 40 | 60 | 75 |
Маx. Opening Angle | 180° | 100° | 100° |
–Non-Handed
DC3003 can be universally fitted on both left and right-handed swing doors
–Flexible Mounting Position
DC3003 automatic door closer can be installed on both pull and push side of the door, and the closer can be fitted on both door
and frame
–Adjustable Latching and Closing Speed
DC3003 is supplied with hydraulic controlled valves to adjust latching and closing speed
DC3003 can be universally fitted on both left and right-handed swing doors
–Flexible Mounting Position
DC3003 automatic door closer can be installed on both pull and push side of the door, and the closer can be fitted on both door
and frame
–Adjustable Latching and Closing Speed
DC3003 is supplied with hydraulic controlled valves to adjust latching and closing speed
Optional Features
–Adjustable Backcheck
Backcheck feature set and adjusted by an independent valve to protect doorset from violent opening.
Backcheck feature set and adjusted by an independent valve to protect doorset from violent opening.
–Closer Cover: DCCV30
Metal cover available to cover mounting screw holes and create a clean appearance
Metal cover available to cover mounting screw holes and create a clean appearance

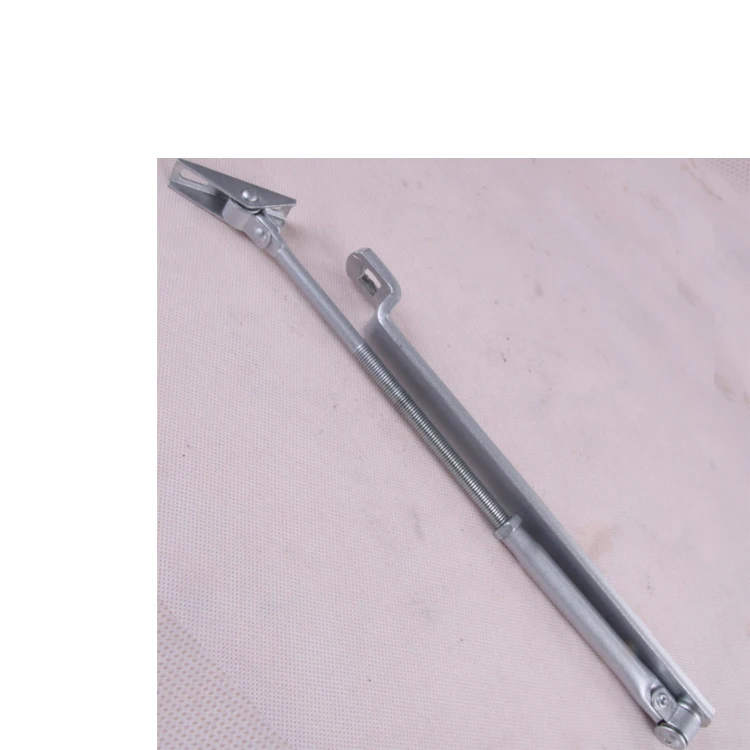

–Slide-track Arm Mounting
Slide-track arm mounting allows the minimum overall projection of closer from the door, which provides greater safety and smoother
operation, and more appealing aesthetics.
–Door Hold-Open
The hold-Open arm allows the door to be held open at a preset angle
Slide-track arm mounting allows the minimum overall projection of closer from the door, which provides greater safety and smoother
operation, and more appealing aesthetics.
–Door Hold-Open
The hold-Open arm allows the door to be held open at a preset angle
EN1154 Classification
Test and Standards
Successfully type-tested for conformity to all of the requirements of EN1154:1996/A1:2002/AC:2006 including
the additional requirements for latch action /backcheck /adjustable closing force.
Successfully passed 60 minutes fire test of metal door assemblies to EN1634:2008
CE Marking: CE Declaration of Conformity available on request
All tests performed independently and certified by Intertek Testing and Certification Ltd. at UK
Finshes
Standard Finish: Satin Stainless Steel (SSS/US32D/630) | ||||||||
Other Finish Available Upon Request: | ||||||||
– Polished Stainless Steel (US32/629) | ||||||||
– Satin PVD Titanium | ||||||||
– Bright PVD Titanium | ||||||||
Other Door Closer
Related Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Unity DC3003 Automatic Door Closer Sliding Automatic Door Closer
FAQ
Q: Are your company a factory or trading company?
A: UNITY started from a trade company, but now we have two factory plants to serve you. As a manufacturer, we have more than 20 year's experiences and are confident to offer you with optimal manufacturing solution.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows up the international standard, such as the EN/CE, UL, ANSI standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experiences. And UNITY has set up long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirement into real products and then send you samples for your confirmation. Sample is free, you just need to pay for the express cost.
Q: How many days do you need for prepare sample?
A: Usually 2-5 days.
Q: What’s stainless steel grade you are working now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.Any more information of further questions, please just feel free to contact us.
A: UNITY started from a trade company, but now we have two factory plants to serve you. As a manufacturer, we have more than 20 year's experiences and are confident to offer you with optimal manufacturing solution.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows up the international standard, such as the EN/CE, UL, ANSI standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experiences. And UNITY has set up long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirement into real products and then send you samples for your confirmation. Sample is free, you just need to pay for the express cost.
Q: How many days do you need for prepare sample?
A: Usually 2-5 days.
Q: What’s stainless steel grade you are working now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.Any more information of further questions, please just feel free to contact us.
