BENDER SPECIFICATIONS

Bending Capacity

1/2’’ OD 2-1/2 /(3”)

Maximum Bending Diameter

2-1/2 /(3”)

Swaging Capacity

1/2” OD 1’’ OD to 3’’OD

Motor/power Supply

7.5HP/Single or 3 Hpase-220,380,or 440V,Optional single phase

Hydraulic Pump Output

3A-8R(4200PS)

Operation Mode

Dutton and Foot operated Controls

Hydraulic Filter

Canister Type

Maximum Bending Force

3,500PSI

Depth-of-bend Plate

Preset to Stop Any Desired Bend Depth

Measurement(cm)

180×80×108

Special Radius Dies and Power Supplier are Available

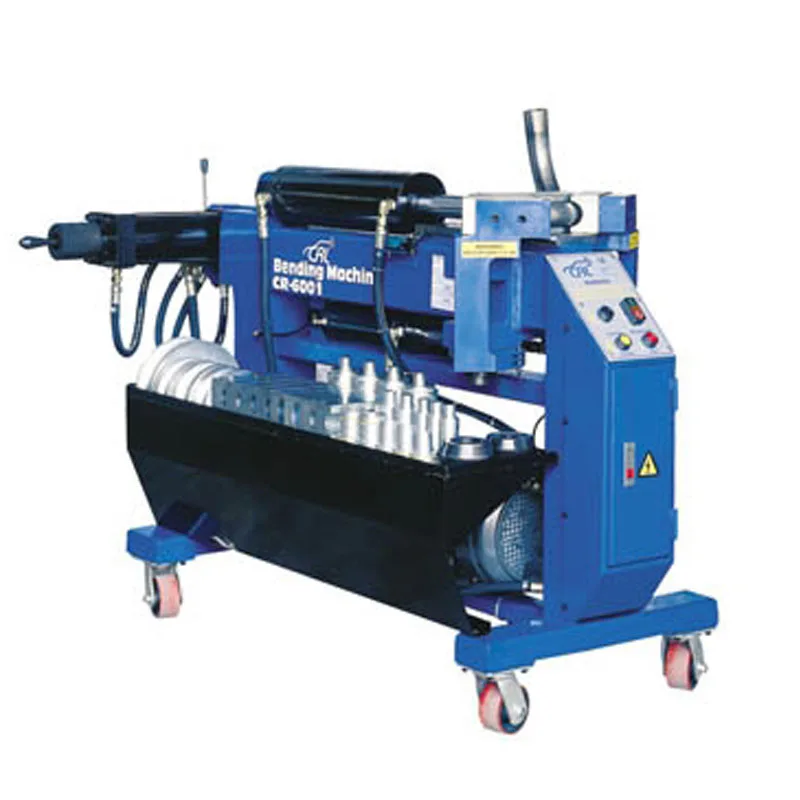

The CR-6001 tube bender is supplied with standard tooling pack 3A

5 size of bending dies

1 1/2,1 5/ 8,1 3/4,2,2 1/2  inch

5 sizes of back shoe sets

1 1/2,1 5/ 8,1 3/4,2,2 1/2 inch

5 sizes of half shoes

1 1/2,1 5/ 8,1 3/4,2,2 1/2inch

5size of bend plugs

1 1/2,1 5/ 8,1 3/4,2,2 1/2inch

3 sizes of reducing tools

1 5/ 8,1 3/4,2inch

5 sizes expander dies

1 1/2,1 5/ 8,1 3/4,2,2 1/2inch

5 sizes adaptor collars

1 1/2,1 5/ 8,1 3/4,2,2 1/2inch

5 sizes segment expander sets

1 1/2,1 5/ 8,1 3/4,2,2 1/2inch

1  segment expander arbor

1 1/2,1 5/ 8,1 3/4,2,2 1/2, 3 inch

1 rotation gauge
