10/100/1000 Мбит/с одиночное волокно 1 * RJ45 + 1SC разъем оптический аудио-видео
- Категория: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Shenzhen,Xiruidi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.94 $* | 0.37 $* |
| Aug-16-2025 | 0.38 $* | 0.82 $* |
| Jul-16-2025 | 0.75 $* | 0.35 $* |
| Jun-16-2025 | 0.76 $* | 0.32 $* |
| May-16-2025 | 0.86 $* | 0.78 $* |
| Apr-16-2025 | 0.98 $* | 0.99 $* |
| Mar-16-2025 | 0.84 $* | 0.45 $* |
| Feb-16-2025 | 0.1 $* | 0.37 $* |
| Jan-16-2025 | 0.87 $* | 0.93 $* |
Характеристики
Product Description
Mode | 10/100/1000M Adaptive Fast Ethernet Optical Media Converter |
Rate | 10/100/1000 Mbit/s |
Wavelength | 1310/1550nm |
Range | 3KM~120KM |
Operating Voltage | AC 220V or DC +5V |
Optical | SC/UPC |
Network Ports | RJ45 port |
Advantage
>Innovative design
>High quality chip
>Bilateral ventilation
>Plug and play
>New cold-rolled steel
>High quality chip
>Bilateral ventilation
>Plug and play
>New cold-rolled steel
Operating Voltage
>Customized, according to your needs to change the local plug standard.
>AC 220V/ DC +5V

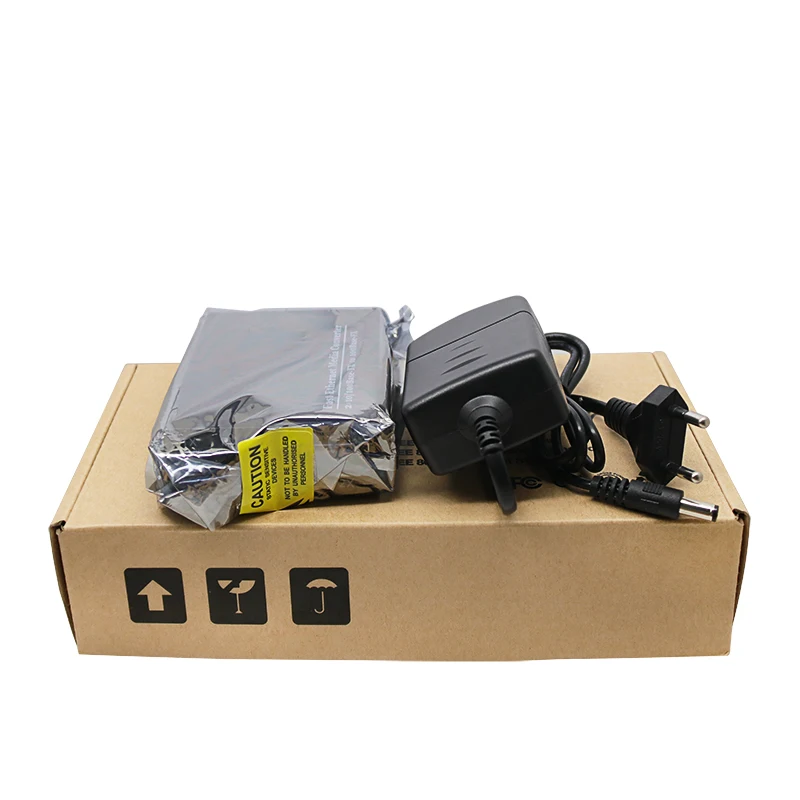

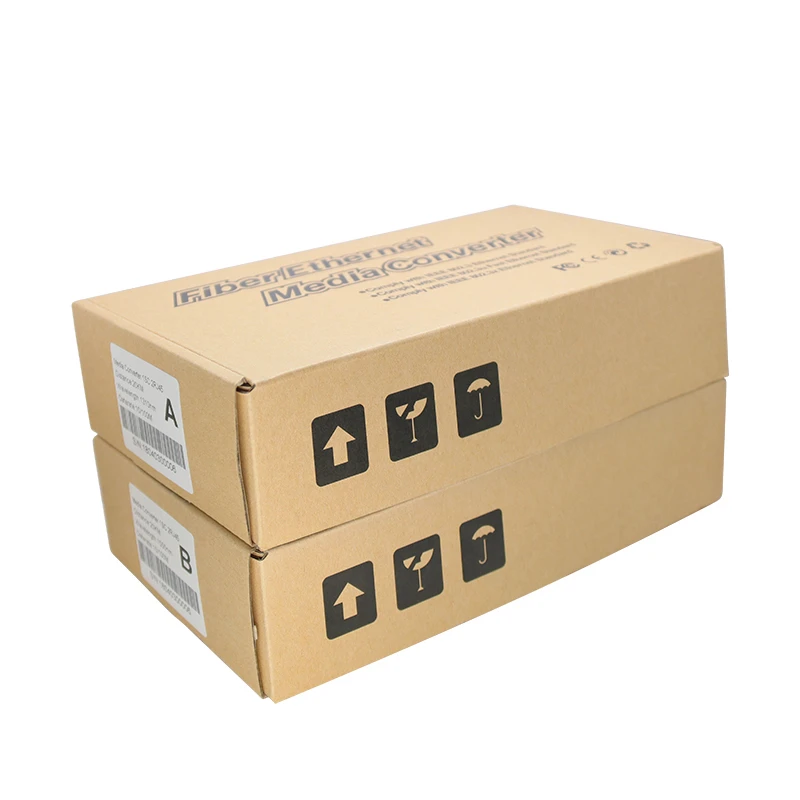

Packaging
>Standard package as shown in figure.Customized after reaching a certain minimum order quantity, and your LOGO and company information can be reflected on the case and packaging.
> N.W: 0.4kg
>Size: 95mm*70mm*25mm
> N.W: 0.4kg
>Size: 95mm*70mm*25mm
Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter | ||||||||||||
Product Mode | Wavelength (nm) | Optical Port | Electric Port | Optical Power (dBm) | Receiving Sensitivity (dBm) | Transmission Range (km) | ||||||
8110GMA-05-8S | 850nm | SC | RJ-45 | -8～-3 | ≤-19 | 0.55km | ||||||
8110GMA-05F-3S | 1310nm | SC | RJ-45 | -8～-3 | ≤-20 | 0.55km | ||||||
8110GSA-10F-3S | 1310nm | SC | RJ-45 | -8～-3 | ≤-24 | 10km | ||||||
8110GSA-20F-3S | 1310 nm | SC | RJ-45 | -8～-3 | ≤-24 | 20km | ||||||
8110GSA-40F-3S | 1310 nm | SC | RJ-45 | -5～0 | ≤-24 | 40km | ||||||
8110GSA-60D-3S | 1310 nm | SC | RJ-45 | -2～+3 | ≤-24 | 60km | ||||||
8110GSA-80D-5S | 1550 nm | SC | RJ-45 | 0～5 | ≤-24 | 80km | ||||||
8110GSA-100D-5S | 1550 nm | SC | RJ-45 | 0～5 | ≤-30 | 100km | ||||||

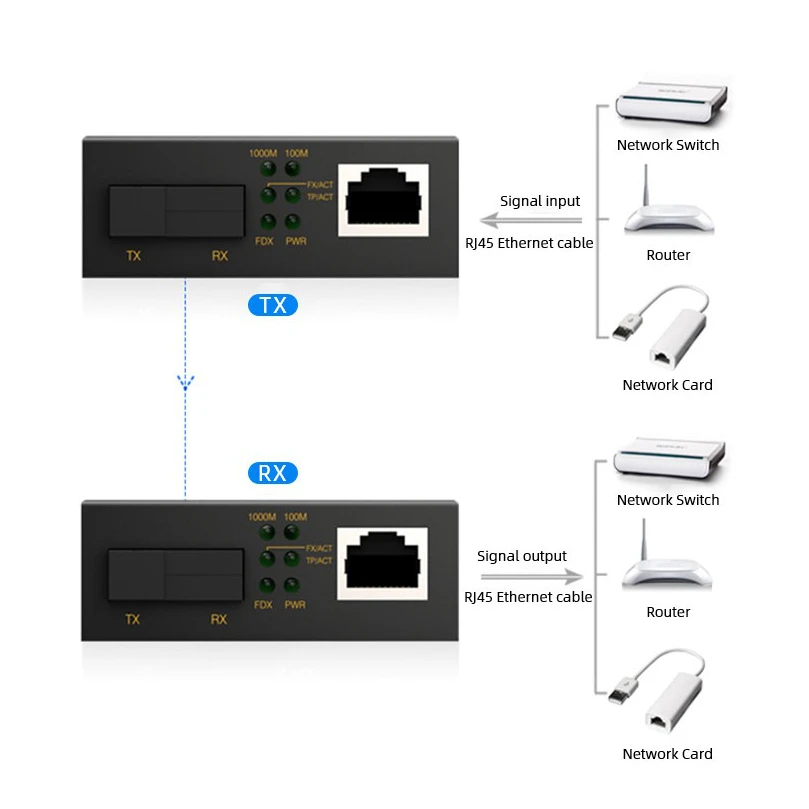

Connection Sketch
Suitable for a wide range of fields, such as telecom, cable TV, railway, construction of broadband campus network, cable TV, smart broadband FTTB/FTTH network.
Features
> ln accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T, IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX.
> Supported Ports: SC for optical fiber; RJ45 for twisted pair .
> Auto-adaptation rate and full/half-duplex mode supported at twisted pair port .
> Auto MDI/MDIX supported without need of cable selection .
> Up to 6 LEDs for status indication of optical power port and UTP port .
> External and built-in DC power supplies provided .
> Up to 1024 MAC addresses supported .
> 512 kb data storage integrated, and 802.1X original MAC address authentication supported .
> Conflicting frames detection in half-duplex and flow control in full duplex supported .
> Supported Ports: SC for optical fiber; RJ45 for twisted pair .
> Auto-adaptation rate and full/half-duplex mode supported at twisted pair port .
> Auto MDI/MDIX supported without need of cable selection .
> Up to 6 LEDs for status indication of optical power port and UTP port .
> External and built-in DC power supplies provided .
> Up to 1024 MAC addresses supported .
> 512 kb data storage integrated, and 802.1X original MAC address authentication supported .
> Conflicting frames detection in half-duplex and flow control in full duplex supported .
Why Choose Us
FAQ
Q:What is you MOQ?
A:One piece is available.
Q:Can you provide the OEM/ODM service？
A:YES,We could do the production as your request.
Q:Could i get a sample firstly?
A:Yes,We could provide you the sample for checking the quality of the products.
Q:What is your payment way?
A:T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
Ok, thank you，Let me sort out the requirements.
You're welcome.You can also send us an inquiry to find out more.
A:One piece is available.
Q:Can you provide the OEM/ODM service？
A:YES,We could do the production as your request.
Q:Could i get a sample firstly?
A:Yes,We could provide you the sample for checking the quality of the products.
Q:What is your payment way?
A:T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
Ok, thank you，Let me sort out the requirements.
You're welcome.You can also send us an inquiry to find out more.
