8000 Вт внутрисетевой Инвертор солнечной энергии для системы панели

item

value

Warranty

2years

Certification

ce

Place of Origin

China

Shanghai

Brand Name

Afore On-grid inverter

Model Number

8000w on grid solar inverter

Product name

8000w on grid solar inverter

Application

solar panel system on grid

Keyword

on grid solar power inverter

Nominal Output Voltage(V)

L/N.PE, ,220Vac,230Vac,240Vac

Max Efficiency

98.2%

Nominal Output Frequency(Hz)

45-55hz/54-66hz(According to local standard)

Operate mode

Solar Panel Module Machine

Enclosure Material

Aluminum

Function

solar power inverter on grid

Package

Standard Case

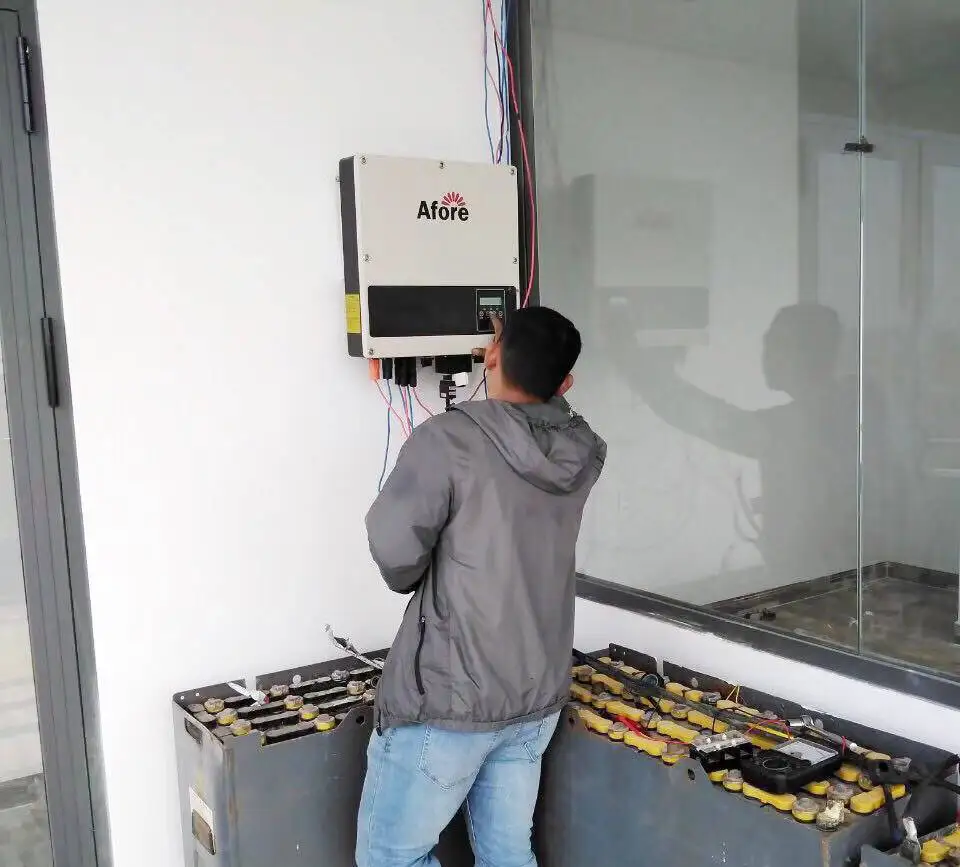

(1) The installation method and location must be suitable for the weight and size of the inverter;

(2) The inverter must be installed on a solid wall, such as a brick wall or concrete wall, to avoid vibration, noise or falling during the inverter operation;

(3) The installation site should be clearly visible, and it can be safely entered without using auxiliary means such as scaffolding;

(4) In order to facilitate installation and operation, the installation height of the inverter should be flush with the eye height;

(5) The highest altitude of the installation site shall not exceed 2000m, otherwise the inverter may run at reduced power;

(6) To ensure that the inverter runs well, the ambient temperature of the installation site should be between -25°C and +60°C;

(7) Do not install the inverter in a place exposed to direct sunlight, so as to avoid the temperature is too high, causing the inverter to run at reduced power;

(8) There should be shelter above the inverter;

(9) Sufficient effective space must be left around the inverter for good heat dissipation;

(10) For vertical installation, the wiring area must be downward, and horizontal installation is not allowed; when tilting backward, the inclination angle must not exceed 30 degrees; forward tilt, horizontal and inverted installation are not allowed.
