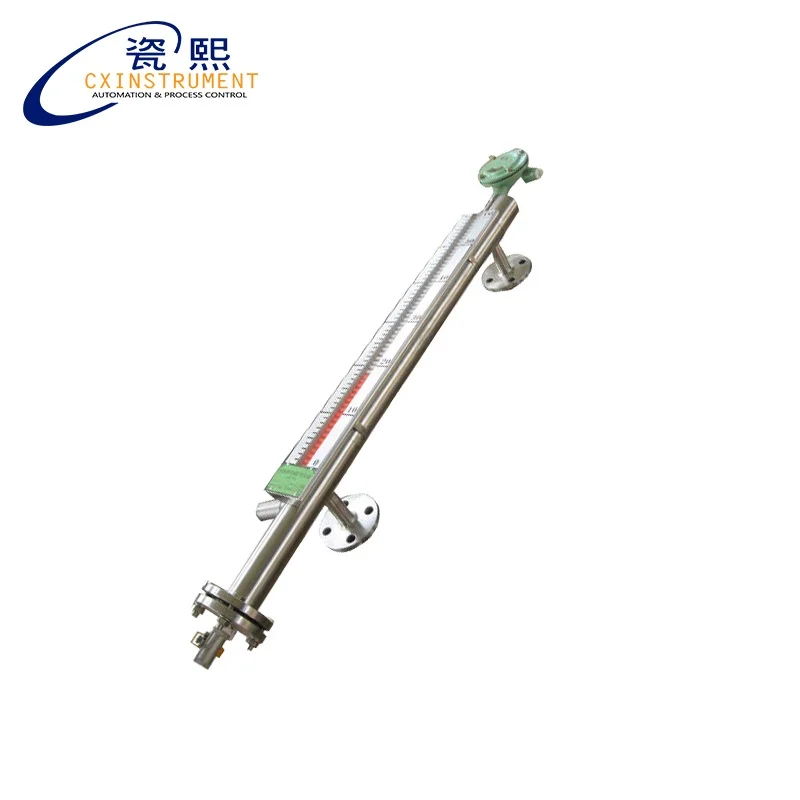

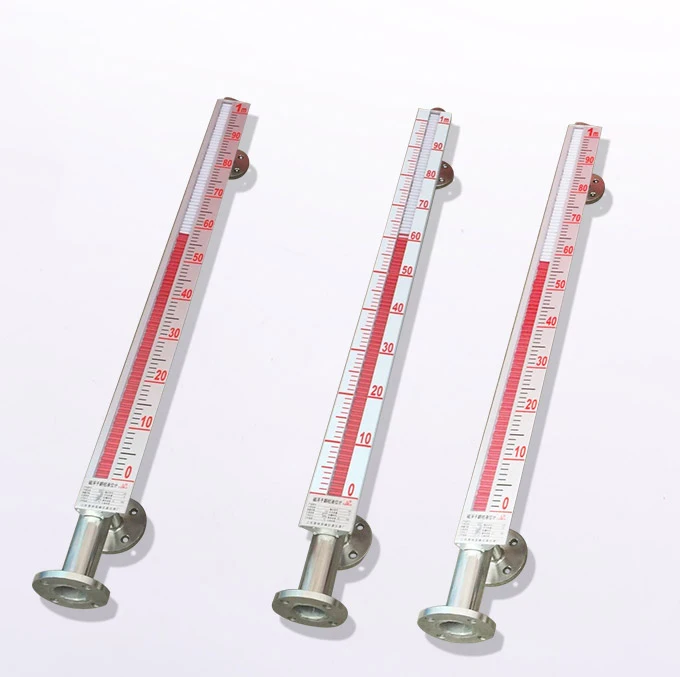

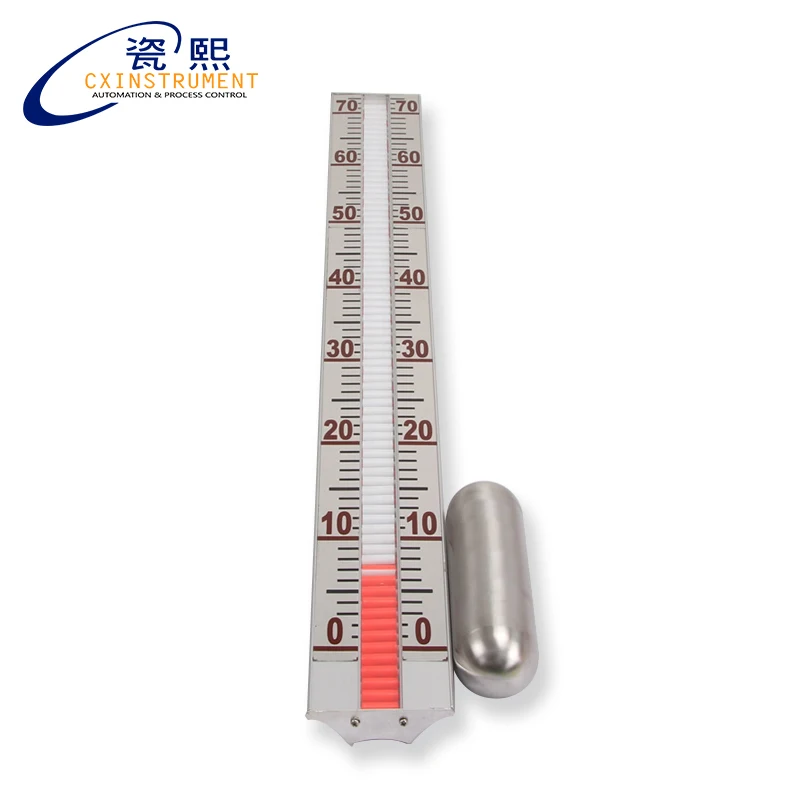

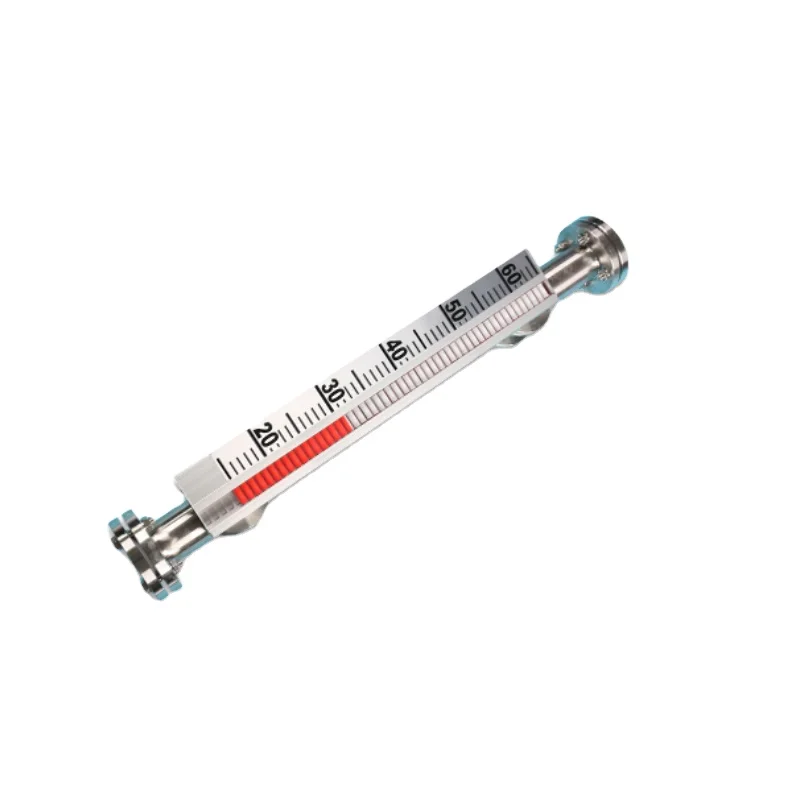

The Magnetic Level meter



A.[Features of Magnetic Level meter]



Easy Reading

The  Water Tank Level meter with red indicator,so it's easy reading the water level;



Lower Cost For You

The Water Tank Level meter with lower cost compared with the radar or ulreasonic level meter;



High Standard Working conditions

The  Water Tank Level meter with 350℃ max temperature and 9.6Mpa max pressure for reference;



Easy Installation

The level meter with three type installation:top,bottom and side mounted for you.



B.[Parameters]

Water Tank Level meter---Basic production informance
Range	0~3 meters
Material	M1-SS304
	M2-SS316L
	M3-UPVC
	M4-UPP
	M5-PTFE
Output	AH-Upper alarm
	AHL-Lower alarm
	AHL-Upper and lower alarm
Installation	S-side-mounted
	T-top-mounted
	L-low-mounted
Sensor Temperature	Normal:-10~200℃
	M-max temperature:-10~350℃



PArameter	Material	Range	Tem(℃)	Pressure	Density	Viscosity
Standard	304	300~8000	-20~150℃	0~2.45	0.5~2	≤0.04
H-pressure		300~8000	-20~150℃	2.45~9.6	0.5~2	≤0.04
H-temperature		300~8000	-20~350℃	2.45~9.6	0.5~2	≤0.04
Low-tem		300~2500	>-40℃	0~2.45	0.5~2	≤0.04
LPG		300~15000	-20~150℃	0~2.45	0.45~0.7	≤0.04
Corrosive proof	316L	300~8000	-20~150℃	0~2.45	0.5~2	≤0.04
Corrosive proof	PP	300~5000	-20~100℃	0~0.6	0.5~2	≤0.04
Corrosive proof	U-PVC	300~5000	-20~60℃	0~0.5	0.5~2	≤0.04
Corrosive proof	ABS	300~5000	-20~120℃	0~0.6	0.5~2	≤0.04
Corrosive proof	316pipe	300~15000	-20~100℃	0~1.0	0.5~2	≤0.04
Corrosive proof	PE	300~5000	-20~40℃	0~0.6	0.5~2	≤0.04
Warming type	304	300~15000	-20~150℃	0~2.45	0.5~2	≤0.05
H-viscosity	304	300~8000	-20~150℃	0~2.45	0.5~2	≤0.05
Sanitary	304	300~8000	-20~150℃	0~1.6	0.5~2	≤0.05



C.[Installation]



D.[Company Info]

• Our Company is Top 10 Manufacture on Alibaba;


• We have about 30 years of experience in Manufacture;


• Our products have been exported to more 100 coutries and area;


• ISO,SGS,CE and more ceterficates for you reference;


• Patent technology and more than 3 years working life.

Just Sent an Inquiry Now!
