Digital Modulador 12 DVB-S2 FTA Tuner to 4 carrier DVB-T ISDB-T DVB-C QAM RF CATV Modulator
Product Description

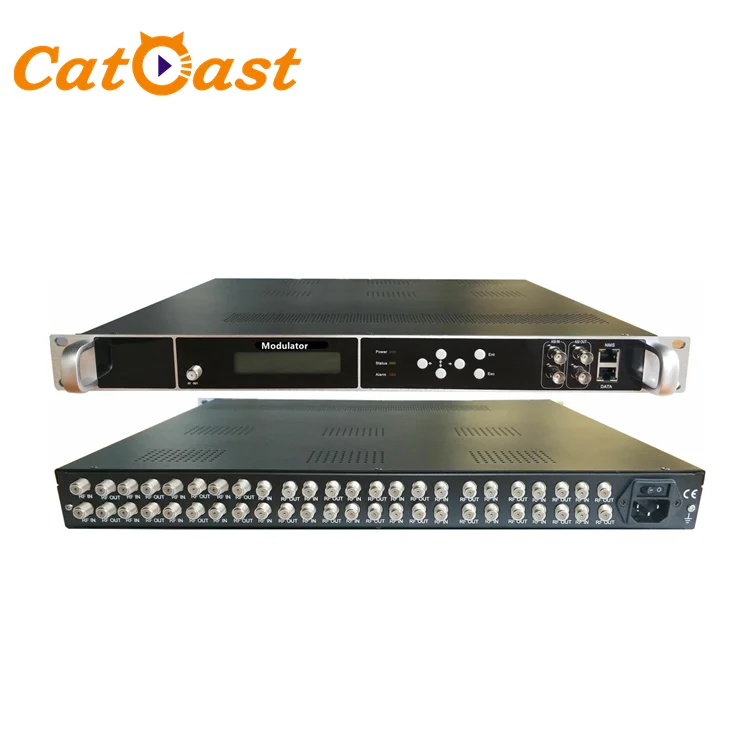

HPR3624M is a professional high integration device which includes tuner demodulation, multiplexing, and modulation. It supports 4/8/12/16/20/24 tuner input(support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 ISDBT, etc. ) input), 1000M IP output,4/8/16 number RF output(DVB-C、DVB-T、ATSC、ISDBT optional)、5 MPTS output and SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key Features
● 4/8/12/16/20/24 tuner input; the tuner supports (DVB-S2/DVB-C/
DVB-T/ATSC/ISDBT)
● 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
● Support different types of tuner ( DVB-S2、DVB-C、DVB-T、ATSC、 ISDBT, etc. ) input, or mixed use ( e.g., 4 - way dvb - t and 4 - way ATSC input at the same time, making up 8 - way input )
● 4/8/16 RF output (DVB-C、DVB-T、 ATSC、ISDBT optional)
● 2 ASI inputs
● 2 ASI Independent output (optional) as copy of 5MPTS
● Support “Null PKT Filter” function
● Support PID Remapping/ PCR accurate adjusting
● PID pass
● LCD、key function
● Control via web management, and easy updates via web
Specification
Input | 4/8/12/16/20/24 tuner; and the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT) | ||||||
2 ASI inputs | |||||||
1000M IP input | |||||||
Output | 4/8/16/ RF output（DVB-C/DVB-T/ATSC/ISDBT） | ||||||
2 ASI output | |||||||
IP output（SPTS and MPTS）IP output over UDP and RTP protocol | |||||||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | |||||
Function | PID remapping ( automatically or manually) | ||||||
Accurate PCR adjusting | |||||||
Modulator | DVB-T | RF number | 4/8/16 RF DVB-T output | ||||
Standard | EN300744 | ||||||
FFT mode | 2K | ||||||
bandwidth | 6M, 7M, 8M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
MER | ≥42 dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RFoutput level | -34~ -10 dBm, 0.1db step | ||||||
DVB-C | RF number | 4/8/16 RF DVB-C output | |||||
Standard | EN300 429/ITU-T J.83A/B/C | ||||||
MER | ≥42db | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RFoutput level | -34~-10dBm , 0.1dBm step | ||||||
Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd | ||||||
J.83A | J.83B/J.83C | ||||||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | |||||
Bandwidth | 8M | 6M | |||||
ATSC | RF number | 4/8/16 RF ATSC output | |||||
Standard | ATSC A/53 | ||||||
Bandwidth | 6M | ||||||
Constellation | 8VSB | ||||||
FEC | RS(208 188)+Trellis | ||||||
MER | ≥42dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RFoutput level | -34~-10dBm , 0.1dBm step | ||||||
ISDB-T | RF number | 4/8/16 RF ISDB-T output | |||||
Standard | ARIB STD-B31 | ||||||
Bandwidth | 6M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
Transmission Mode | 2K | ||||||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
MER | ≥42dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RFoutput level | -34~-10dBm , 0.1dBm step | ||||||
System function | Network management(WEB) | ||||||
Chinese and English language | |||||||
Ethernet software upgrade | |||||||
Miscellaneous | Dimension (W×L×H) | 550mm×515mm×140mm | |||||
weight | 6kg | ||||||
Environment | 0~45℃(work)；-20~80℃(storage) | ||||||
Power requirements | AC100~240V，50/60Hz | ||||||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
