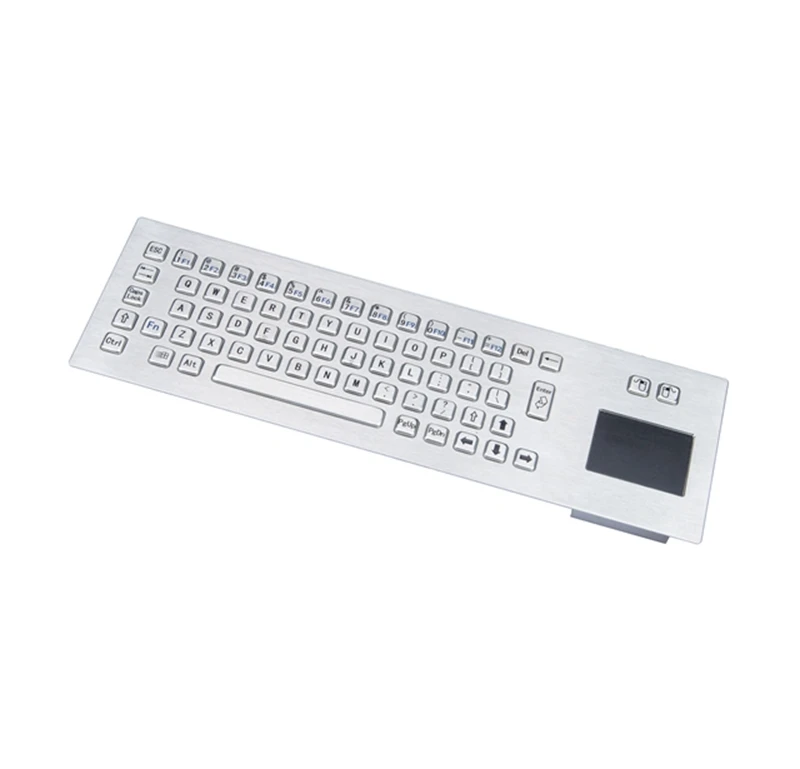

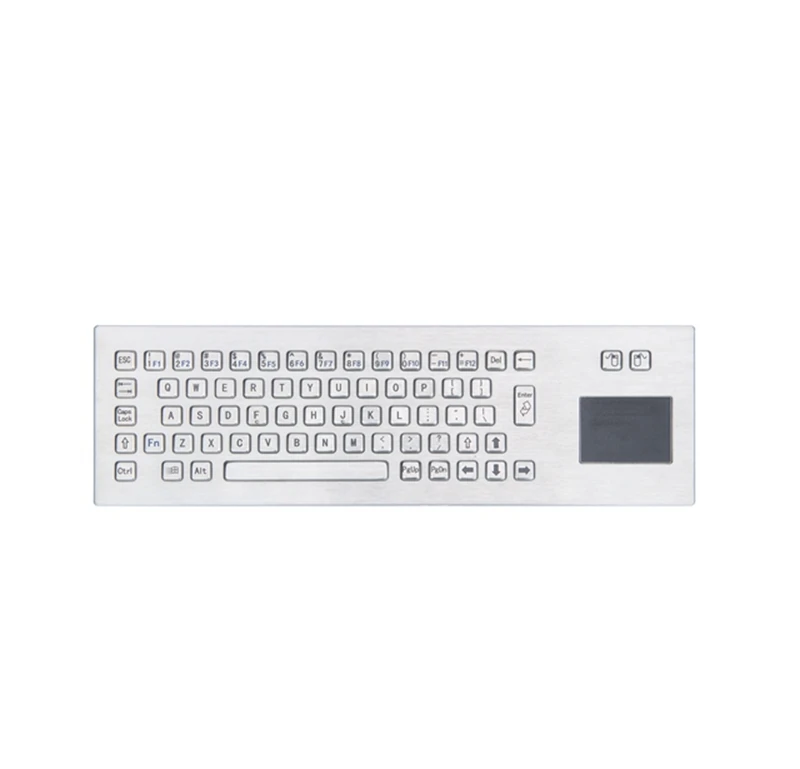

Металлическая клавиатура с функцией крепления на передней панели из нержавеющей стали прочная промышленная компьютерная
- Категория: Keyboards >>>
- Поставщик: Shenzhen,Xufan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 133.37 $* | 136.86 $* |
| Jul-16-2025 | 108.30 $* | 110.93 $* |
| Jun-16-2025 | 131.67 $* | 134.54 $* |
| May-16-2025 | 130.83 $* | 133.92 $* |
| Apr-16-2025 | 104.74 $* | 106.91 $* |
| Mar-16-2025 | 128.10 $* | 131.44 $* |
| Feb-16-2025 | 127.64 $* | 130.19 $* |
| Jan-16-2025 | 126.4 $* | 129.46 $* |
Характеристики
Product Description
MECHANICAL DATA | ||
Model Number | XP604Q | |
keys | 67 keys | |
Switch Contact Materia | Carbon-on-Gold key switch technology PCB | |
Actuation Force | 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) | |
Frame/keys materials | Stainless steel 304 | |

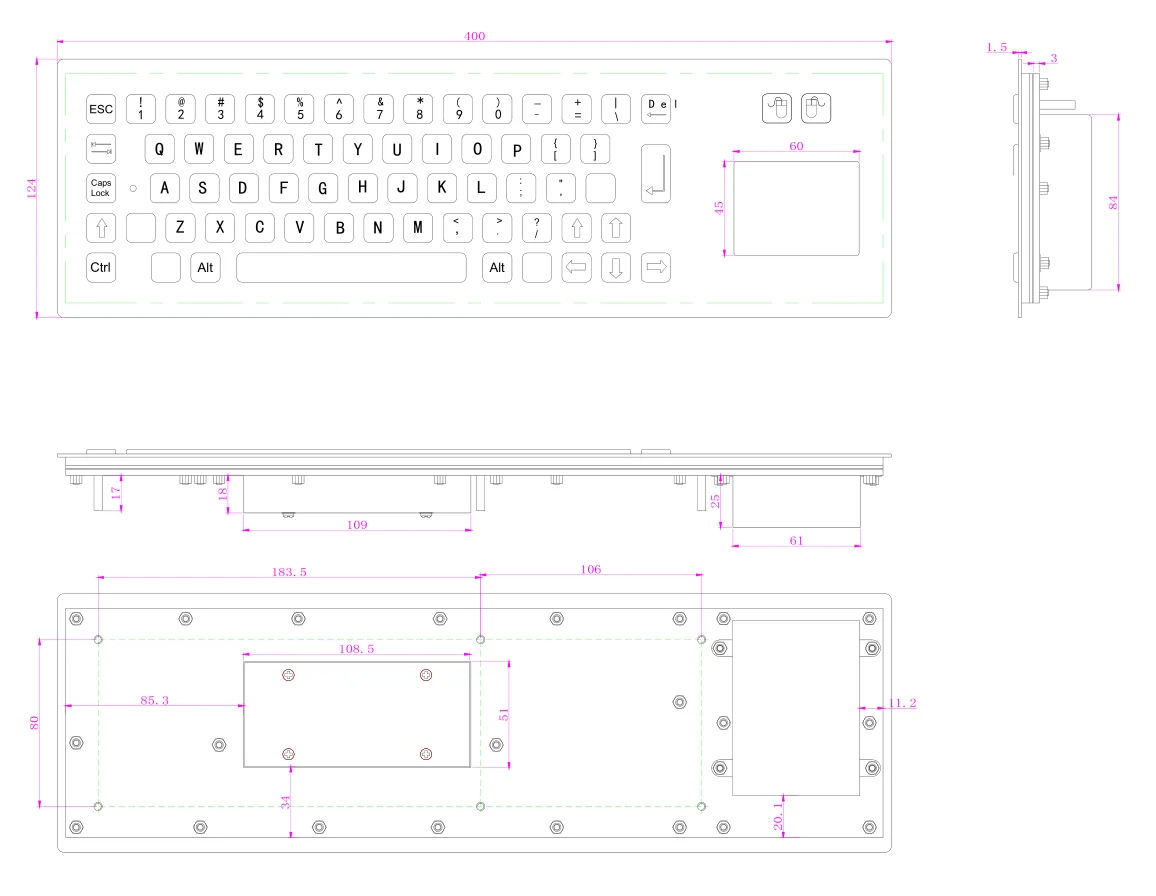

Dimensions | 400.0mm x 124.0mm (front panel) , 392.0mm x 110.0mm (back panel) | |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. | |
Key Travel | 2.0mm | |
Key life | more than 10 million of operations | |
G.W. | 1.43KGs | |
ELECTRICAL DATA | ||
Power supply voltage | 5V DC +/-5% | |
Current Rating | 17mA | |
Contact resistance | 5 ohm (max) | |
Electrical lifetime | > 10 years | |
Interface | USB / PS2 / RS232 | |
EMC | EN55022(B) | |
Touch valid area | 60mm ×45mm | |
Resolution in X / Y direction | 1000 points/inch(40 points/mm) | |
OS | All windows, Linux, Unix, Mac OSX | |
ENVIRONMENTAL ADAPTABILITY | ||
Operating temperature | -20℃ to +75℃ | |
Storage temperature | -50℃ to +125℃ | |
Operating RH | 30-90%RH | |
Atmospheric pressure | 60-106Kpa | |
RELIABILITY | ||
Protection Level | IP67(front panel) | |
Vandal resistant | IK08 | |
Mean time between failures | MTBF >20000H | |
Average maintenance time | MTTR <30min | |
