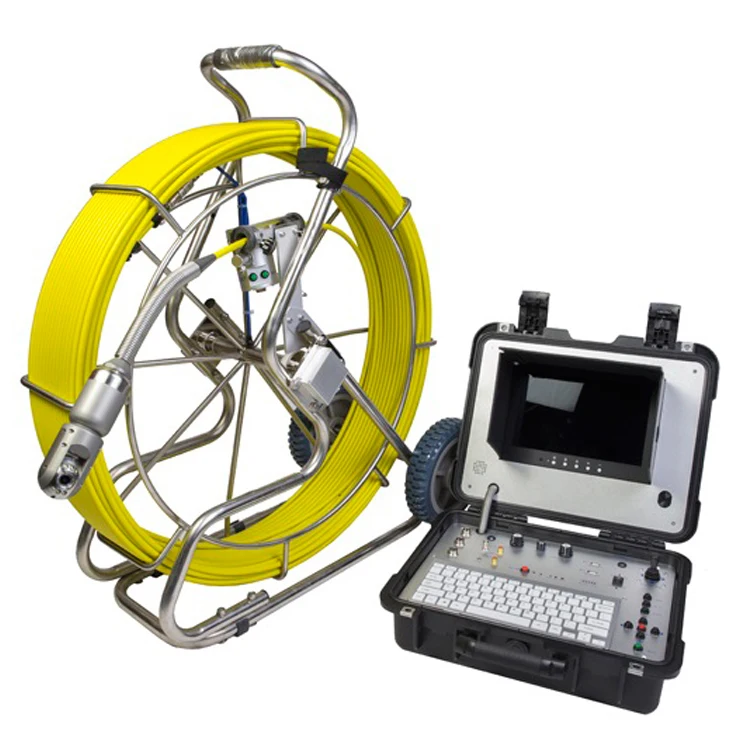

50MM camera push rod 100m cable 10 inch HD IPS LCD Screen monitor CCTV sewer pipeline inspection camera
Know about Pan Tilt Pipe Inspection camera system
Pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors,
inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications. The camera waterproof features is up to 10bars(underwater 100m). 60m to 150m fibergalss cable reel with different diameter
opion(Dia.7mm/9mm/11mm). 10inch IPS LCD screen with 1280*720 resolution. Wireless keyboard and big capacity Li-ion battery.
inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications. The camera waterproof features is up to 10bars(underwater 100m). 60m to 150m fibergalss cable reel with different diameter
opion(Dia.7mm/9mm/11mm). 10inch IPS LCD screen with 1280*720 resolution. Wireless keyboard and big capacity Li-ion battery.
1. 360 degree rotation camera head, Pan 360°,Tilt 180° |
2. 1/3 CMOS,1.3MP pixel AHD camera head, waterproof up to 10 bars |
3. 10 inch IPS lcd screen, 1280*720 resolution |
4. DVR control box with audio ,video recording and photography function |
5. 60m Dia.7mm fiberglass copper axis cable , it can make good camera image for long cable |
6. USB wireless keyboard to typewrite the words |
7. Camera video resolution is 720P,AVI format |
8. Built in 8800mA li-ion battery inside ,support uint working more than 6 hours |
9. Digital meter counter function, error is less than 1% |

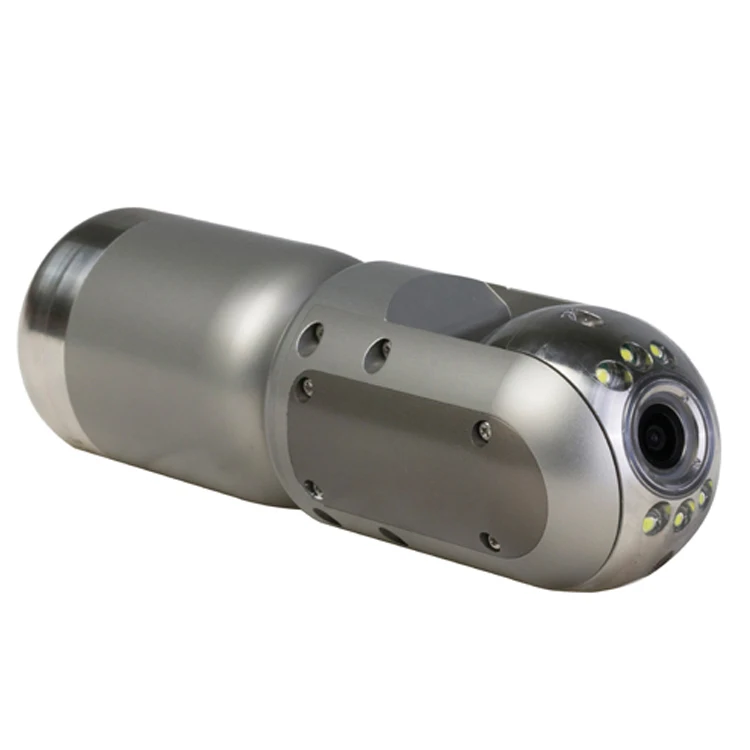

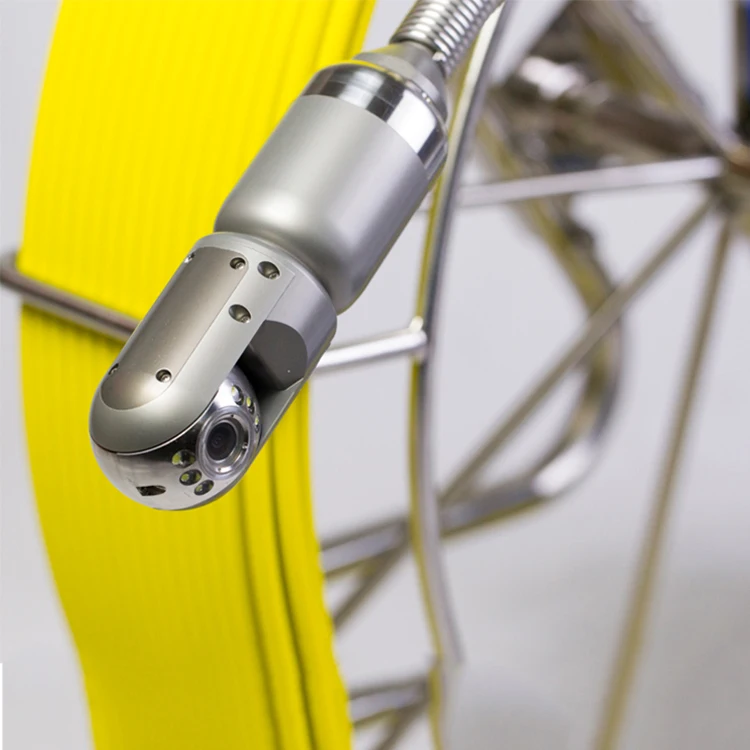

Camera Head
Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel |
Built-in 512Hz transmitter optional |
Waterproof IP68 up to 10 bar |
View range 120° |
Rotation: Pan 360°, Tilt 180° |
lens position automatic reset |
Slip coupling for rotation axle |
6pcs high light LED lighting adjustable |
Detachable with pins type connection to Cable Reel |
Lens window sapphire glass |

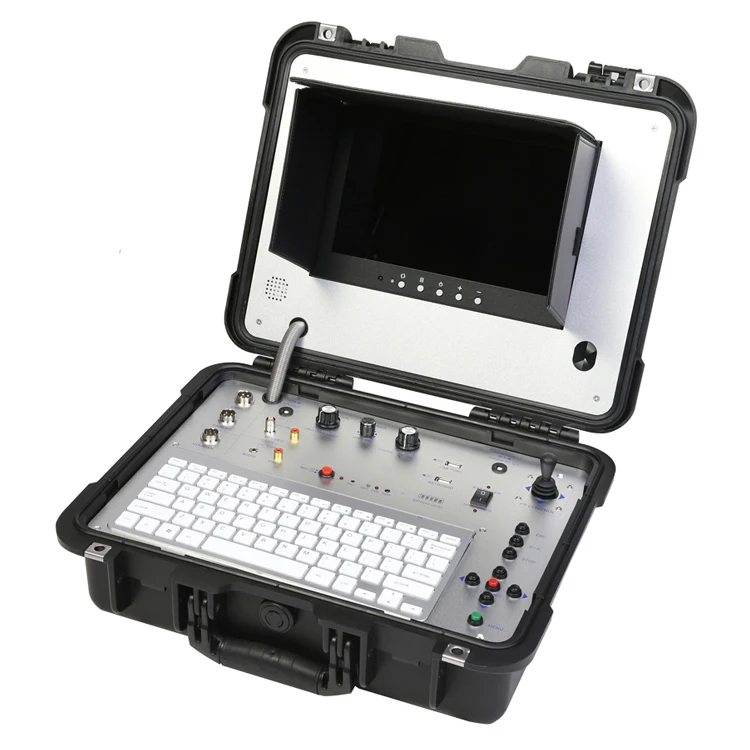

AHD DVR control unit
10"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model |
PT camera Joystick |
AHD DVR SYSTEM with recording 720P video, auido and photography function |
USB bluetooth Keyboard real time typewriting |
Video input jack 3 options(CAM1,CAM2_PT and Video IN) |
Digital meter counter function, display on the screen |
8800mA rechargeable Li-ion Battery Pack |
Battery level indicato |

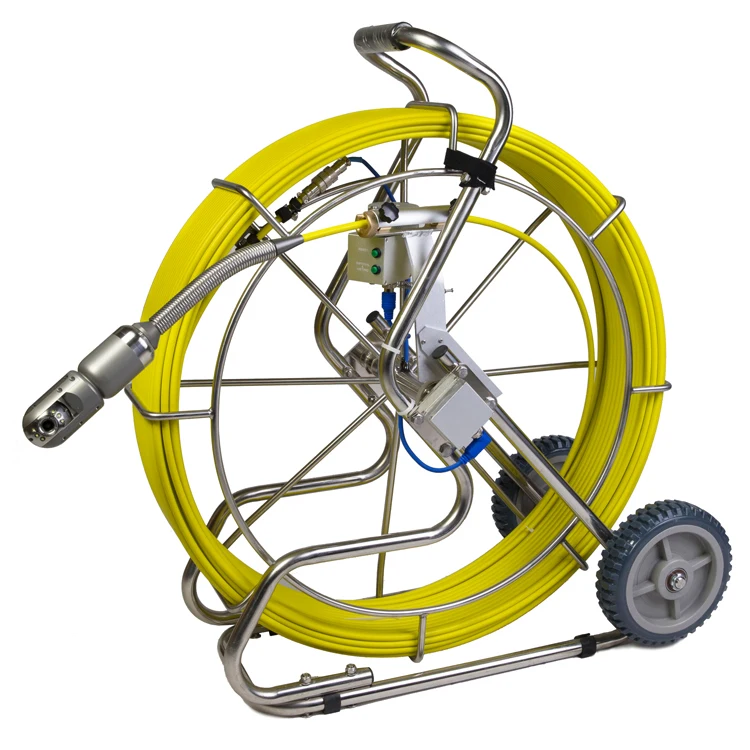

Cable Reel
Fiberglass copper axis push rod cable |
Cable diameter 9mm |
Cable length from 60m to 150m optional |
Reel size 70 x 28 x 84cm |
Standard skid
Plastic & nylon |
Dia. 85mm |
Dia.220mm |
Shaanxi Granfoo Intelligent Technology is a High-tech intelligent enterprise, specialized in designing, R&D, manufacturing and exporting of underwater cameras, pipe inspection cameras, underwater inspection robot ROV, underwater connectors, underwater cables, water quality monitor muti-parameter sensor, etc.
Granfoo has already been recognized as a strategic partner of many OEM businesses for about 12 years. We have the highly experienced team to work on your OEM projects. Our experience and splendid service have won us good business relationships with many international buyers and suppliers. Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc.
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
