KH 1630 PP 16X24X30mm 5 шаровых рядов Компактный Тип KH1630PP Линейный Подшипник Втулки движения для ЧПУ XYZ маршрутизатор

KH 1630 PP 16X24X30mm 5 шаровых рядов Компактный Тип KH1630PP Линейный Подшипник Втулки движения для ЧПУ XYZ маршрутизатор

Категория: Linear Bearings >>>
Поставщик: Changsha,Terry,Machinery,Co.,Ltd.

Цена:1,20 $ - 2,20 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-20-2025	1.70 $*	1.21 $*
Jul-20-2025	1.19 $*	1.96 $*
Jun-20-2025	1.19 $*	1.49 $*
May-20-2025	1.53 $*	1.30 $*
Apr-20-2025	1.5 $*	1.49 $*
Mar-20-2025	1.21 $*	1.64 $*
Feb-20-2025	1.35 $*	1.49 $*
Jan-20-2025	1.54 $*	1.75 $*

Характеристики

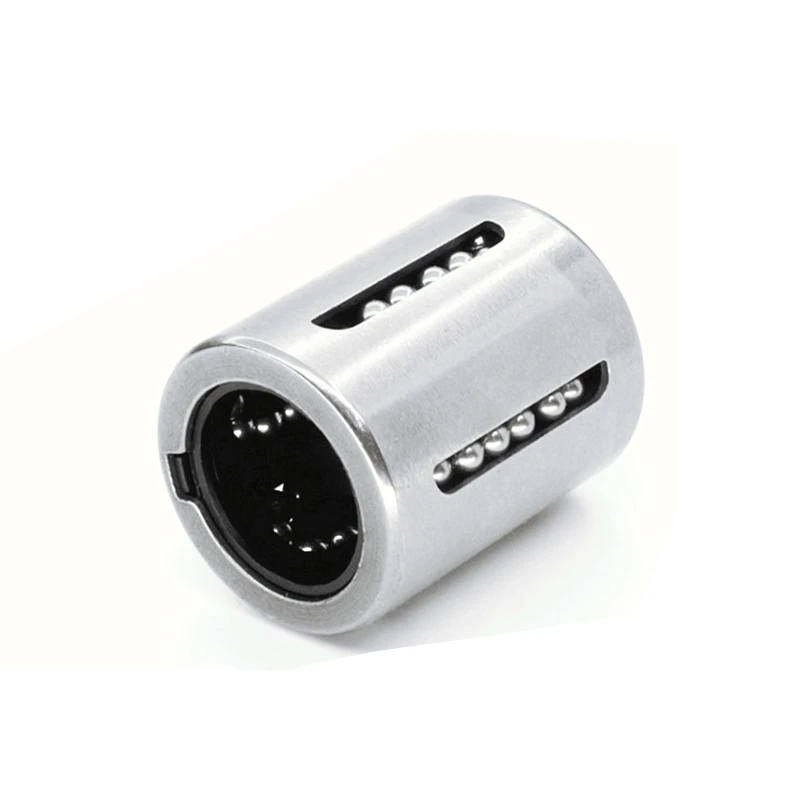

KH1630PP 16*24*30mm 5 Ball Rows Compact Type Linear Motion Bushing Bearing For CNC XYZ Router Machine

Product Description

KH Series Linear Motion Bearing

Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.

Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.

Application:

Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment, and multi axis machine tools, presses, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packing machines and other industrial machinery sliding components

Name	Linear Bearing KH1630PP Linear Bushing Ball Bearings KH1630 PP
Specification:	16 x 24 x 30 mm
Brand	Neutral
Net Weight	0.027 kg/PCS
Material	Chrome Steel
Row	Single Row
Application	3D Printer machinery /Linear Motion machinery
Quality	ISO 9001:2000 standard
Precision	P0,P6,P5
Service	OEM available

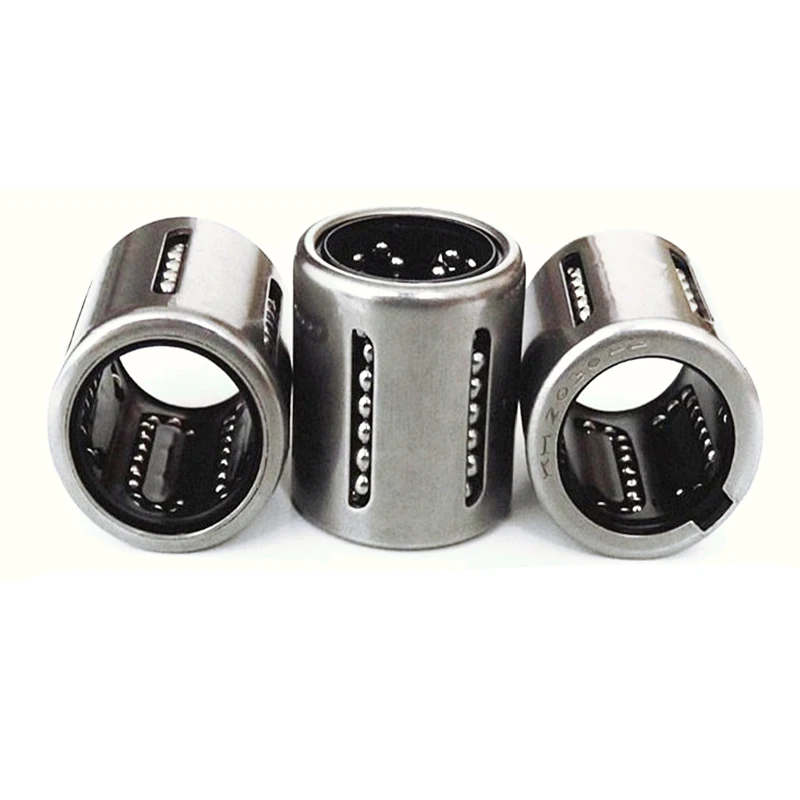

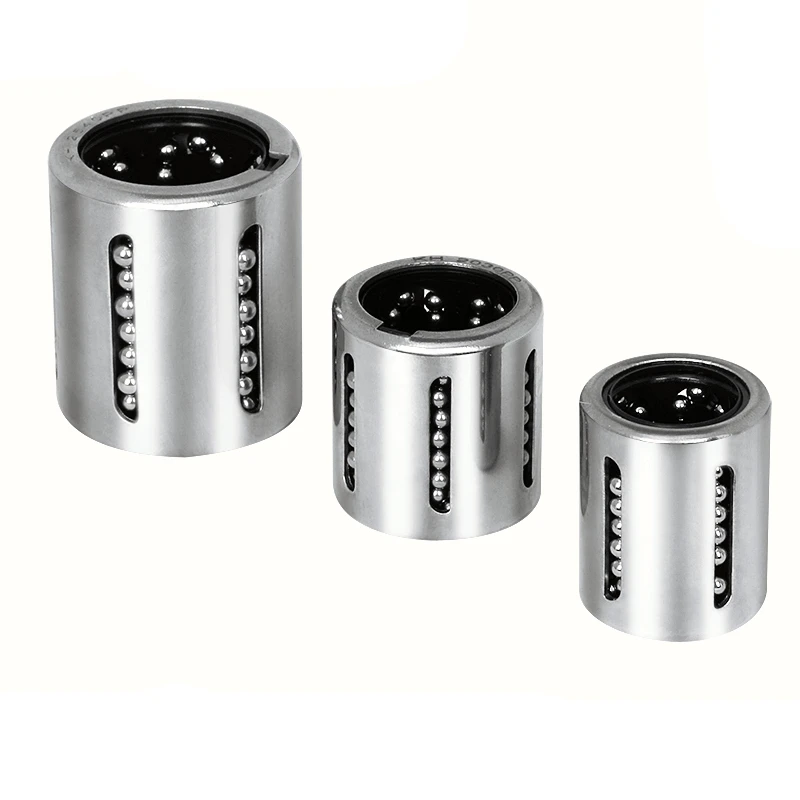

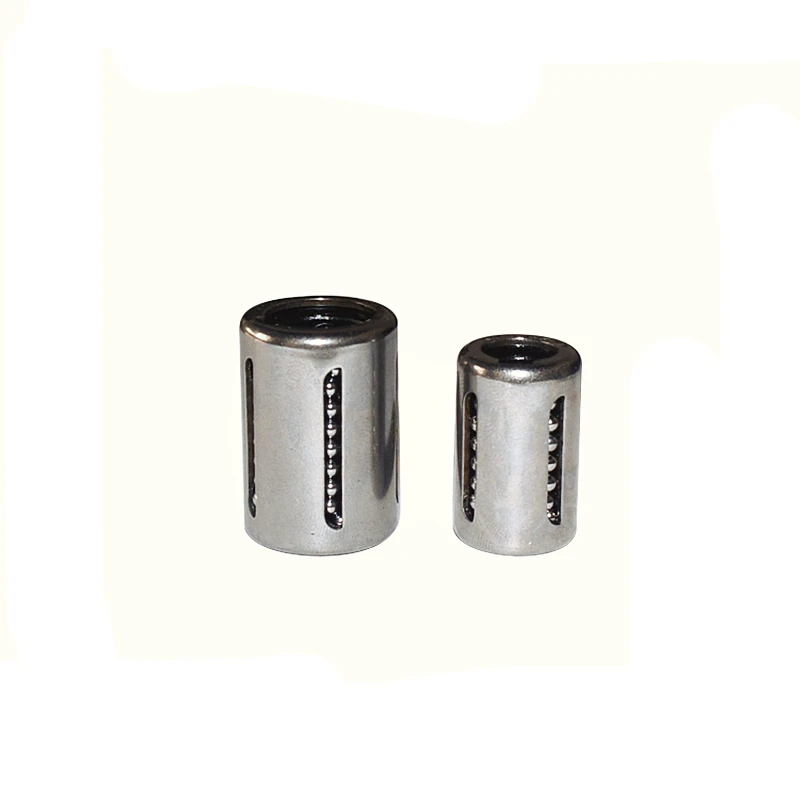

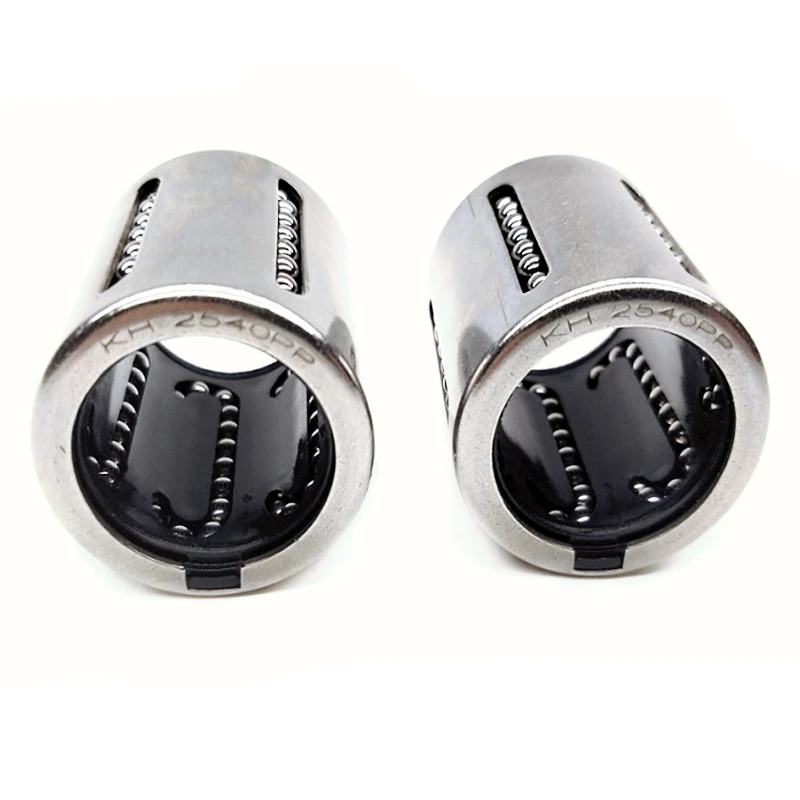

Products Show

TYPE	ROW NUMBER	WEIGHT	MAIN DIMENSIONS					NASIC LOAD RATING
TYPE	ROW NUMBER	WEIGHT				d	D	B	c(kgf)	Co(kgf)
KH0824	4	11.3	8	15	24	44	29
KH1026	4	14.4	10	17	26	51	38
KH1228	5	18.1	12	19	28	63	52
KH1428	5	20.6	14	21	28	63	52
KH1630	5	27.2	16	24	30	82	63
KH2030	6	32.7	20	28	30	97	81
KH2540	6	66	25	35	40	203	170
KH3050	7	95	30	40	50	286	276
KH4060	8	180	40	52	60	449	454
KH5070	9	250	50	62	70	561	643

Related Products

LM linear bearing:
LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU

LME linear bearing:
LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU

LMB linear bearing:

LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU

LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU,LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU

KH type linear bearing:

KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP,KH2540PP,KH3050PP,KH4060PP,KH5070PP

Steel Cage Linear Bearing:
LM8GA,LM10GA,LM12GA,LM16GA,LM20GA,LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA

SDM series Steel cage linear bearing(As same as Ease SDM series):

SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150

Flange Type Linear Bearing:
LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU,LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU

LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU,LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU

LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU.

Linear Slide Unit:
1.Close Type:

SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type)
SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type)

2.Open Type:

SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU,SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU,SBR35LUU,SBR40LUU,SBR50LUU(Long type)

TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block)

Shaft Support: SK/SHF SHAFT

SUPPORT:

SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50,
