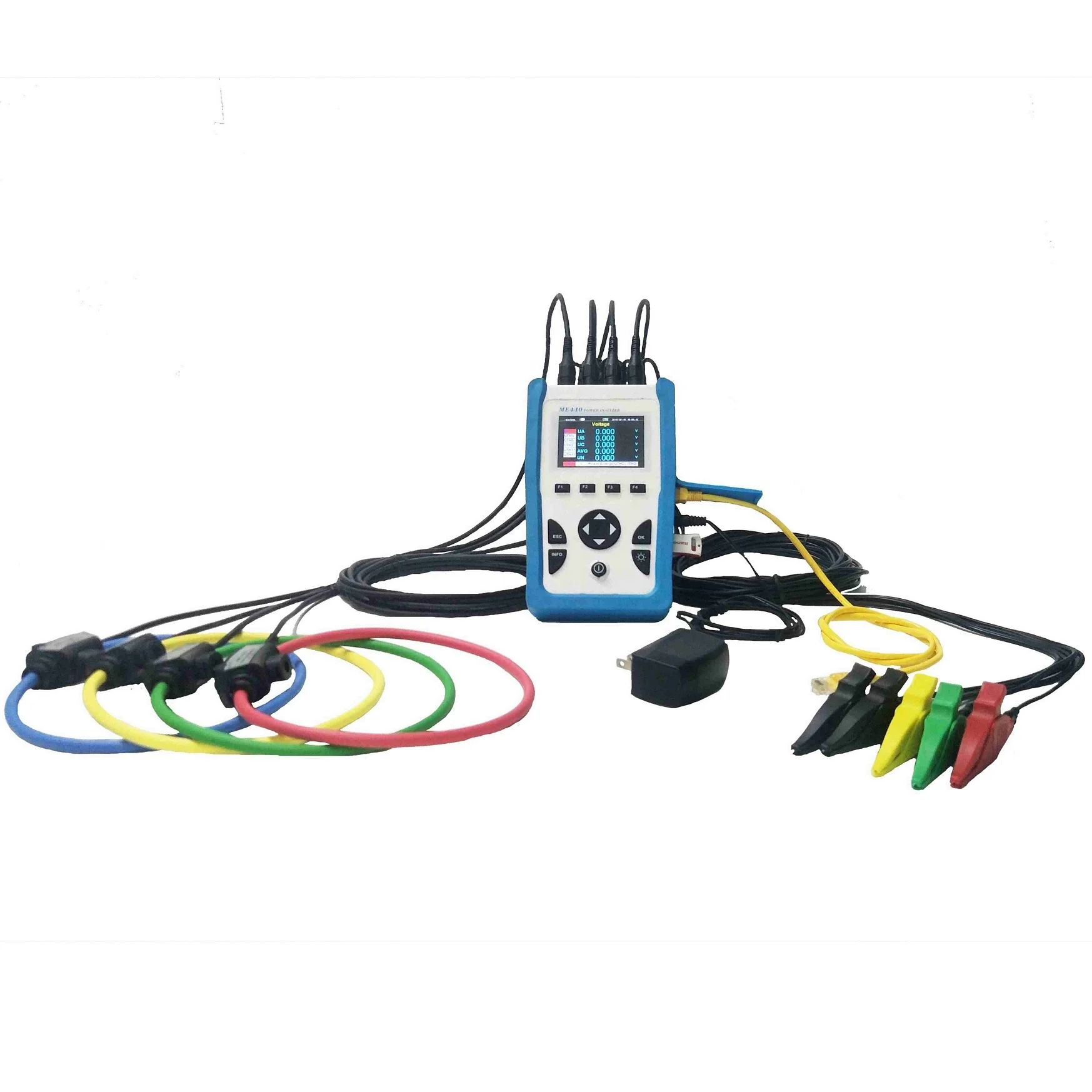

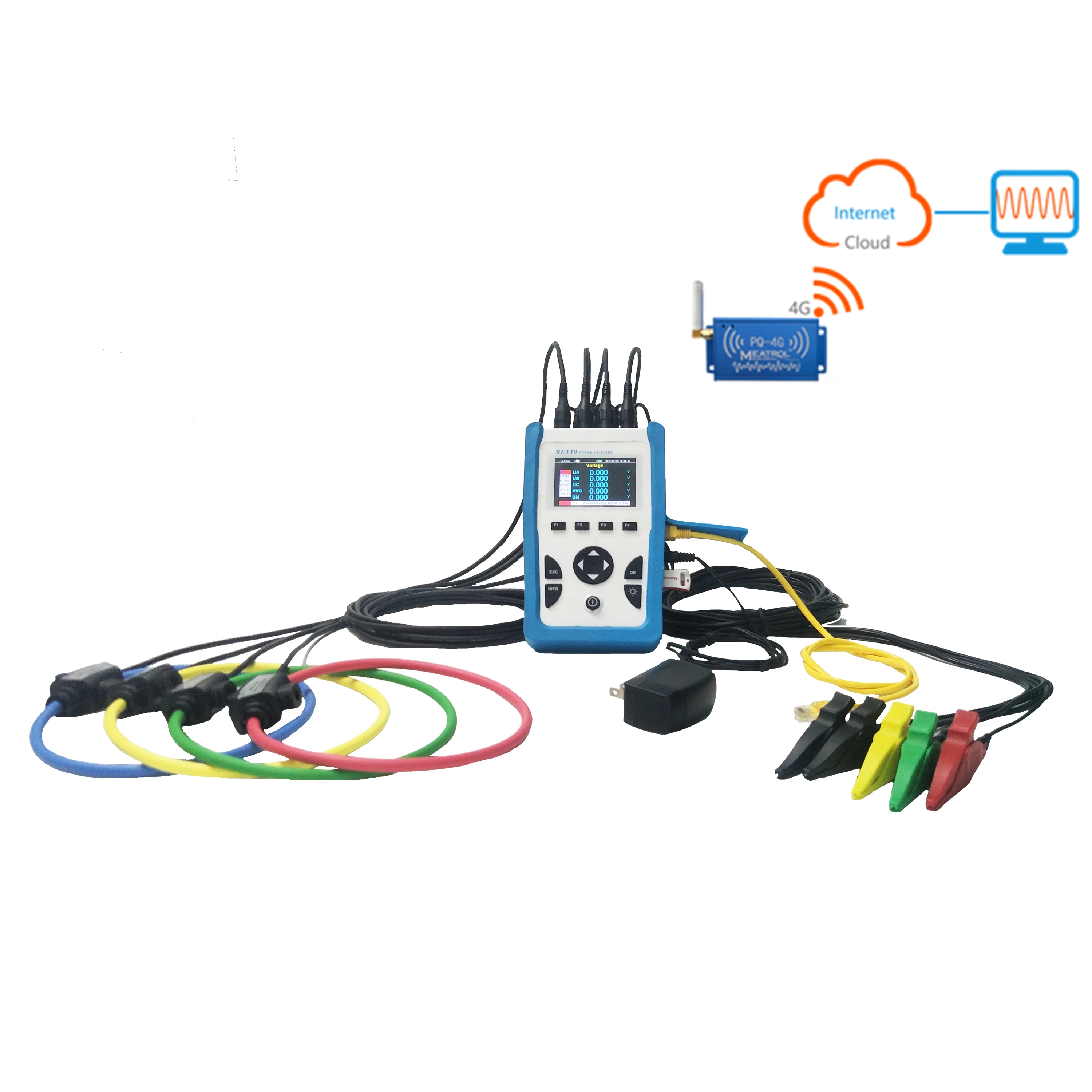

Ручной анализатор данных MEATROL ME440 Rogowski измеритель мощности портативный
- Категория: Energy Meters >>>
- Поставщик: Shanghai,Pinyan,M&C,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.93 $* | 0.12 $* |
| Aug-17-2025 | 0.37 $* | 0.17 $* |
| Jul-17-2025 | 0.24 $* | 0.2 $* |
| Jun-17-2025 | 0.47 $* | 0.29 $* |
| May-17-2025 | 0.69 $* | 0.38 $* |
| Apr-17-2025 | 0.71 $* | 0.83 $* |
| Mar-17-2025 | 0.82 $* | 0.13 $* |
| Feb-17-2025 | 0.32 $* | 0.58 $* |
| Jan-17-2025 | 0.17 $* | 0.52 $* |
Характеристики
Senior Product Consultant
Susan
Products Description
Power Meter Characteristics
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, real power, reactive power,
Energy Readings
The power meter calculates and stores Per phase and total energy values for active,reactive, and apparent energy. You can view energy values from the display. The resolution of the energy value automatically changes from kWh to MWh to GWh (kVAh to MVARh to GWh). The energy values automatically resets to 0 when it reaches the limit of 999.9GWh, 999.9GVAh, or 999.9GVARh.
Minimum/Maximum Values
When any one-second real-time reading reaches its highest or lowest value, the power meter saves the minimum and maximum values in
its nonvolatile memory. From the power meter display, you can: • view all min./max. values since the last reset and the reset date
and time.
• reset min./max. values. All running min./max. values are arithmetic minimum and maximum values. For example, the minimum phase
A-N voltage is the lowest value in the range from 0 to 999.9GV that has occurred since last reset of the min./max. values. The
power meter provides time stamping for all minimum/maximum values.
its nonvolatile memory. From the power meter display, you can: • view all min./max. values since the last reset and the reset date
and time.
• reset min./max. values. All running min./max. values are arithmetic minimum and maximum values. For example, the minimum phase
A-N voltage is the lowest value in the range from 0 to 999.9GV that has occurred since last reset of the min./max. values. The
power meter provides time stamping for all minimum/maximum values.
Specification
Specification | ||
Poles description | 3PH4W 3PH3W 1PH2W (L-N); 1PH2W(L-L); 1PH3W(L-L-N) | |
Device application | Power analysis Data log | |
Support Extra sensor | External Rogowski coil External CT(333mV only) | |
display | 3.5 inch TFT screen display | |
Sampling rate | 8k samples per second | |
Harmonic | 51th in the mean time | |
Mechanical characteristics | ||
Weight | 850g (with Accessory 2 kgs) | |
Dimension | L*W*D:21.5*13*6CM | |
Wire diameter for terminals | ||
Current input | BNC connector | |
Voltage input | Banana plug | |
DC power supply | DC 5.5*2.1 plug | |
Power Supply | ||
Power | 2*2900mAh PANASONIC lithium battery Working time: 10 hours Charging time: 8 hours | |
5V DC power supply (included adaptor) | ||
Record | ||
Record interval | 1s to 9999s（default 1 min) | |
Record format | csv | |
Record capacity | 16GB Memory | |
Store about 2.5K Bytes data each time | ||
record 12 years (1 min interval) | ||
Record data | ITHD(%),IHD2(%),IHD3(%),,,,,IHD51(%) (Each phase ) UTHD(%), UHD2(%), UHD3(%),,,,,UHD51(%)(Each phase) Voltage(V); UTHD(%); Current(A); ITHD(%); Frequency(Hz);Power Factor; Current Demand(A); Current Peak Demand(A)&Date; (Each phase and Average) Active Power(W) ;Reactive Power(Var);Apparent Power(Va) Active Energy(Wh);Reactive Energy(Varh);Apparent Energy(Vah) Total Active Power Demand(W) (Each phase and summary) Total Active Power Peak Demand(W)&Date Total Reactive Power Demand(Var) Total Reactive Power Peak Demand(Var)&Date Total Apparent Power Demand(Va) Total Apparent Power Peak demand (Va)&Date | |
Measurement accuracy | ||
Rated current (3 level selectable) | 600A(0.5% from 6A to 720A) 3000A(0.5% from 10A to 3600A) 6000A(0.5% from 20A to 7200A) | |
Rogowski coil connect setting | 600A(0.5A to 720A) MRC-36 3000A(0.5A to 3600A) NRC-150 or Y-FCT-510 6000A(0.5A to 7200A) NRC-200 or Y-FCT-800 | |
CTs connect setting | Primary setting: from 1A to 999999A Secondary setting: from 0.001 mV to 707mV | |
Voltage | 0.2% from 45 to 600V | |
Power factor | ±0.005 | |
Active/Apparent Power | IEC62053-22 Class 0.5s | |
Reactive power | IEC62053-21 Class 2 | |
frequency | 0.01% from 45 to 65 Hz | |
Active energy | IEC62053-22 Class 0.5s | |
Reactive energy | IEC62053-21 Class 2 | |
Company Profile
SHANGHAI PINYAN M&C TECHNOLOGY CO., LTD. founded in 2009.Brand name MEATROL ELECTRICAL, located in the High Technology park of Minhang district, Shanghai.
For a long time, we researched all function, application, feature of Rogowski coil and created the full-automatic winding machine especially for Rogowski. We have series coils for different application according to our rich experience. Our main products include flexible Rogowski coil, rigid Rogowski coil, split core current sensor, all kinds of output type integrator, power meter, power analyzer and so on.
We are good at all kinds of application for current measurement like power meter, power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection, electric furnace etc.
For a long time, we researched all function, application, feature of Rogowski coil and created the full-automatic winding machine especially for Rogowski. We have series coils for different application according to our rich experience. Our main products include flexible Rogowski coil, rigid Rogowski coil, split core current sensor, all kinds of output type integrator, power meter, power analyzer and so on.
We are good at all kinds of application for current measurement like power meter, power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection, electric furnace etc.
FAQ
Q: What's MEATROL?
A: We are the No.1 manufacturer of Rogowski coil with meters in China over 12 years.
Q: How about your company product quality?
A: High quality, reasonable cost.
Q: What's your productivity?
A: Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q: Do you support customization?
A: Any R&D requirement relate to Rogowski could be realized.
A: We are the No.1 manufacturer of Rogowski coil with meters in China over 12 years.
Q: How about your company product quality?
A: High quality, reasonable cost.
Q: What's your productivity?
A: Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q: Do you support customization?
A: Any R&D requirement relate to Rogowski could be realized.
