Tmeasure Многофункциональный zbl r800 арматура георадарная детекция сканер детектор положения диаметр железа
- Категория: >>>
- Поставщик: Dalian,Taijia,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.64 $* | 0.94 $* |
| Aug-19-2025 | 0.35 $* | 0.81 $* |
| Jul-19-2025 | 0.78 $* | 0.25 $* |
| Jun-19-2025 | 0.20 $* | 0.54 $* |
| May-19-2025 | 0.95 $* | 0.33 $* |
| Apr-19-2025 | 0.22 $* | 0.65 $* |
| Mar-19-2025 | 0.68 $* | 0.69 $* |
| Feb-19-2025 | 0.65 $* | 0.29 $* |
| Jan-19-2025 | 0.32 $* | 0.70 $* |
Характеристики
Product Description
ZBL-R800 Multifuncational Rebar detector
ZBL-R800 is a multi-functional rebar detector equipment for both measure rebar direction , rebar size , the degree of reinforcement rust rate and testing the thickness of proective layers( concrete thickness measurement) in concrete construction using non destructive testing method.
With wireless onsite data transfer, ZBL-R800 Multifunctional rebar scanner satisty onsite analyse data and management. also data can be stored on a USB-thumb drive easy for carry and evaluation datas with its 3D map.
Applicable Range | Ф6mm~50mm | Corrosion detection method | Single Electrode | Double Electrode | ||||
Protective layer thickness range 1000mV(mm) | First Range 3~98 | Second Range 3~196 | Measuring Range Accuracy | ±1000mV ±1mV | 0~1000mV ±1mV | |||
Maximum allowed error for protective layer | ±1mm | 6~56 | 3~79 | Tested Points Interval X | 0~100 adjustable | 20fixed | ||
±2mm | 57~69 | 80~119 | Tested Points Interval Y | 0~100 adjustable | 0~100 adjustable | |||
±4mm | 70~98 | 120~196 | Power Supply | Built-in Chargeable Lithium Battery | ||||
Rebar scan guide
1) Rebar test:
a:General Scan: localization and distribution of rebar; measure the thickness of rebar cover(concrete thickness measurement); measure the diameter of bars and stirrups
b:Grid-Scan: Graphic reconstruction of the grid
c: Profie-Scan: Display the rebars in section for assessing the deviation from the known rebar cover to each bar or stirrup
2)Rust-test: measurement of the potential corrosion of steel
Detailed Images

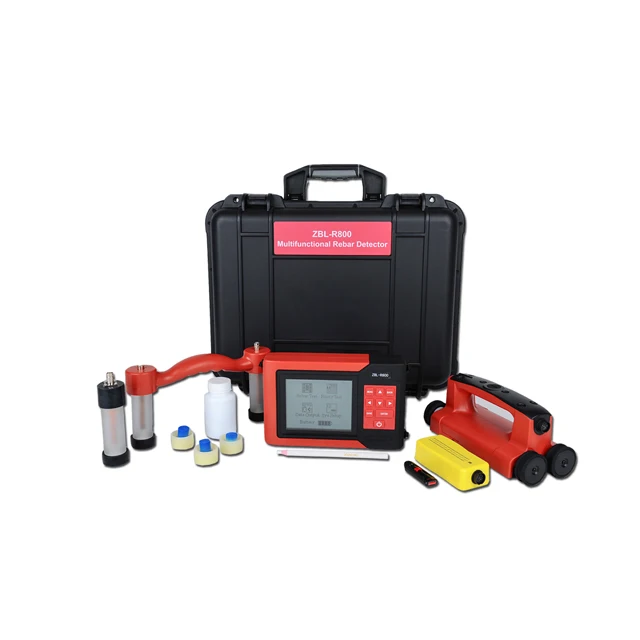

Packing list

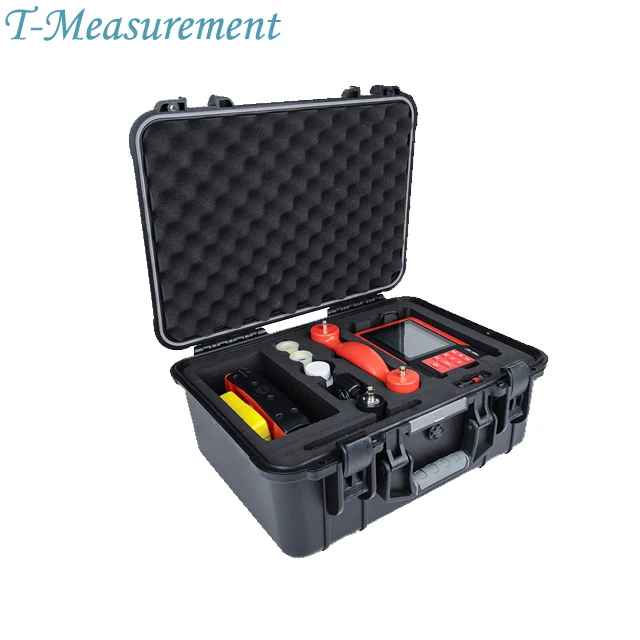

Carrying Case | |
ZBL-R800 Detector | 1 Unit |
Battery Charger | 1 Piece DC8.4V/0.5A |
Rebar Sensor | 1 Piece SET200A |
Copper Sulfate Electrode | 3 Pair |
Double-electrode handle | 1 Piece |
Electrode Cap | 3 set |
Signal Wire | 1 Piece |
Single-electrode Wire | 1 Piece |
Double-electrode Wire | 1 Piece |
Copper Sulfate Crystal | 1 Piece |
Crayon | 1 Piece |
U-disk | 1 Piece |
Packing & Delivery
Related Products
ZBL-R630A Rebar scanner
ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium

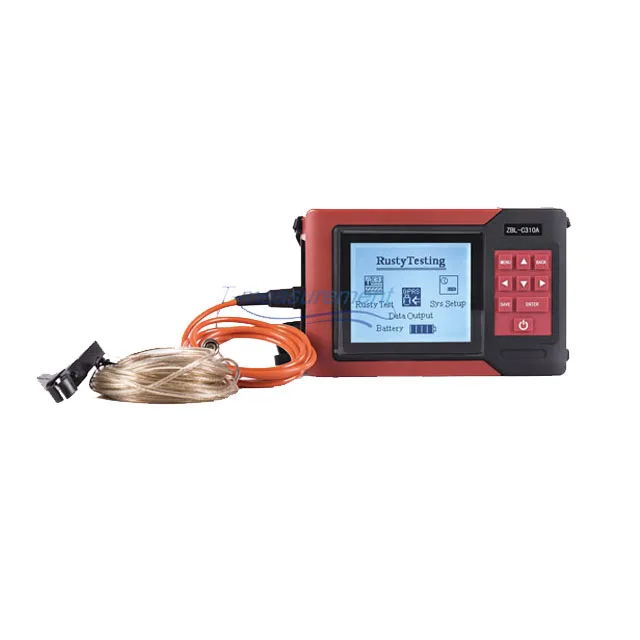

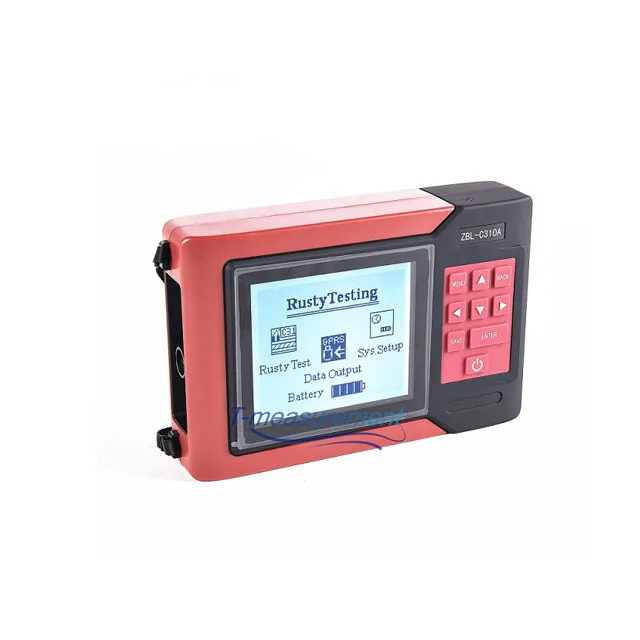

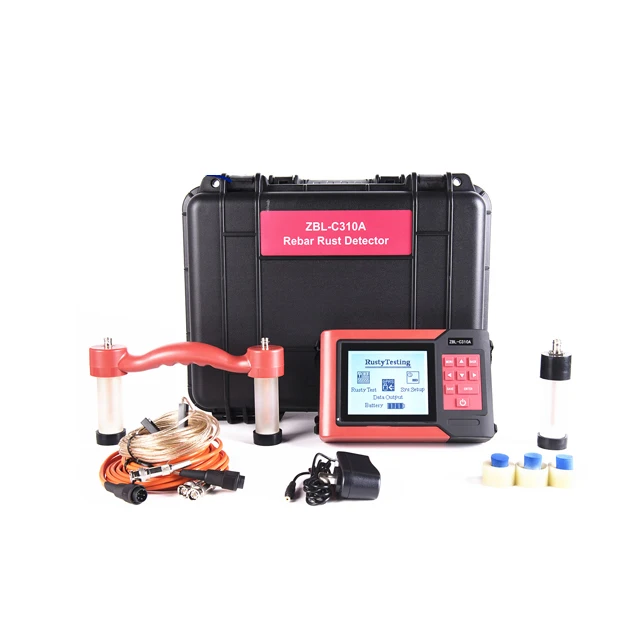

ZBL-C310A rebar corrosion tester
ZBL-C310A rebar rust detectoris a specialized apparatus; using the electrode polarization theory, tests the potential of concrete surfaces through a Cu/CuSO4 reference electrode, and determines the level of rebar corrosion with thecommonly used natural potential method.with ±0.1mV accuracy
HT-225W+ integrity voice report digital concrete rebound hammer
HT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.
