HFP Type Enclosed Busbar System Conductor Trolley Tubular Copper Core Busbar Rails System



Customized Enclosed Busbar

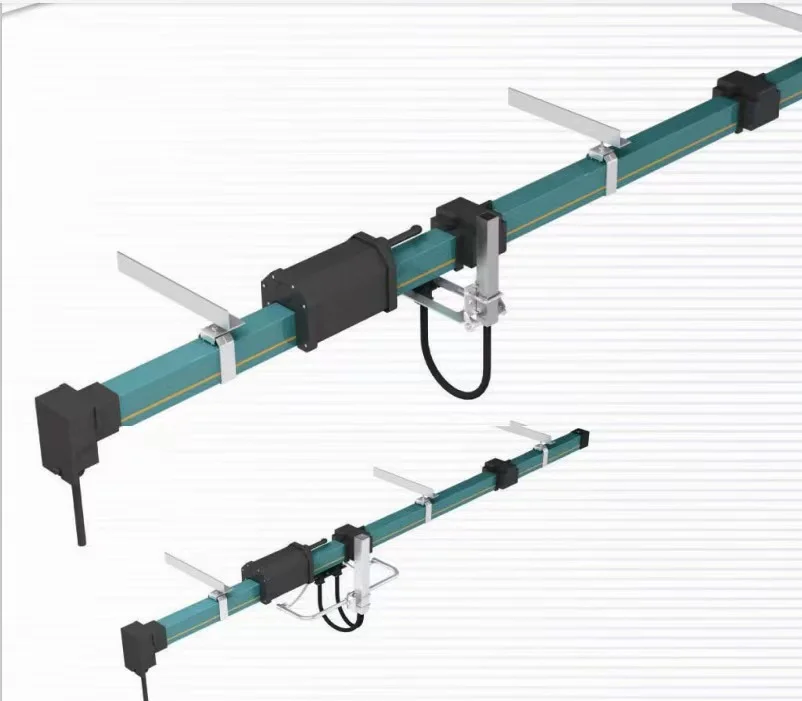

HFP56 series conduit slide line has the greatest advantage of compact design, corrosion prevention and easy installation.

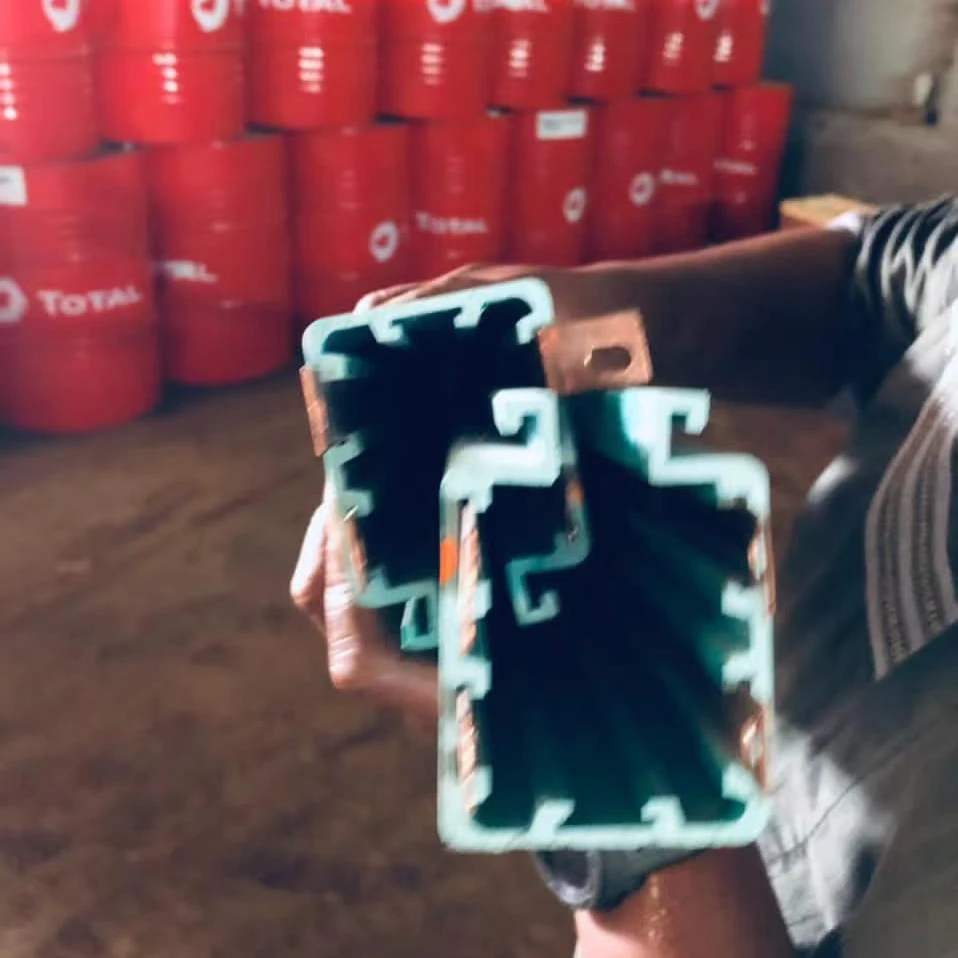

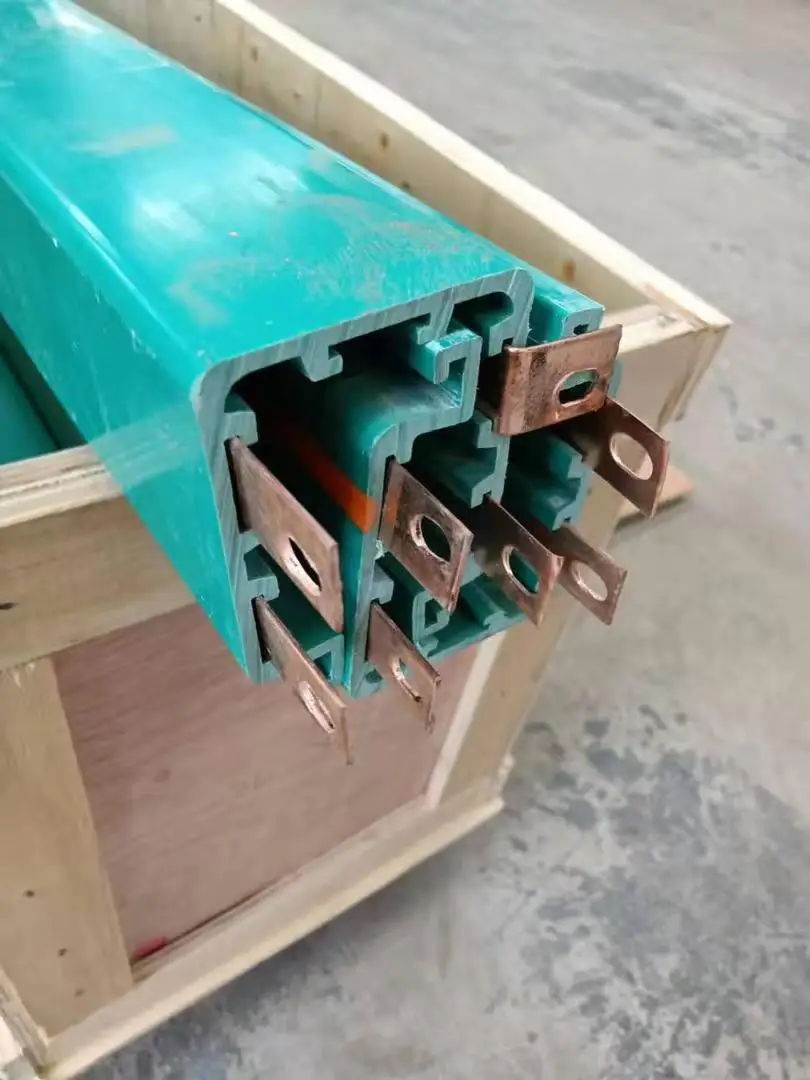

They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35A-240A. The current collectors, running in ball bearing, are guided by the housing. The main is transferred by spring-stored carbon brushes.
HFP56 series of applications include cranes, single track power supply system, lifting equipment, sorting system of the lathe and automatic storage, lighting system and so on. HFP56 series is a slide line with the function of preventing accidental impact and damage, and can be used indoors and outdoors. Its green PVC insulated housing can be loaded into copper wires of different interface shapes. This series of slide wires is a 4-pole device.Approved and listed by: CCC, ISO90001 and CE.
Compared with the traditional heavy and messy wiring mode, HFP56 series of product has such characteristics as low impedance, anti-interference, good reliability, saving space and quick assembly.
Contains the following 9 types of accessories:
Relay, power supply, suspension clamp, suspension bracket, fixing clamp, orthogonal device, joint box, plug.







Conductor material	Pure Coppre Core
Product type	HFP-P/HFP-R
Reference Current	35A-240A
Cross-sectional area	8-80mm2
Number of poles	4P

Our enclosed busbars feature low cost, simple and easy to operate and low maintenance requirement.It with function of preventing accidental impact hazard.
They are widely used for electrical connection.





Design and Construction Rules
All the standards which are required for the cranes are the FEM standard, DIN standard and Chinese National standard.

Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for cranes             GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Enclosed Busbar System

1. What information should I provide to get the price?

Specific parameters such as lifting capacity, lifting height, span, cantilever length, power supply voltage, control method, etc. And if you can give us your design drawing, that will be very helpful to get an quotation.

2. Can you customize product ?

Yes, of course. we are manufacturer, and we have a lot of experienced engineers,They can design products according to cus.

3. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

4. Which brand are the crane parts and components?

We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have the world's leading machining, forging and welding machinery and processes.

5. Do you sell crane accesorries?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, busbar and so on.



The manufacturing technology level is leading in China.the production scale and capacity are in the forefront of the same industry. Our mission is to supply the full solution for all types of power distribution systems.



Notes: If you want to ask any questions about this product directly with us, pls click here !



Send your Inquiry Details in the Below, Click " Send " Now!

If you would like us to provide an accurate quote within 12 hours, please write down the following information:



1. Electric Current is ___A
2. Total qty need ____M
3. Working Conditions_____
4. Your contact information. Both Email and phone number are essential.
