1000 мм длина 200 диаметр мини фрезерный станок с ЧПУ по дереву токарно-револьверный для деревянный пол из цельного массива newel деревянная лестница
- Категория: Wood Lathe >>>
- Поставщик: Jinan,Tianjiao,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 311504.27 $* | 317734.54 $* |
| Jul-16-2025 | 252637.47 $* | 257690.27 $* |
| Jun-16-2025 | 306599.28 $* | 312731.80 $* |
| May-16-2025 | 304146.26 $* | 310229.5 $* |
| Apr-16-2025 | 242826.88 $* | 247683.37 $* |
| Mar-16-2025 | 299240.10 $* | 305225.9 $* |
| Feb-16-2025 | 296788.13 $* | 302724.37 $* |
| Jan-16-2025 | 294335.83 $* | 300222.34 $* |
Характеристики

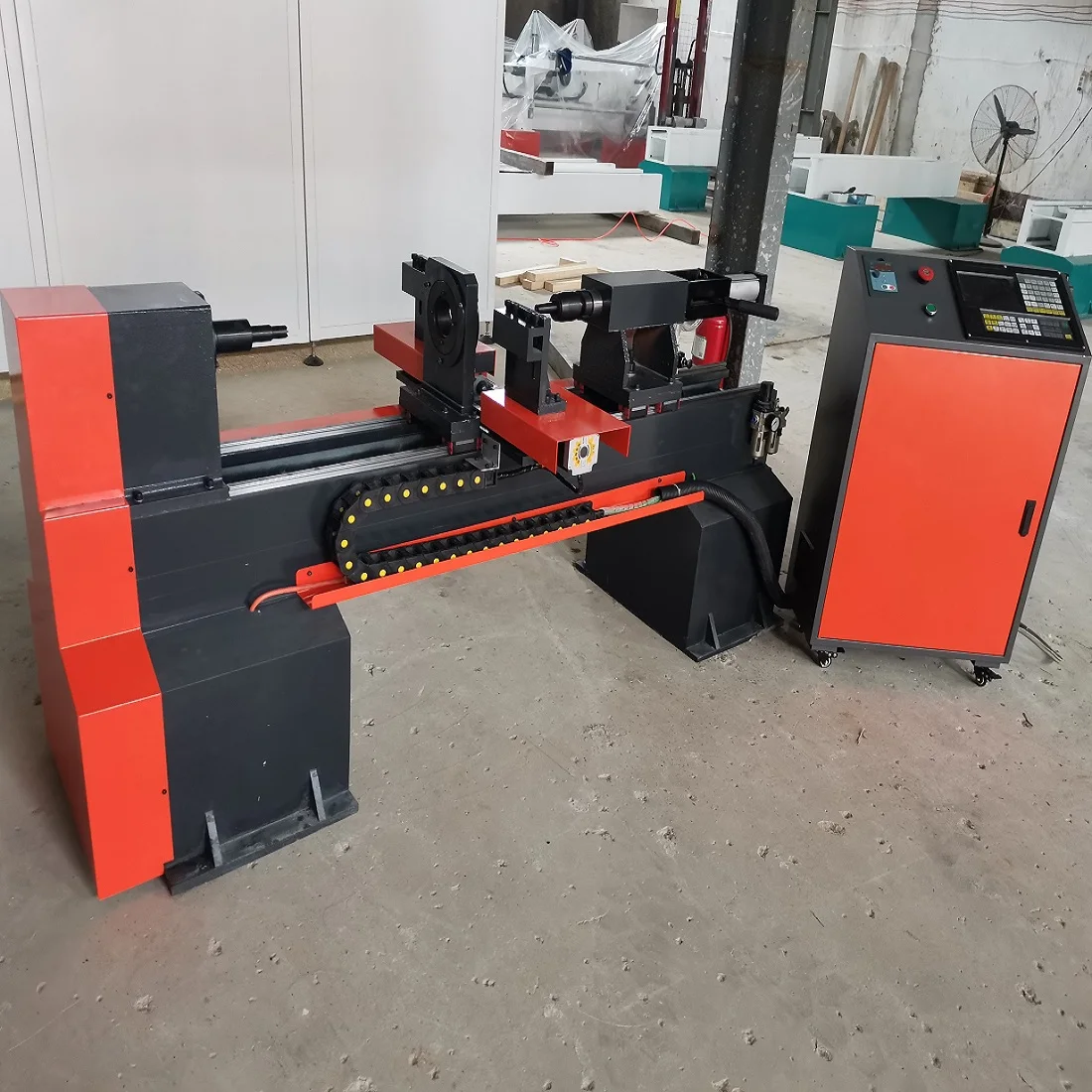

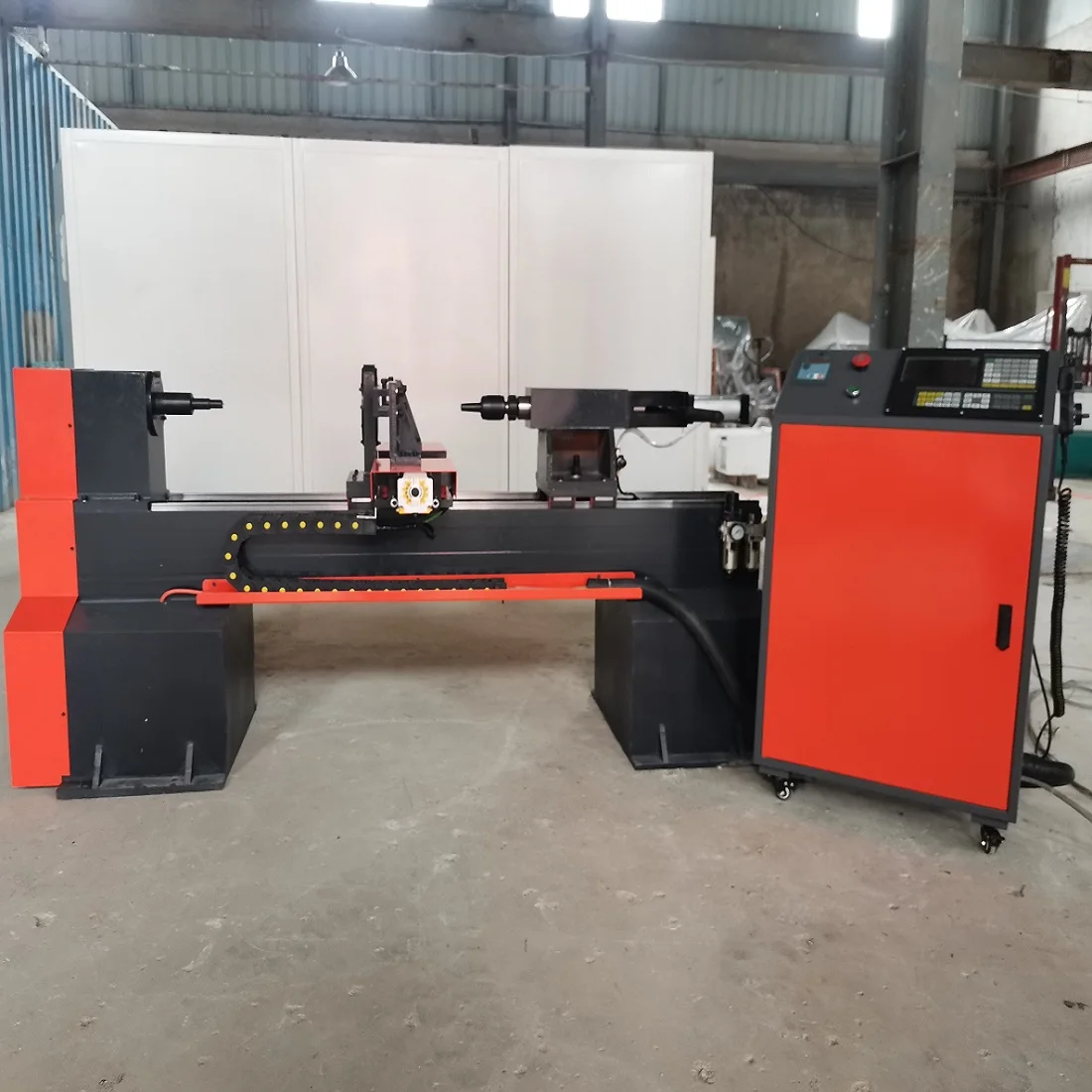

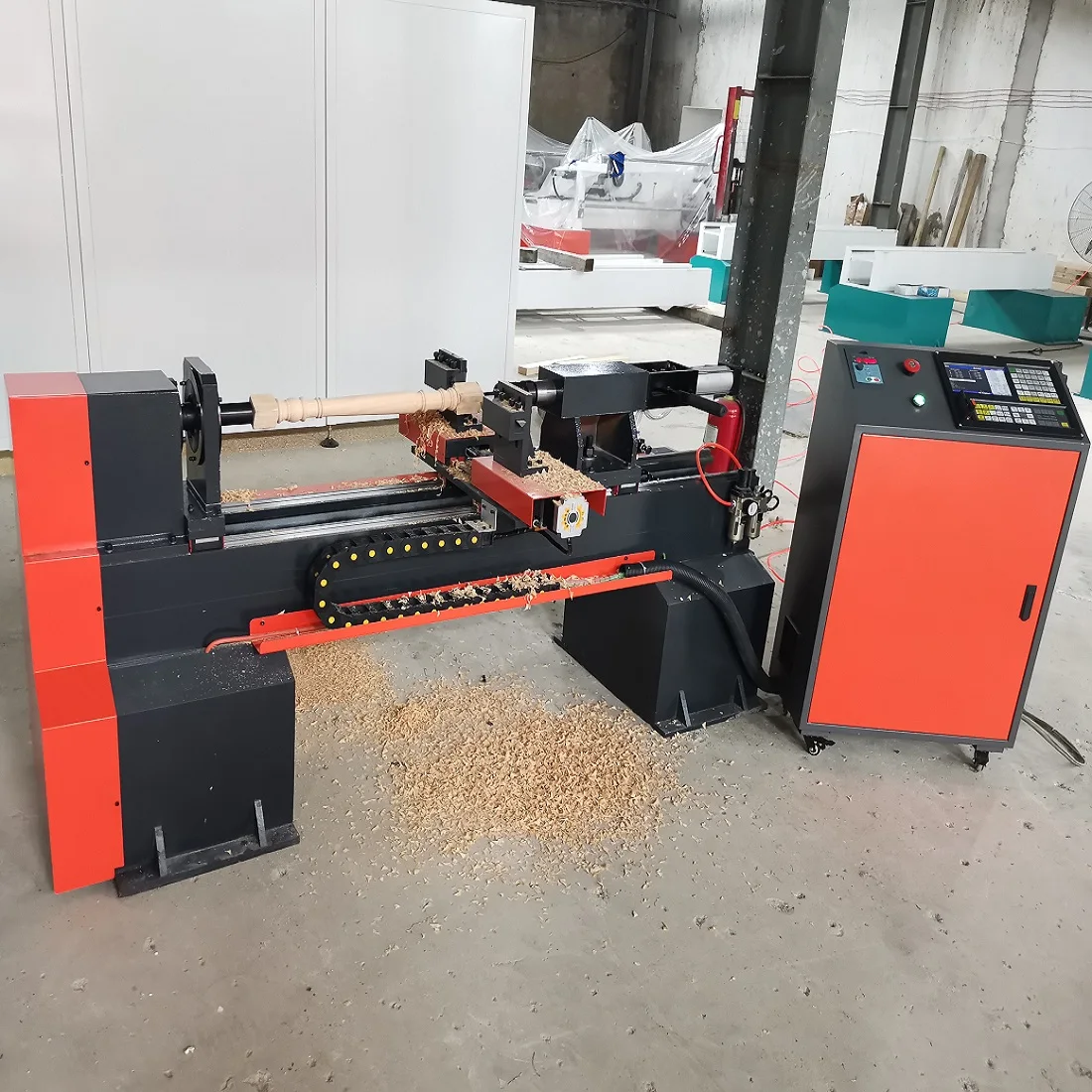

1000mm length 200mm diameter Mini CNC Wood Turning Lathe for wooden solid newel wood Staircase column
Application:
cnc wood turning lathe is a kind of woodworking machinery, with very fast turning cutting speed on ssymetrical wood, widely used in table/sofa/chair/bed legs, wooden staircase handrail, baseball bat, billiard cue, pool. column, Pacilion spire etc.
This model is small wood lathe, cnc controled, suitable for small size wooden columns making.
not heavy cutting
chair/table/bed legs, as long as you have dxf file from AutoCAD, with the square wood. you can get any shape of legs or columns. but need regular, it is assymetric from the wood center.
If heavy lathe cutting , suggest model with cast iron:
Parameters:
|
Model Number |
TJ-1530 |
TJ-2030 |
TJ-1020 |
TJ-6025 |
||
|
Size |
Max work length |
1500mm |
2000mm |
1000mm |
600mm |
|
|
Max work diameter |
300mm 300mm 200mm 250mm |
|||||
|
Machine size |
3.9*1 *1 m |
3.5*1.1*1.4m |
2.2*0.8*1m |
1.7*0.7*1m |
||
|
Package size |
3 *1.1*1.2m |
3.6*1.2*1.6m |
2.3*0.9*1.2m |
1.8*0.8*1.2m |
||
|
N weight |
1600kgs |
1700kgs |
700kgs |
400kgs |
||
|
G weight |
1700kgs |
1800kgs |
800kgs |
450kgs |
||
|
configuration |
Machine body |
Cast iron Cast iron welding steel welding steel |
||||
|
Driving Motor |
Step motor 450B+450C |
860series step motor |
||||
|
Driver |
Large step driver Yako 2811 |
|||||
|
Rotary motor |
4kw 3 phaseinduction motor |
5.5kw 3 phase induction motor |
3kw 3 phase induction motor |
3kw 3 phase induction motor |
||
|
Rotary inverter |
4.5kw |
7.5kw |
3kw |
3kw |
||
|
Transmission way |
Y axis helical gear, XZ axis adopt Taiwan TBI ballscrew |
|||||
|

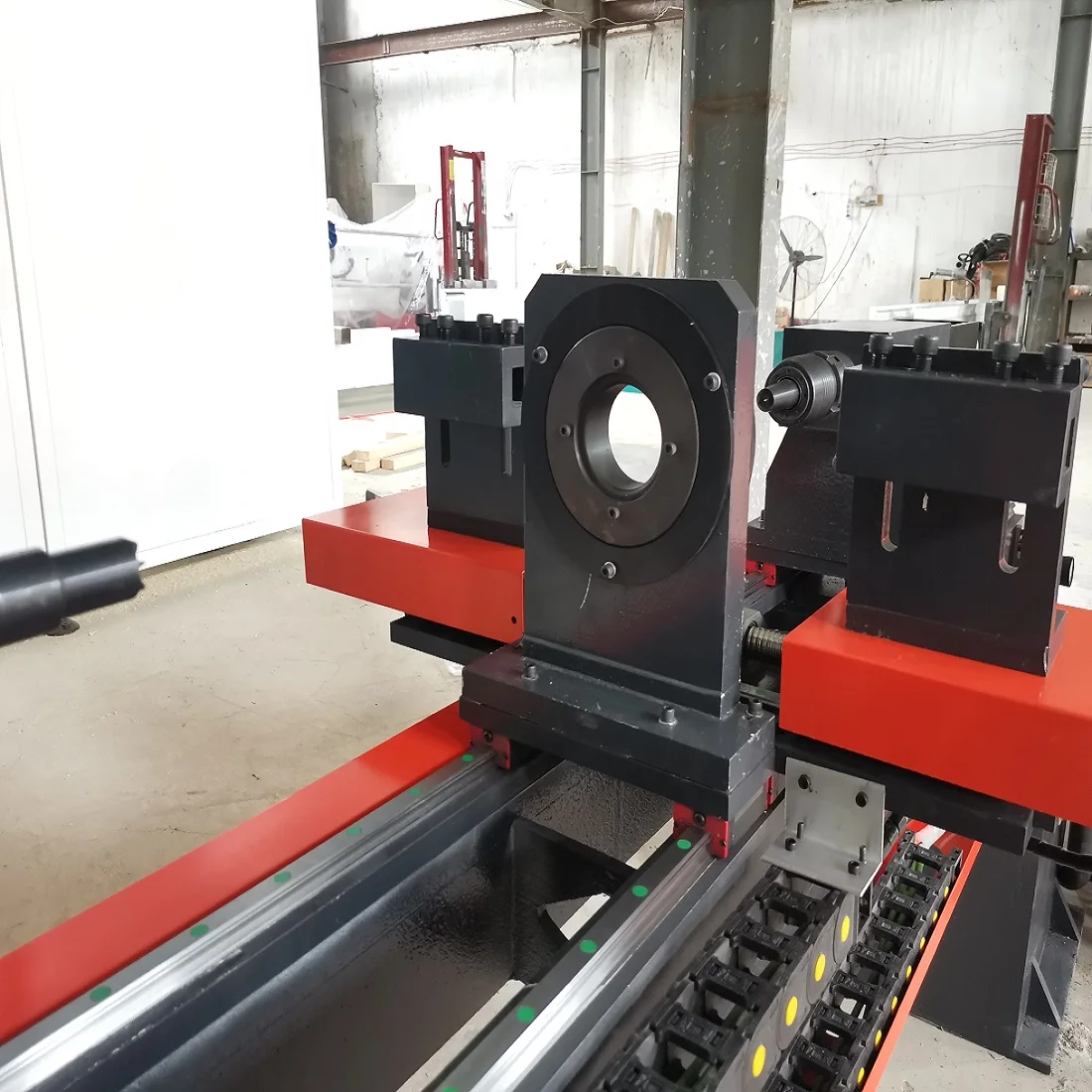

Orbit |
Original Taiwan square orbit M25 |
M20 orbit |
||||
|
Center sheath size |
Inner Diameter 68mm |
|||||
|

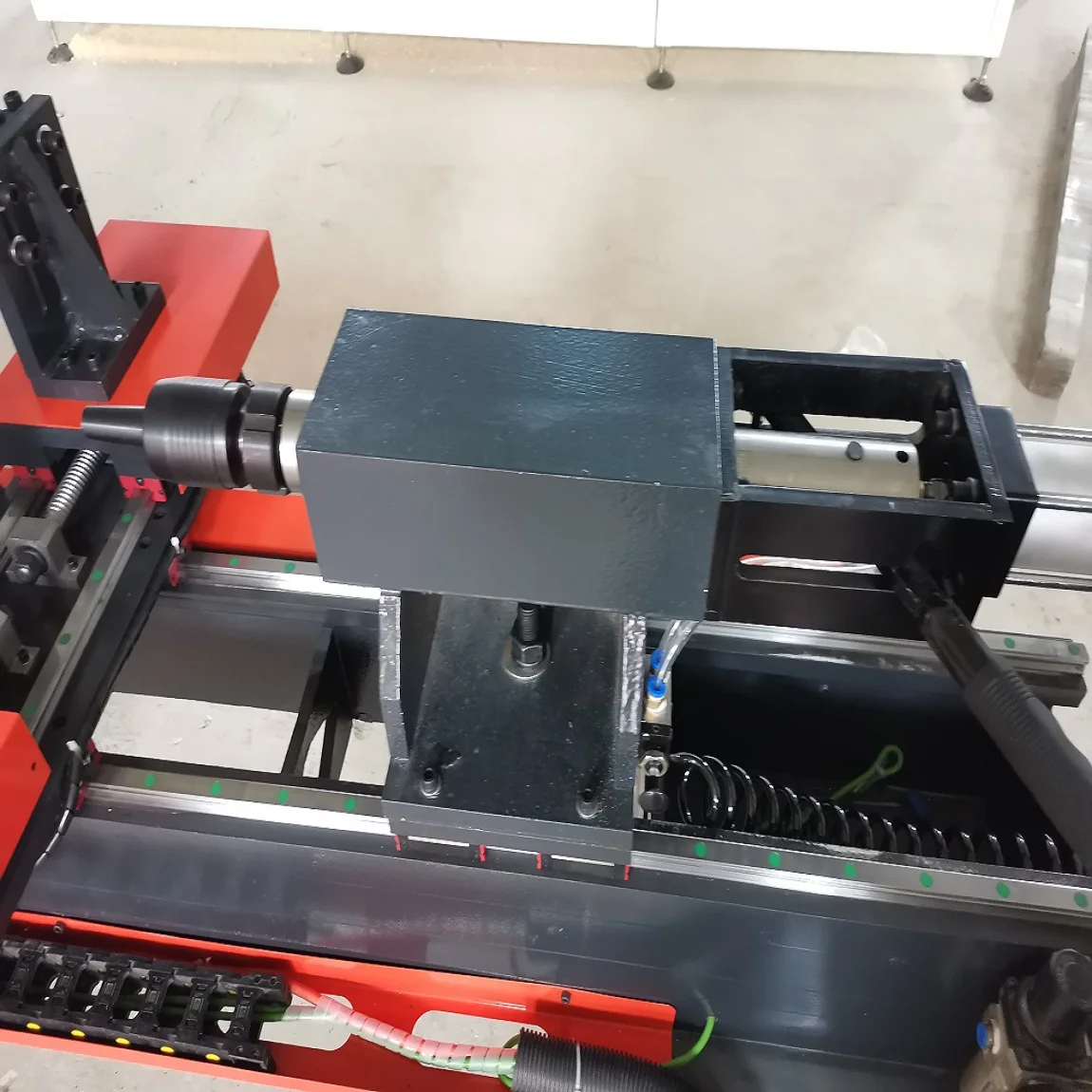

Thimble size |
25mm diameter |
|||||
|

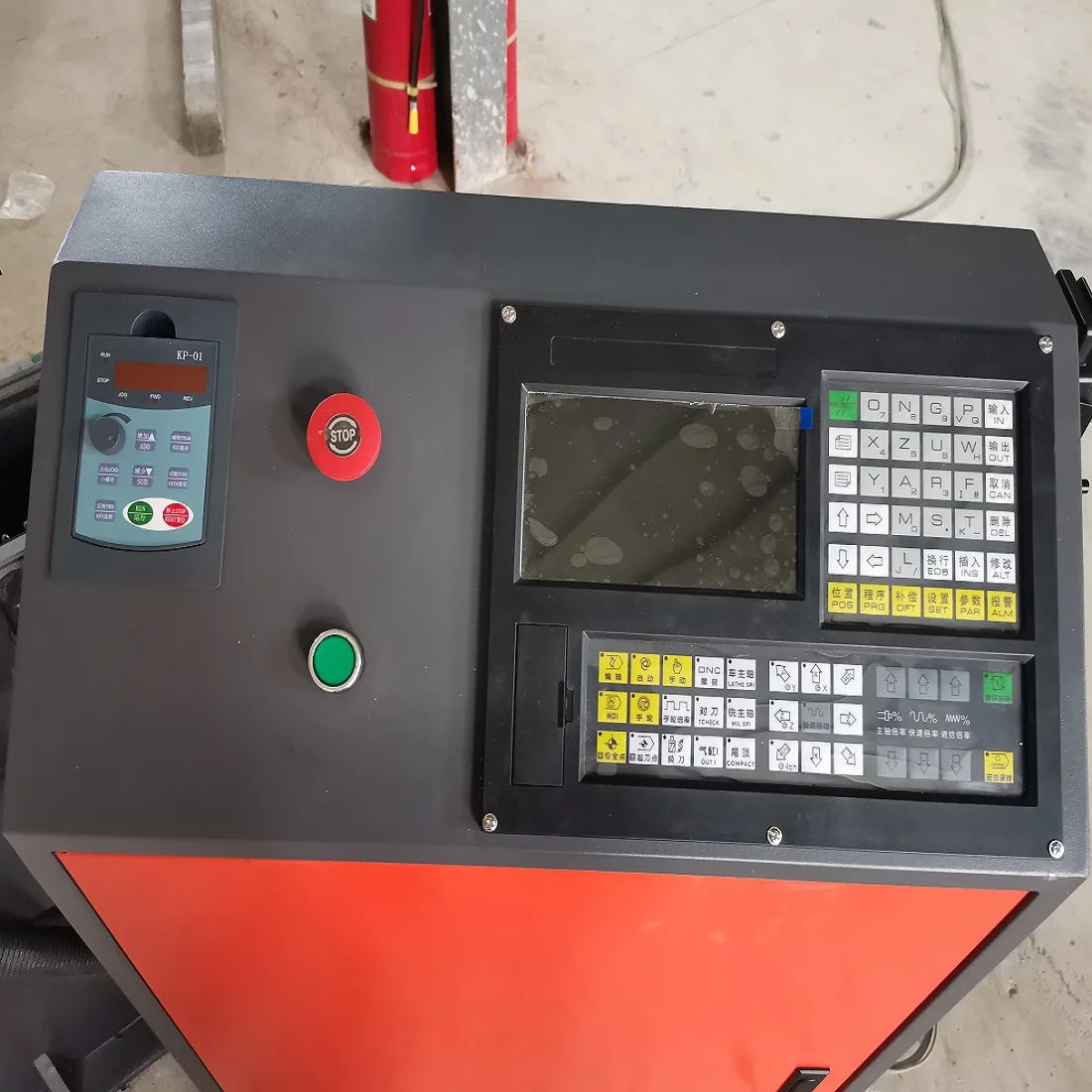

Control system |
Panel control system for cnc wood lathe |
|||||
|
Parameter |
Max feed rate |
200cm/min |
||||
|
Max moving speed |
3000RPM/min |
|||||
|
Rotary rotating speed |
3000RPM/min |
|||||
|
Precision |
0.02mm |
|||||
Direct input required in the software
Bead diameter can be simple parameters; pagoda gourd, direct
Select the shape, size. No programming, easy to use.
You can also design your own style, drawing of contour line, put i
BMP, JPG image can be processed.
Processing speed:
In the processing of 2 size beads shall prevail, lobular Rosewood automatic
Hole, turning every 38 seconds, 30 seconds without holes.
Phoebe play hole turning, every 25 seconds, not punching every 19 seconds;
The processing of 5 cm diameter handball, 2.5 minutes one piece.
Processing handgrip gourd, diameter 5 cm, 11 cm long with 5 minutes.
New model:
Main Parts:
