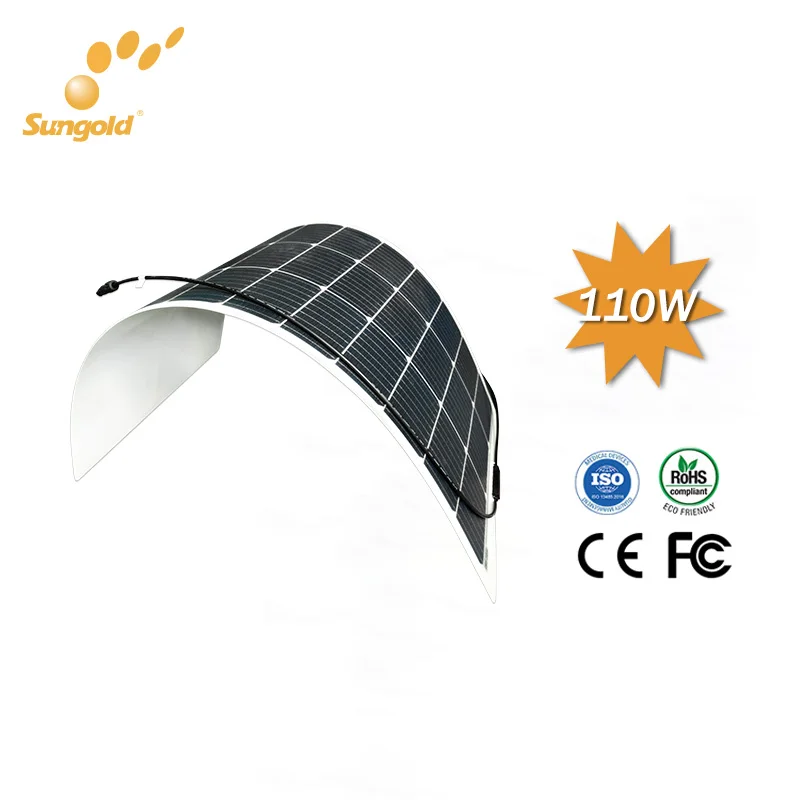

Sungold Factory Price Sunpower New Flexible PV Panel Lightweight And Thin Sheet Glass-free
- Категория: Solar Panels >>>
- Поставщик: Shenzhen,Sungold,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.64 $* |
| Aug-16-2025 | 0.10 $* | 0.17 $* |
| Jul-16-2025 | 0.9 $* | 0.42 $* |
| Jun-16-2025 | 0.16 $* | 0.11 $* |
| May-16-2025 | 0.90 $* | 0.9 $* |
| Apr-16-2025 | 0.59 $* | 0.2 $* |
| Mar-16-2025 | 0.49 $* | 0.25 $* |
| Feb-16-2025 | 0.84 $* | 0.10 $* |
| Jan-16-2025 | 0.76 $* | 0.56 $* |
Характеристики
Product feature
Details Images
Product Parameters
Specifications | ||||||||||||
Cell Type | Glass-free solar panel | |||||||||||
Component Model | SG-TF-M-55W | SG-TF-M-110W | SG-TF-M-270W | SG-TF-S-55W | SG-TF-S-110W | SG-TF-S-150W | ||||||
Open cicuit voltage(Voc) | 23.4 | 23.4 | 28.6 | 20.8 | 21.7 | 29.8 | ||||||
Short-circuit current(Isc) | 19.8 | 19.8 | 24.2 | 17.6 | 18.4 | 25.3 | ||||||
Operating voltage(Vmp) | 2.94 | 5.89 | 11.83 | 3.31 | 6.34 | 6.3 | ||||||
Curent(lmp) | 2.77 | 5.55 | 11.16 | 3.13 | 5.98 | 5.93 | ||||||
Cell brand | Mono | SunPower | ||||||||||
Cells Efficiency(%) | 22.62% | 22.60% | ||||||||||
The Maximum system voltage | DC 600 | DC 45 | ||||||||||
Temperature coefficient of Pmax | –0.42%/℃ | –0.32%/℃ | ||||||||||
Temperature coefficient of Voc | –0.32%/℃ | –1.8mv/℃ | ||||||||||
Temperature coefficient of ISC | +0.04%/℃ | +0.05%/℃ | ||||||||||
Operating Temperature(℃): | —40℃~+85℃ | |||||||||||
Mechanical Characteristics | ||||||||||||
No.of cells | 36(3*12) | 36(3*12) | 44(4*11) | 32(4*8) | 32(4*8) | 44(4*11) | ||||||
Component Size | 580*540*2 mm | 1080*540*2mm | 1940*710*2mm | 580*540*2mm | 1070*540*2mm | 1460*540*2mm | ||||||
Warranty | 1 years and service life of 15 years | |||||||||||
Junction box | IP67/IP68 | |||||||||||
Connectors | MC4 Compatible | |||||||||||
Contruction | ETFE surface, TPT backboard | |||||||||||
TF series photovoltaic module is an innovative glass-free solar module.
It adopts proven crystalline silicon solar cell technology and polymer composite material to achieve a new type of pv module that is glass-free, lightweight and thin sheet.
TF series is as light as 3.5 kg/m2, which is only 30% of glass module and 55% of P028 lightweight module.
The thickness can be reduced to 2mm. We customize the shape and size and achieve custom design and production.
product application
Client Feedback
About Us
Shenzhen Sungold Solar Co., LItd
Sungold Advantages:
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
Exhibition & Certificate
Logistics Transportation
FAQ
1)Q:The price is too expensive,why?
9)Q: Do you have any certificates on the panels?
We choose the best material to make. All SunPower A grade cells are imported from the USA, and we insist on the development of quality.
2)Q:What is the payment term?
100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd
3)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
4)Q:What is mono and poly panels?
The panel adopts mono-crystalline and poly-crystalline cells.
5)Q:What is the different between mono and poly?
The cells conversion efficiency is different. The mono cell is higher than poly one. Mono is 20.6%, and poly is 18.3%, so mono panel is more expensive than poly panel.
6)Q: What is the warranty of the panel?
Mono panel and poly panel has 10 years warranty. Flexible panel has 1 year warranty and 5 year service time.
Customers told a panel was bought in 2012 is still working.
7)Q: What is the package of the flexible panel?
1 pcs is put in a bubble bag and one carton and 10pcs are put in bigger carton, then wooden pallet.
8)Q: How many workers in Sungold?
Almost 300.
9)Q: Do you have any certificates on the panels?
CE, ROHS and ISO.
10)Q: Can you do OEM for my panels?
Yes, we support OEM and ODM.
