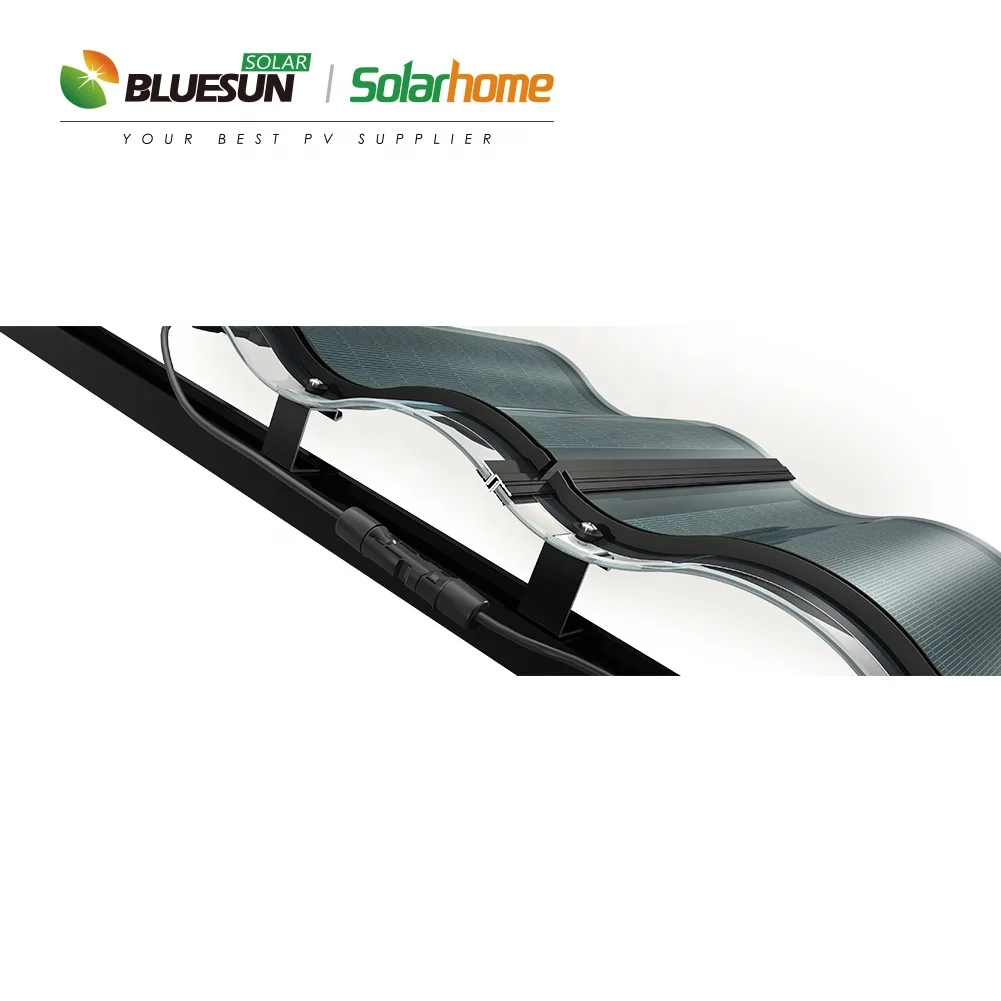

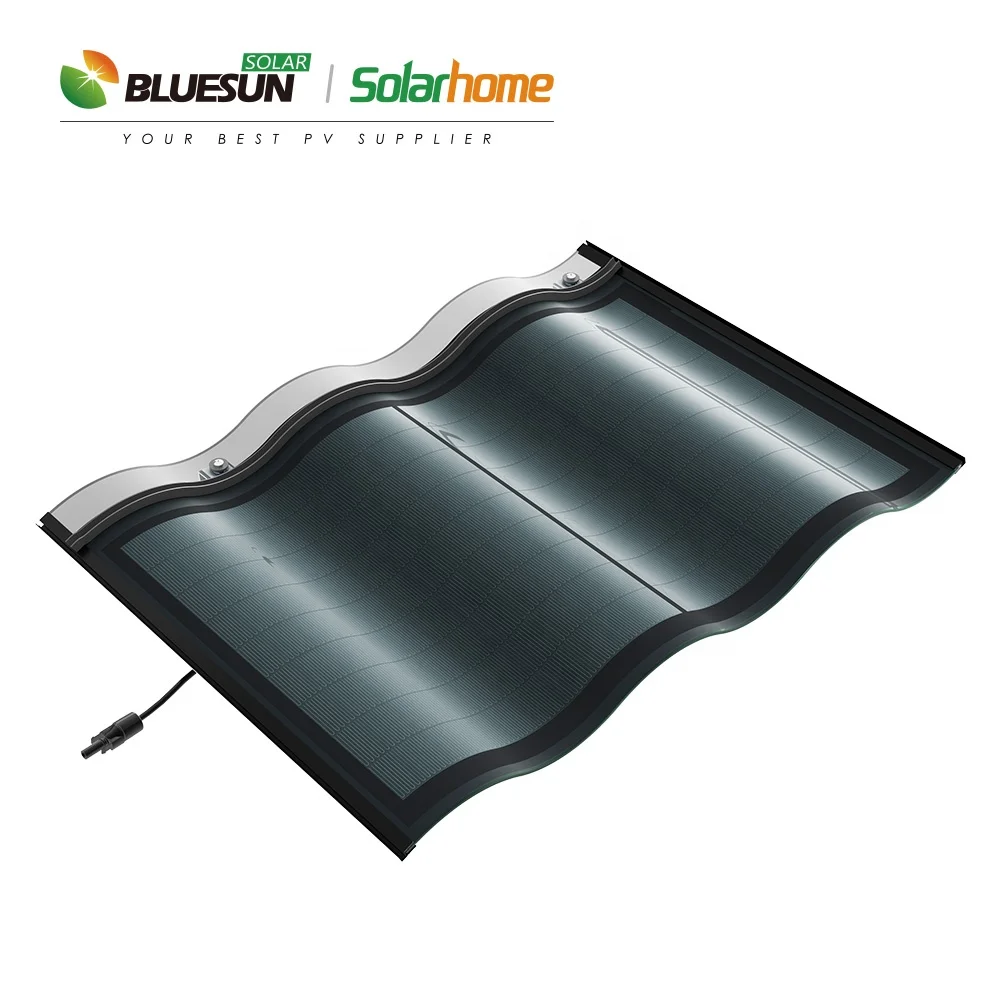

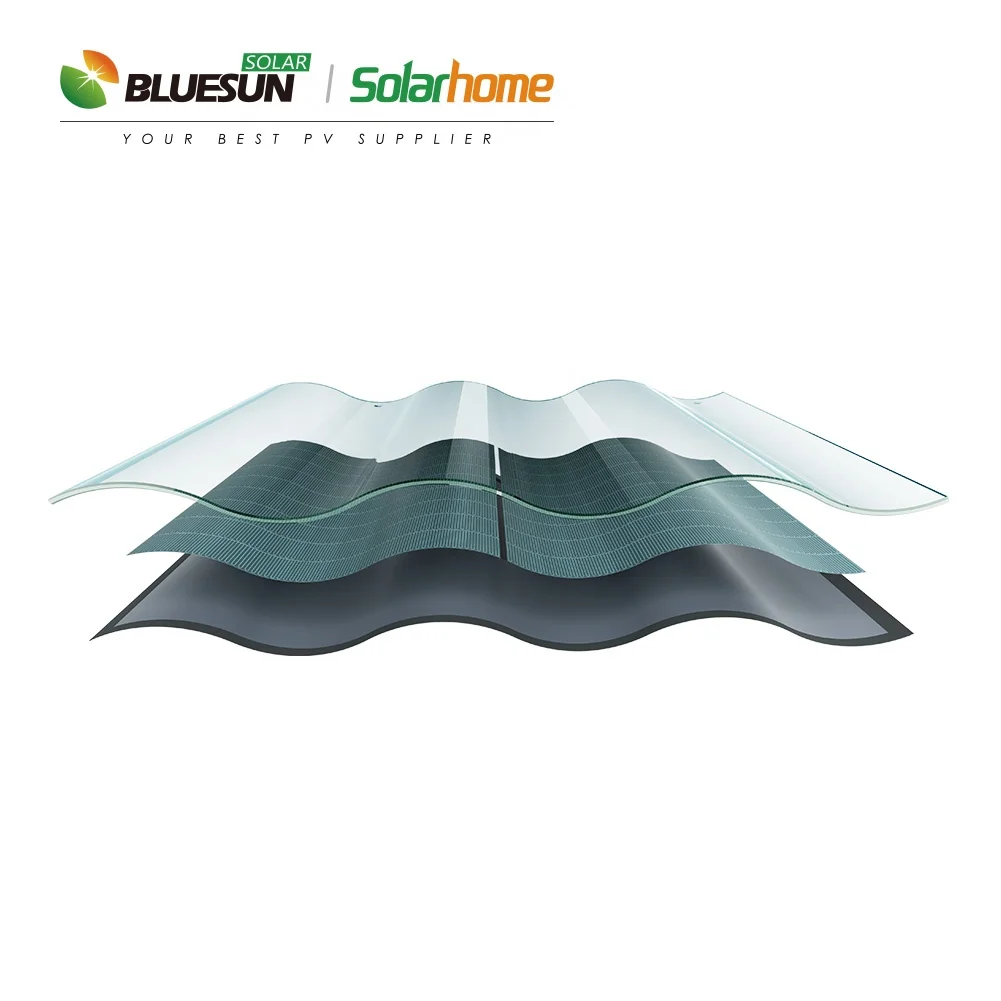

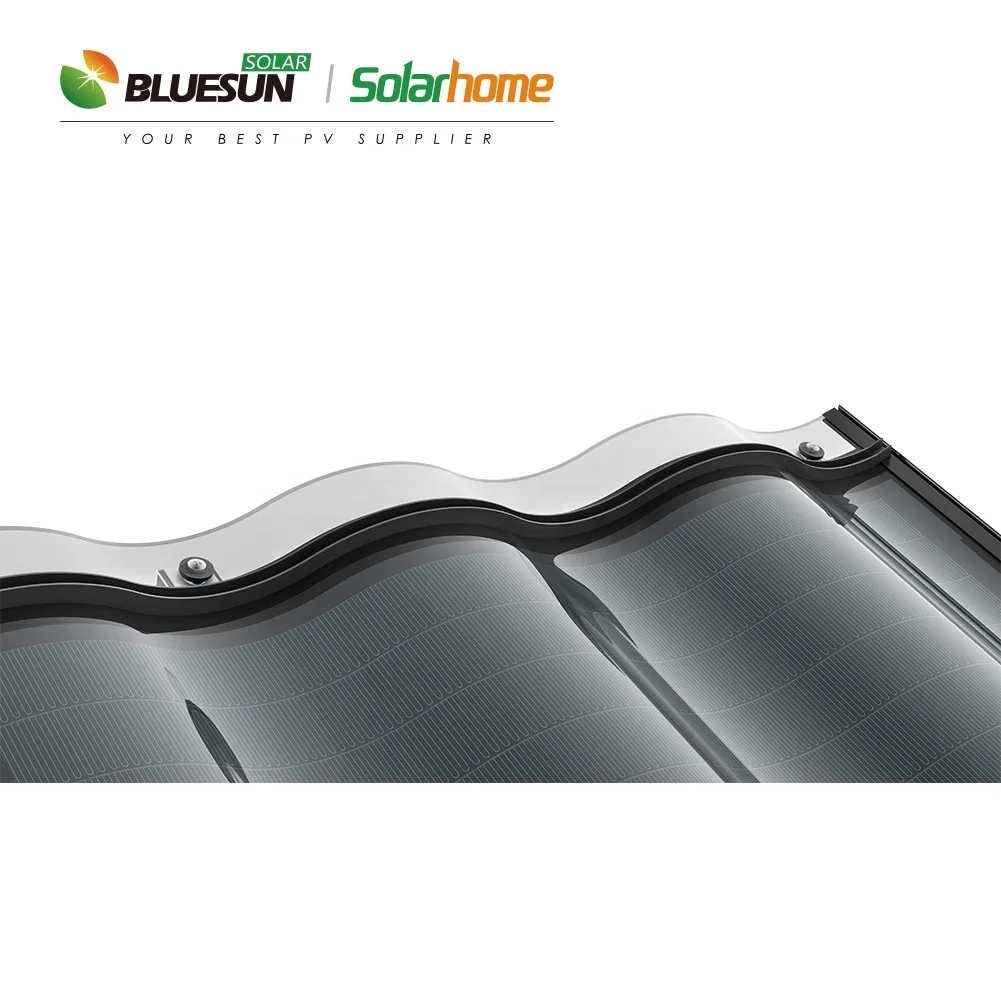

Environmentally friendly building materials.The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Solar tile not only has the functions of waterproofing and heat insulation, but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
Physical parameters | ||
product model: | BSM-30S | |
length: | 700mm | |
width: | 500mm | |
arch height: | 35mm | |
weight: | 5.2KG | |
color: | black | |
junction box: | 68*68*19.7 (mm) IP67 | |
cable type: | 2.5mm solar cable 450 (+10/-0) mm | |
cable connector: | MC4 | |
Electrical parameters | ||
chip type: | CIGS | |
power: | 30W | |
short-circuit current: | 4.45A | |
open-circuit voltage: | 10.16V | |
current at PMPP: | 3.87A | |
voltage at PMPP: | 7.79V | |
Function grade | ||
loading grade: | 2400Pa | |
waterproof grade: | IP67 | |
fire-proof grade: | B1 | |
hail-proof grade: | level 4 (ANSI FM 4473) | |
working temperature: | -40°C to +85°C |

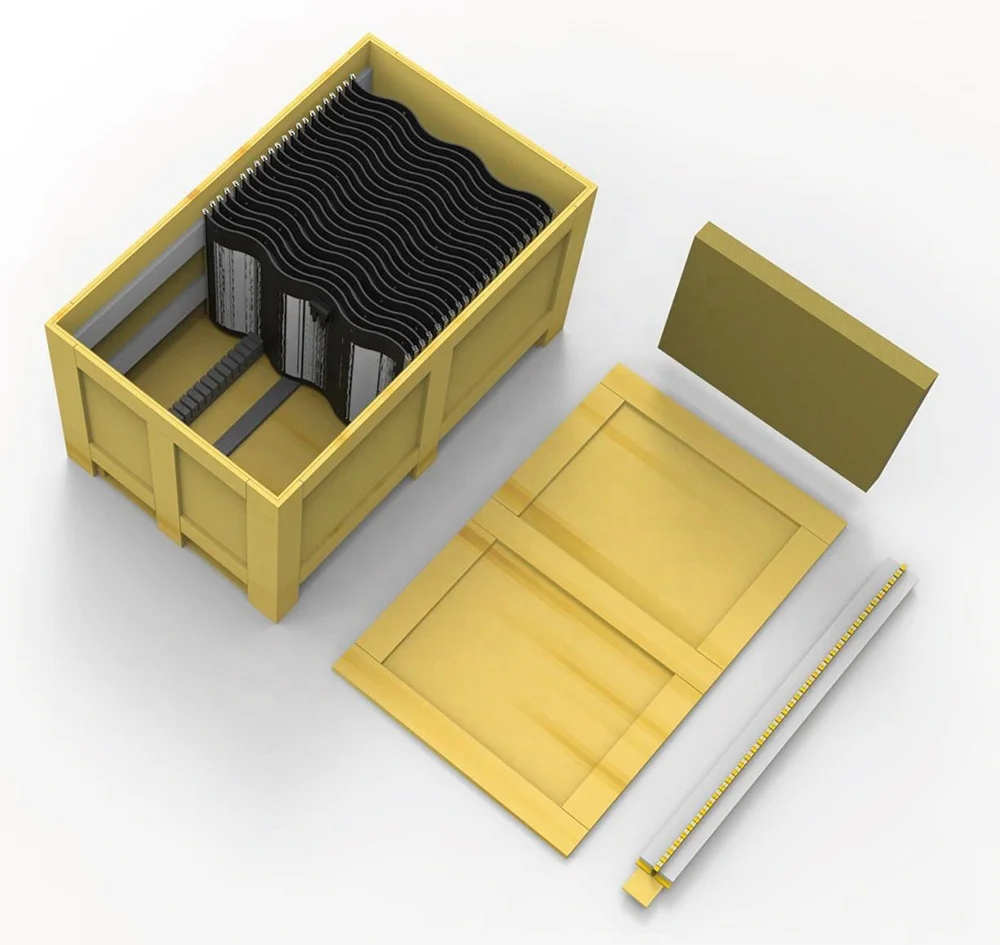

One Box | Packing Specification | Gross Weight | Net Weight | Number per carton |
1260X780X690mm | 263kg | 210kg | 40pcs |
Container Plan | Loading Quantity | Loading Quantity | Total weight | Volume |
20ft | 39ctn | 1560pcs | 10.3t | 27.6m³ |
40ft | 81ctn | 3240pcs | 21.5t | 54m³ |
By Sea | Delivery from Shanghai or Ningbo seaport |
By Air | Departure from Shanghai Pudong Airport |
By Express | By TNT/DHL |
