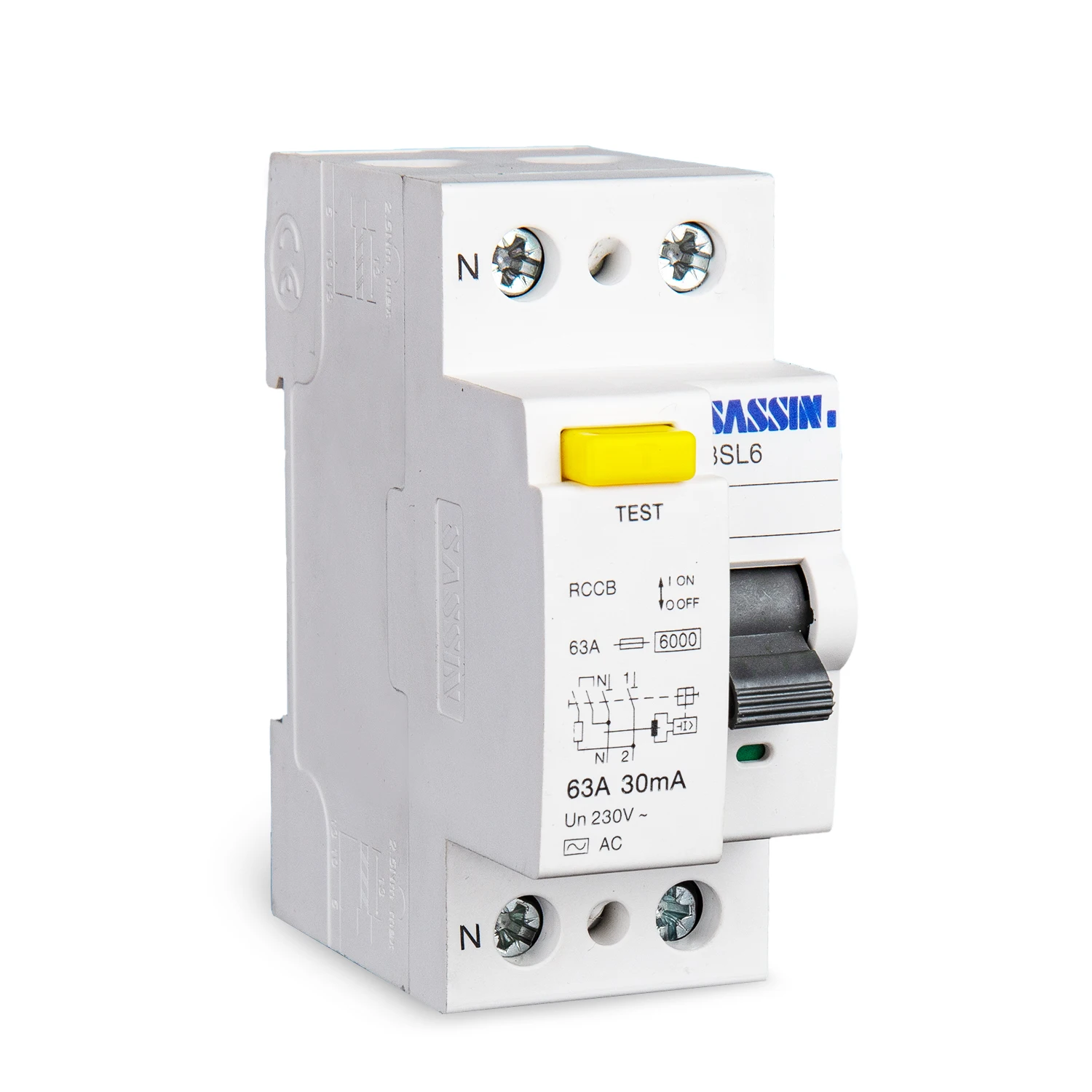

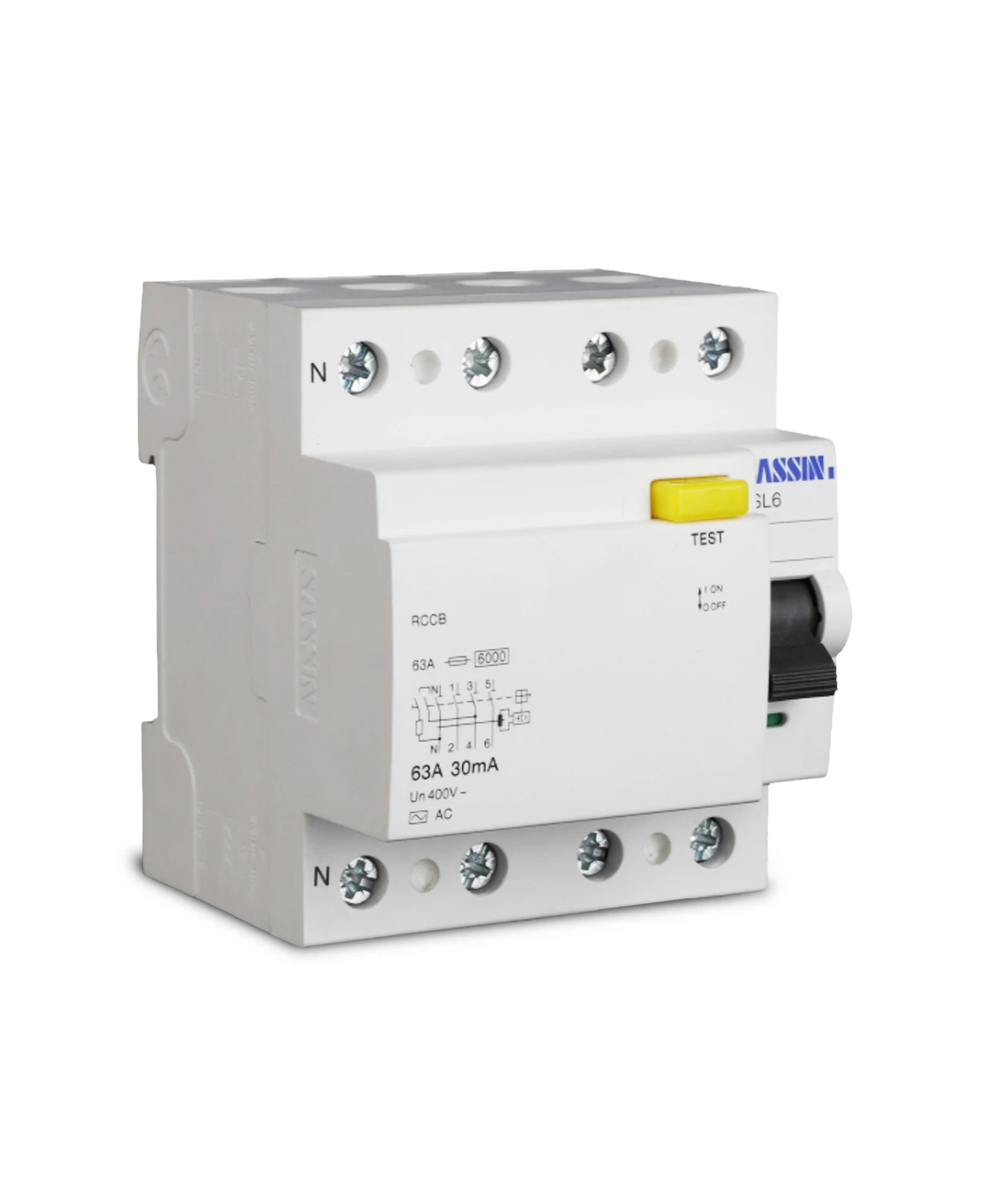

3SL6 2P 4P srccb защита от перегрузки по току с 10a 15a 20a 25a 40a 50a 63 ампер автоматический
- Категория: Circuit Breakers >>>
- Поставщик: Sassin,International,Electric,Shanghai,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9.85 $* | 9.74 $* |
| Jul-17-2025 | 7.57 $* | 7.5 $* |
| Jun-17-2025 | 9.67 $* | 9.32 $* |
| May-17-2025 | 9.5 $* | 9.14 $* |
| Apr-17-2025 | 7.32 $* | 7.70 $* |
| Mar-17-2025 | 9.25 $* | 9.19 $* |
| Feb-17-2025 | 8.24 $* | 8.9 $* |
| Jan-17-2025 | 8.20 $* | 8.63 $* |
Характеристики

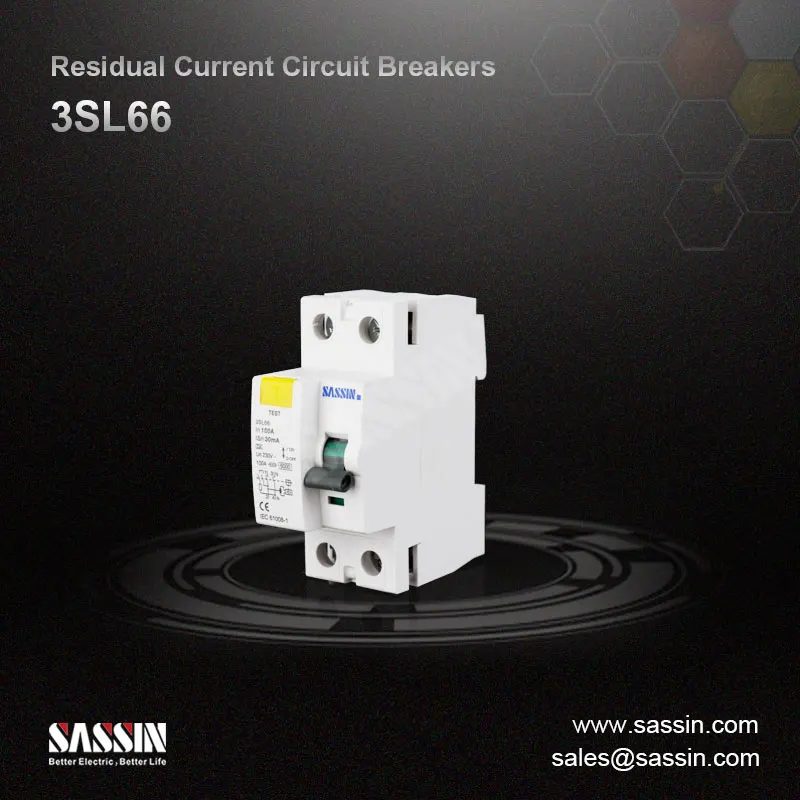

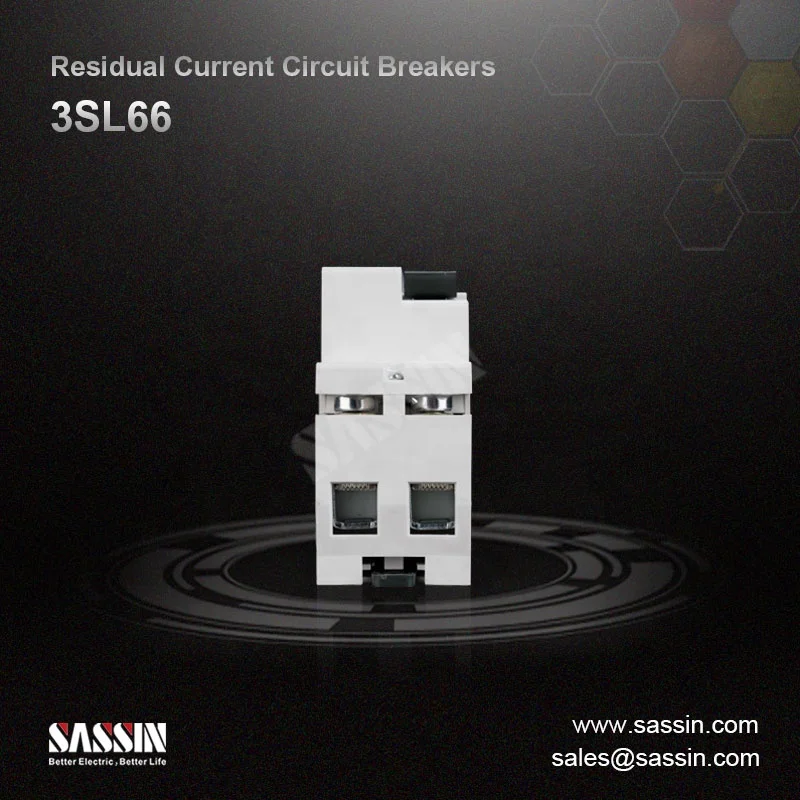

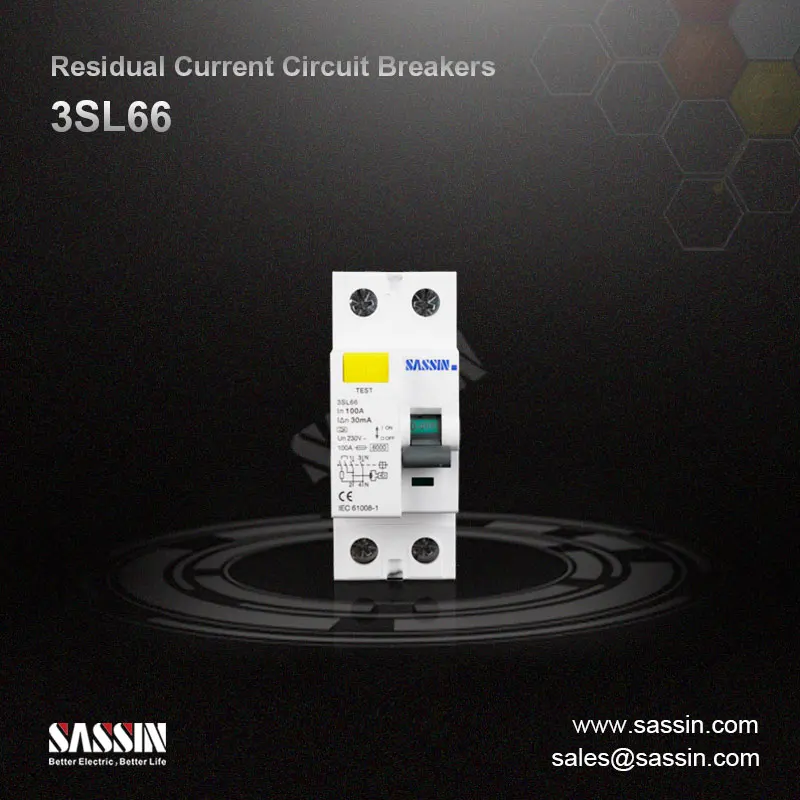

Residual Current Circuit Breakers
Functions
Switching and isolation function
Controlling
Protection against the effects of sinusoidal alternating earth fault currents
Protection against indirect contacts and additional protection against direct contacts.
Protection against fire hazard caused by insulation faults
Used in residential building , non-residential building, energy sources, industry and infrastructure.
Anti false wiring design to ensure safe wiring
Functions
Switching and isolation function
Controlling
Protection against the effects of sinusoidal alternating earth fault currents
Protection against indirect contacts and additional protection against direct contacts.
Protection against fire hazard caused by insulation faults
Used in residential building , non-residential building, energy sources, industry and infrastructure.
Anti false wiring design to ensure safe wiring
Model | 3SL6 |
Poles | 1P+N, 3P+N |
Rated Current | 16, 25, 40, 63A |
Rated Voltage | 230 (V AC) |
Rated Frequency | 50 (Hz) |
Rated Short-circuit | 10 (kA) |
Type | AC, A |
Rated Residual Currents | 30mA |
Standard | IEC 61008-1 |
Busbar Connection | Pin Type |
MOQ | 10 |
