ПЛК-контроль упаковочная линия ротационный слот для печати машина высечки флексографский
- Категория: Carton Printing Slotting Die-Cutting Machine >>>
- Поставщик: Lly,Pack,(foshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 273700.23 $* | 287385.85 $* |
| Aug-18-2025 | 271400.93 $* | 284970.16 $* |
| Jul-18-2025 | 227700.79 $* | 239085.59 $* |
| Jun-18-2025 | 266800.75 $* | 280140.8 $* |
| May-18-2025 | 232300.91 $* | 243915.92 $* |
| Apr-18-2025 | 262200.66 $* | 275310.28 $* |
| Mar-18-2025 | 259900.4 $* | 272895.65 $* |
| Feb-18-2025 | 257600.34 $* | 270480.28 $* |
| Jan-18-2025 | 255300.58 $* | 268065.52 $* |
Характеристики
Products Description
WHY CHOOSE US?
Model | TGC618 | TGC920 | TGC924 | TGC1224 | TGC1228 | TGC1428 | TGC1628 | TGC1632 | TGC1636 |
Max. Speed (pcs/min） | 350 | 300 | 300 | 250 | 230 | 220 | 180 | 180 | 160 |
Max. Feed Size (mm） | 600×1800 | 900×2000 | 900×2400 | 1200×2400 | 1200×2800 | 1400×2800 | 1600×2800 | 1600×3200 | 1600×3600 |
Min. Feed Size | 200×435 | 270×600 | 270×600 | 320×600 | 320×600 | 365×600 | 450×600 | 450×600 | 450×600 |
Skip Feed | 800×1800 | 1200×2000 | 1200×2400 | 1500×2400 | 1500×2800 | 1700×2800 | 1900×2800 | 1900×3200 | 1900×3600 |
Max. Print Size | 600×1760 | 900×1960 | 900×2360 | 1200×2360 | 1200×2760 | 1400×2760 | 1600×2760 | 1600×3160 | 1600×3560 |
Min. Slotting | 180×55×180×55 | 240×65×240×65 | 240×65×240×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65×260×65 | 260×65×260×65 | 260×65×260×65 |
Min. Slotting | 110×110×110×110 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 | 130×130×130×130 |
Max. Slotting Depth | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 400 | 400 |
Feeder Unit
1,Continuous or skip feeding is available with counter.
2,Lead Edge Feeder with motorized feeding stroke adjust and reduce the pull roll pressure.
3,Original imported SUN Lead Edge Feeder to promise long - term feeding precision and stability.
4,Several row brushes and anti-static system to keep the paperboard clean before coming into printer unit, printing quality promised.
5,Main motor is protected from start-up when units are not fully closed and locked.
2,Lead Edge Feeder with motorized feeding stroke adjust and reduce the pull roll pressure.
3,Original imported SUN Lead Edge Feeder to promise long - term feeding precision and stability.
4,Several row brushes and anti-static system to keep the paperboard clean before coming into printer unit, printing quality promised.
5,Main motor is protected from start-up when units are not fully closed and locked.

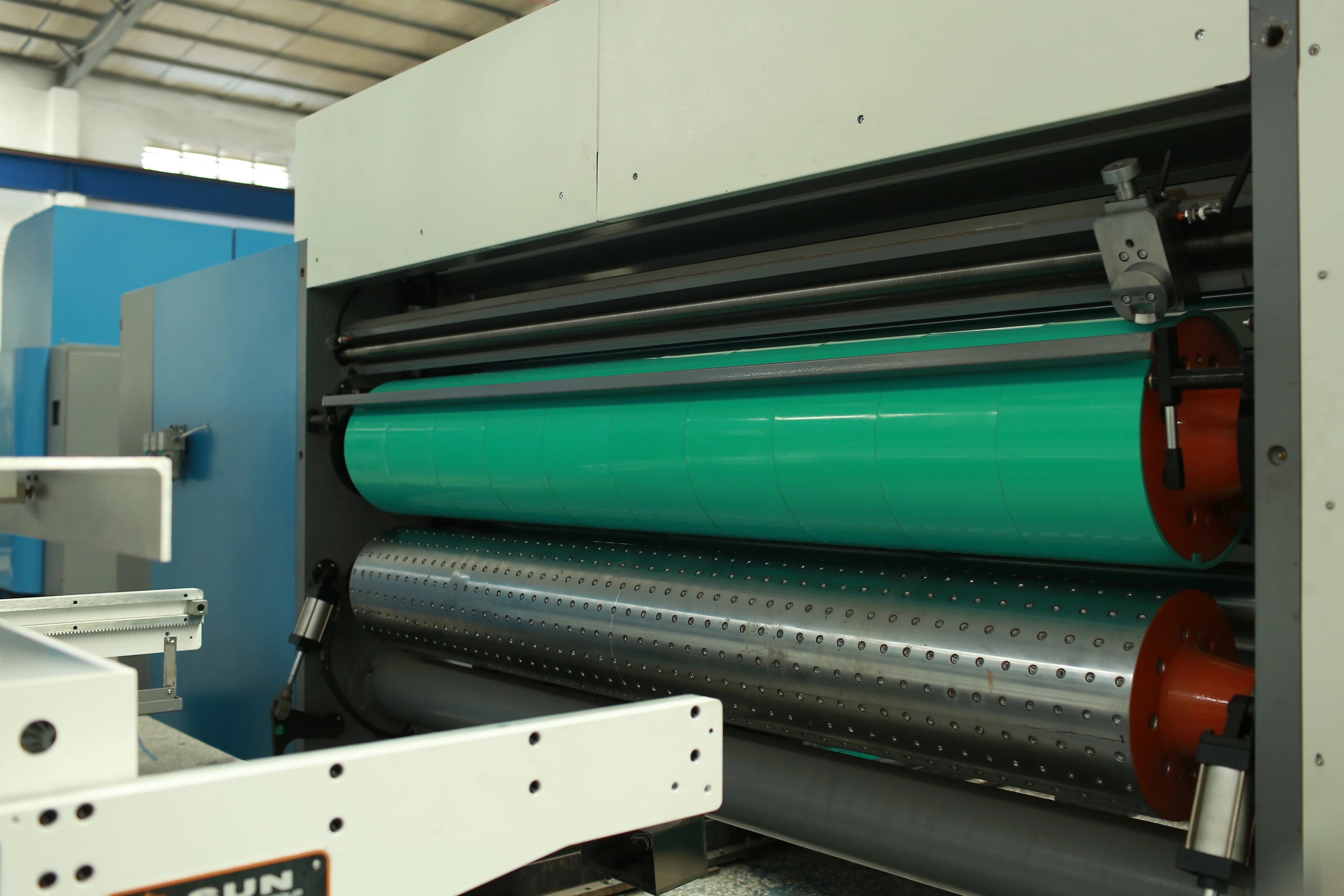

Printer Unit
1,Vacuum for paperboard transfer, ceramic-coated transfer wheel for increasing the friction and service life.
2,Printing register adjustment is servo motor driven.
Optional function (Dryer)
-Imported Doctor-blade inking system is available.
-IR system for drying is available
-IR system for drying is available

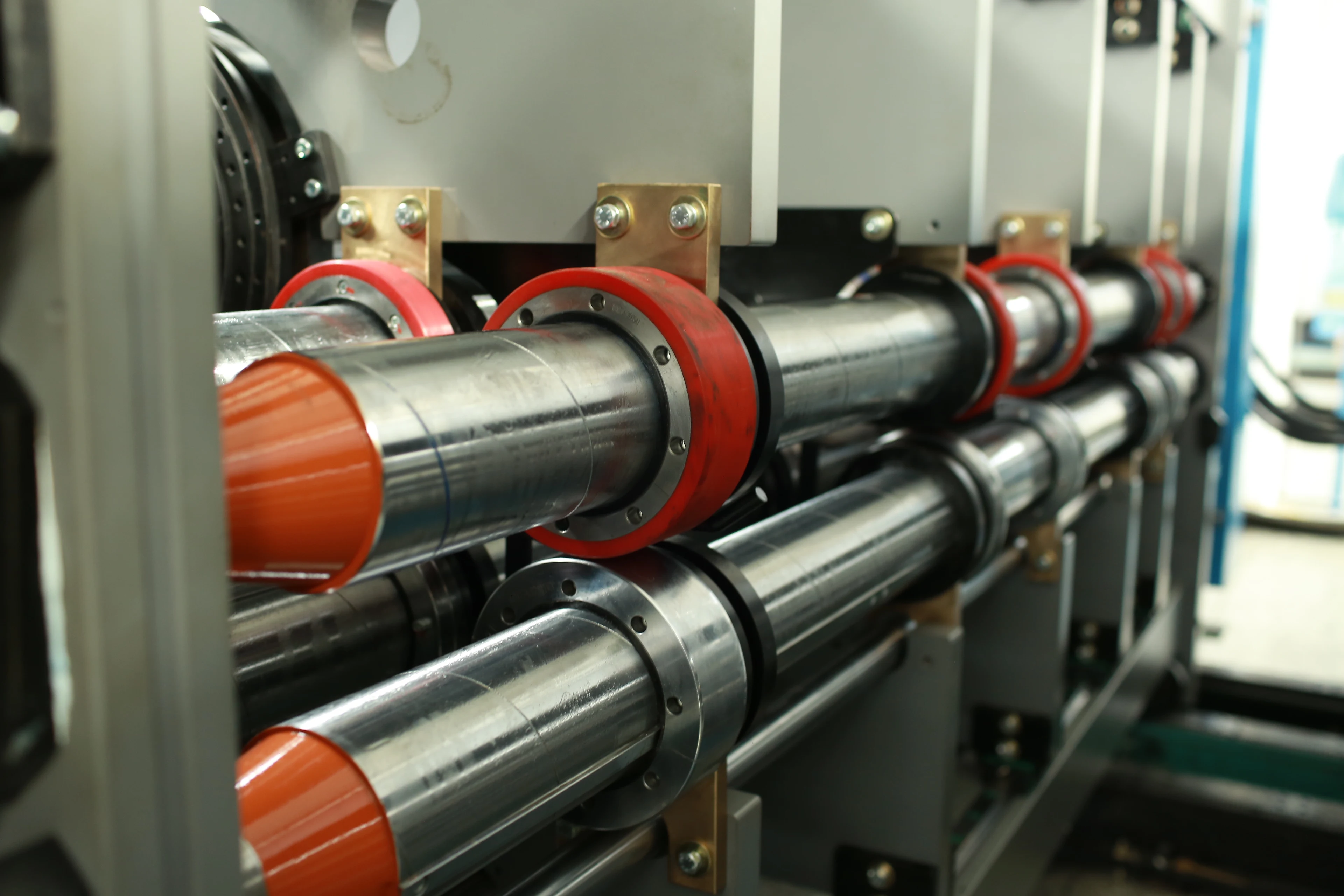

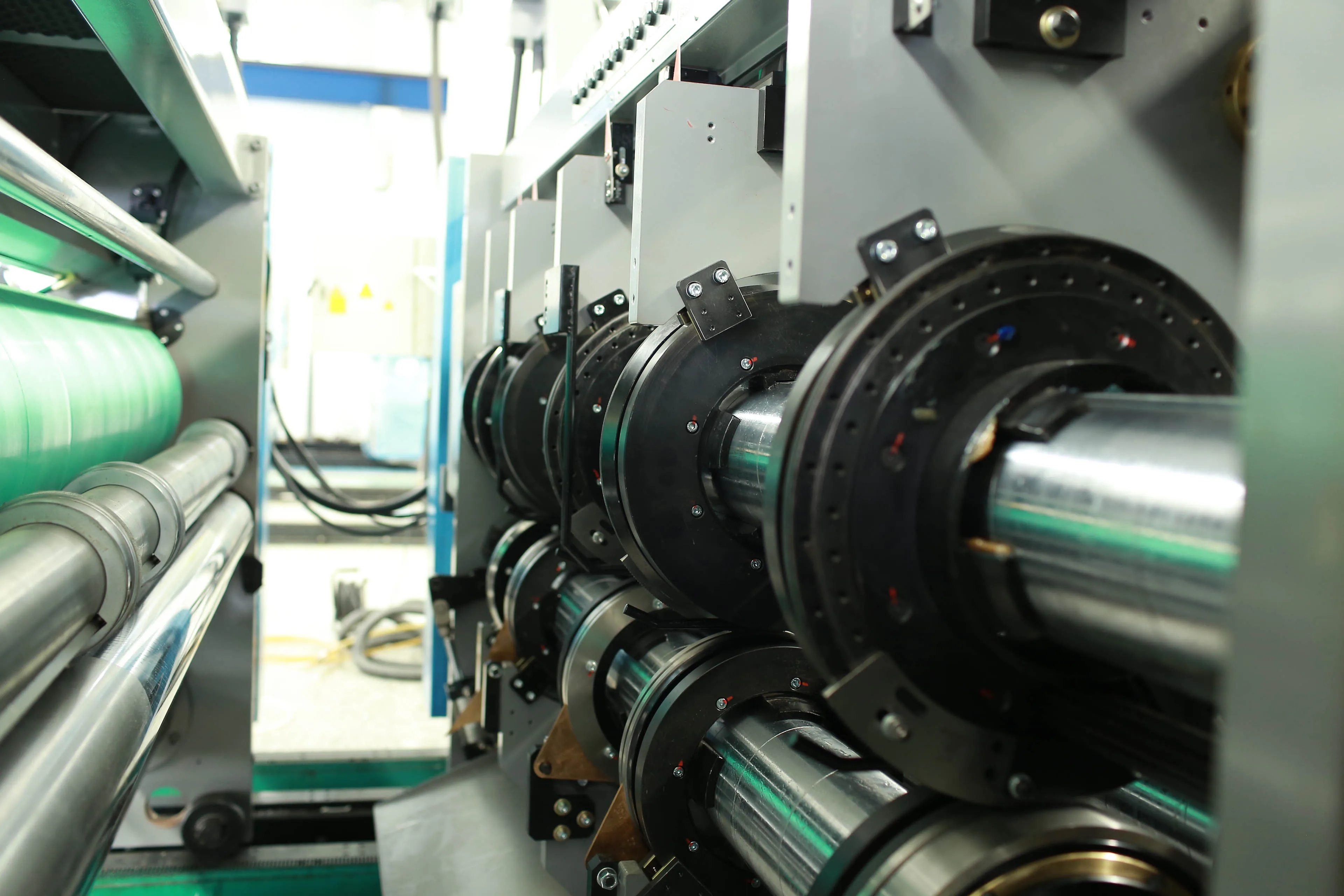

Slotter Unit (Single shaft with double slotting knives)
1,Internal gear structure adjusts the height of the carton box and prevents the lubricant oil from spilling or leaking onto the paperboard.
2,Slotting bosses move along linear lead rails and are driven by lead screws for flexible and precise movement.
3,Lateral movement of the pre-creasing roll, creasing roll and slotting bosses are digitally controlled by motor and PLC.
4,Double creasers slotter unit
3,Lateral movement of the pre-creasing roll, creasing roll and slotting bosses are digitally controlled by motor and PLC.
4,Double creasers slotter unit
Rotary Die-cutter Unit (Servo Drive Optional)
1,50mm side to side oscillation of anvil cylinder device.
2,Anvil cylinder speed compensation achieved by adopting independent motor , the compensation scope is ±3.5mm.
3,Anvil cover trimming system to keep surface flat and smooth.
2,Anvil cylinder speed compensation achieved by adopting independent motor , the compensation scope is ±3.5mm.
3,Anvil cover trimming system to keep surface flat and smooth.
Vibrator&Auto Stacker
1, Cleaning section adopts independent motor
2, Vibrating belts adopting wrinkled imported belts, which controlled by independent speed motor
3, Cleaning section back-end adopts air blower and brush devices
4, Air compressed sheet catching arm
5, Tension of the transfer belt at the connection arm can be adjusted individually
2, Vibrating belts adopting wrinkled imported belts, which controlled by independent speed motor
3, Cleaning section back-end adopts air blower and brush devices
4, Air compressed sheet catching arm
5, Tension of the transfer belt at the connection arm can be adjusted individually

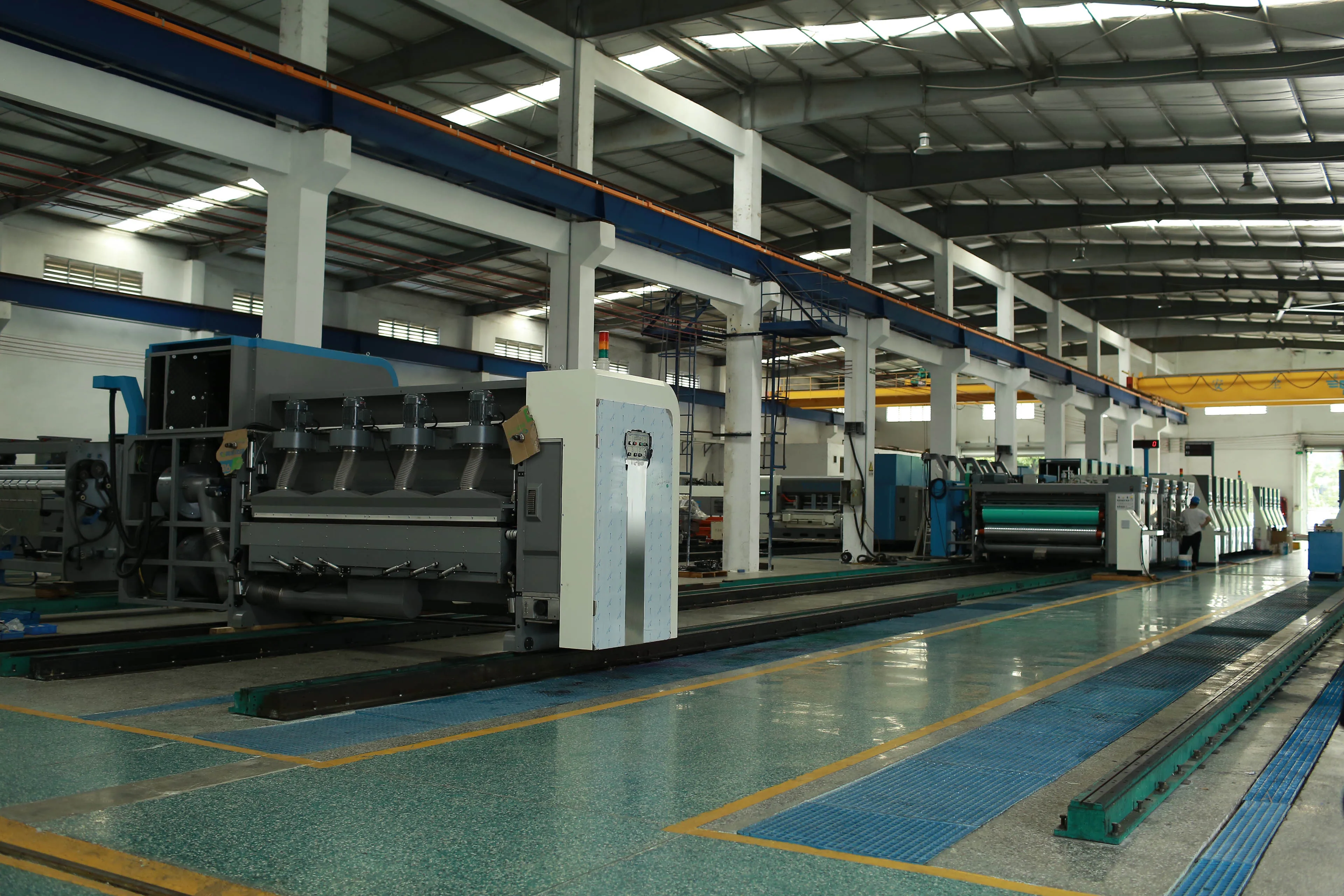

Company Profile
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
We are a manufacturer, located in National High-tech Industrial Zone, Sanshui, Foshan City, Guangdong Province, China. Warmly welcome to visit our company.
2. Q: Why choose LLY PACK?
1). 22 Years of Specialization in Corrugated Industry Solutions that delight
2). Over 3500+ successful installation corrugated cardboard production line
3). Strict inspection before delivery
4). The unique company who drafts the latest version of national industry standard for corrugated machines in China
2. Q: Why choose LLY PACK?
1). 22 Years of Specialization in Corrugated Industry Solutions that delight
2). Over 3500+ successful installation corrugated cardboard production line
3). Strict inspection before delivery
4). The unique company who drafts the latest version of national industry standard for corrugated machines in China
5). We have all kinds of corrugated machines and spare parts, which can reduce sourcing time for you.
3. Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, Facebook, Linkin, Whatsapp, Instangram.
3. Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, Facebook, Linkin, Whatsapp, Instangram.
4. Q:Where is your products being exported before?
Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
