Характеристики
Our advantage
Shenzhen zhimeituo Co., Ltd. was founded in 2015. Specializing in the production of Audio& video converters, adapters, splitters and other related products. Products of high quality, fashionable and good price, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
We are committed to providing distinguished customers like you with high-quality products and quality services. We have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
Over the past few years of production and management and exploration, we set up our own quality management system and we always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems. Further exploration and innovation, and excellence.
item | value |
Certification | FCC, ce, RoHS |
Private Mold | NO |
Brand Name | NA |
Model Number | Y80 |
Place of Origin | SHENZHNE |
Product name | HDMI Audio Adapter |
The HDMI audio return adapter can pass the sound of a TV that supports ARC function through HDMI/
The ARC interface is transmitted back to the fiber, coaxial, 3.5mm headphone jack of the adapter, and can be output at the same time,
It perfectly solves the problem that the TV without audio output interface cannot be connected to the audio system.
Features:
1. Support fiber output
2. Support coaxial output
3. Support RCA stereo output
4. Support 3.5mm stereo headphone jack output
5. 3.5mm stereo headphone jack equipped with high-performance audio amplifier
6. Support switch machine noise reduction function
7. Support no signal automatic mute function
8. Support transmission of 192KHz audio sampling rate
9. Optical fiber coaxial interface supports 5.1 channel transmission
Product parameters:
Shell material: aluminum alloy
Colour: Black
Power supply interface: Micro USB
Maximum working current: 65mA
Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A
Working environment temperature: -10~+55℃
Storage temperature: -20~+60℃
Working humidity: 10~90%RH (non-condensing)
Storage humidity: 5~95%RH (non-condensing)
Shell size: 81.5*58.5*21.5 (mm)
Weight: 88 grams

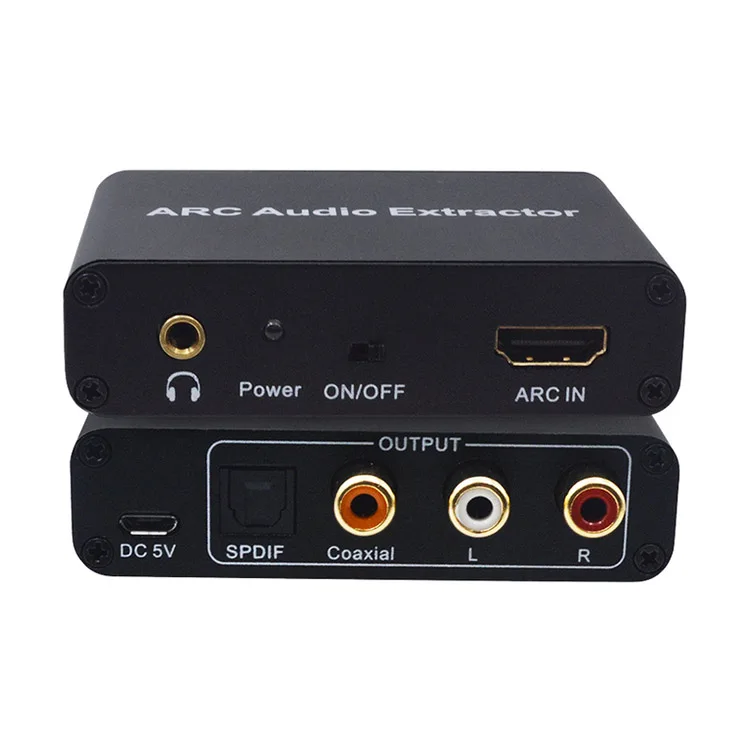

Physical interface intent:
R: Right channel output interface L: Left channel output interface
Coaxial: Coaxial digital audio output interface, connect to audio amplifier equipment when in use
SPDIF: Optical digital audio output interface, connect audio amplifier device when in use
DC 5V: 5V power interface 3.5mm stereo output interface
Power: Power indicator light, light up when power on
ON/OFF: ARC function switch (not power switch)
ARC IN: HDMI/ARC input interface, connect to the HDMI/ARC of the TV when in use

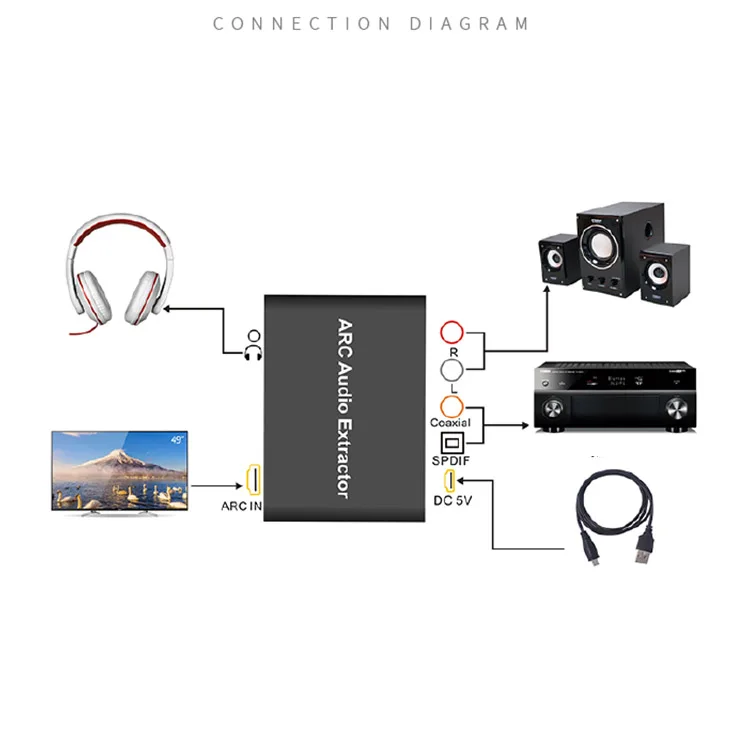

Port connection
The ARC interface is transmitted back to the fiber, coaxial, 3.5mm headphone jack of the adapter, and can be output at the same time,
It perfectly solves the problem that the TV without audio output interface cannot be connected to the audio system.
Features:
1. Support fiber output
2. Support coaxial output
3. Support RCA stereo output
4. Support 3.5mm stereo headphone jack output
5. 3.5mm stereo headphone jack equipped with high-performance audio amplifier
6. Support switch machine noise reduction function
7. Support no signal automatic mute function
8. Support transmission of 192KHz audio sampling rate
9. Optical fiber coaxial interface supports 5.1 channel transmission
Product parameters:
Shell material: aluminum alloy
Colour: Black
Power supply interface: Micro USB
Maximum working current: 65mA
Power adapter specifications: AC 100V-240V 50/60HZ, DC 5V/1A
Working environment temperature: -10~+55℃
Storage temperature: -20~+60℃
Working humidity: 10~90%RH (non-condensing)
Storage humidity: 5~95%RH (non-condensing)
Shell size: 81.5*58.5*21.5 (mm)
Weight: 88 grams
Physical interface intent:
R: Right channel output interface L: Left channel output interface
Coaxial: Coaxial digital audio output interface, connect to audio amplifier equipment when in use
SPDIF: Optical digital audio output interface, connect audio amplifier device when in use
DC 5V: 5V power interface 3.5mm stereo output interface
Power: Power indicator light, light up when power on
ON/OFF: ARC function switch (not power switch)
ARC IN: HDMI/ARC input interface, connect to the HDMI/ARC of the TV when in use
Port connection
