Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная
Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная

Холоднокатаная сталь естественное охлаждение В постоянного тока Водонепроницаемая Ip65 Pv солнечная комбайнерная


Поделиться:


Цена:120,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 143.81 $* 150.34 $*
Aug-16-2025 142.62 $* 149.28 $*
Jul-16-2025 119.89 $* 125.80 $*
Jun-16-2025 139.20 $* 146.36 $*
May-16-2025 121.36 $* 127.90 $*
Apr-16-2025 137.44 $* 144.33 $*
Mar-16-2025 136.79 $* 143.1 $*
Feb-16-2025 134.45 $* 141.73 $*
Jan-16-2025 133.67 $* 140.46 $*

Характеристики



Product Description








Specification


item

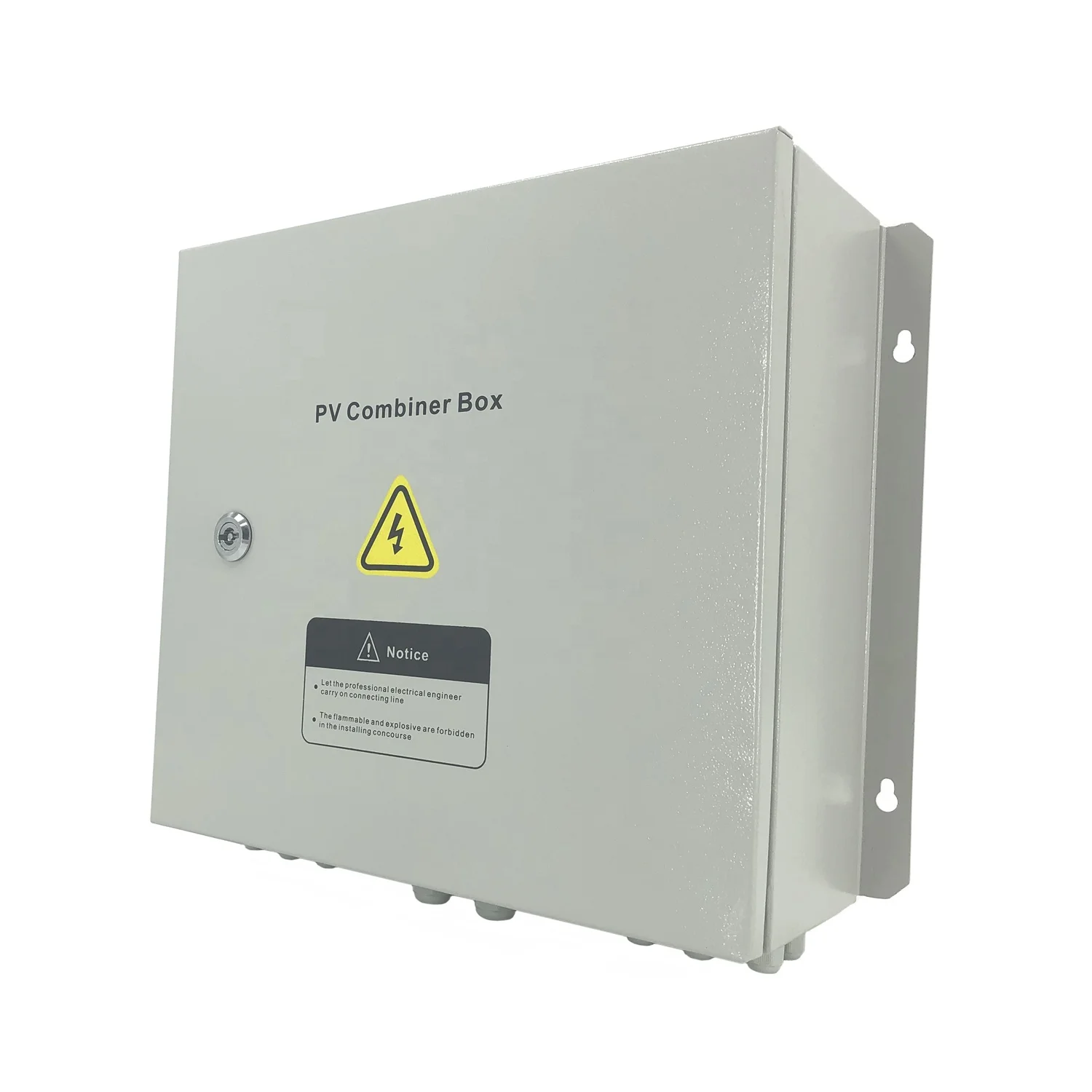

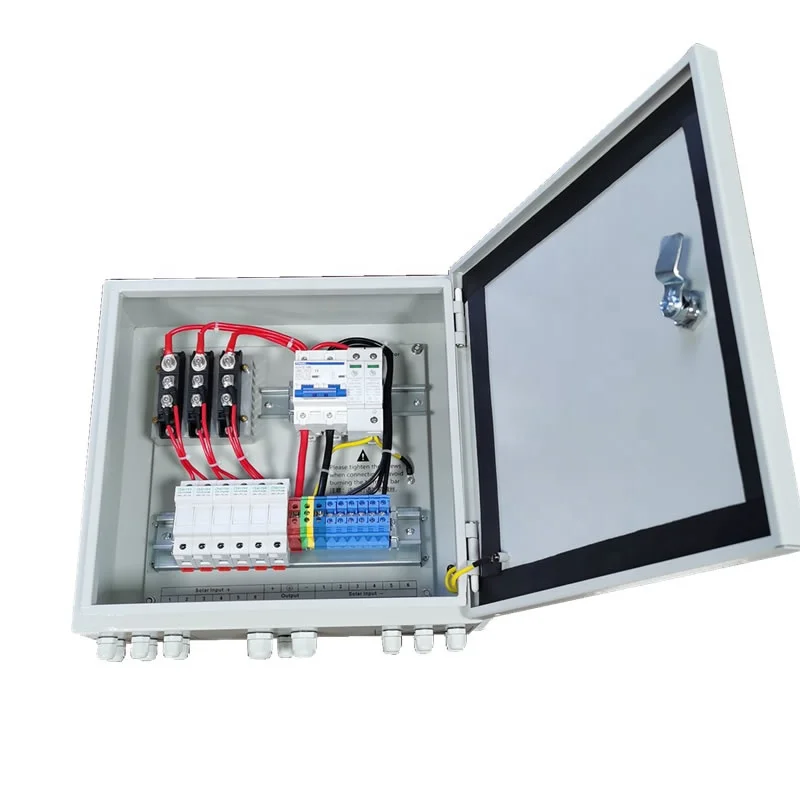

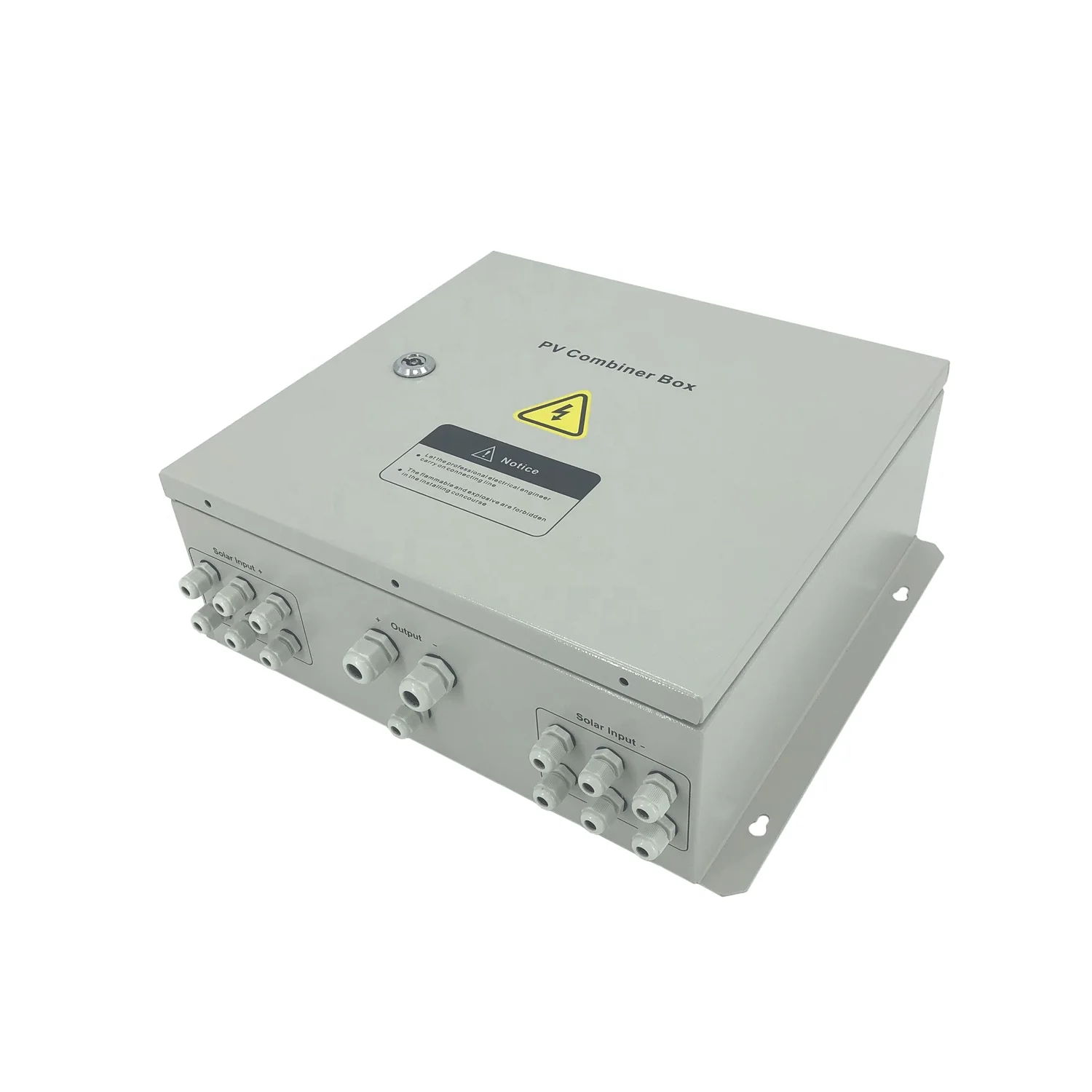

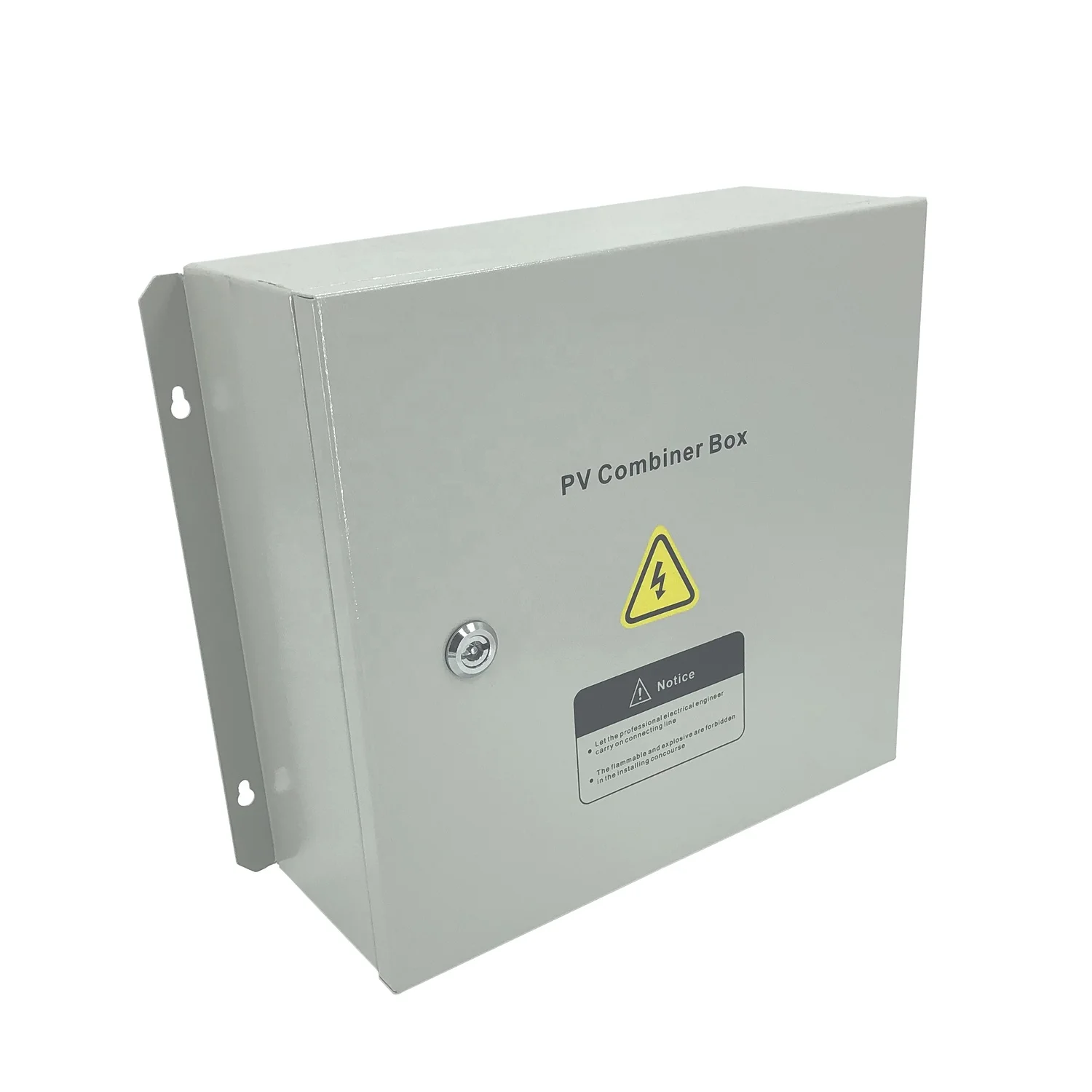

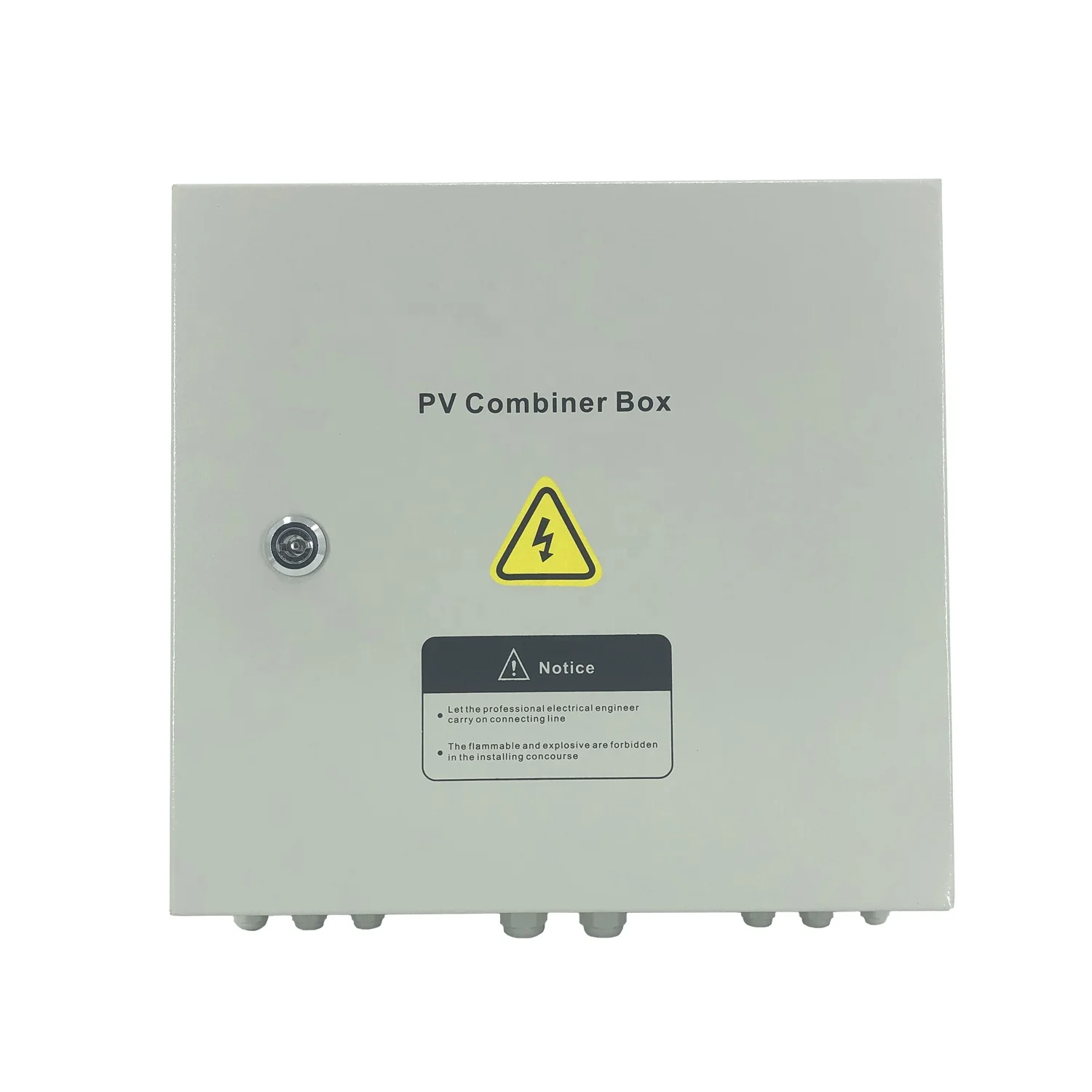

PV Combiner Box Solar 500VDC Waterproof IP65 Combiner Box
Warranty
1 Year
Certification
ISO9001
Place of Origin
China
Brand Name
No brand
Model Number
SHH6T
Material
Cold rolled steel
Color
Grey
Application
Solar PV System
Waterproof grade
IP65
Lightning/surge protection
YES
Number of Max. connection PV array
6
Max. input current of single PV array
15A
Operational Environment Temperature
 -30℃~+60℃
Cooling Method
Natural Cooling


Product Paramenters


Model
SHH4T
SHH6T
SHH8T
SHH10T
Input data
No. of PV array input
4
6
8
10
Max. input current of single PV array
15A
Single PV array fuse
20A
Single PV array wire
PG7, 4mm2
Output data
Number of output
1
2
Max. output current
40A
30A/array, total 60A
40A/array, total 80A
50A/array, total 100A
Output wire of each array
PG16, 8mm2/array
FG16, 10mm2/array
FG16, 10mm2/array
PG16, 12mm2/array
Max. output voltage
500VDC
DC output circuit breaker
YES
Other datas
Protection
IP65
Temperature range
-30℃～ +60℃
N.Weight/G.Weight
5.3/9.3
8.4/12.9
9.5/14.3
10.8/15.6
Product size
340*300*140mm
360*340*145mm
400*420*145mm

Packing size
450*420*245mm
470*450*255mm
530*510*255mm

Cooling method
Natural cooling



Surge protection
YES



Ground wire number
≥6mm2





Details Images




Packing & Delivery






Exhibition




Company Profile








Foshan Nanhai Senhu Photoelectric Technology Co., Ltd. is a professional enterprise dedicated to the R&D and production of photovoltaic inverters, solar controllers and solar street lights, as well as the design of solar power systems, and high-power LED commercial lighting products.The company is located in the National High-tech Zone, Shishan Town, Nanhai District, Foshan City, Guangdong Province, the economic center of the Pearl River Delta,close to frontier cities such as Guangzhou and Hong Kong, the transportation is extremely convenient.The company's existing factory covers an area of more than 5,000 square meters. Not only has advanced production and processing equipment, CNC automatic processing equipment, but also has a professional R&D, design team, production management team and sales team.The company has obtained ISO9001:2015 quality management system certification, as well as various invention patents, utility model patents and appearance patents.We are customer-centric, integrate a stable supply industry chain, and jointly create high-quality and reliable products.
We take "safety, energy saving, green and environmental protection" as the core, adhering to the business philosophy of "enthusiasm and integrity, scientific and technological innovation", and constantly pursue the aesthetics and practicability of products.With high-quality products and perfect after-sales service, the products sell well in dozens of countries and regions and have won the trust and praise of our customers.
Facing the future, we continue to explore and keep going beyond.


FAQ


Q1. May I take some samples to test before placing the order?
A1: Yes, customers need to pay for the sample and delivery cost.

Q2. How long can you offer the samples?
A2: 1~5 days after the payment is confirmed.

Q3. What's your payment terms for sample?
A3: You can pay via T/T.

Q4. What’s the delivery terms you can offer?
A4: We can accept EXW, FOB, CNF.

Q5. Do you have any certifications for your products?
A5: We have ISO9001:2015, CE, RoHS certifications for all of our products.

Q6. How to proceed an order?
A6:
1.Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.

Q7. Is it OK to print my logo on product?
A7: Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q8. What is your term of payment and delivery?
A8: Our term of payment is by T/T, 30% in advance for deposit and balance payment before shipment. And term of delivery is FOB Foshan.
